Name: Super Capacitor 5.4V 10F Ultracapacitor EDLC Farad Capacitor for Energy Storage
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601735499593
Availability: InStock
Rating: 5 (1 reviews)

Description

Super Capacitor 5.4V 10F Ultracapacitor EDLC Farad Capacitor for Energy Storage
Product Description

Modle	BA-5.4V10F
3000Rate discharge Cap.( ΔV＝2.4V-1.5V)	10F
Cap. Tolerance(25℃)	-10%~+30%
Rated Voltage(V)	5.4
Internal Cell	20F/2.7V
Rated Current (25℃)	4.6A
Max. Current (25℃)	14.2A
Max. Stored Energy (at VR) E	146J(0.04Wh)/15mAh
Reference InternalResistance (ESR)	90mΩ
Operating Temp.(Top)	-40~+70℃
Storage temperature range (at 0V)	-40~+70℃
Volume (without terminals) v	9.3ml
Cycle Life (25℃)	500000

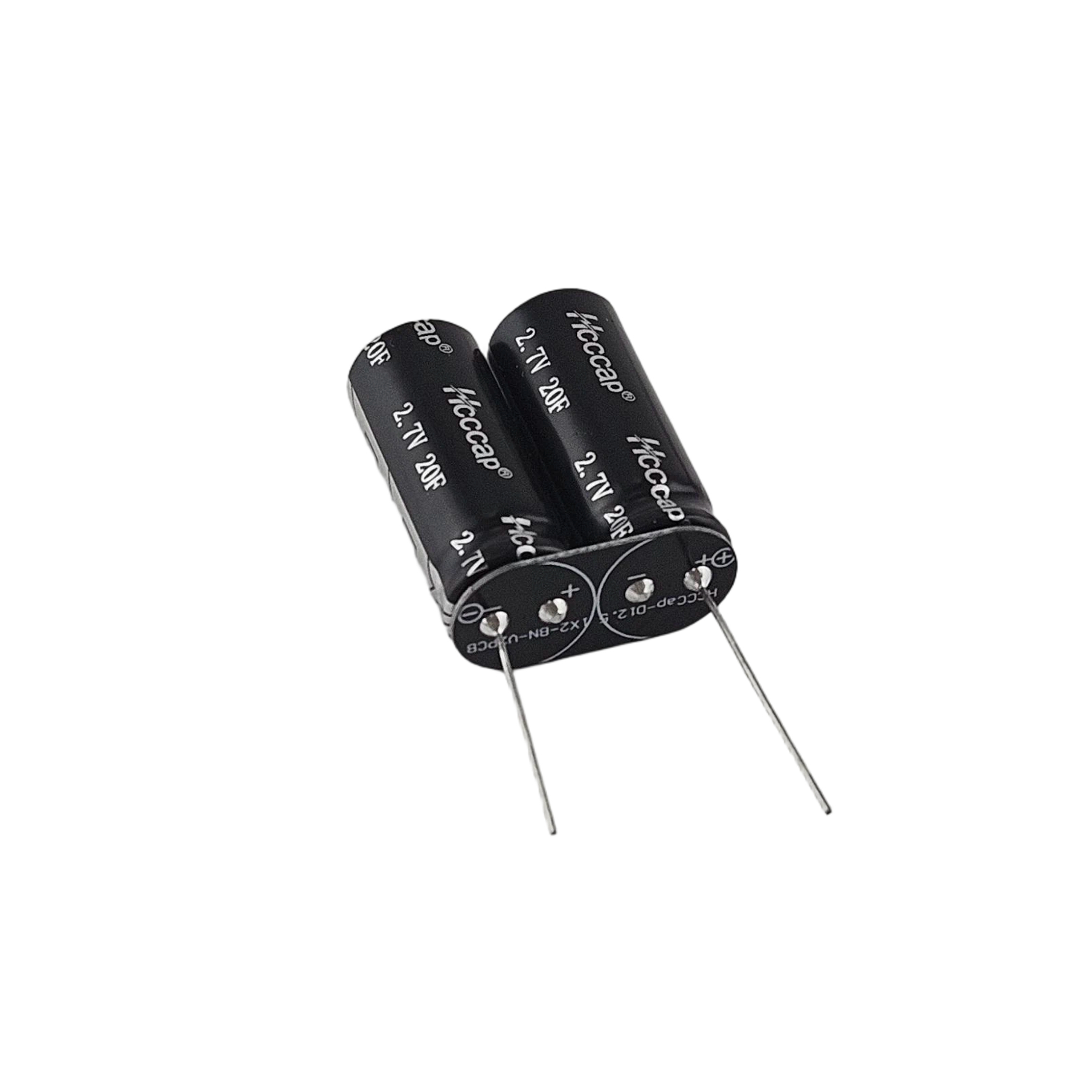

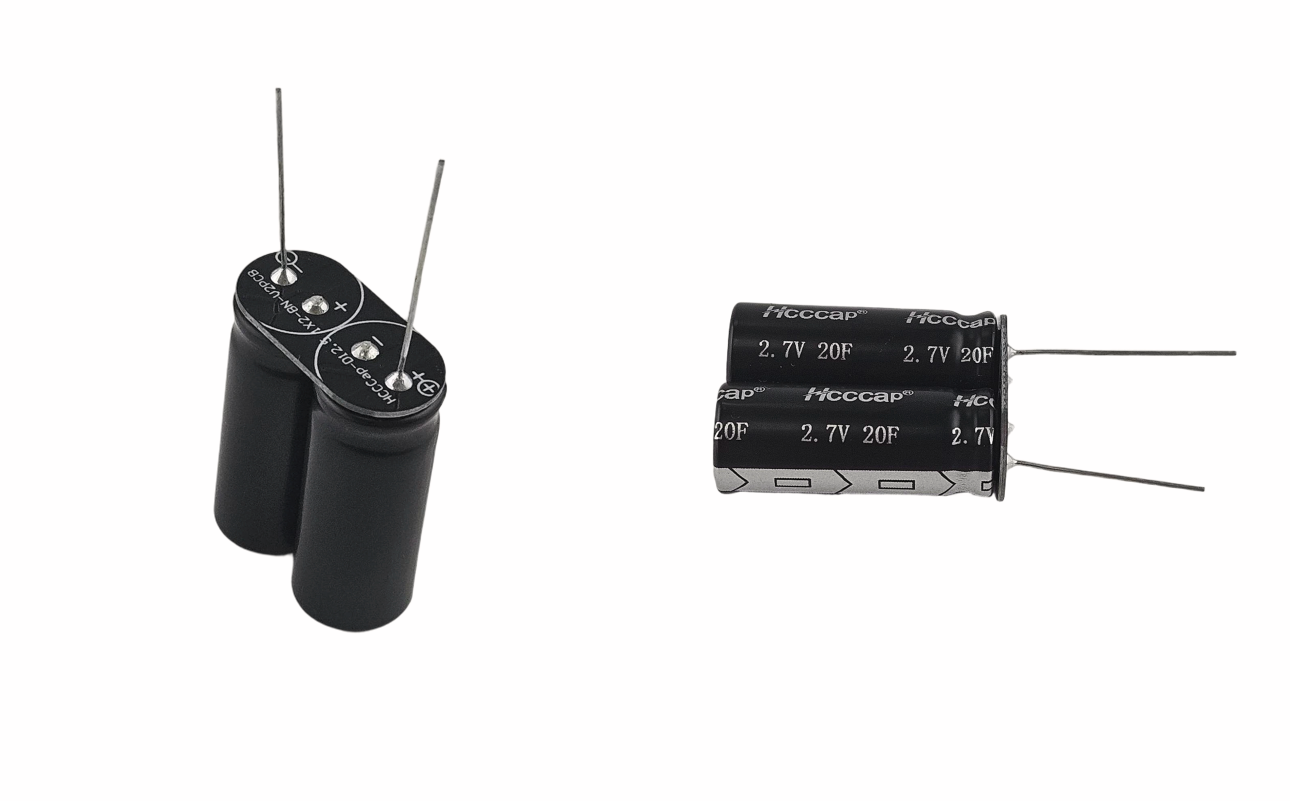

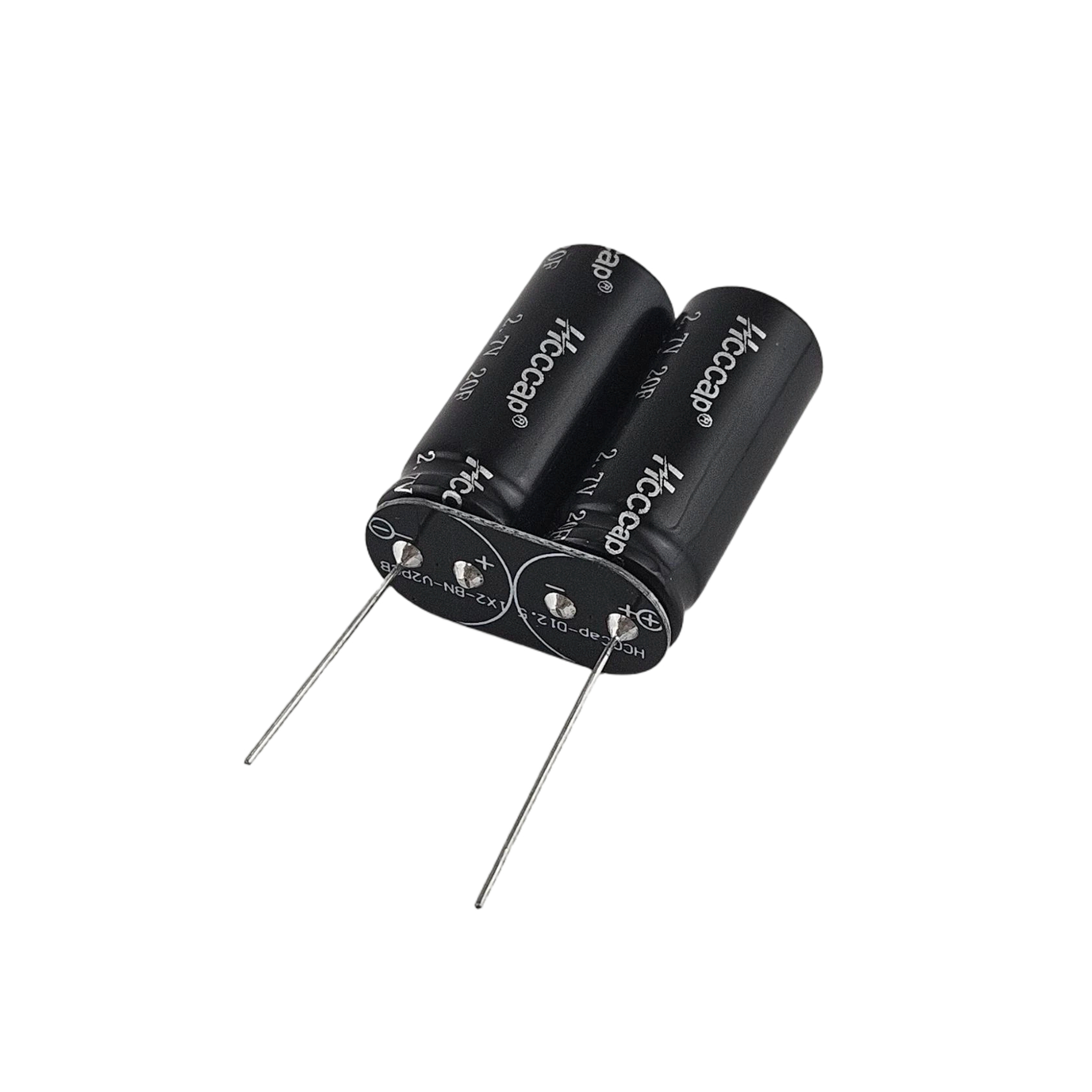

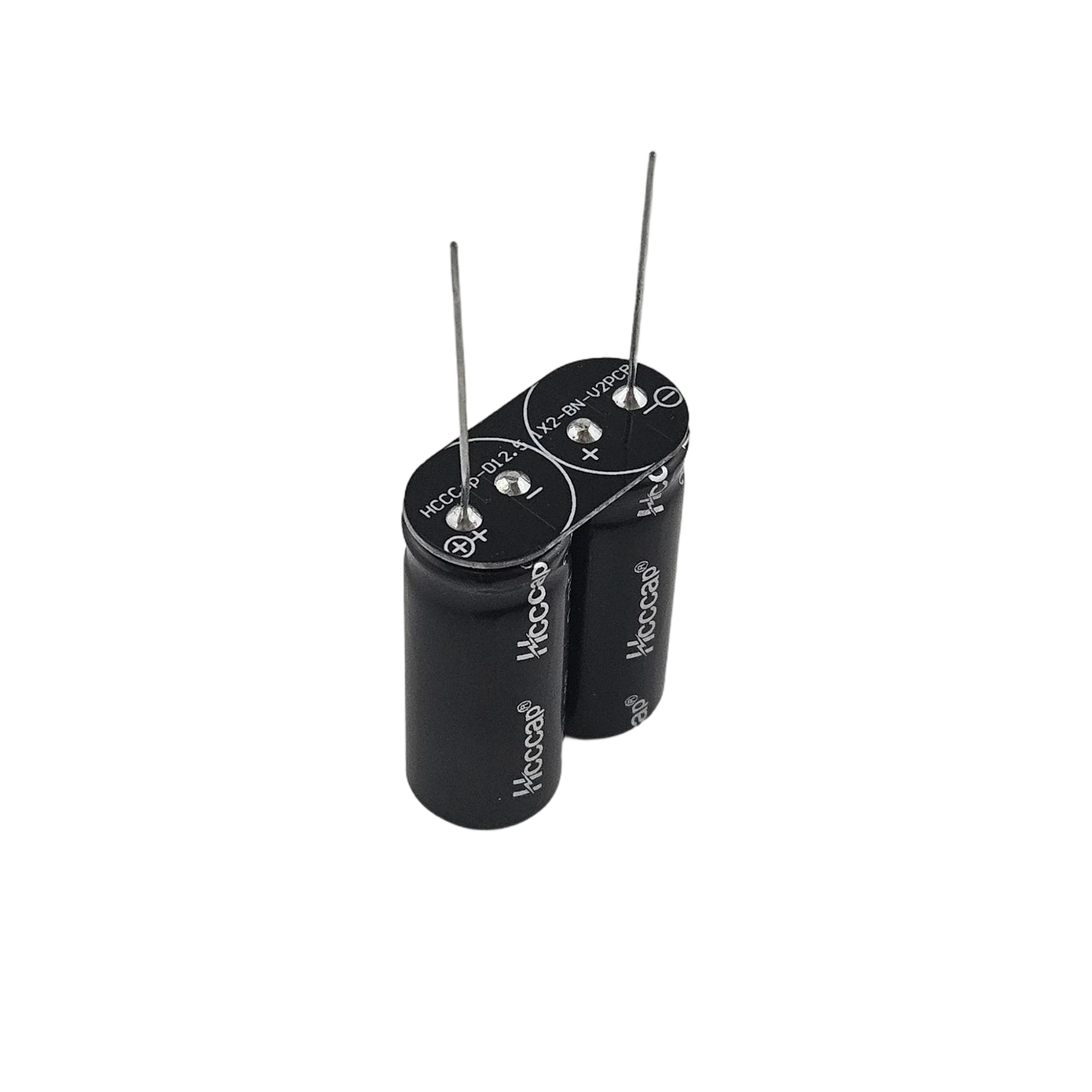

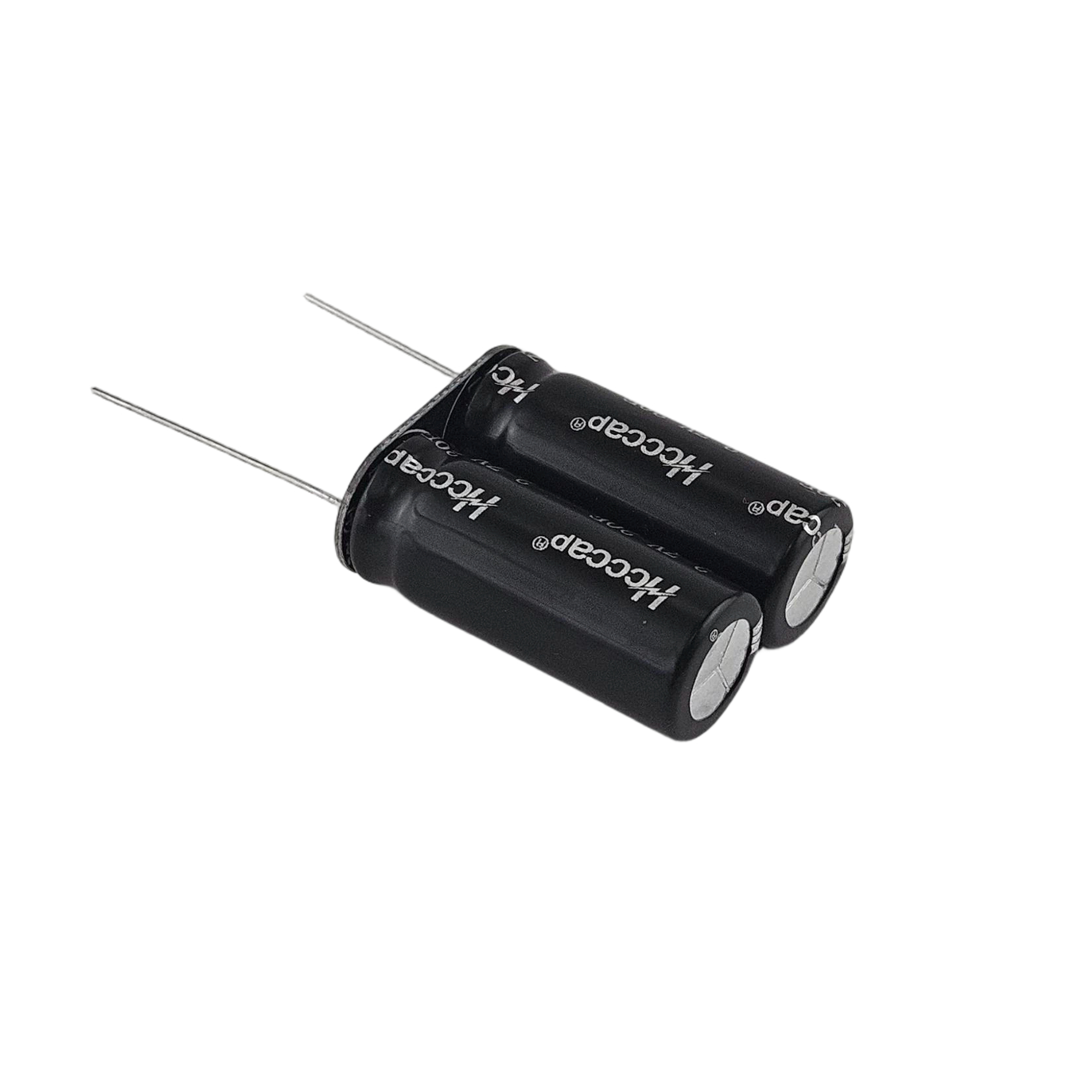

Product Picture

Products Advantages

Wide Operating Temperature Range

Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT)
series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments,
making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.

Long Cycle Life

Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional
supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge
cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.

Excellent Charge-Discharge Characteristics

They support instantaneous high-current charge and discharge, featuring fast charging speed and short
charge-discharge time. They have simple requirements for charging circuits and no memory effect.

Stable Electrical Performance

Certain series (e.g., HP series) feature low internal

resistance and can achieve instantaneous high-current output; the HE series has low leakage current,
suitable for long-term low-current discharge; the 3V series is adapted for long-term stable operation under
high-voltage conditions.

Product Applications

package

Super Capacitor 5.4V 10F Ultracapacitor EDLC Farad Capacitor for Energy Storage

Description

Super Capacitor 5.4V 10F Ultracapacitor EDLC Farad Capacitor for Energy StorageProduct Description

Long Cycle Life

Excellent Charge-Discharge Characteristics

Stable Electrical Performance
