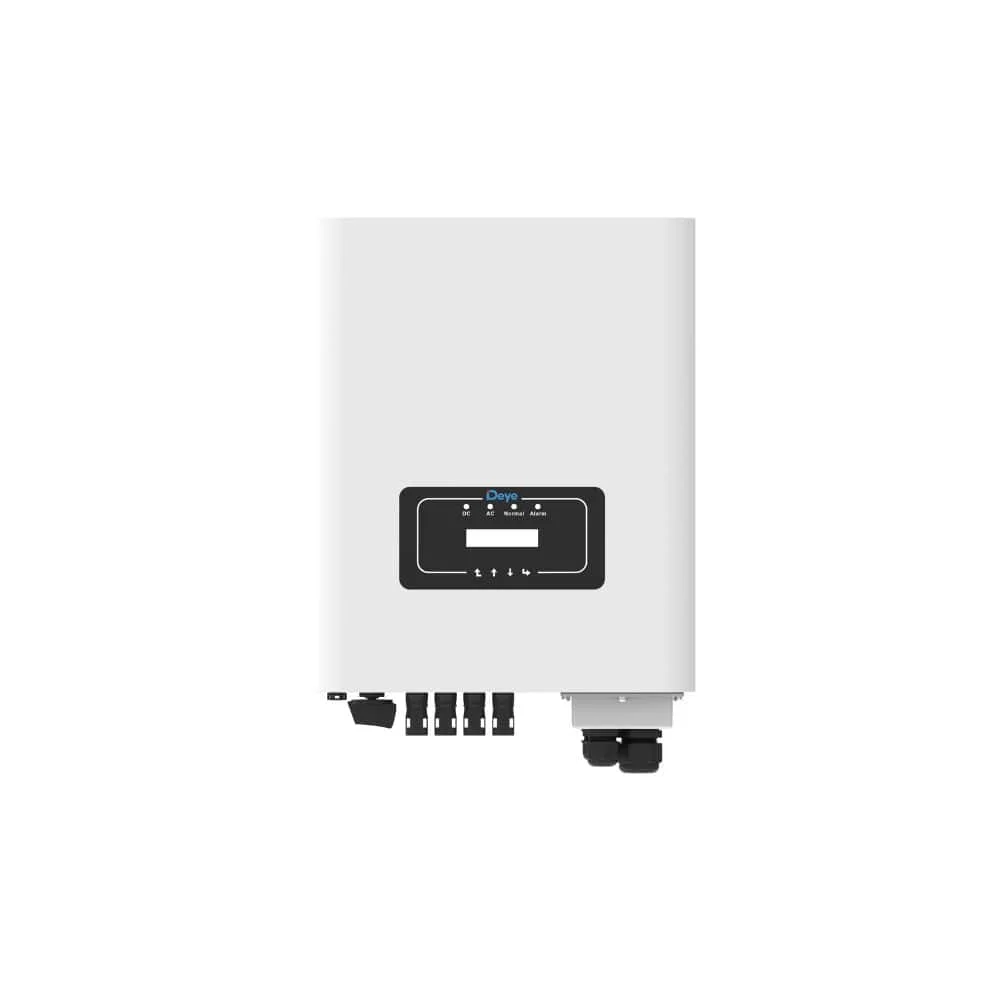

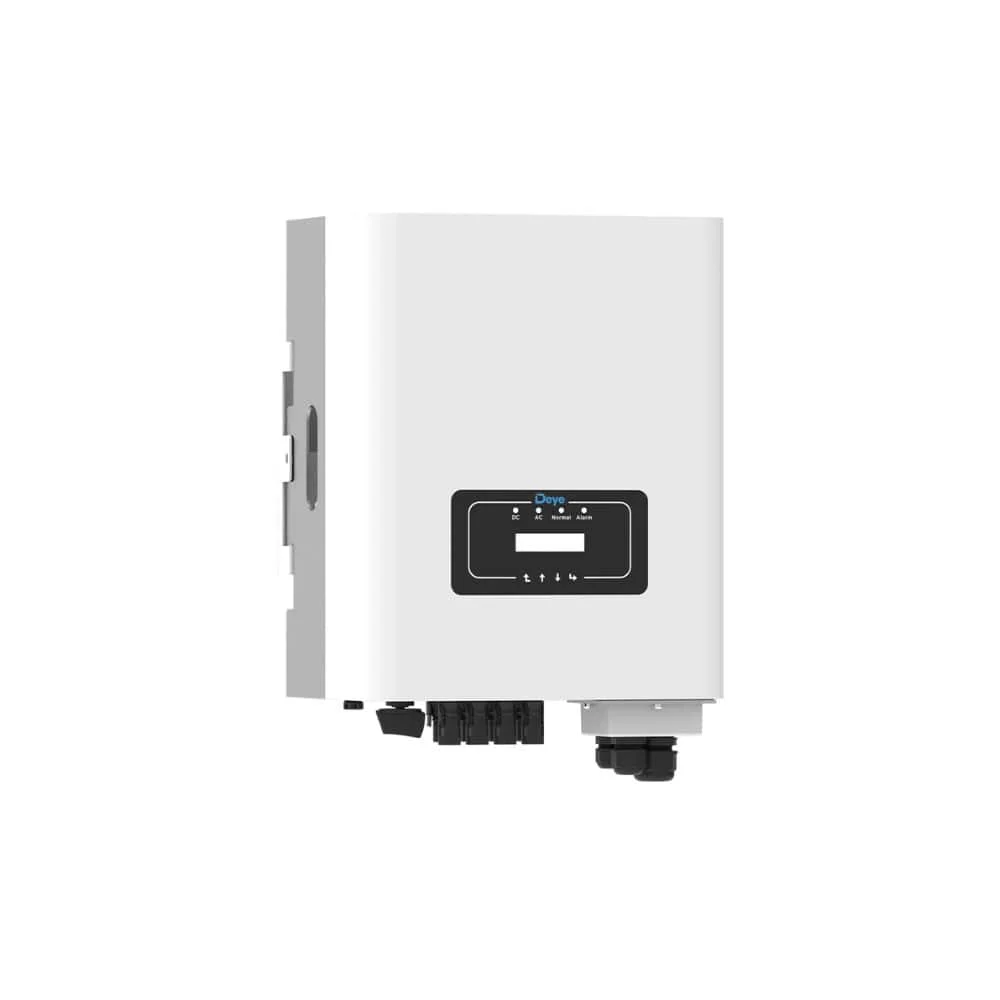

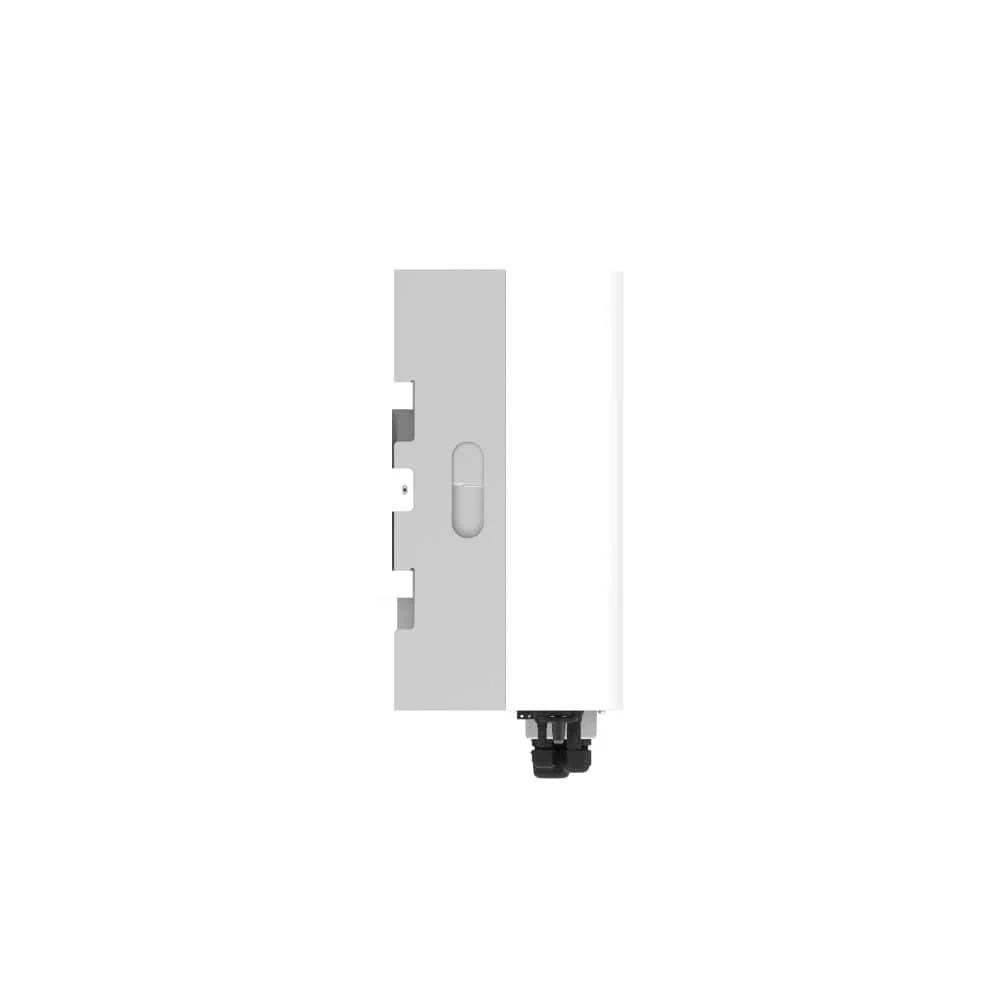

Model | SUN-7K-G02P1-EU-AM2 | SUN-7.5K-G02P1-EU-AM2 | SUN-8K-G02P1-EU-AM2 | |||
Max. PV Input Power (kW) | 10.5 | 11.3 | 12 | |||
Max. PV Input Voltage (V) | 550 | |||||
Start-up Voltage (V) | 80 | |||||
MPPT Voltage Range (V) | 70-500 | |||||
Rated PV Input Voltage (V) | 360 | |||||
AC Output Side | ||||||
Rated AC Output Active Power (kW) | 7 | 7 | 8 | |||
Max. AC Output Apparent Power (kVA) | 7.7 | 8.25 | 8.8 | |||
Rated AC Output Current (A) | 31.9/30.5 | 34.1/32.7 | 36.4/34.8 | |||
Max. AC Output Current (A) | 35/33.5 | 37.5/35.9 | 40/38.3 | |||
Rated Output Voltage/Range (V) | 220/230 0.85Un-1.1Un | |||||
Grid Connection Form | L/N/PE | |||||
Rated Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||||
Efficiency | ||||||
Max. Efficiency | 97.7% | |||||
Euro Efficiency | 97.2% | |||||
MPPT Efficiency | >99% | |||||
Interface | ||||||
Communication Interface | RS485/RS232 | |||||
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||
General Data | ||||||
Operating Temperature Range (°C) | -25 to +60℃, >45℃ Derating | |||||
Permissible Altitude (m) | 3000m | |||||
Noise (dB) | ≤35 | |||||
Ingress Protection(IP) Rating | IP 65 | |||||
Cabinet Size (WxHxD mm) | 330×310×208.5 (Excluding Connectors and Brackets) | |||||
Weight (kg) | 12.1 | |||||
Warranty | 5 Years | |||||
Type of Cooling | Natural Cooli | |||||
Grid Regulation | IEC 61727, IEC 62116, EN 50549, NRS 097, RD 140, UNE 217002, G99 | |||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
