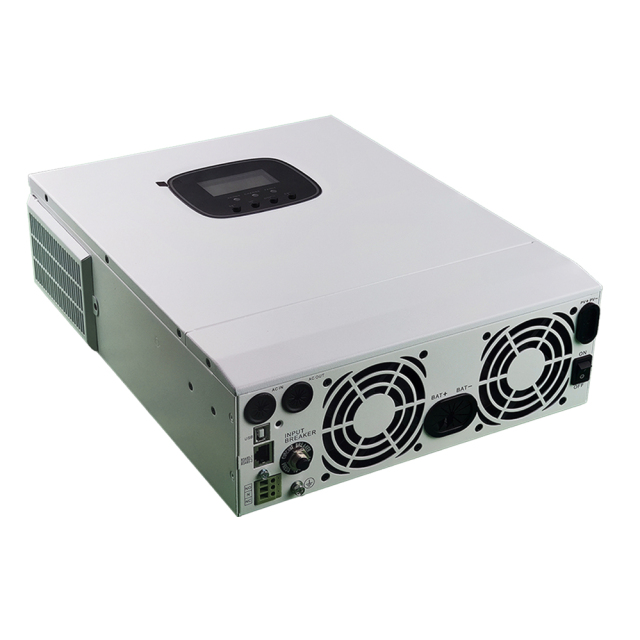

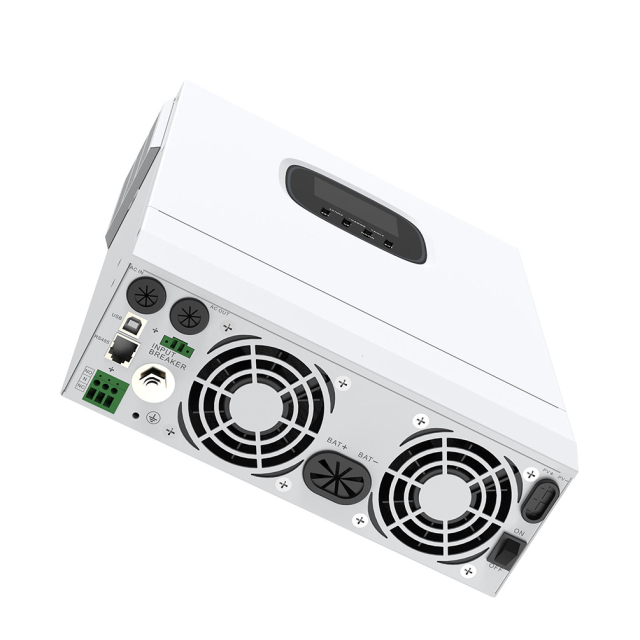

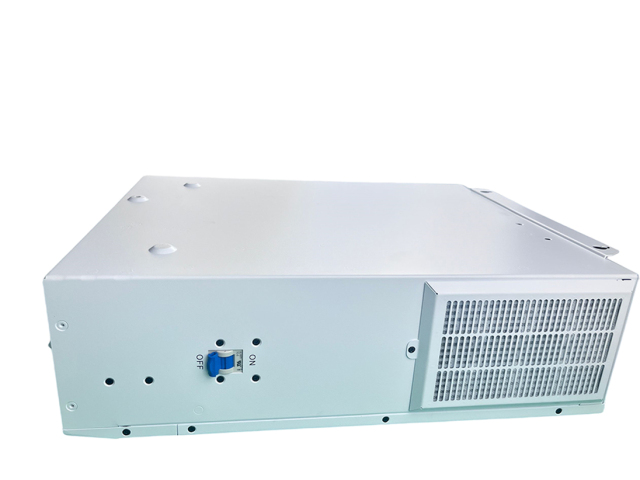

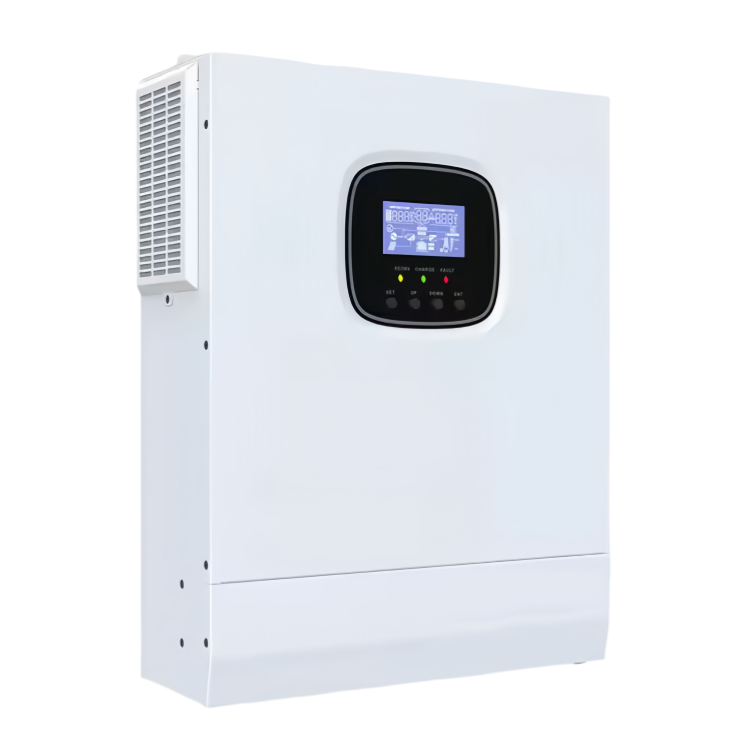

Solar Inverter SRNE Inverter 3kw OFF Grid Hybrid Solar Inverter
Product Parameters
| Item |
HSI 3000U |
| Rated Output Power |
3,000W |
| Peak Power |
6000VA |
| Rated Output Voltage |
120Vac, single-phase |
| Load Capacity of Motors |
2HP |
| Rated AC Frequency |
50Hz/60Hz |
| Battery Type |
Lead-acid / Li-ion / User-defined |
| Rated Battery Voltage |
24V |
| Voltage Range |
20～33Vdc |
| Max. PV Charging Current |
60A |
| Max. Utility/Generator Charging Current |
40A |
| Max. Hybrid Charging Current |
100A |
| Max. PV Array Power |
1600W |
| Max. Input Current |
40A |
| Dimensions |
378*280*103mm (1.24*0.92*0.34ft) |
| Weight |
6.8kg |
| Protection Degree |
IP20, indoor onIy |
| Operating Temp. Range |
-10℃~55℃ |
| Embedded Interfaces |
RS485 / USB / Dry contact |
| External Module (optional) |
Wi-Fi / GPRS |
Support remote monitoring
Comprehensive protection
Up to 99.9% MPPT tracking efficiency
Simple to install and easy to use
Support Li-ion battery BMS communication and BMS dual activation .
| Rated Output Power |
3,000W |
| Peak Power |
6000VA |
| Rated Output Voltage |
120Vac, single-phase |
| Dimensions |
378*280*103mm (1.24*0.92*0.34ft) |
| Weight |
6.8kg |
