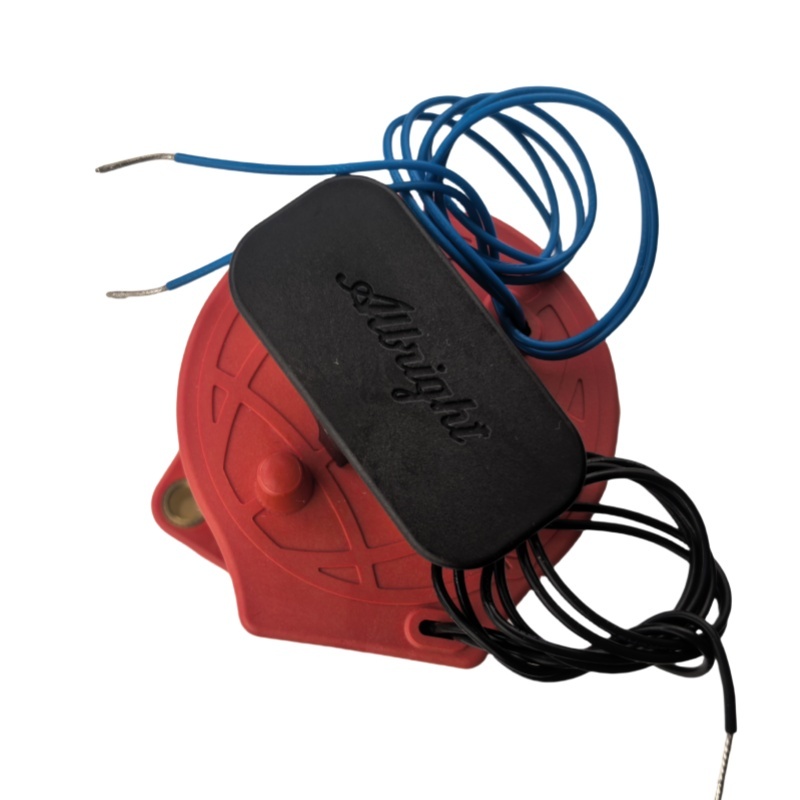

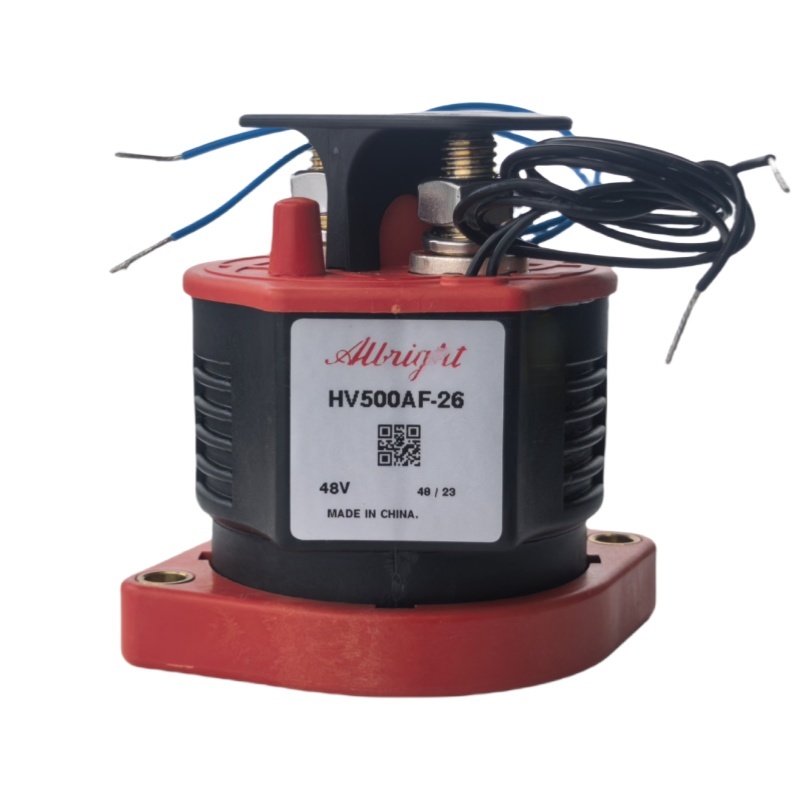

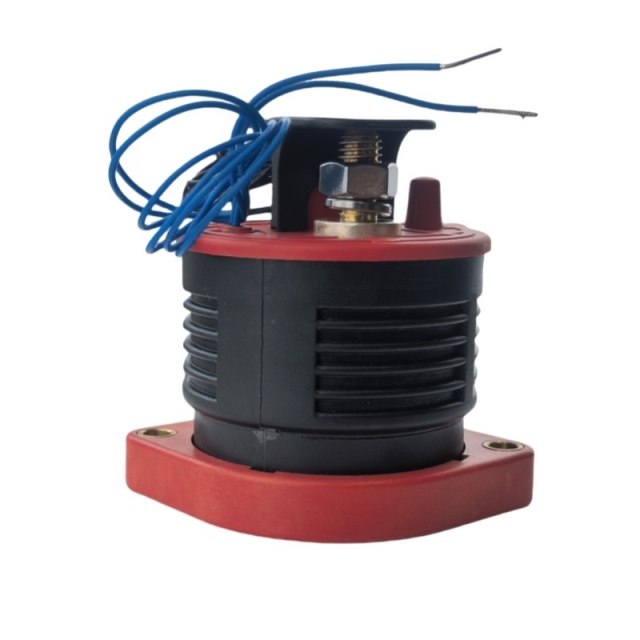

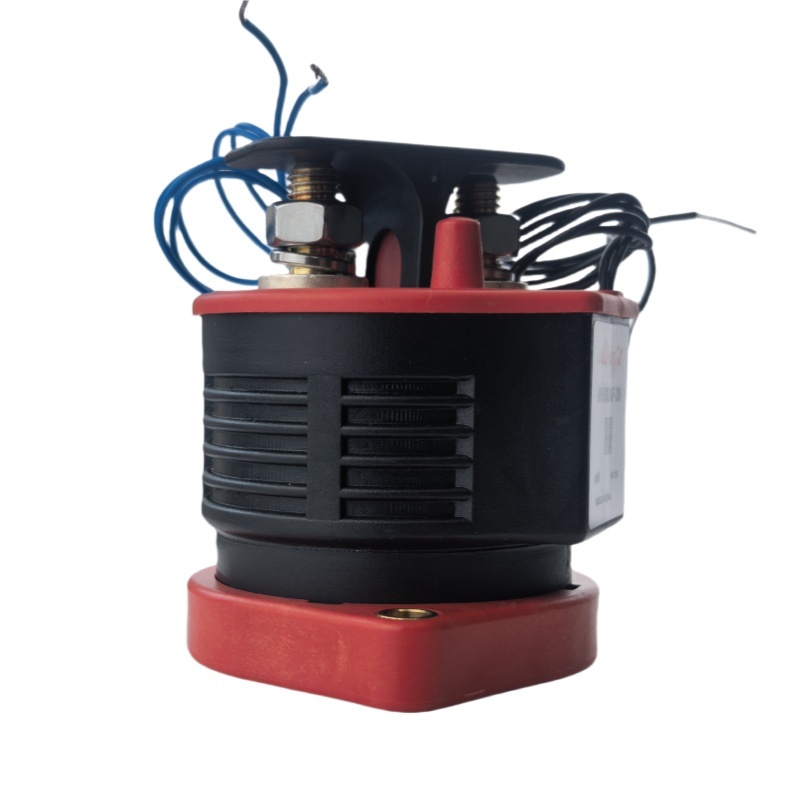

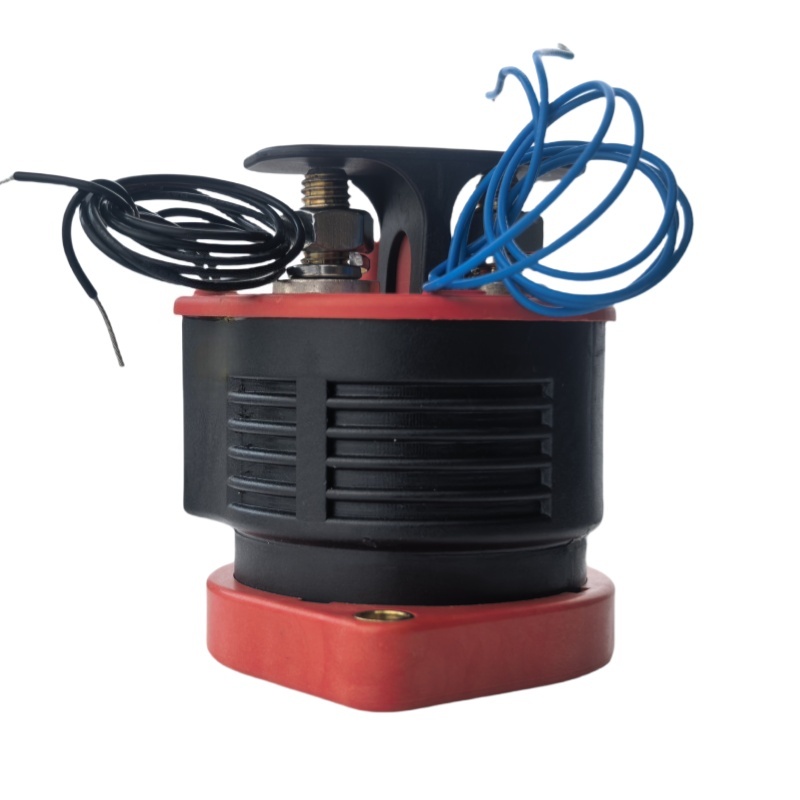

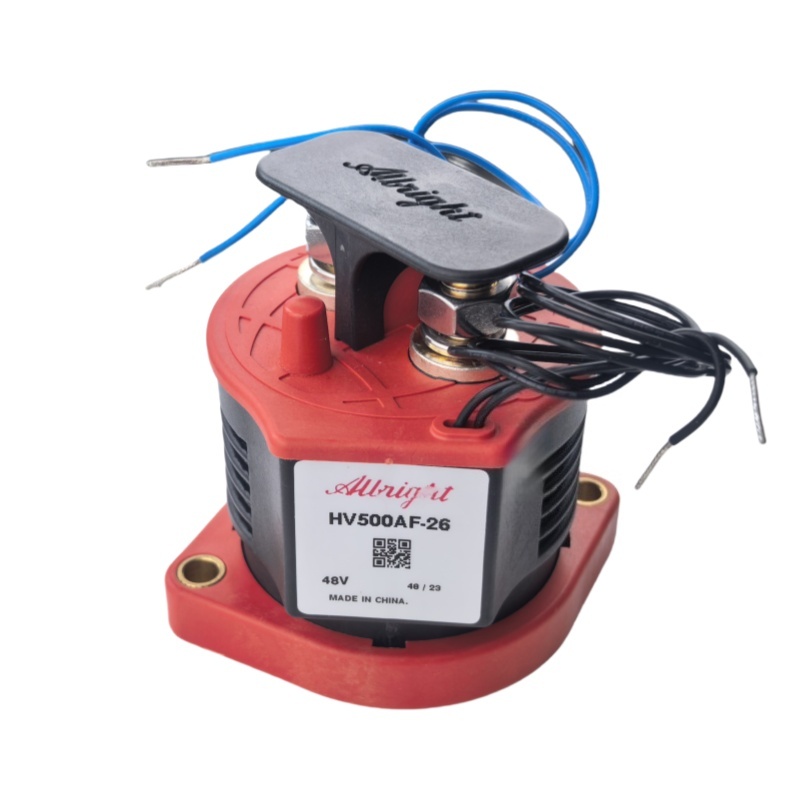

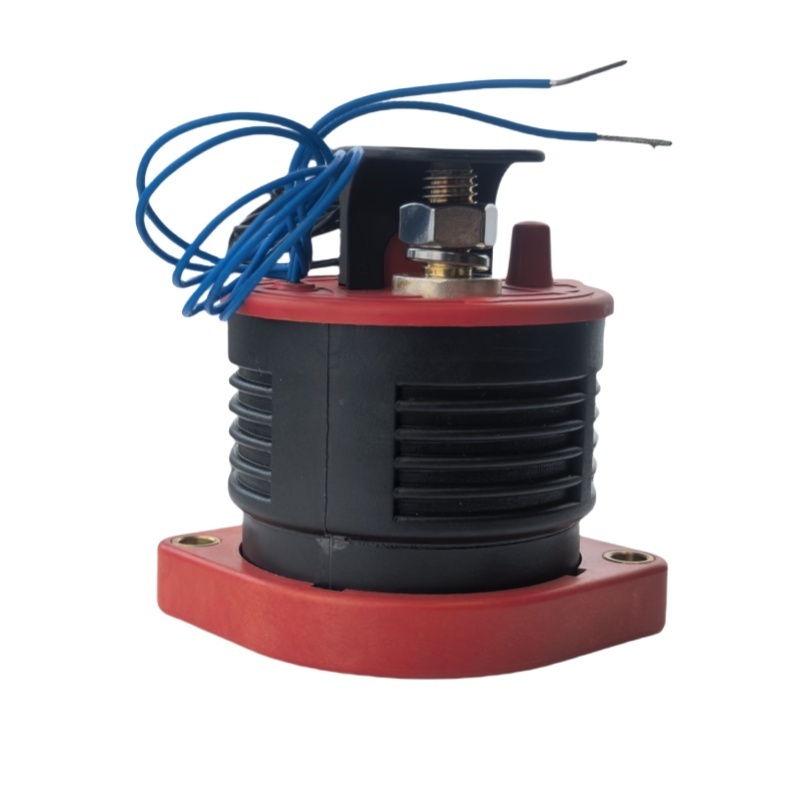

Single-pole Normally Open Full-sealed High-voltage contactors HV500AF-26
Product Parameters
| Product Name |
HV500AF-26 |
| Rated Contact Voltage |
12V - 1000V D.C. |
| Continuous Operating Current |
250A (50mm2 or 1-1/0 AWG cables) |
| Continuous Operating Current (Max) |
500A (190mm2 or 350 MCM busbars) |
| Coil Voltage Range |
12V D.C. - 96V D.C. |
| Mechanical Durability |
>1000000 Cycles |
| Auxiliar |
>1000000 Cycles |
| Voltage Drop |
Typically <30mV at 100A |
| Insulation Resistance |
>200M |
Dielectric Withstand Test (at Sea
Level) |
4000V D.C./Leakage <1mA |
| Maximum Altitude |
3000m |
| Environmental Seal |
Contacts, Auxiliary and PWM Circuit
Hermetically Sealed - Exceeds IP67 |
| Product Name |
HV500AF-26 |
| Rated Contact Voltage |
12V - 1000V D.C. |
| Continuous Operating Current |
250A (50mm2 or 1-1/0 AWG cables) |
| Coil Voltage Range |
500A (190mm2 or 350 MCM busbars) |
| Mechanical Durability: |
>1000000 Cycles |
