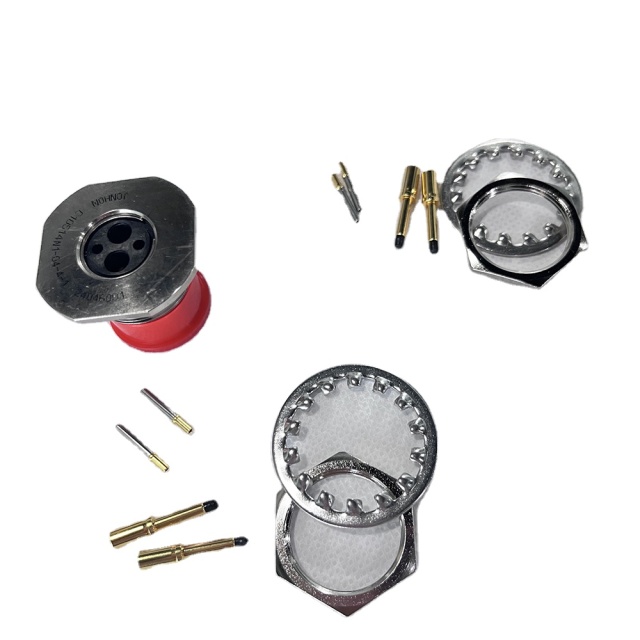

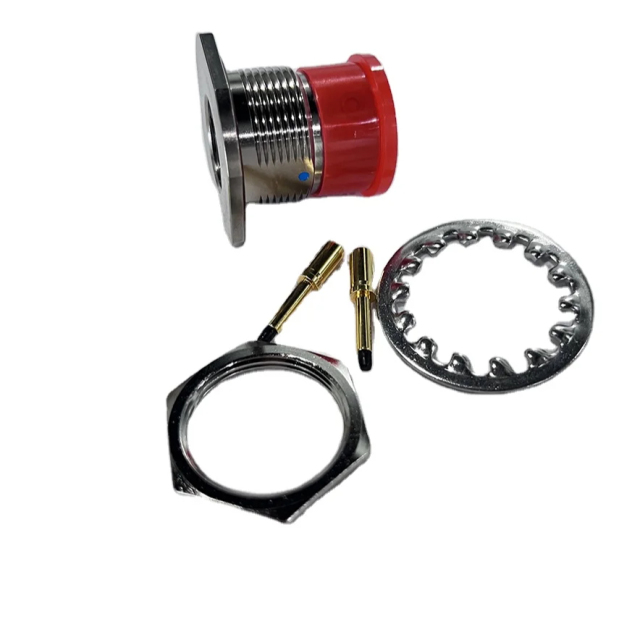

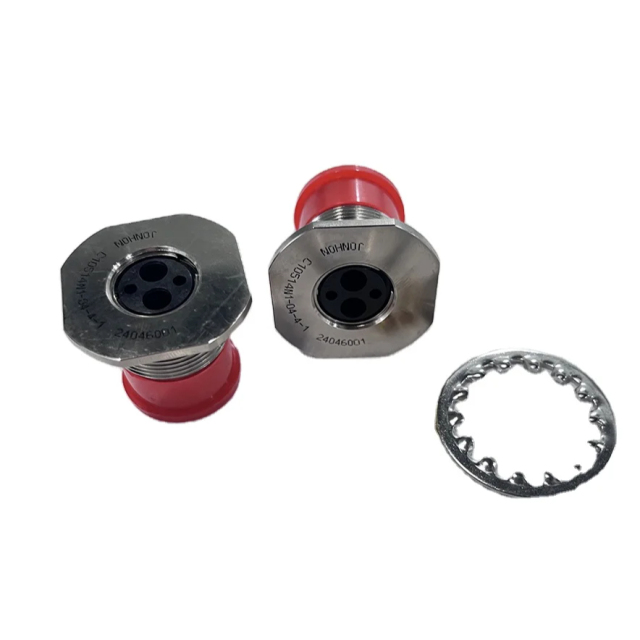

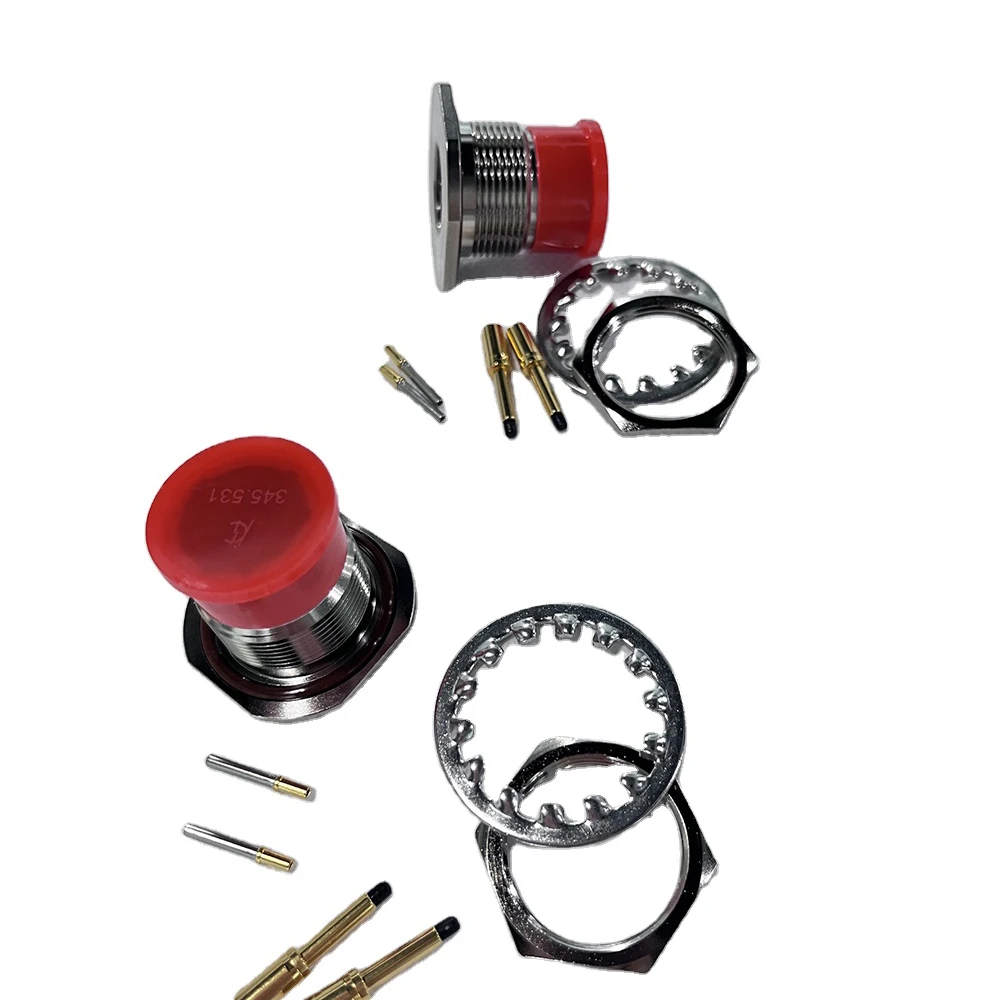

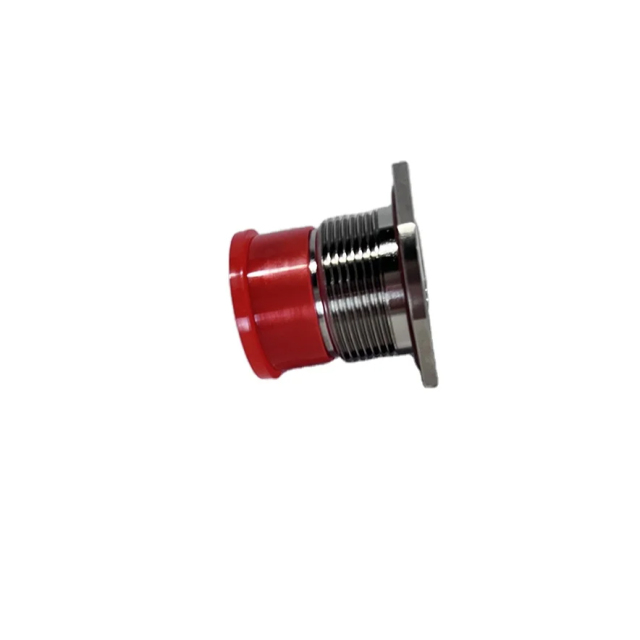

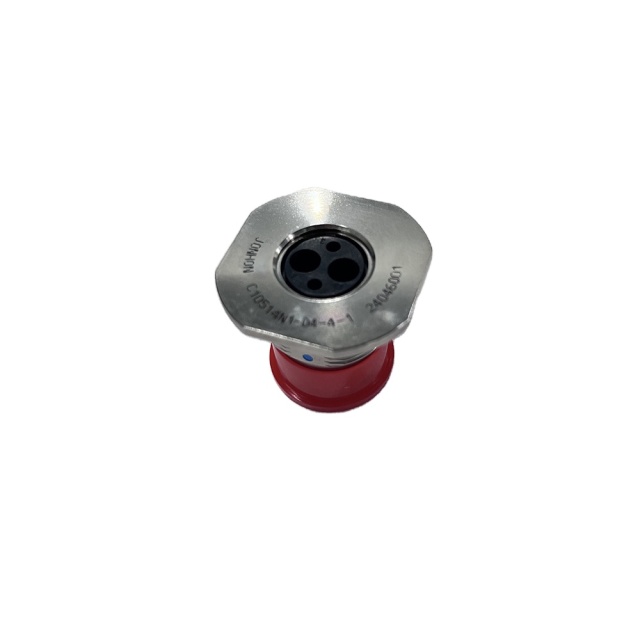

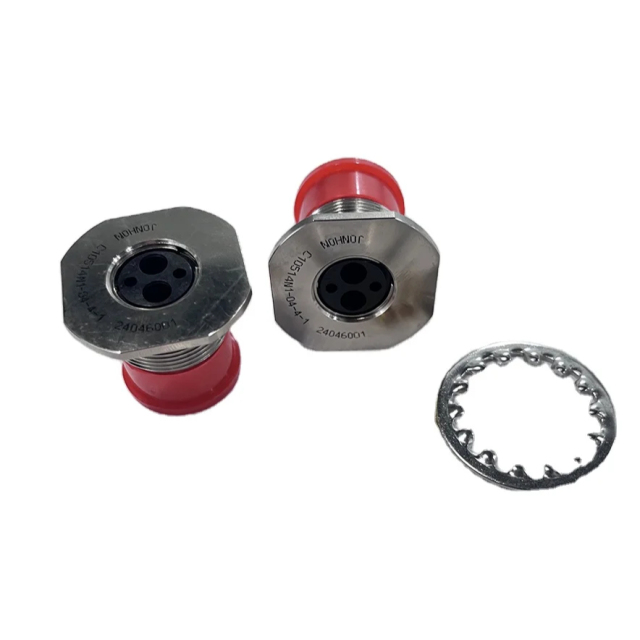

Name: Plug and Seat Direct Push-type Quick Connection TNC Power Aluminum Connector C10514N1-04-4-1 Socket
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601173485771
Price: 16.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Application

Power

Type

TNC

Rated Current

45 A

Rated Voltage

600 V

Contact Material

Silver Alloy

Housing Material

Aluminum

Gender

Female

Shape

Round

Model Number

C10514N1-04-4-1

Place of Origin

Jiangsu, China

Brand Name

JONHON

Material

metal

Application

electric vehicle

Product name

connector

Brand

Jonhon

Packaging and delivery

Selling Units

Single item

Single package size

10X10X10 cm

Single gross weight

0.200 kg

Product descriptions from the supplier

Warning/Disclaimer

California Proposition 65 Consumer WarningView more

Electrical Characteristics
Contact resistance :≤0.75mΩ(Φ3); 5 m or less Ω (20 #)
Rated current: Φ3 crimping pin component 40A (the specific current is determined according to the current carrying capacity of the
wire);
No. 20 crimped open jack part 7A (the specific current is determined by the current carrying capacity of the wire).
Operating voltage: 600V AC;
Insulation resistance: ≥5000 MΩ (room temperature)
≥50 MΩ (hot and humid)
Withstand voltage: 2500VAC (room temperature) 400VAC (hot and humid)

Specification

Jonhon Sockets

show

About us

BEIAN is a high-tech green energy enterprise that provides customized solutions and products for lithium batteries, energy storage lithium batteries and lithium battery power systems for global users.Our team has more than ten years of experience in lithium battery production, design and development, and has participated in the production and development of automobiles, bicycles, energy storage and other projects. If you have any questions about lithium batteries, please contact us.
