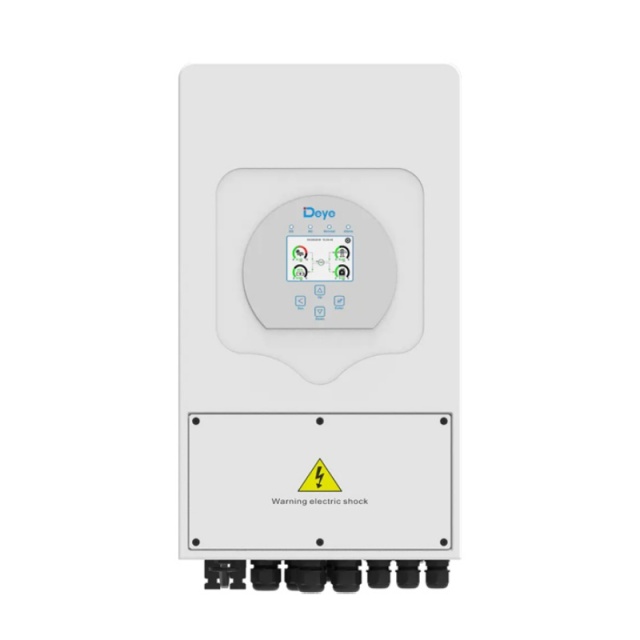

Model | SUN-5K -SG04LP3-EU | SUN-6K -SG04LP3-EU | SUN-8K -SG04LP3-EU | SUN-10K -SG04LP3-EU | SUN-12K -SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60 | |||||||||
Max. Charging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
Max. Discharging Current (A) | 120 | 150 | 190 | 210 | 240 | |||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||
Number of Battery Input | 1 | |||||||||
PV String Input Data | ||||||||||
Max. PV Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | |||||
Max. PV Input Voltage (V) | 800 | |||||||||
Start-up Voltage (V) | 160 | |||||||||
MPPT Voltage Range (V) | 200-650 | |||||||||
Max. Continuous AC Passthrough (grid to load) (A) | 45 | |||||||||
Rated Input/Output Grid Frequency/Range(Hz | 50/45-55, 60/55-65 | |||||||||
Rated Input/OutputVoltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.6% | |||||||||
Euro Efficiency | 97% | |||||||||
MPPT Efficiency | >99% | |||||||||
Grid Connection Form | 3L+N+PE | |||||||||

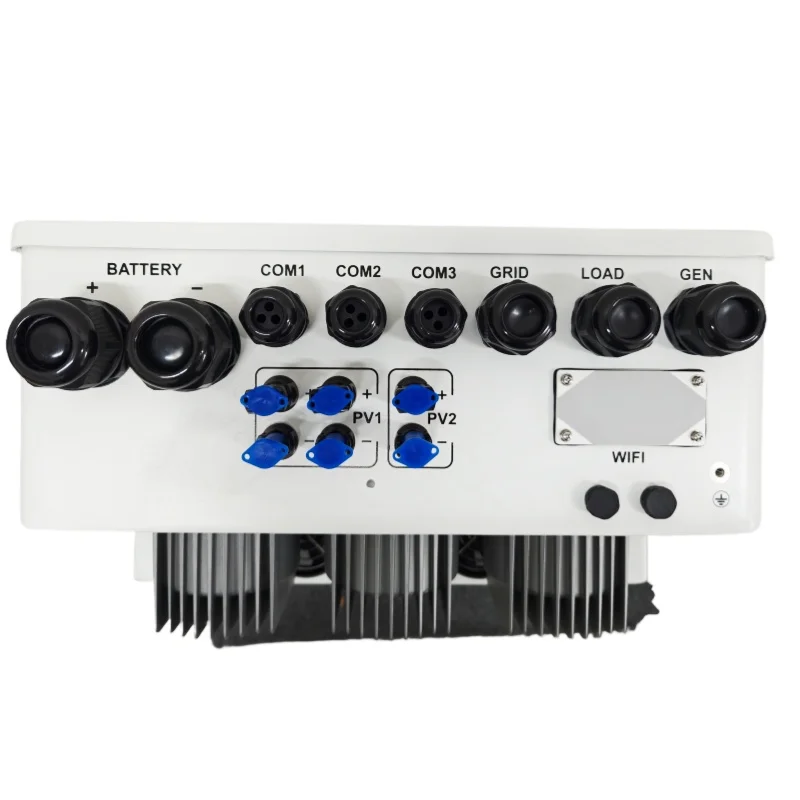

Communication Interface | WIFI, RS485, CAN | |||||||||
Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||||||
Permissible Altitude | 2000m | |||||||||
Noise (dB) | <55 | |||||||||
Ingress Protection(IP) Rating | IP 65 | |||||||||
Cabinet Size (WxHxD mm) | 422×658×254 (Excluding Connectors and Brackets) | |||||||||
Weight (kg) | 38 | |||||||||
Warranty | 5 Years/10 Years | |||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||||||
Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||
