Product Detai Reference
|
Modle |

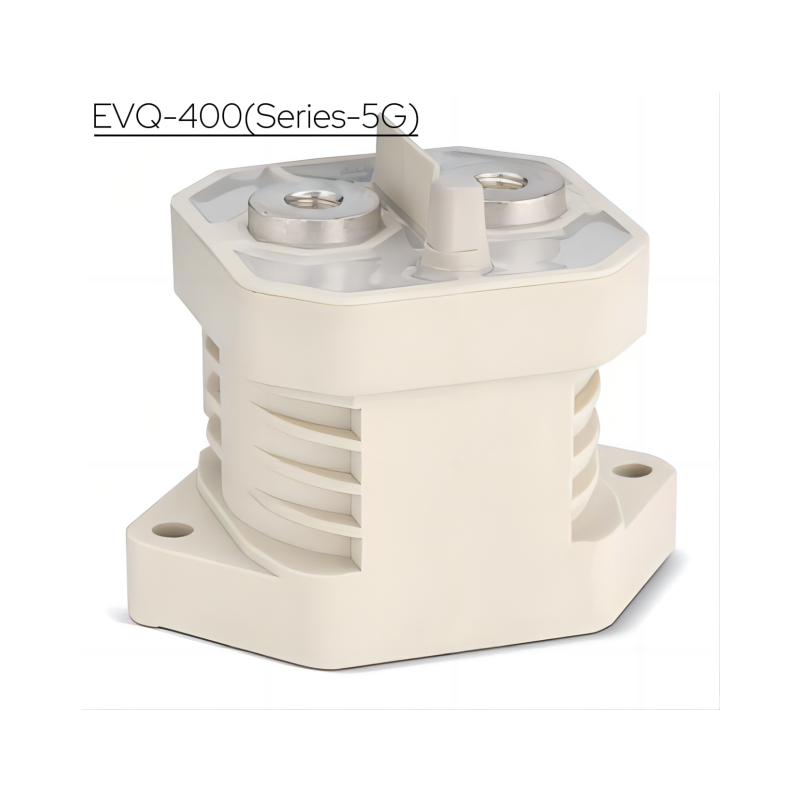

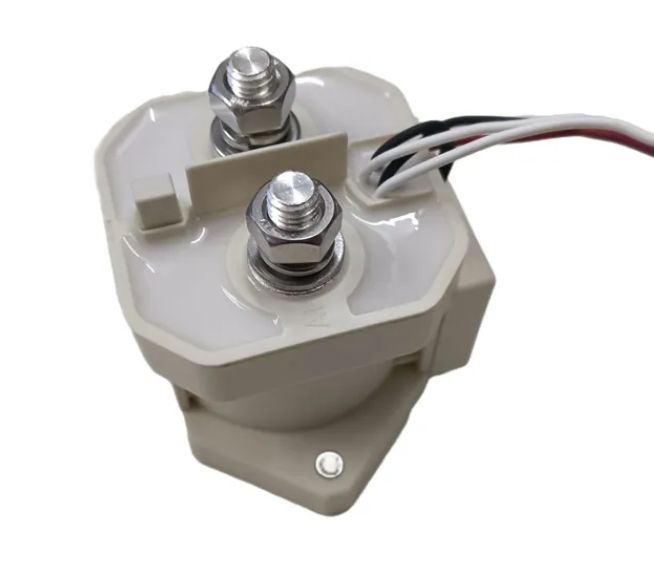

EVD-400 |
EVQ-500 |
EVQ-600 |
EVQ-800 |
EVQ-1000 |
|
|
Rated current |
400A |
500A |
600A |
800A |
1000A |
|
|
Rated voltage |
DC12~1500V |
|||||
|
Insulation voltage |
≥100MΩ DC1000V |
|||||
|
Number of poles |
Single pole |
|||||
|
Type of circuit |
DC |
|||||
|
Mechanical life |
200,000 times |
|||||
|
Maximum breaking current |
DC320V 2000A /once |
DC320V 2500A /once |
DC320V 2500A /once |
|||
|

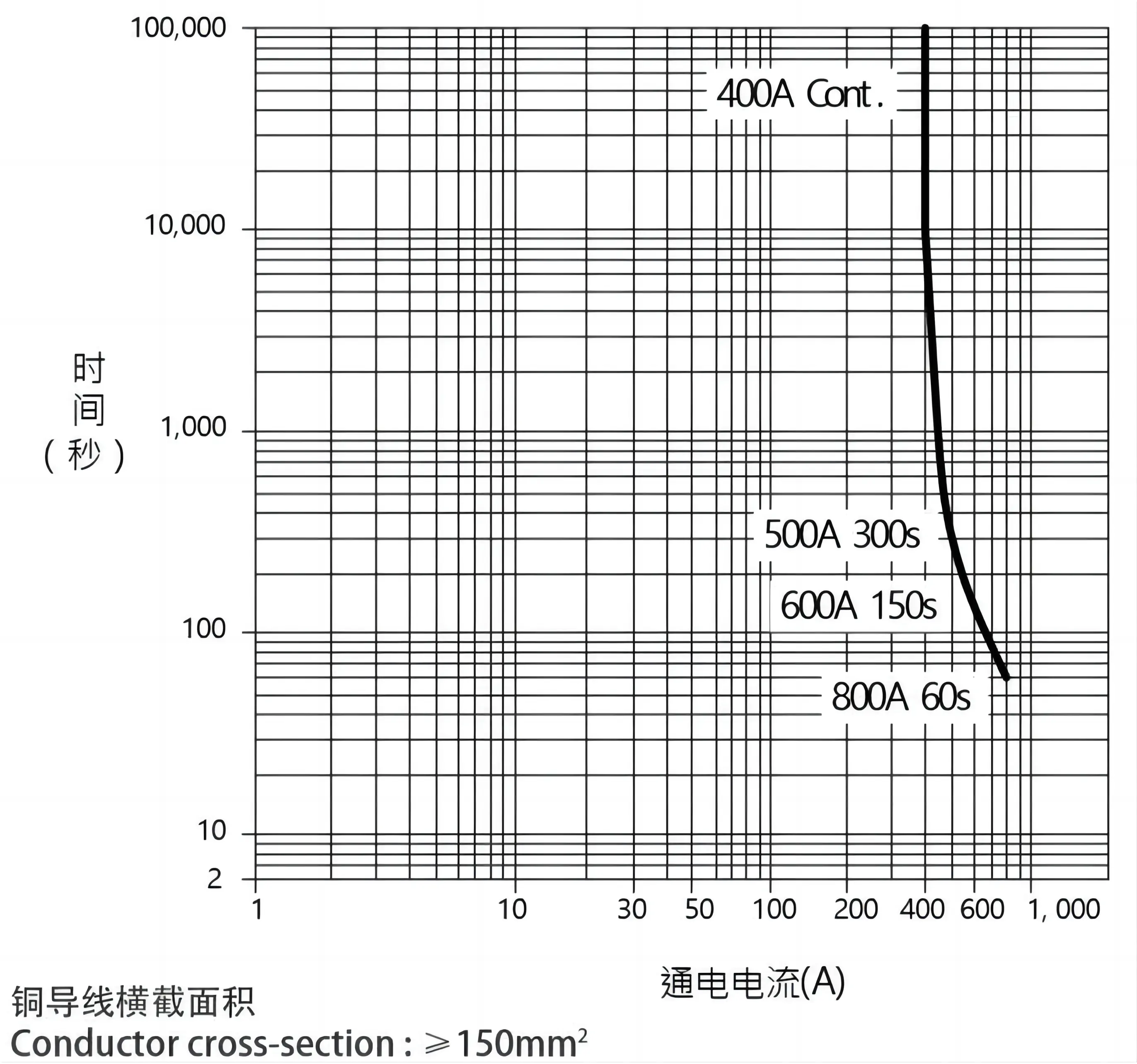

Shot-circuit withstand current |
450A 15min |
550A 15min |
650A 10min |
900A 10min |
1100A 10min |
|
|
Insulation resistance |
100MΩ DC1000V |
|||||
|
Withstand voltage |
AC 3500 Vrms/10mA 60s |
|||||
|
Rated control voltage Uc |
Rated control voltage：DC12V/DC24V |
|||||
|
Contact Arrangement |
（SPST-NO） |
|||||
|
Auxiliary contact type |
Without |
|||||
|
Workplace Temperature |
（-40℃～+85℃） |
|||||
| Rated voltage | DC12~1500V |
| Rated current | 400A |
| Insulation voltage | ≥100MΩ DC1000V |
| Mechanical life | 200,000 times |
| Withstand voltage | AC 3500 Vrms/10mA 60s |
| Details of the picture |
