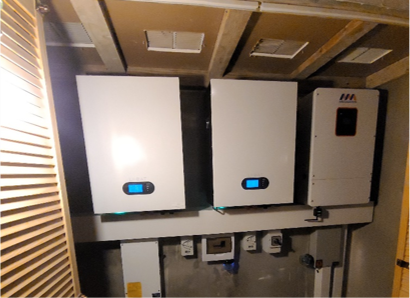

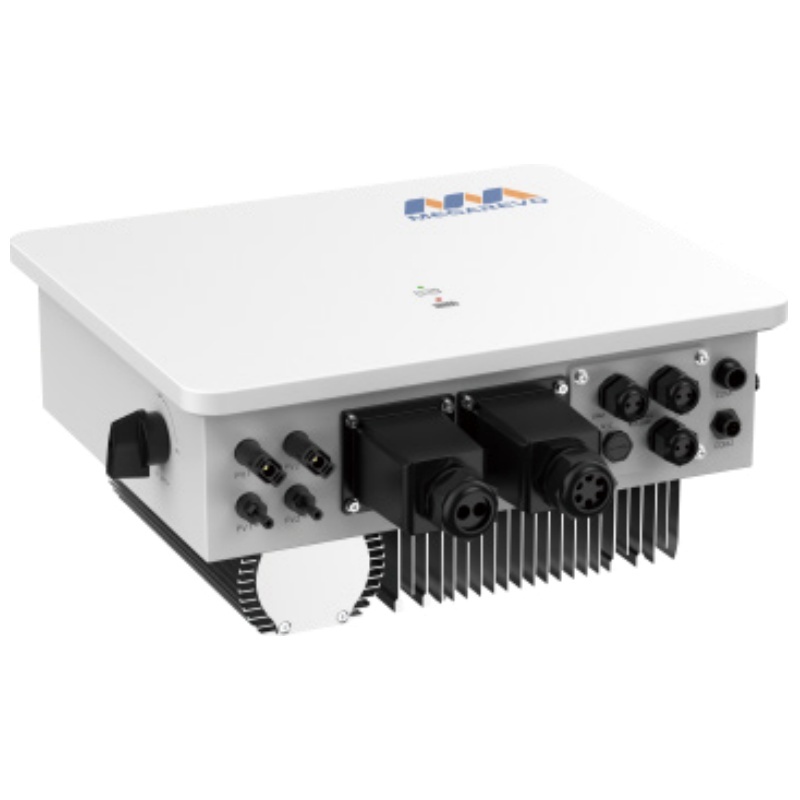

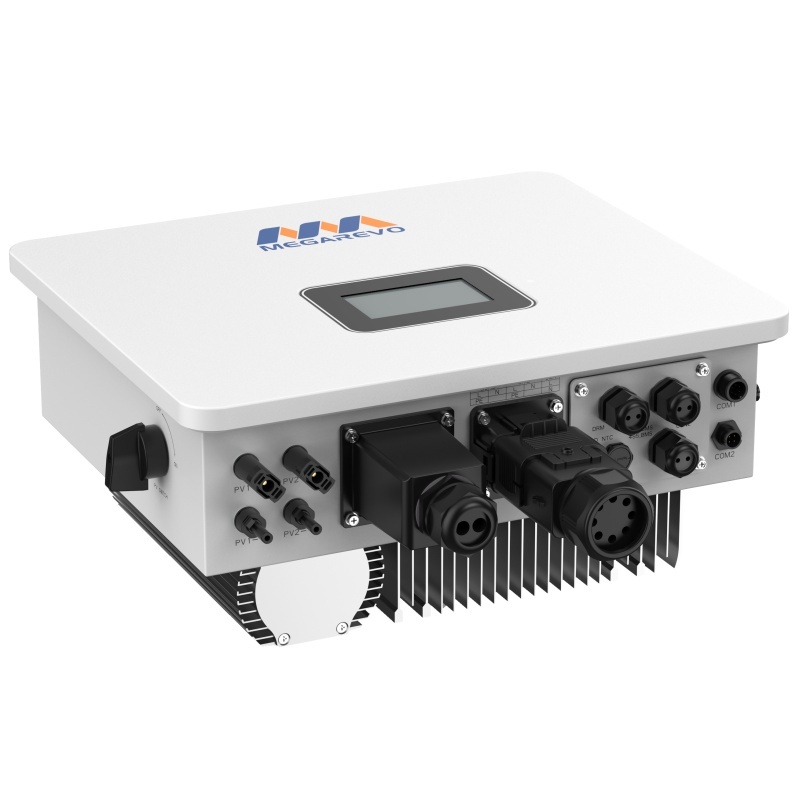

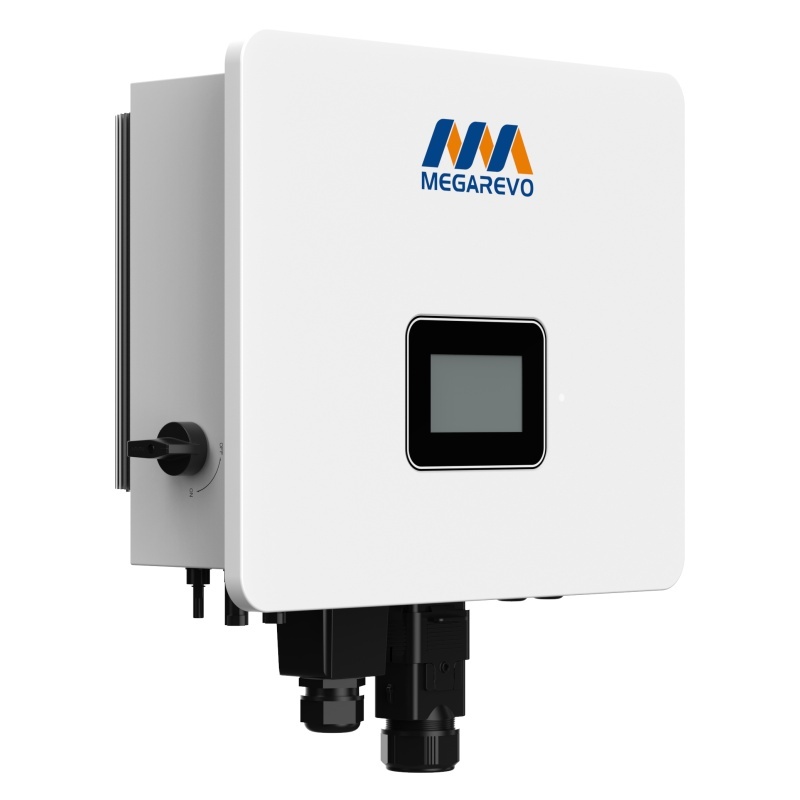

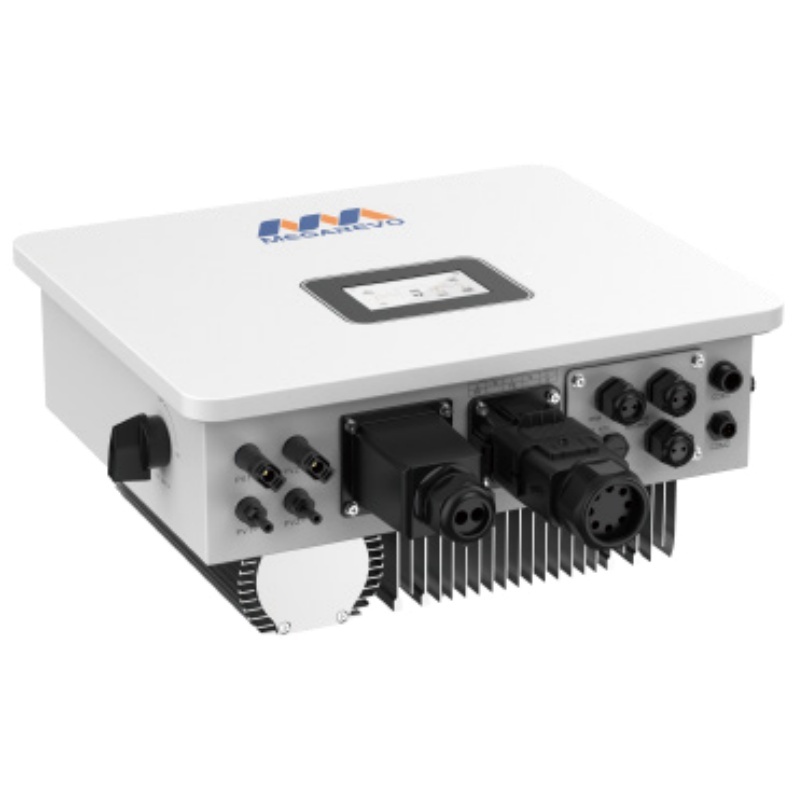

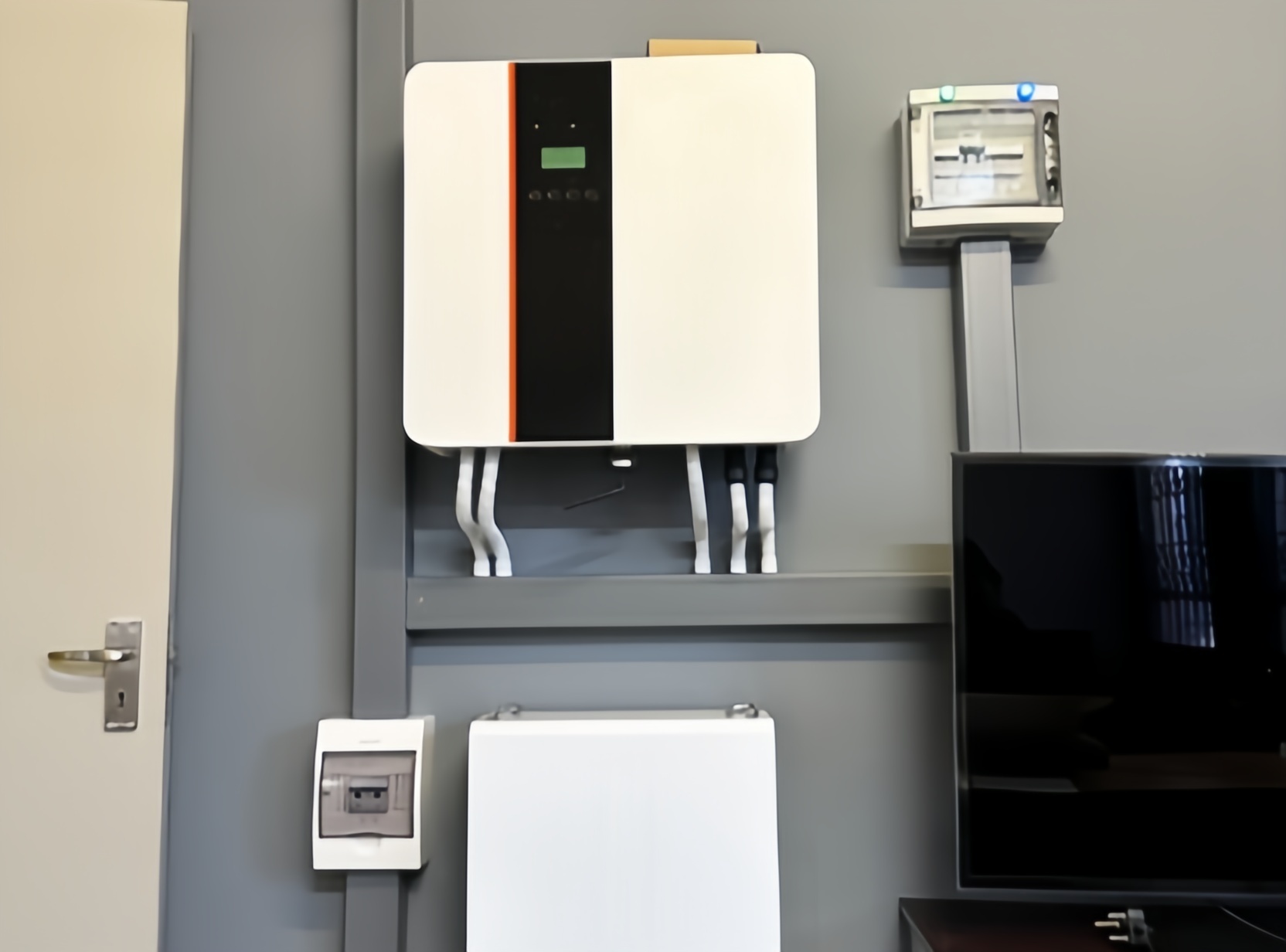

Product Images
|
Mode
|
R3KL1DA-G2A
|
R3K6L1DA-G2A
|
R4KL1DA-G2A
|
R4K6L1DA-G2A
|
R5KL1DA-G2A
|
R6KL1DA-G2A
|
||||||
|
PV input data
|
||||||||||||
|
Max. PV input power (kW)
|
4.5
|
5.4
|
6
|
6.9
|
7.5
|
9
|
||||||
|
Max. PV input voltage (V)
|
550
|
|||||||||||
|
Min. PV input voltage (V)
|
100
|
|||||||||||
|
Start-up voltage (V)
|
100
|
|||||||||||
|
MPPT voltage range@full-load (V)
|
140~425
|
170~425
|
190~425
|
216~425
|
234~425
|
281~425
|
||||||
|
Rated PV input voltage (V)
|
360
|
|||||||||||
|
No. of MPPT trackers
|
2
|
|||||||||||
|
No. of strings per MPPT tracker
|
1/1
|
|||||||||||
|
Max. input current per MPPT (A)
|
16/16
|
|||||||||||
|
Max. short-circuit current per MPPT (A)
|
24/24
|
|||||||||||
|
Battery input date
|
||||||||||||
|
Battery type
|
Lithium-ion / Lead-acid
|
|||||||||||
|
Max. charge / discharge power (kW)
|
3
|
3.68
|
4
|
4.6
|
5
|
6
|
||||||
|
Battery voltage range (V)
|
40-58
|
|||||||||||
|
Rated battery voltage (V)
|
48
|
|||||||||||
|
Max. charging / discharging current (A)
|
60/60
|
72/72
|
80/80
|
92/92
|
100/100
|
120/120
|
||||||
|
Rated charge / discharge current (A)
|
60/60
|
72/72
|
80/80
|
92/92
|
100/100
|
120/120
|
||||||
|
Charging strategy for Li-Ion battery
|
Self-adaption to BMS
|
|||||||||||
|
BMS communication
|
CAN
|
|||||||||||
|
AC output date (grid side)
|
||||||||||||
|
Rated output power (kW)
|
3
|
3.68
|
4
|
4.6
|
5
|
6
|
||||||
|
Max. apparent output power (kVA)
|
3.3
|
3.68
|
4.4
|
4.6
|
5
|
6.6
|
||||||
|
Max. apparent input power(kVA)
|
3.3
|
3.68
|
4.4
|
4.6
|
5
|
6.6
|
||||||
|
Rated grid voltage (V)
|
230
|
|||||||||||
|
Grid voltage range (V)
|
176-270
|
|||||||||||
|
Grid input voltage (V)
|
230
|
|||||||||||
|
Rate grid frequency (Hz)
|
50/60
|
|||||||||||
|
Grid frequency range(Hz)
|
47~61
|
|||||||||||
