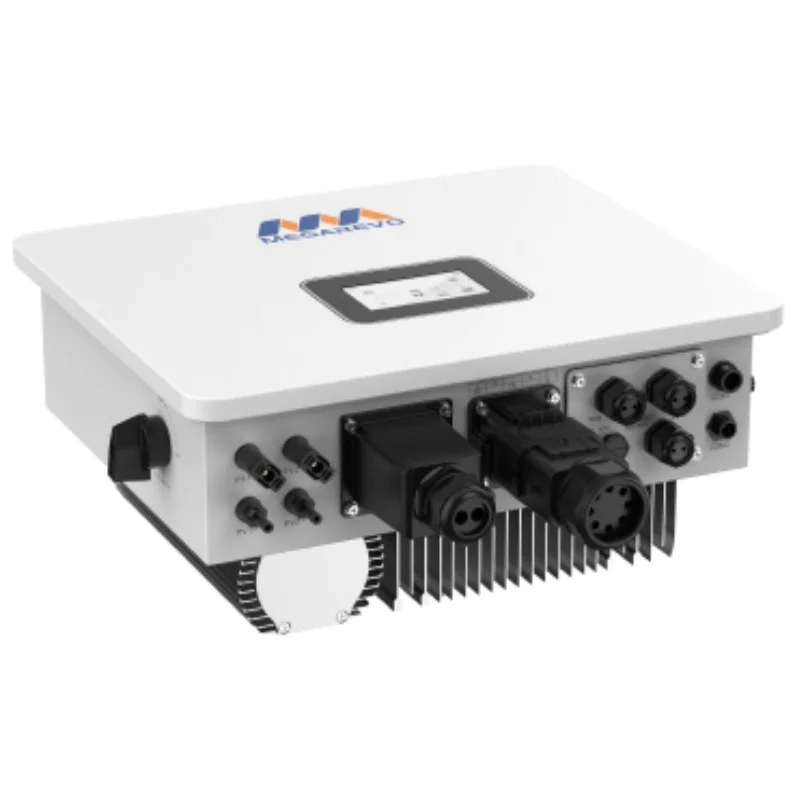

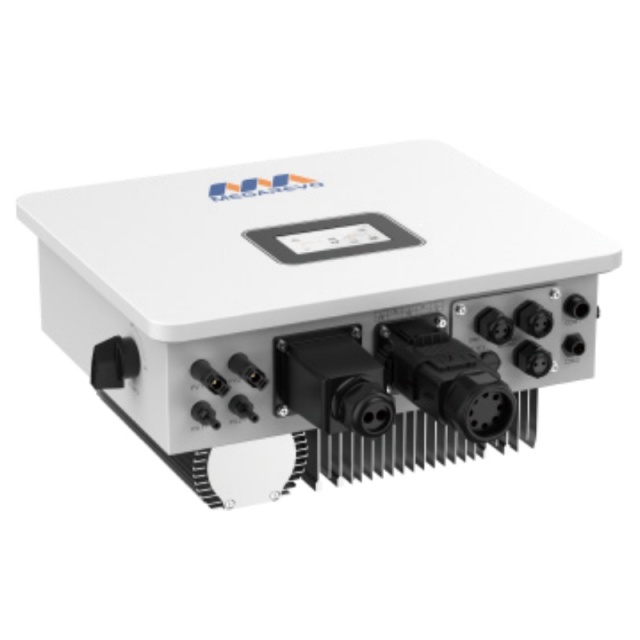

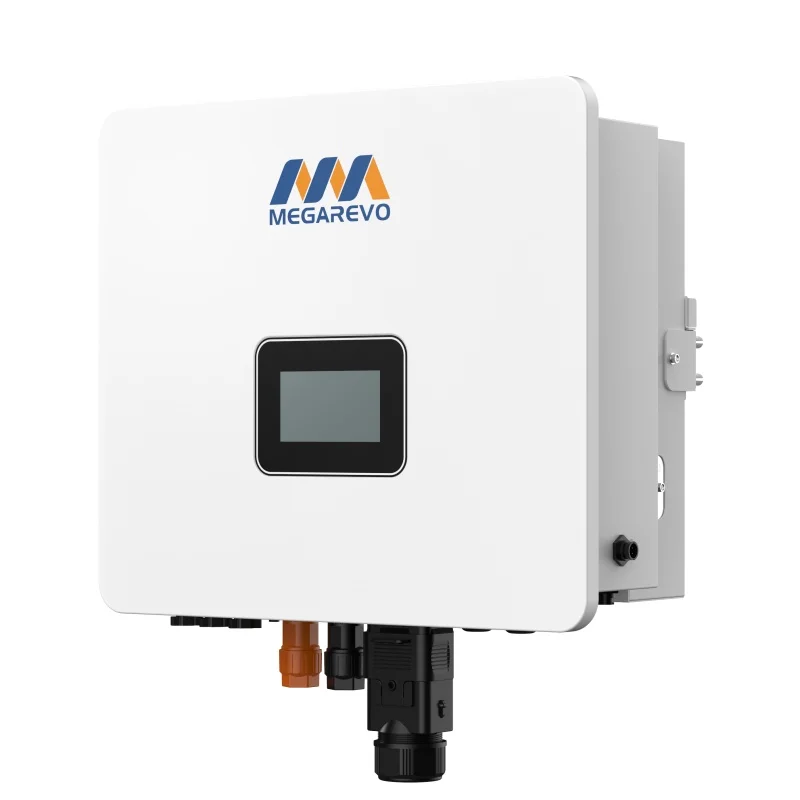

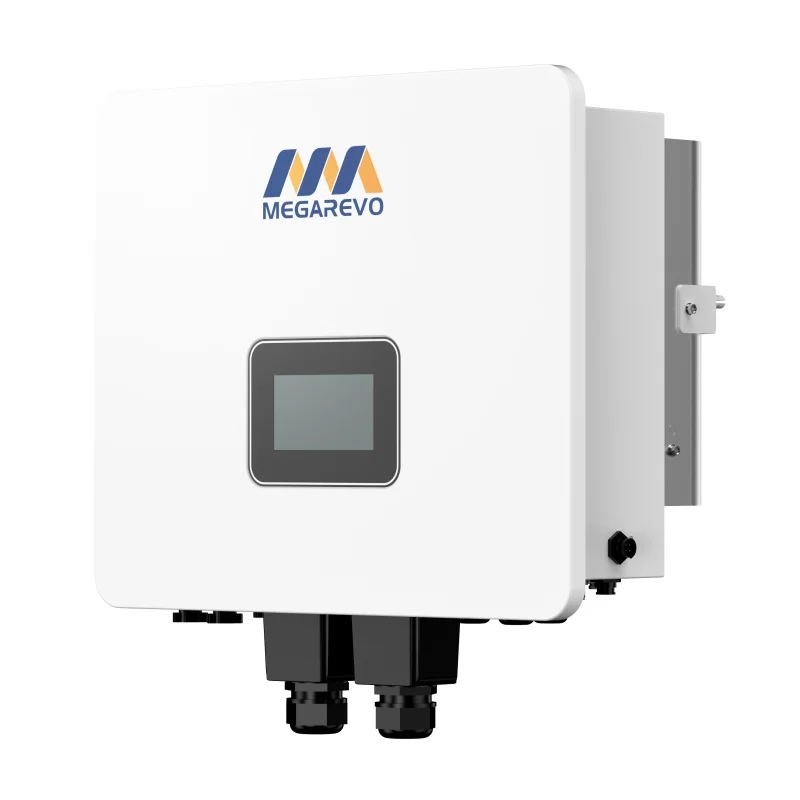

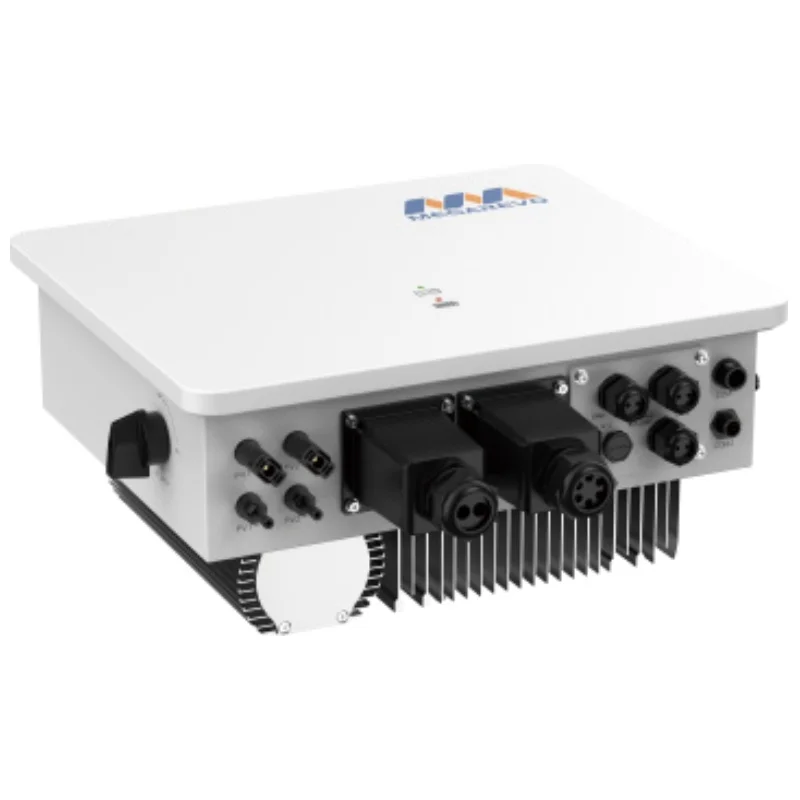

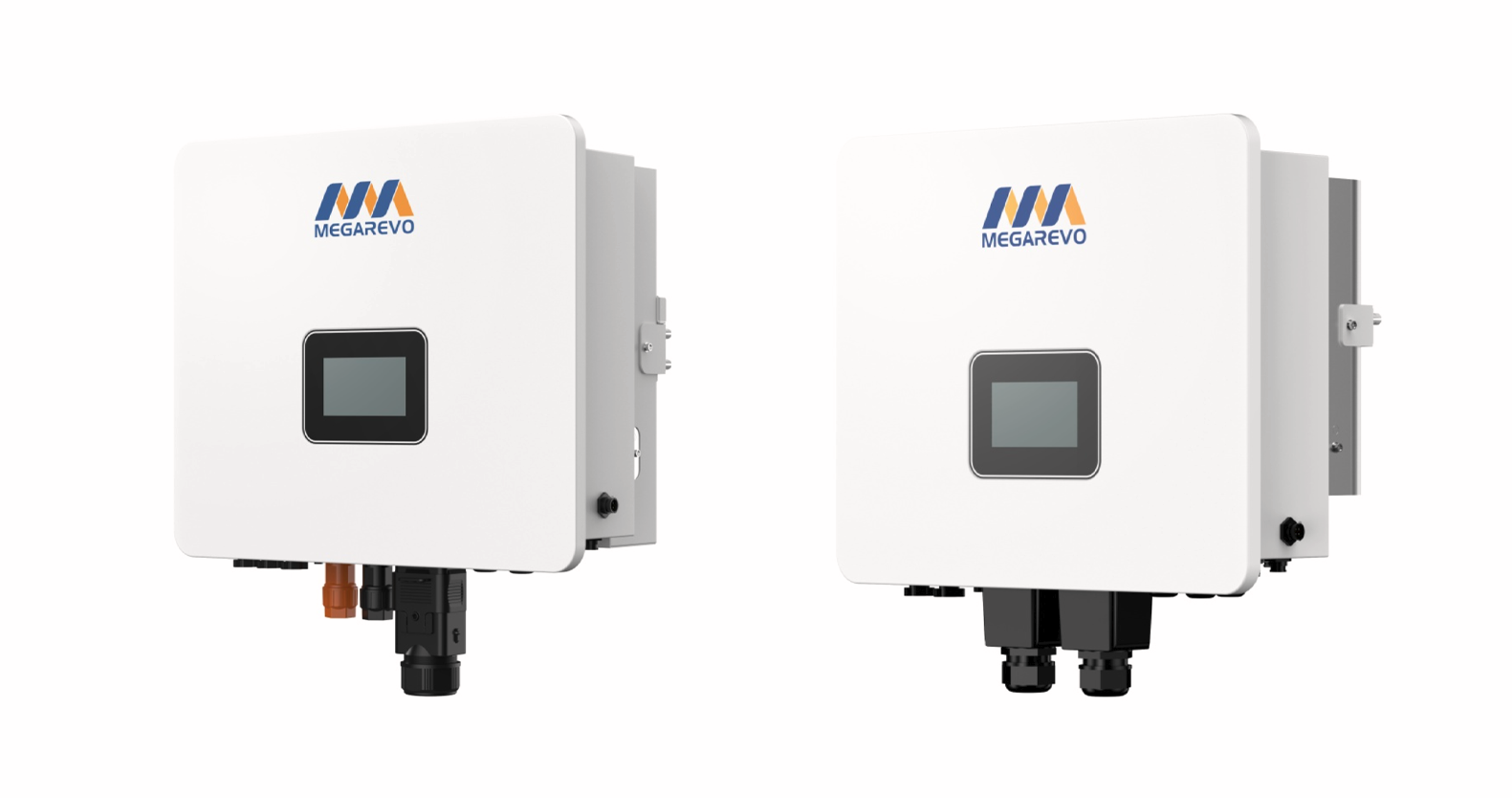

Product Images
|
Product Name
|
R8KL1DA-G2S
|
R10KL1DA-G2S
|
||
|
PV input data
|
||||
|
Max. input power (kW)
|
12
|
15
|
||
|
Max. PV input voltage (V)
|
500
|
|||
|
Min. PV input voltage (V)
|
100
|
|||
|
MPPT voltage range (V)
|
100
|
|||
|
MPPT voltage range@full-load (V)
|
80~500
|
|||
|
Rated PV input voltage (V)
|
250~430
|
|
||
|
No. of MPPT trackers
|
2
|
|
||
|
No. of strings per MPPT tracker
|
1/2
|
|
||
|
Max. input current per MPPT (A)
|
16/16+16
|
|
||
|
Max. short-circuit current per MPPT (A)
|
24/24/24
|
|
||
|
Battery
|
||||
|
Battery type
|
Lithium-ion / Lead-acid
|
|||
|
Max. charge / discharge power (kW)
|
8
|
10
|
||
|
Battery voltage range (V)
|
40~58
|
|||
|
Battery voltage range@full-load (V)
|
160-550
|
|
||
|
Rated battery voltage (V)
|
48
|
|
||
|
Max. charging / discharging current (A)
|
160/160
|
200/200
|
||
|
Rated charge / discharge current (A)
|
160/160
|
200/200
|
||
|
Charging strategy for Li-Ion battery
|
Self-adaption to BMS
|
|||
|
BMS communication
|
CAN
|
|||
|
Protection
|
||||
|
Supported protection
|
PV reverse polarity protection, Anti-islanding protection, Ground fault protection,
Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection
|
|||
|
Surge protection
|
DC Type III / AC Type III
|
|||
|
Over voltage category
|
DC Type III / AC Type III
|
|||
