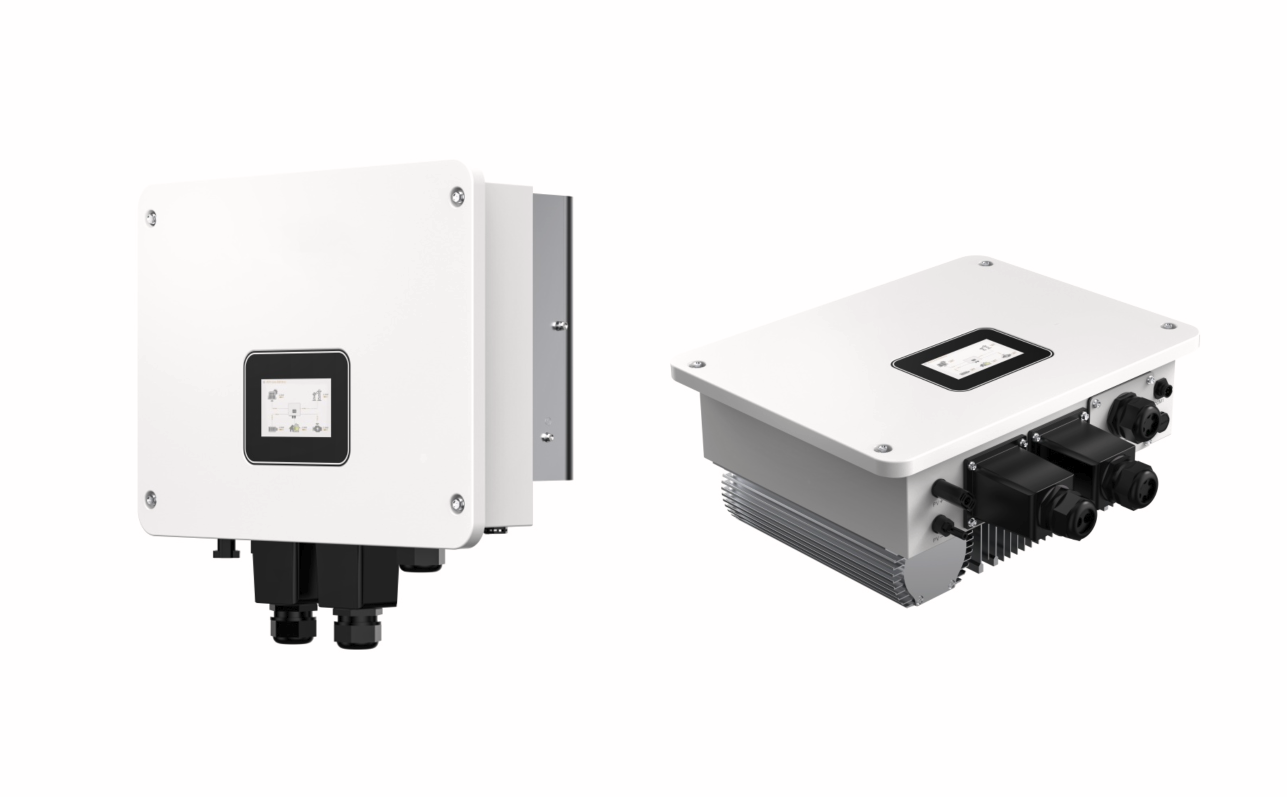

Product Images
|
Product Name
|
O5KL1D
|
O6KL1D
|
||
|
PV input data
|
||||
|
Max. input power (kW)
|
7.5
|
9
|
||
|
Max. PV input voltage (V)
|
500
|
|||
|
MPPT voltage range (V)
|
100-490
|
|||
|
Max. input current (A)
|
32
|
|||
|
Short circuit current (A
|
37
|
|||
|
Battery
|
||||
|
Nominal voltage (V)
|
48
|
|||
|
Battery voltage range (V)
|
40-58
|
|||
|
Max. charging/discharging current (A)
|
100/100
|
200/200
|
||
|
Battery type
|
Lithium/Lead-acid
|
|||
|
Charging strategy for Li-Ion battery
|
Self-adaption to BMS
|
|||
|
Off-grid output
|
||||
|
Nominal output power (kW)
|
5
|
6
|
||
|
Nominal output voltage (V)
|
230
|
|||
|
Output frequency (Hz)
|
50/60
|
|||
|
Max. apparent output current (A)
|
21.7
|
26
|
||
|
26Max. output over current (A)
|
21.7
|
31.6
|
||
|
Power factor
|
1 (0.8 leading-0.8 lagging)
|
|||
|
THDu
|
<3%
|
|||
|
Switching time (ms)
|
10
|
|||
