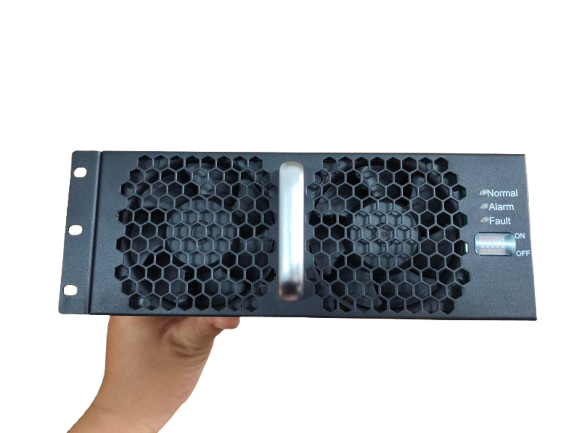

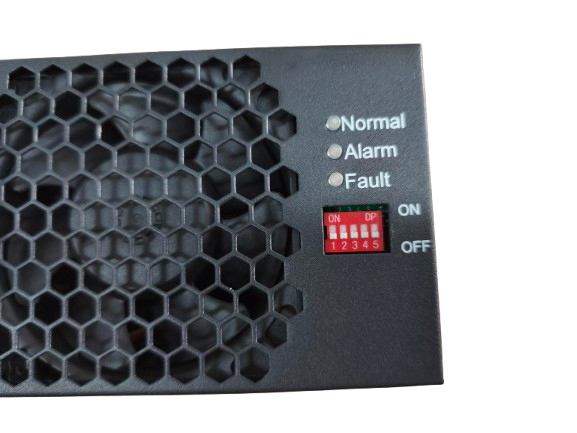

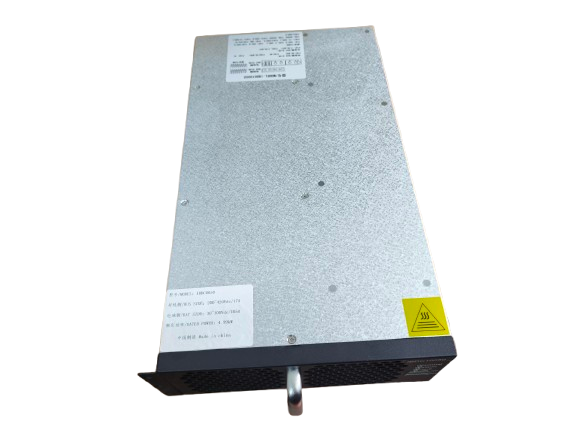

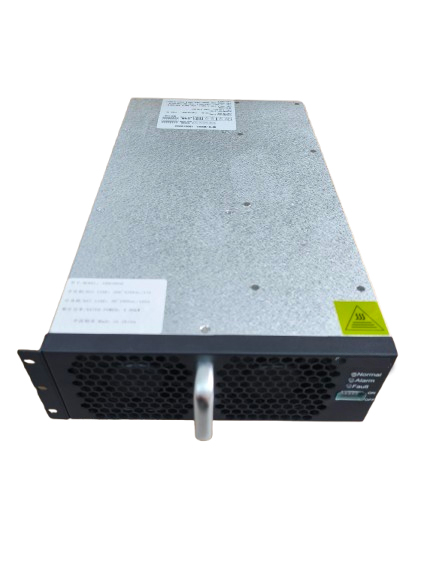

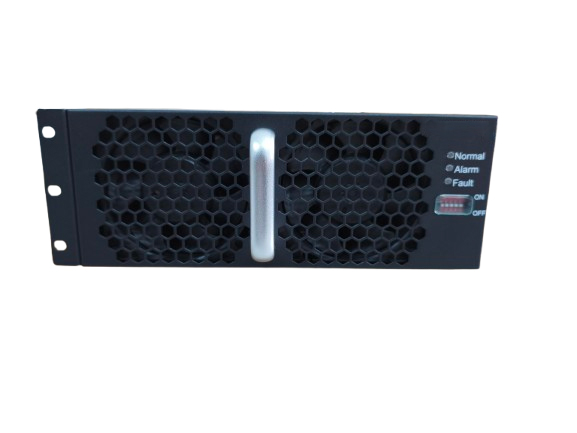

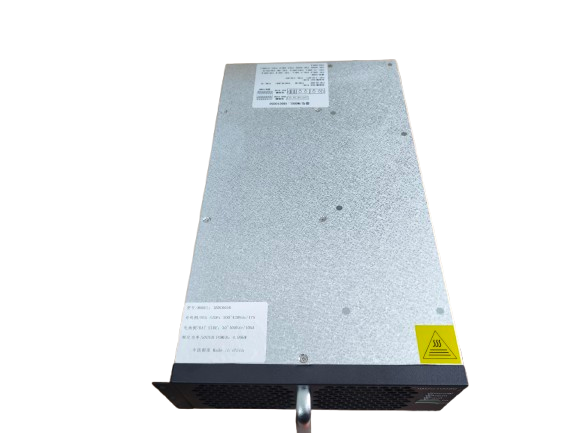

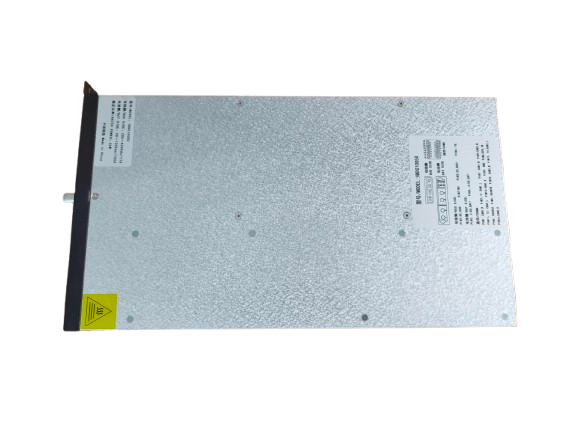

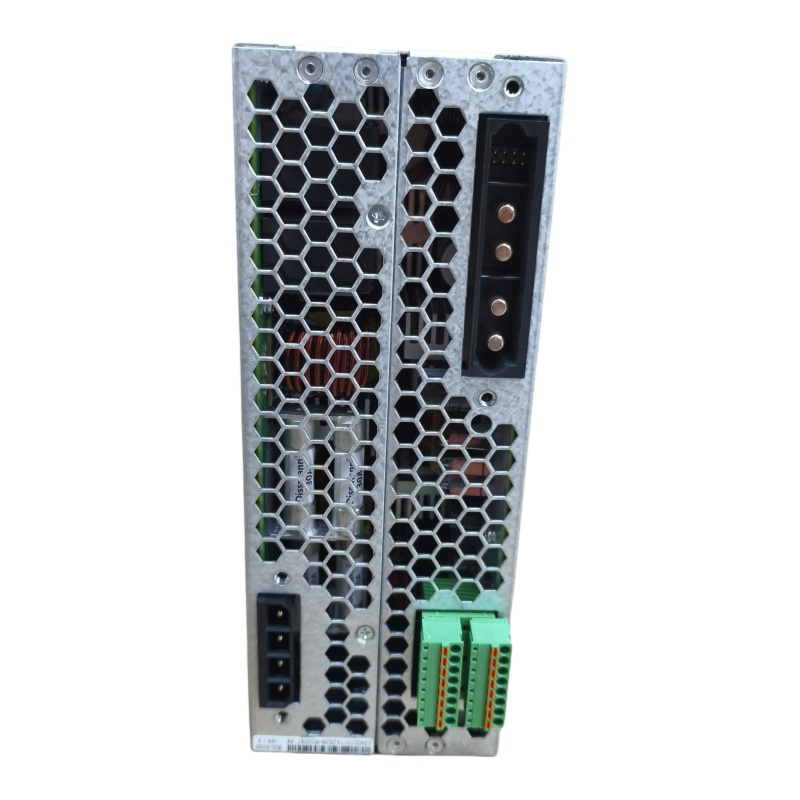

BADC30060 Bidirectional DC/DC Power Module
Product Parameters
| Product Name |
BADC30060 Bidirectional DCDC Module |
| DC bus side |
| Voltage range |
350 ~ 850Vdc |
| Rated voltage |
750Vdc |
| Max Current |
23Amax（below 600Vdc,linear current limiting） |
| Battery-side |
| Voltage range |
40~300Vdc |
| Rated voltage |
150Vdc |
| Max Current |
120Amax |
| Power rating |
15kW |
| Steady-current accuracy |
≤±1% |
| Current ripple |
≤±3% |
| Voltage ripple |
≤±0.5% |
| Softstart time |
3s≤ t ≤8s |
| Standby power consumption |
＜300W（Vbat=150Vdc，discharge）
|
| DC bus Rated voltage |
750VDC |
| Power rating |
15KW |
| DC bus Voltage range |
350 ~ 850Vdc |
| Battery-side Max Current |
120Amax |
| IP Grade |
IP20 |
