Name: Hybrid Super Capacitor 3600F High Power Long Cycle Life Ultra Capacitor Module
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601735467245
Availability: InStock
Rating: 5 (1 reviews)

Description

Hybrid Super Capacitor High Power Long Cycle Life Ultra Capacitor Module
Product Description

Modle	BA-3R 368S(D63)-3600F
3000Rate discharge Cap.( ΔV＝2.4V-1.5V)	3600F
Cap. Tolerance(25℃)	0%~+20%
Rated Voltage(V)	3.0
Surge voltage(V)	3.15
Internal Resistance ESRDC (mΩ)	0.15
Max continuous current( △T=15℃）（A）	157
1626.5Max Current（1s,A) (25℃)	2596
Leakage Current at 72h (25℃)	5.0mA
Operating Temp.(Top)	-40~+70℃
Storage temperature range (at 0V)	-40~+70℃
Weight m	520
Energy Density (at U0)	8.7Wh/kg
Power Density (at U0)	16.2

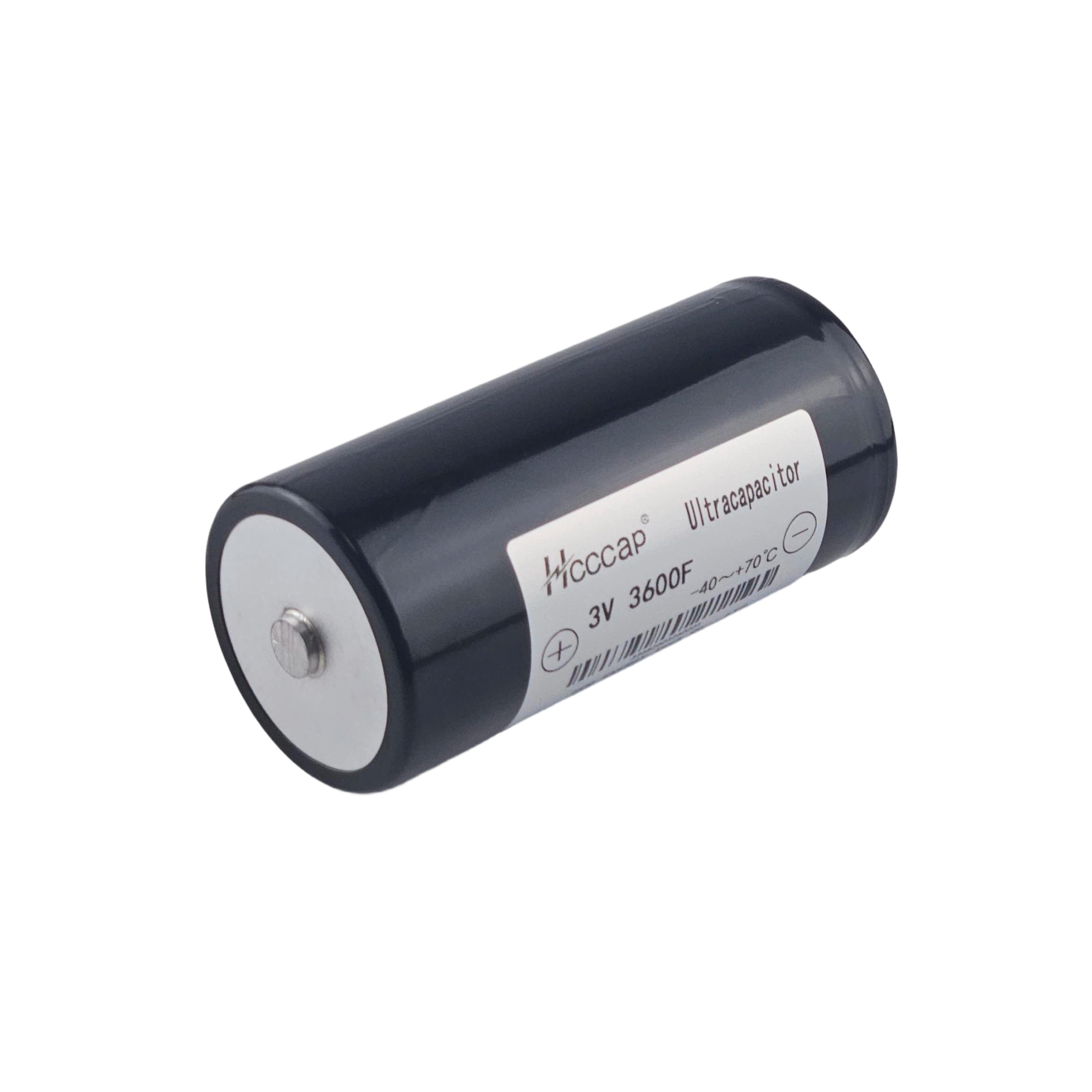

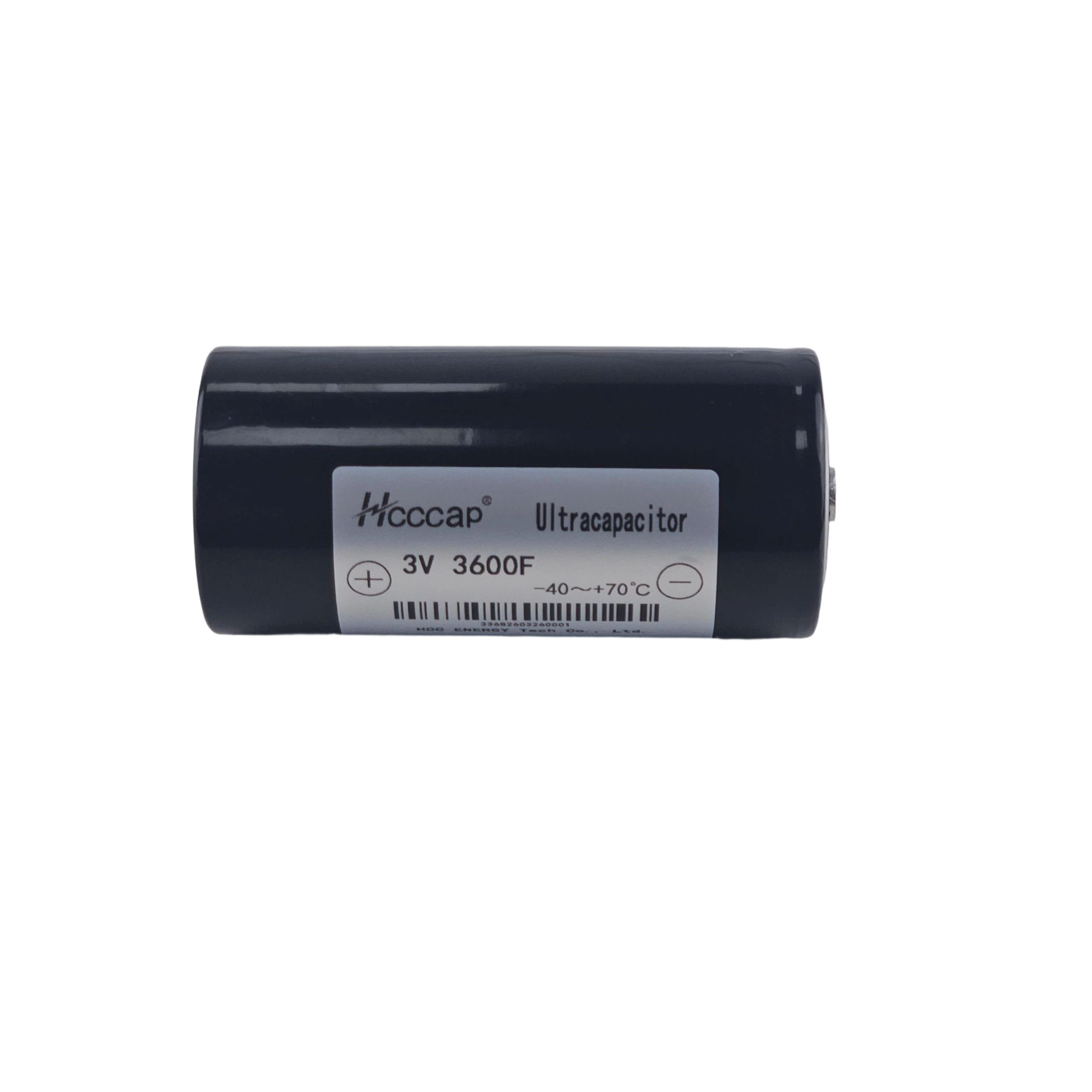

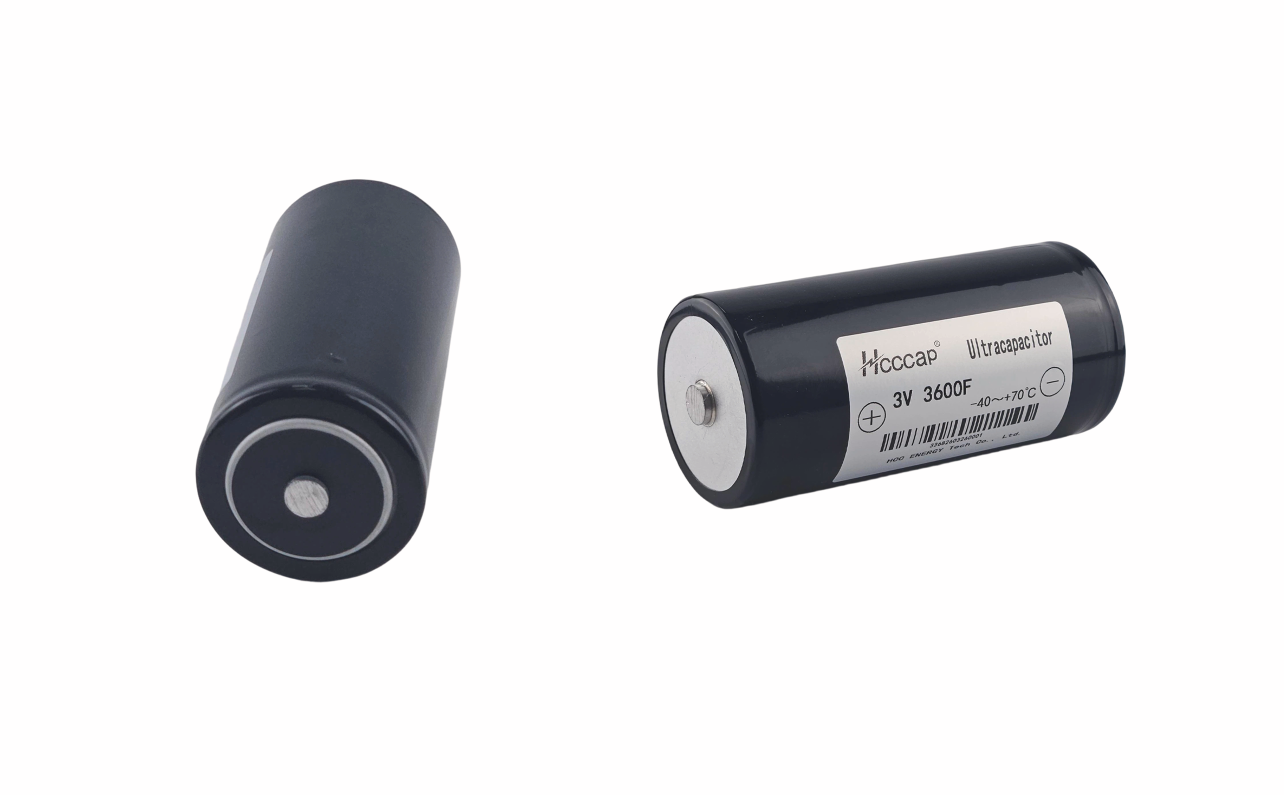

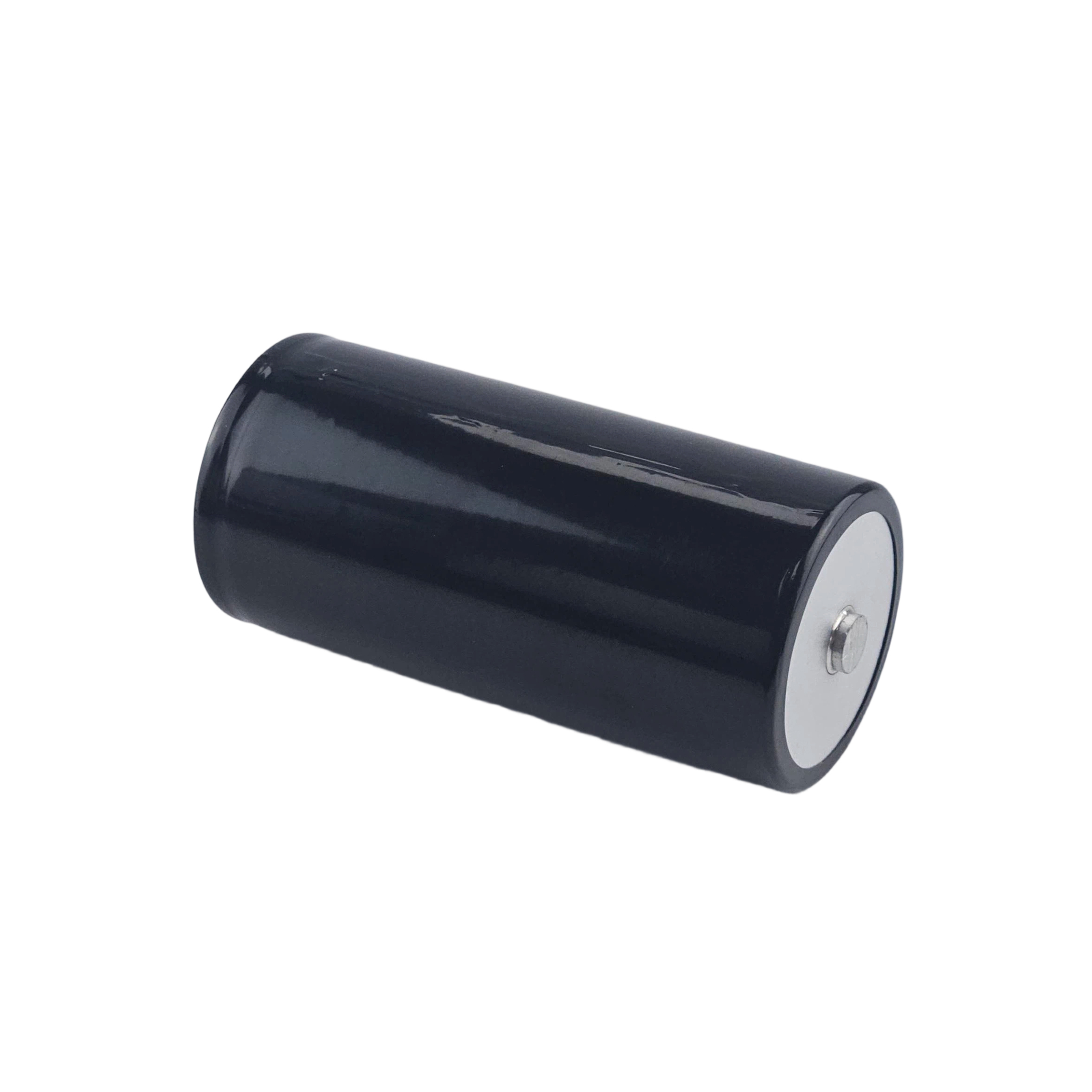

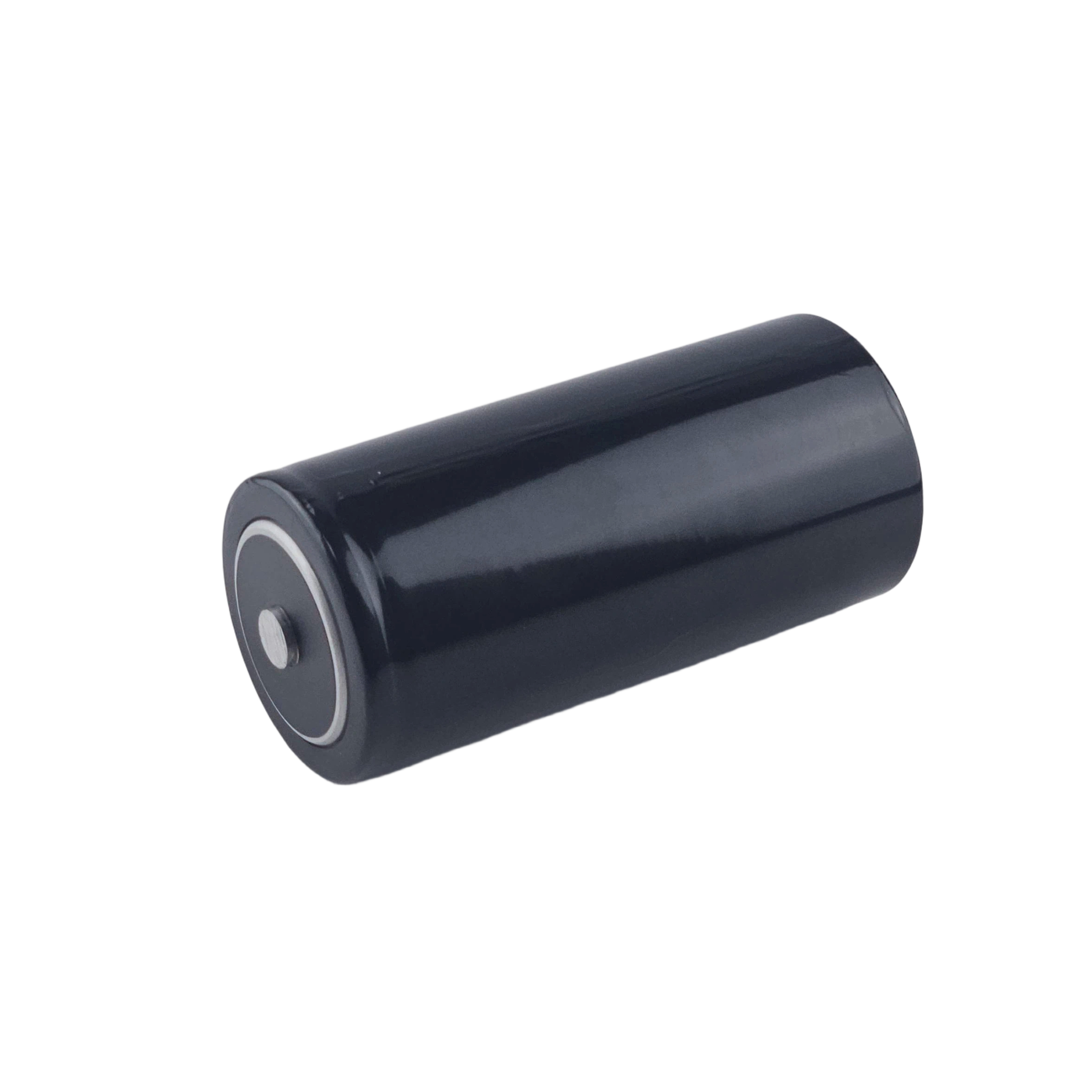

Product Picture

Products Advantages

Wide Operating Temperature Range

Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT)
series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments,
making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.

Long Cycle Life

Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional
supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge
cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.

Excellent Charge-Discharge Characteristics

They support instantaneous high-current charge and discharge, featuring fast charging speed and short
charge-discharge time. They have simple requirements for charging circuits and no memory effect.

Stable Electrical Performance

Certain series (e.g., HP series) feature low internal

resistance and can achieve instantaneous high-current output; the HE series has low leakage current,
suitable for long-term low-current discharge; the 3V series is adapted for long-term stable operation under
high-voltage conditions.

Product Applications

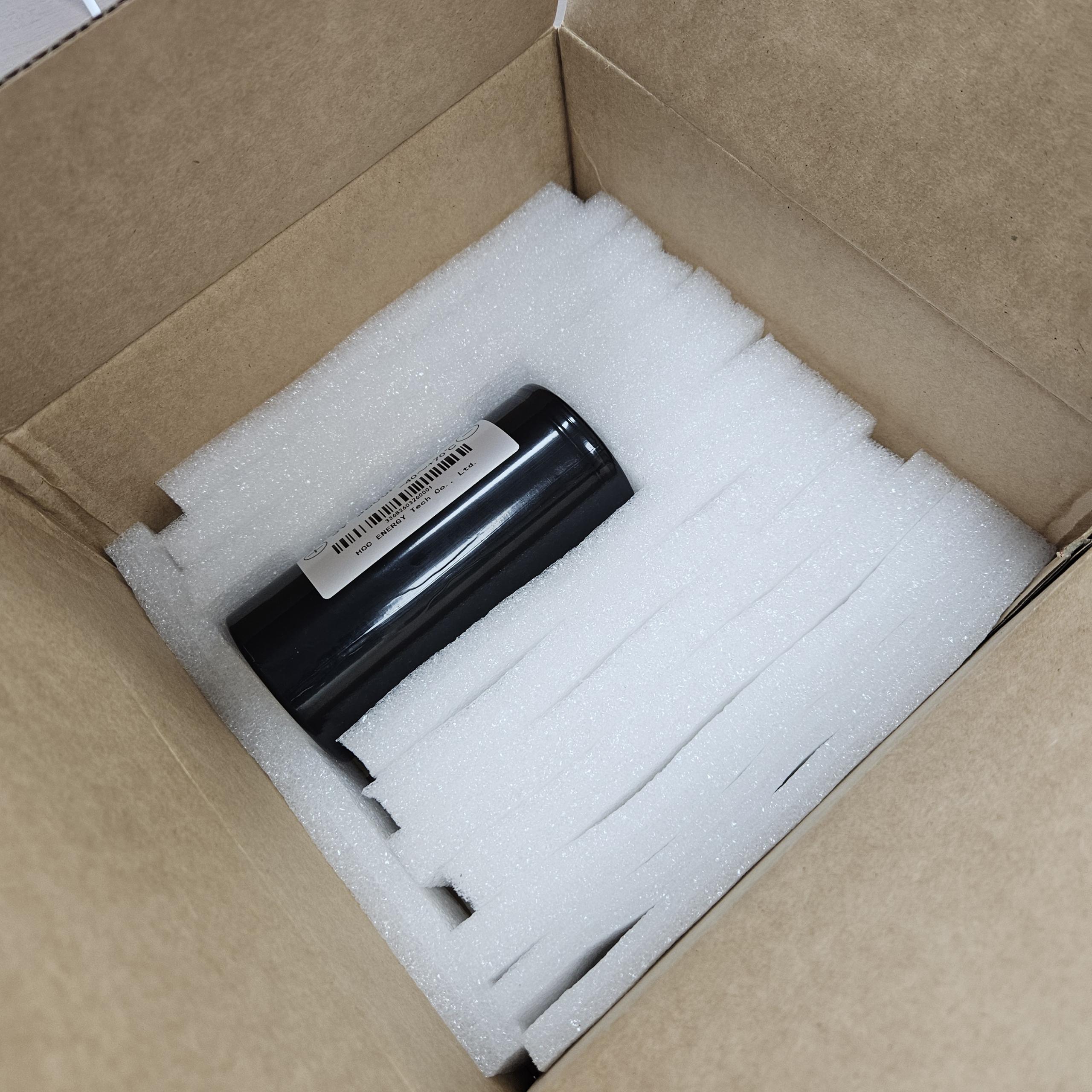

package

Hybrid Super Capacitor 3600F High Power Long Cycle Life Ultra Capacitor Module

Description

Hybrid Super Capacitor High Power Long Cycle Life Ultra Capacitor ModuleProduct Description

Long Cycle Life

Excellent Charge-Discharge Characteristics

Stable Electrical Performance
