Name: Hybrid Super Capacitor 2.7V 100F for Car Jump Starter Solar System
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601735685221
Availability: InStock
Rating: 5 (1 reviews)

Description

Hybrid Super Capacitor 2.7V 100F for Car Jump Starter Solar System
Product Description

Modle	BA--C 2R7 107-100F
3000Rate discharge Cap.( ΔV＝2.4V-1.5V)	100F
Cap. Tolerance(25℃)	0%~+30%
Rated Voltage(V)	2.7
Surge voltage(V)	2.85
Internal Resistance ESRDC (mΩ)	18
Rated current (discharge to 1/2 VR in 5 seconds)	20A
Maximum current (discharge to 1/2 VR in 1 second)	48A
Leakage Current at 72h (25℃)	2mA
Operating Temp.(Top)	-40~+70℃
Storage temperature range (at 0V)	-40~+70℃
Weight m	20
Energy Density (at U0)	5.1Wh/kg
Dump energy	365J(0.1Wh)/75mAh

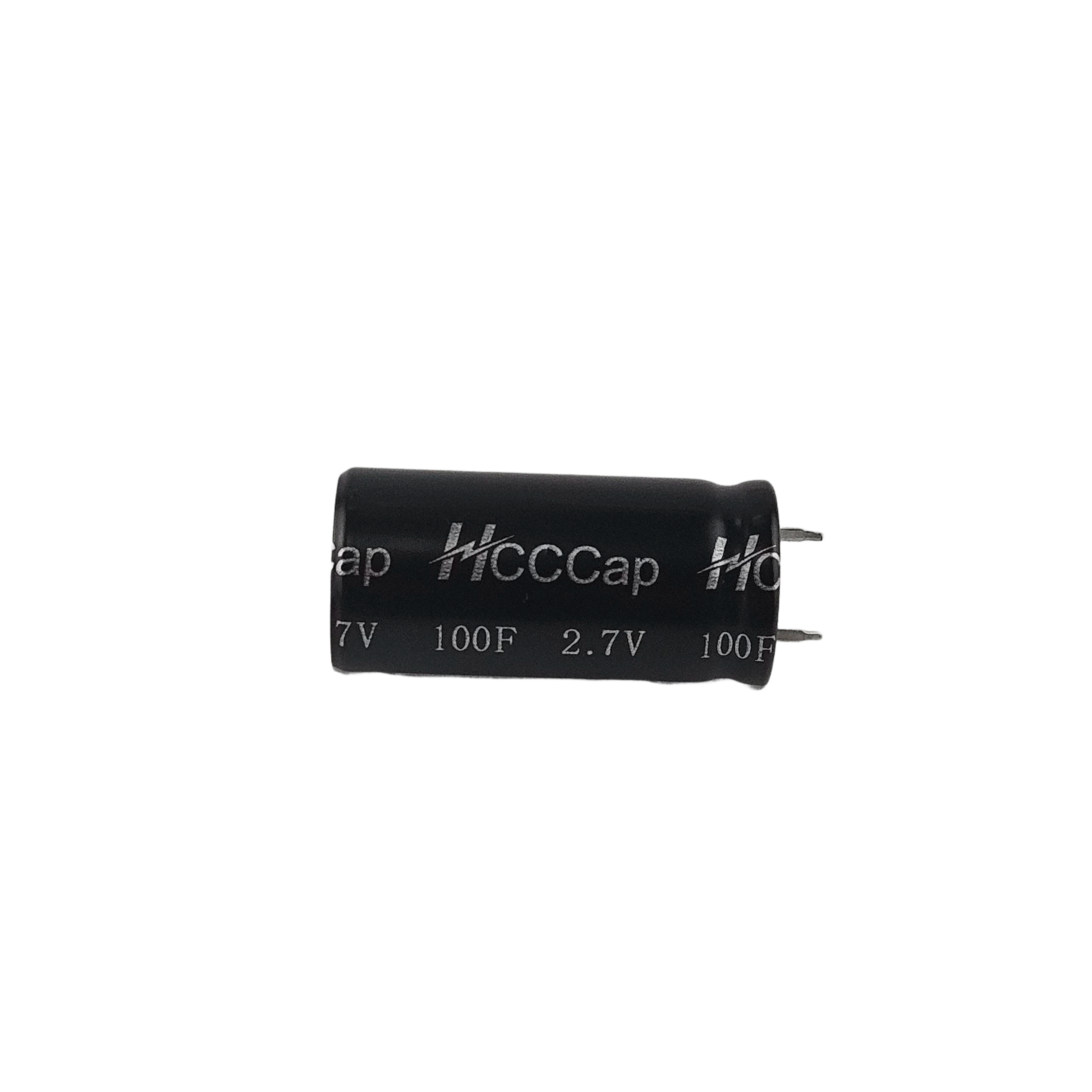

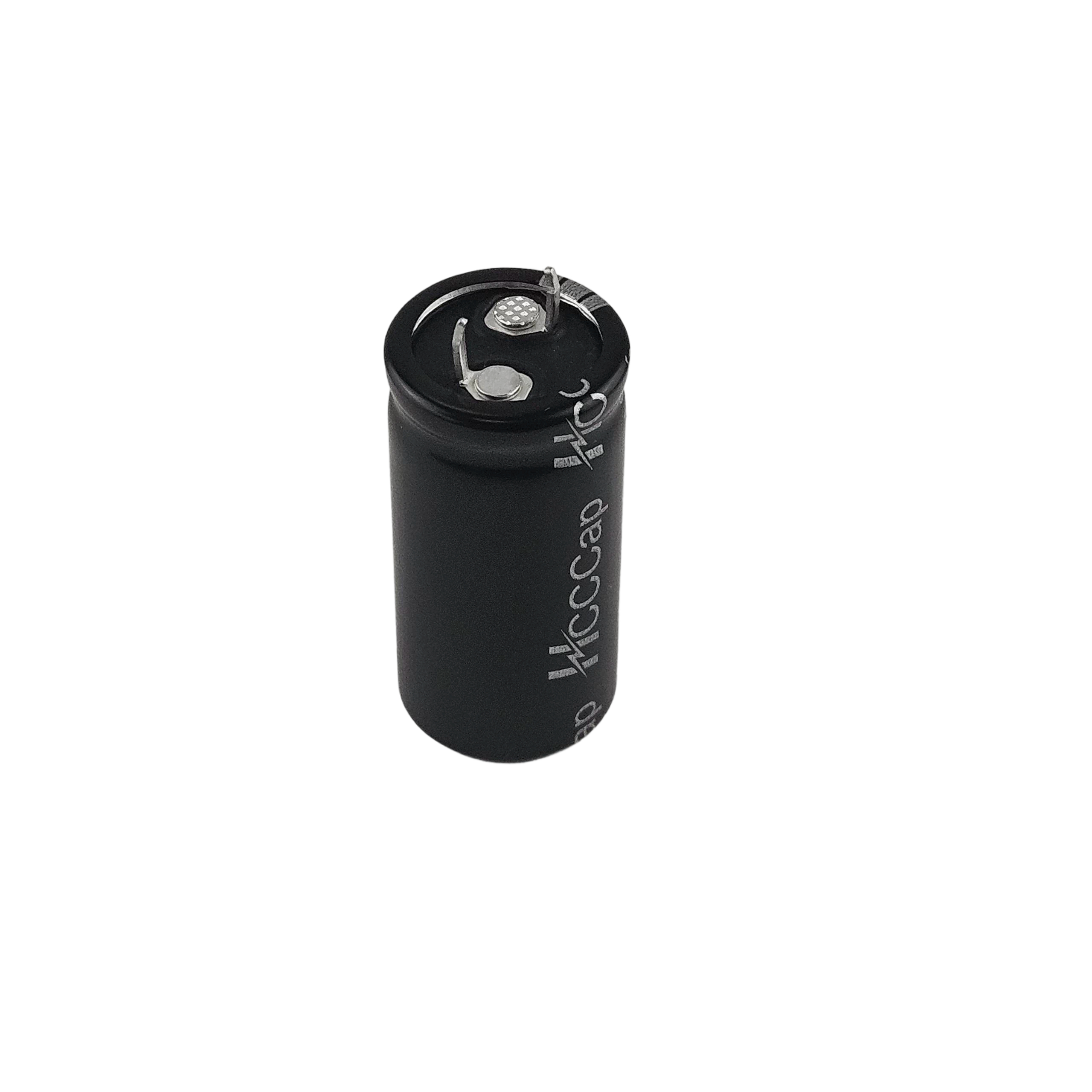

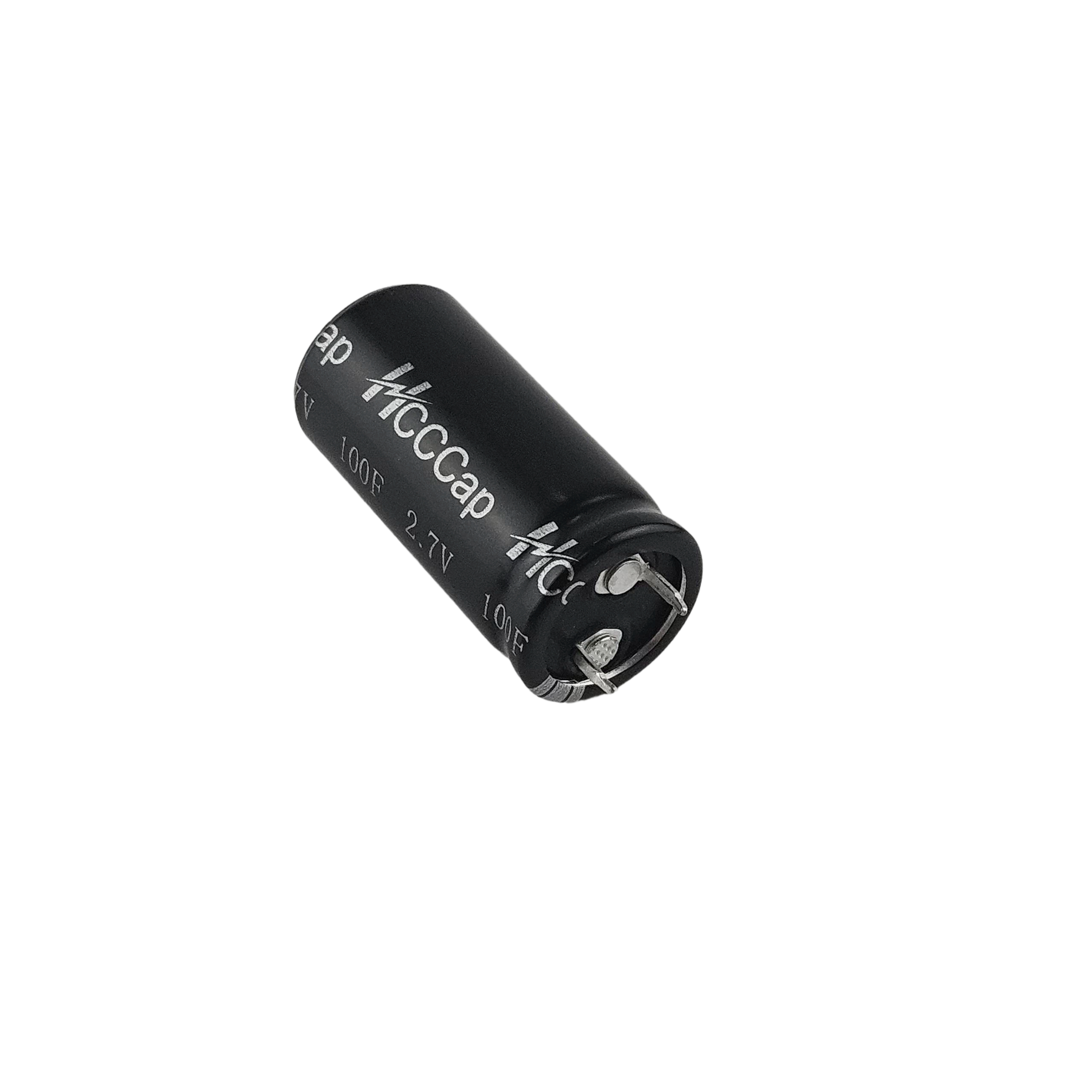

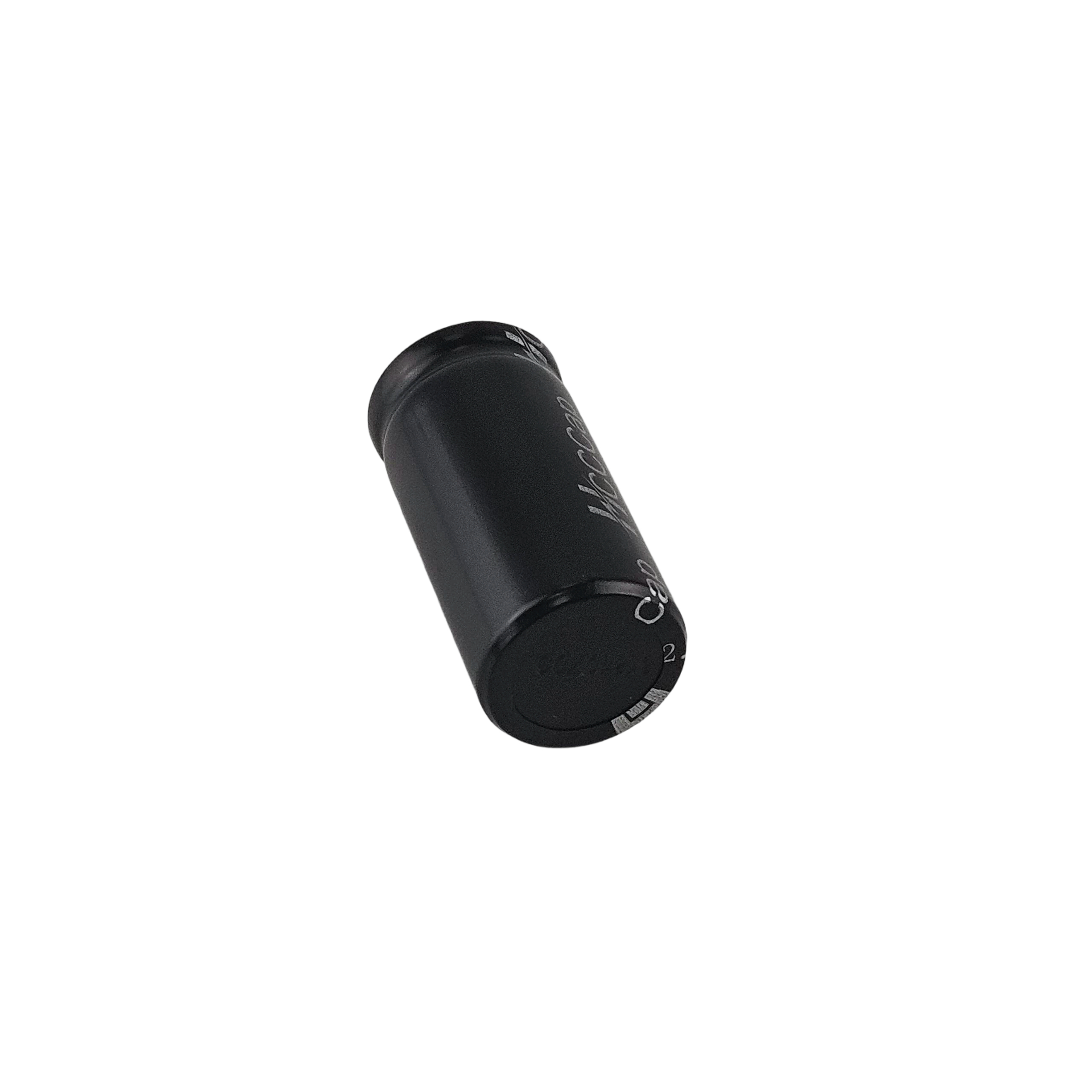

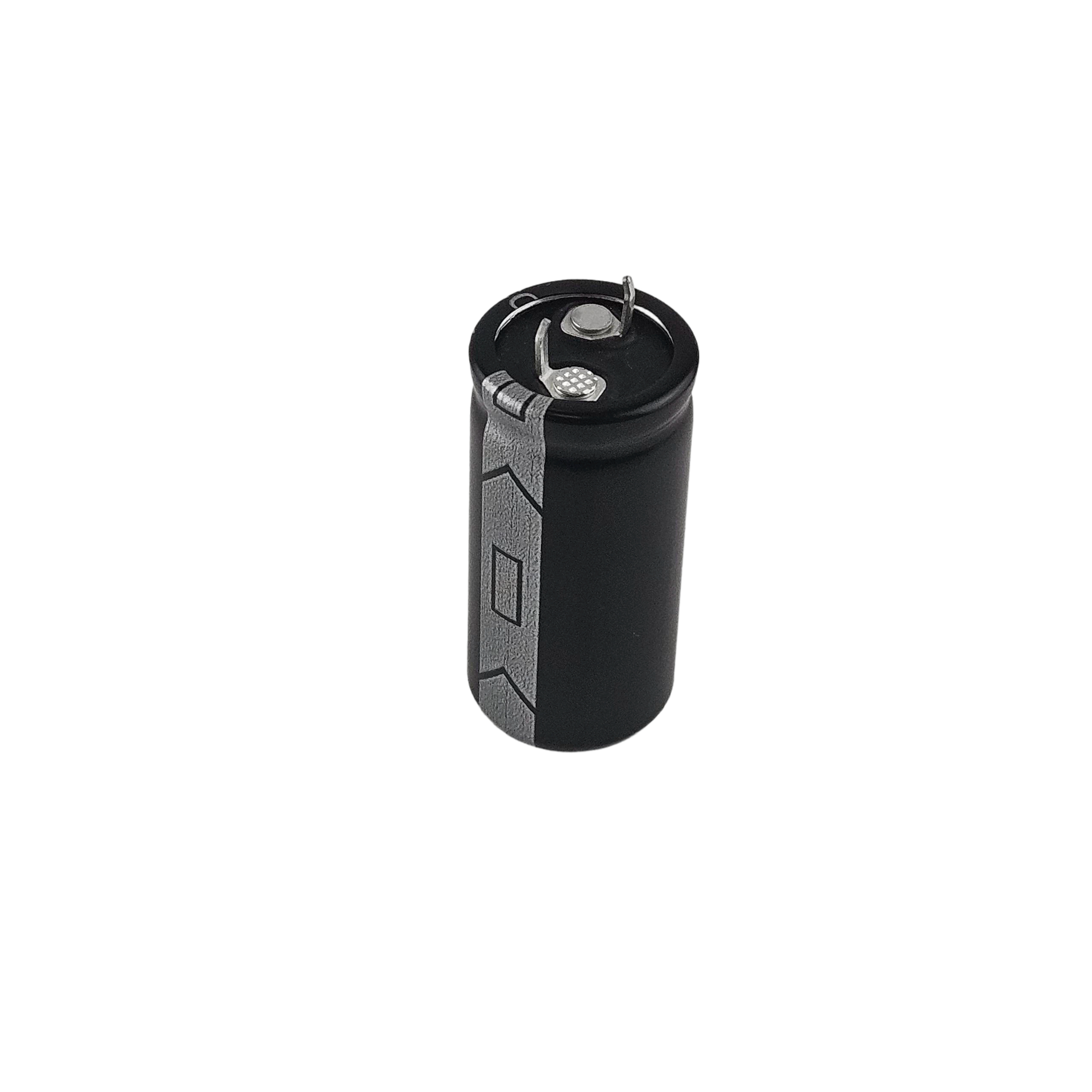

Product Picture

Products Advantages

Wide Operating Temperature Range

Mainstream products operate in a temperature range of -40℃ to +70℃, and the high-temperature (HT)
series can withstand -40℃ to +85℃. They maintain normal operation in low-temperature environments,
making them suitable for extreme scenarios such as the Arctic, Antarctic and high-altitude areas.

Long Cycle Life

Hybrid supercapacitors (LIC/Lithium Capacitors) boast a cycle life of 250,000 times; conventional
supercapacitors can undergo more than 500,000 charge-discharge cycles. With 20 charge-discharge
cycles per day, they can be used continuously for 60 years, which is far longer than traditional batteries.

Excellent Charge-Discharge Characteristics

They support instantaneous high-current charge and discharge, featuring fast charging speed and short
charge-discharge time. They have simple requirements for charging circuits and no memory effect.

Stable Electrical Performance

Certain series (e.g., HP series) feature low internal

resistance and can achieve instantaneous high-current output; the HE series has low leakage current,
suitable for long-term low-current discharge; the 3V series is adapted for long-term stable operation under
high-voltage conditions.

Product Applications

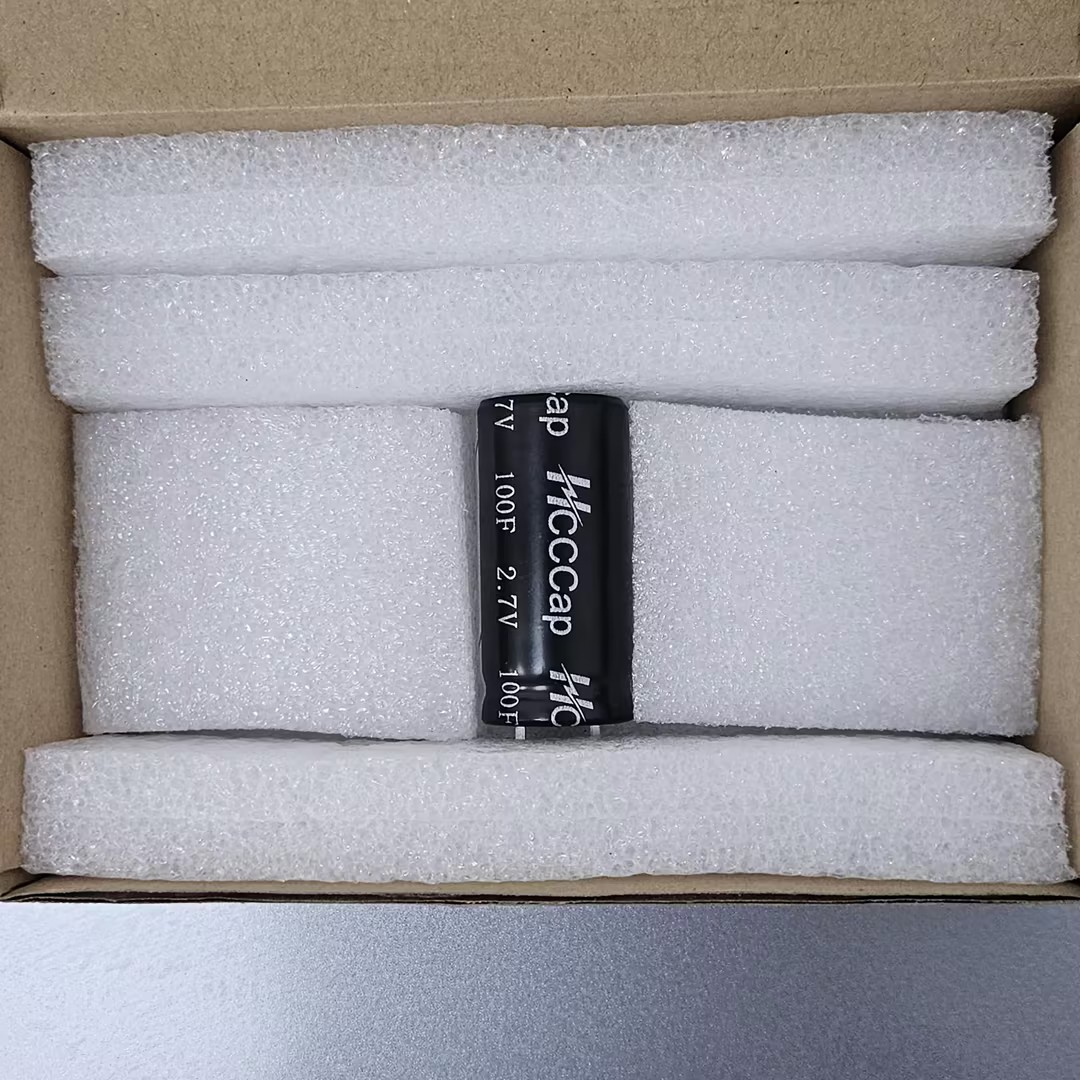

package

Hybrid Super Capacitor 2.7V 100F for Car Jump Starter Solar System

Description

Long Cycle Life

Excellent Charge-Discharge Characteristics

Stable Electrical Performance
