Name: Hybrid Solar Inverter SPF-6000-ES-Plus Growatt DC/AC Inverter 6KW Power New Energy System
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601677064379
Price: 510.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Product descriptions from the supplier

Product Description

Model	SPF 6000 ES Plus
Battery voltage	48VDC
Battery type	Lithium/Lead-acid
Inverter output
Rated power	6000VA/6000W
Parallel capability	Yes, 6 units maximum
AC voltage regulation (battery mode)	230VAC ± 5% @ 50/60Hz
Surge power	12000VA
Efficiency (peak)	93%
Waveform	Pure sine wave
Transfer time	10ms typical, 20ms Max
Solar charger
Maximum PV array power	8000W
MPPT range @ operating voltage	120VDC ~ 450VDC
Number of independent MPP trackers/ strings per MPP tracker	2/1
Max. input current per MPP tracker	16A
Maximum PV array open circuit voltage	500VDC
Maximum solar charge current	100A
AC charger
Charge current	80A
AC input voltage	230VAC
Selectable voltage range	170-280 VAC (For personal computers) ; 90-280 VAC (For home appliances)
Frequency range	50Hz/60Hz (Auto sensing)
Physical
Protection degree	IP20
Dimension (W/H/D)	460/395/132mm
Net weight	13.5kg
Operating environment
Humidity	5% to 95% Relative humidity(Non-condensing）
Altitude	<2000m
Operating temperature	0°C - 55°C
Storage temperature	-15°C - 60°C

KEY STRENGTHS

Plug-and-Play temminal for PV port
Dual MPp trackers
Maximun Pv input voltage up to 500VDC
Configurable grid or solar input priority
Parallel for scalability
Dust-prooffilter for harsh environment
Two AC input temminals with integratedtransfer switch

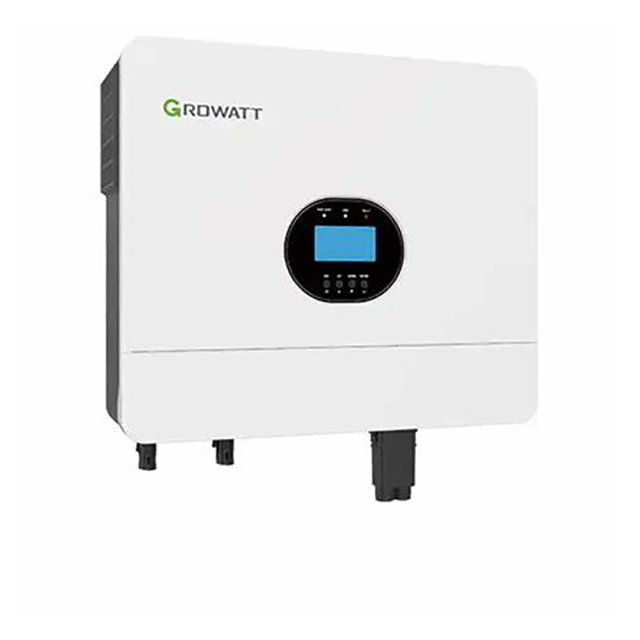

Product Images

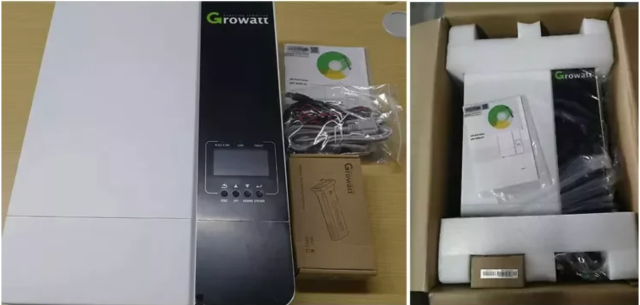

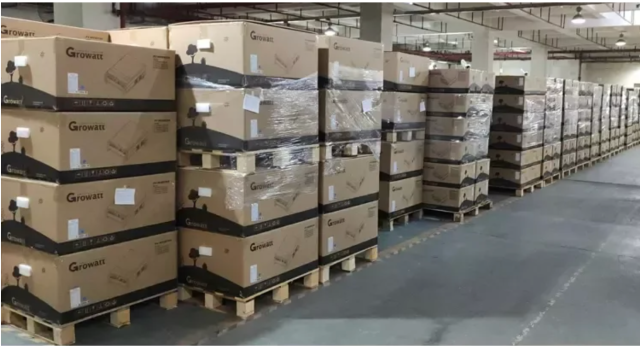

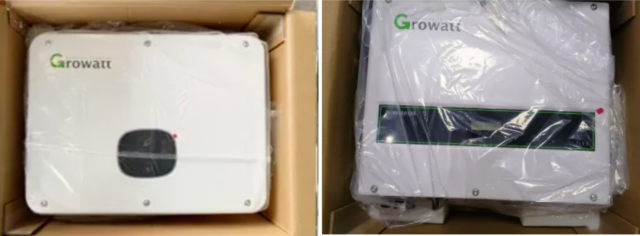

Packing&Shipping

Related Products

Company Introduction

Beian New Energy Co., Ltd. is a high-tech new energy enterprise based in Suzhou, China.We focus on customized solutions and products of lithium-ion batteries.

Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.

Beian New Energy also provides high voltage DC contactors,connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS).

Beian New Energy a total lithium-ion battery solution provider, offering a quality guarantee ranging from 1 to 10 years, Welcome your consultation.

FAQ

Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.

Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.

Q6:How long does the warranty?
A: In general, the time is 1 year.

Q7: What is your terms of payment?
A: We accept T/T and L/C

Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.

Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
