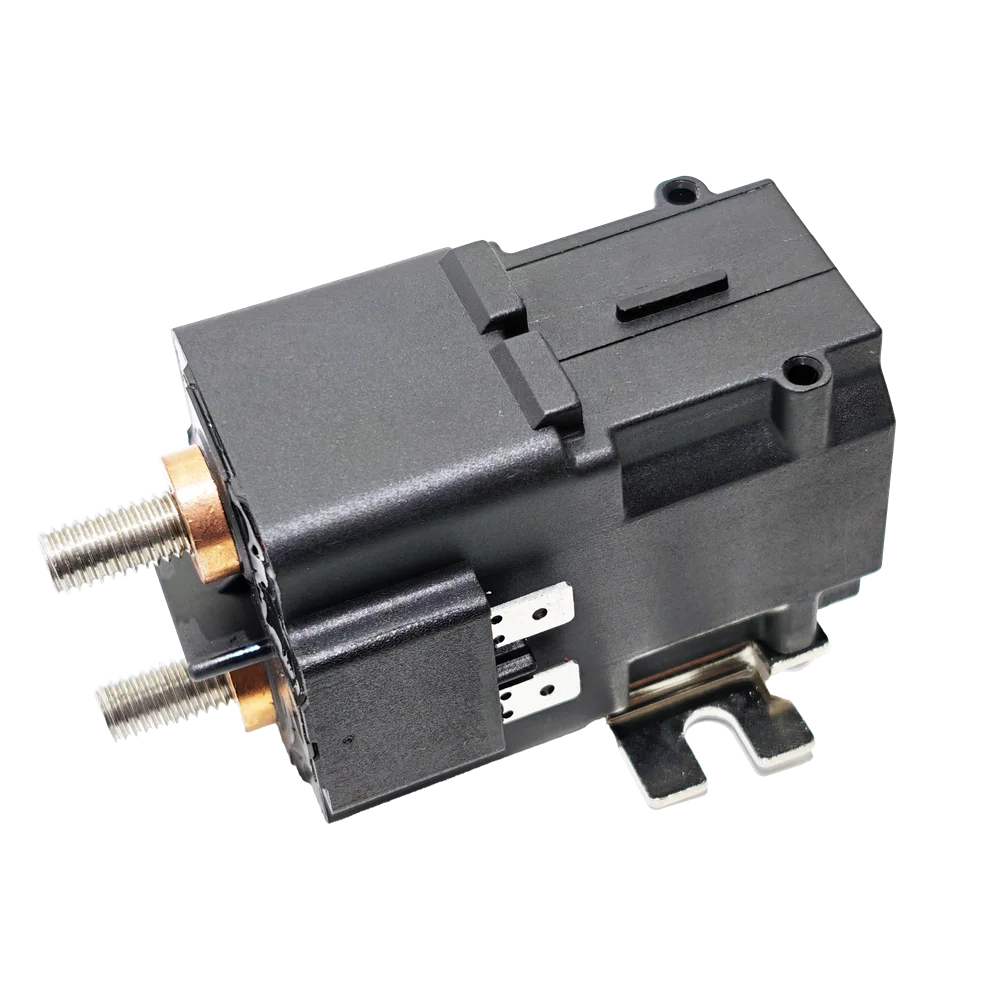

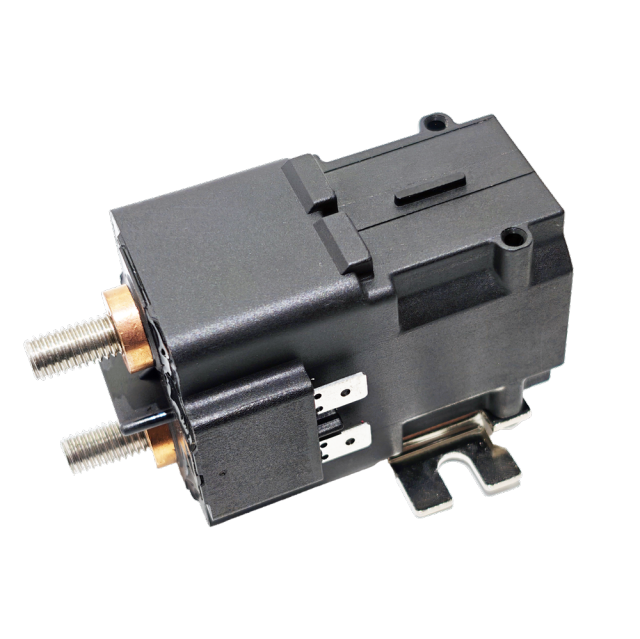

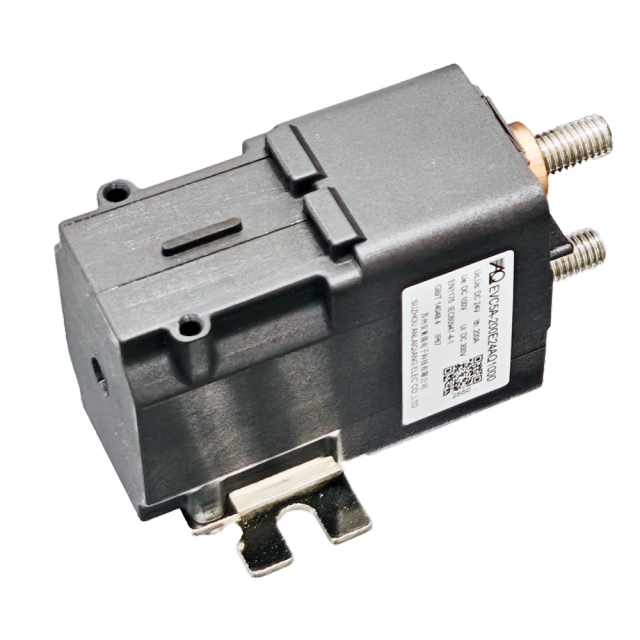

Name: HV DC Contactor 500VDC 200A 16kA Breaking Capacity CE Certified
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601670414039
Price: 65.90 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Breaking Capacity

16 kA

Phase

Single

Number of Pole

Place of Origin

Jiangsu, China

Model Number

EVC5A

Brand Name

ALQ

Rated load voltage Ue

Max 500Vdc

Rated load current Ie

200Amp

Rated voltage of coil Us

DC12V/24V/48V

Weight approximately

250g

Mechanical Life

200000

Maximum breaking current

2000A,1 Cycle@80VDC

certification

CCC CE

Use and storage environment

-40~+85℃;5~95% RH

Packaging and delivery

Selling Units

Single item

Single package size

7X7X10 cm

Single gross weight

1.000 kg

Product descriptions from the supplier

Warning/Disclaimer

California Proposition 65 Consumer WarningView more

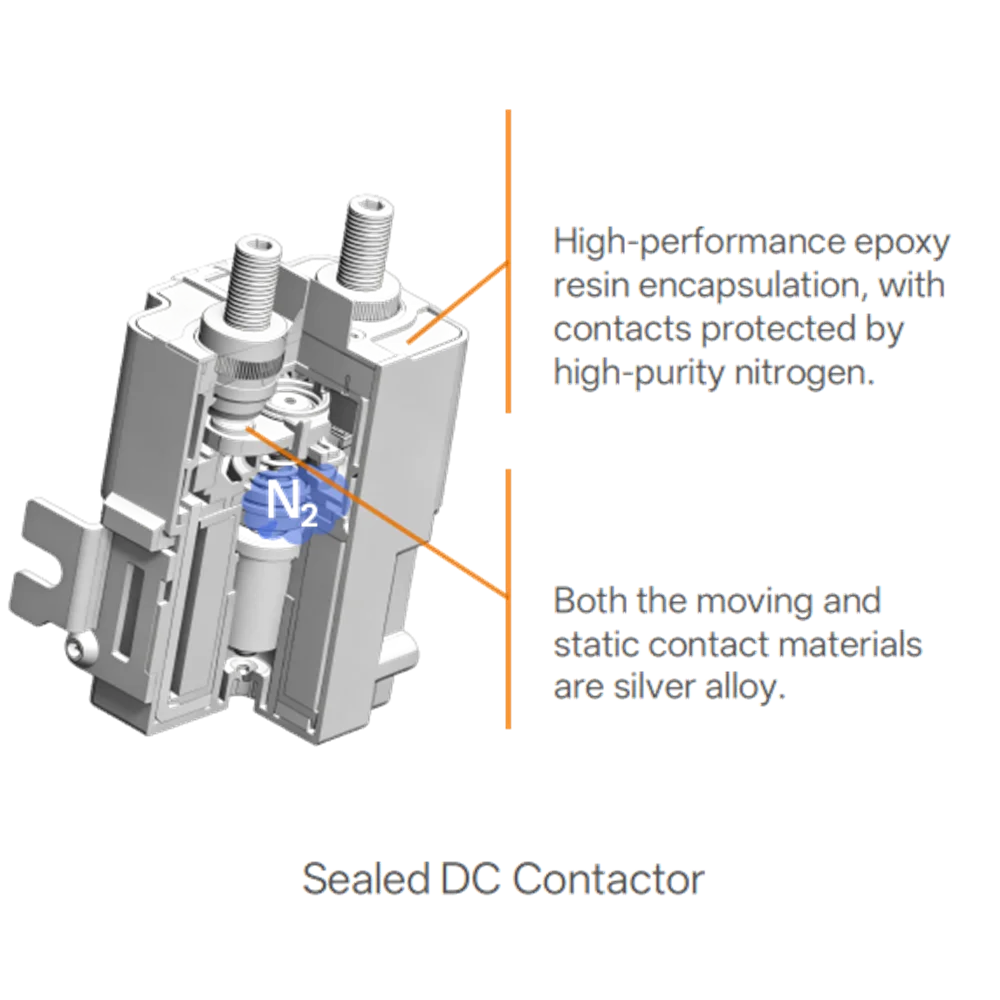

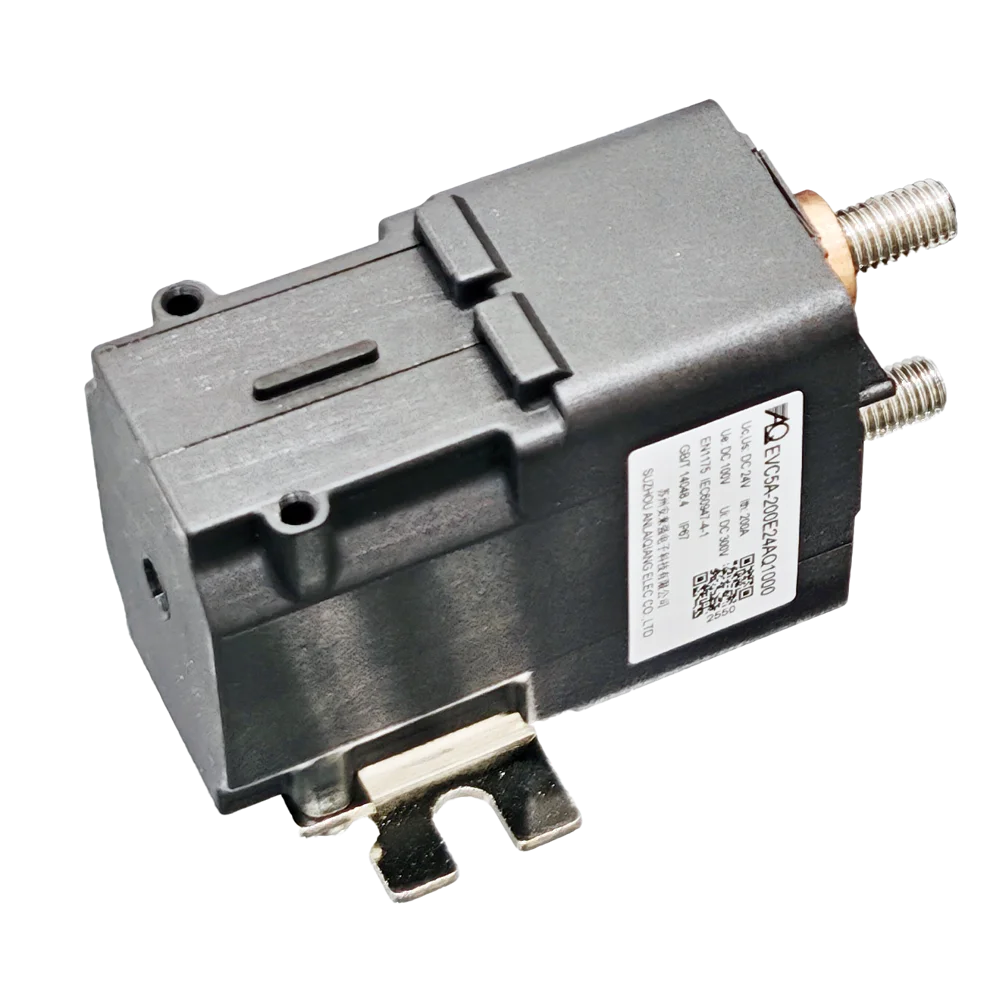

Sealed DC Contactor

It adopts high-performance epoxy resin encapsulation, with contacts protected by high-purity nitrogen to avoid external environmental impacts. Compared with traditional air-type DC contactors, it can achieve more reliable operation in harsh environments such as low temperature, high humidity, high dust and high altitude.

1. Product protection rating: IP69K

2. At a low temperature of -40℃, there is no frost formation on the contact surface.

3. It can operate reliably at a high altitude of 4000 meters.

Both the moving and static contact materials are silver alloy, and the main contacts have excellent capacitive load surge tolerance, which can effectively prevent the main contacts from welding.

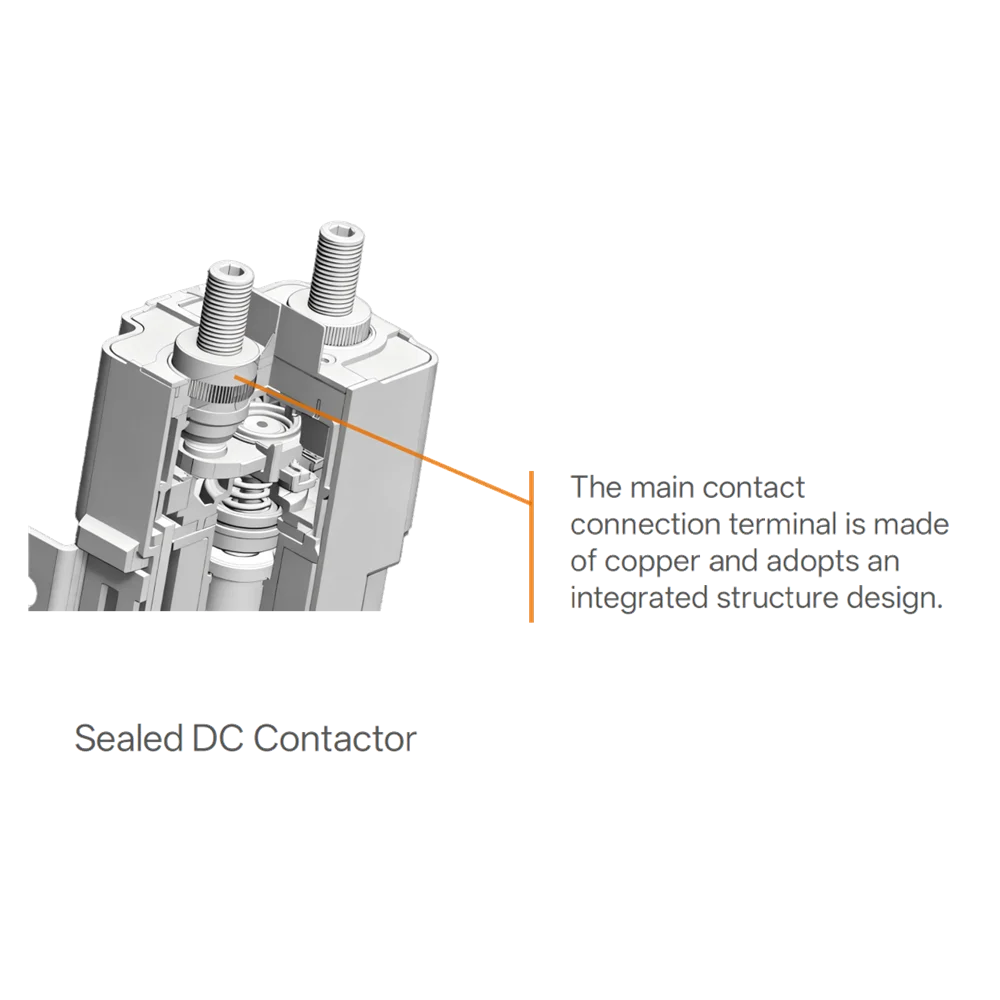

The main contact connection terminal is made of copper and adopts an integrated structure design to ensure lower temperature rise.

Product Paramenters

Items	Value
Model	EVC5A
Contact Polar	Without polarity
Rated Operating Voltage	500VDC
Max. Continuous Current	200A
Max. Cut-off Current	2000A,1 Cycle@80VDC
Contact Arrangement	SPST-NO-DM
Auxiliary Contact	SPST-NO / SPST-NC / None
Coil Rated Voltage	12VDC 24VDC 48VDC
Initial Contact Resistance	Max: 30mΩ Typical:1mΩ
Mechanical Life	200000
Electrical Life(Resistive load, Break)	DC80V 6000cycles@200A DC100V 4000cycles@200A DC200V 800cycles@100A DC500V 200cycles@100A
Shock	10G Peak, 11ms 1/2 Sine wave
Vibration	10G Peak, 80~2000Hz, Sine wave
Operating Ambient Temperature Range	-40℃~+85℃
Ambient Humidity	5%~95%RH
Altitude	≤4000m
Size	564593mm
Install Hole Distance	Side:43.9mm Bottom:64.6mm
Weight	250g

Size

Side mount

Bottom mount
