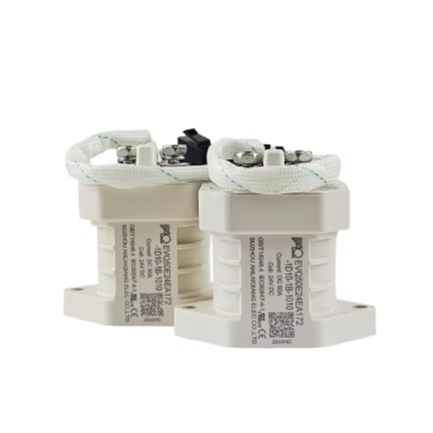

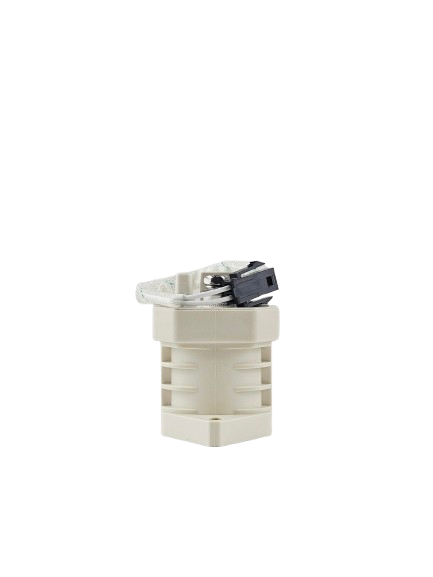

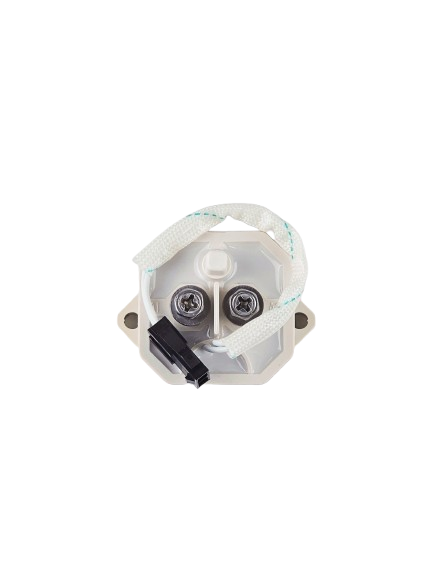

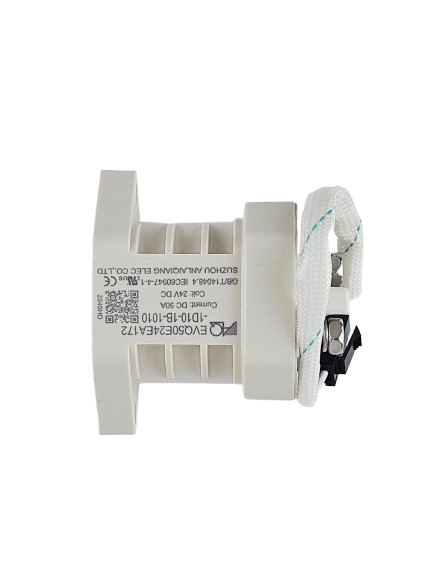

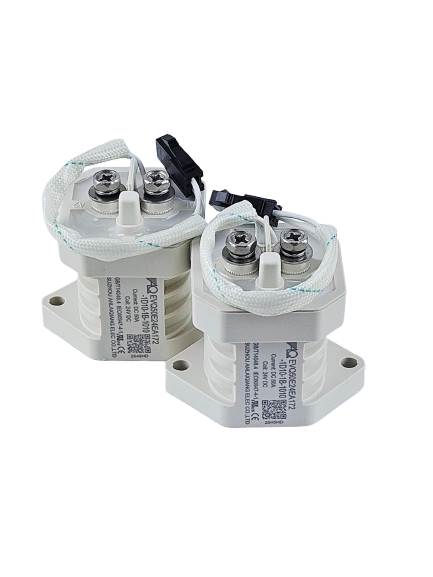

High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart

No.1601621108750
$16.90
Rated Current:
50A
Rated Voltage:
1000V
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart
  • High Voltage DC Contactor 24V 50A ALQ EVQ50 Model CCC CE Certified for Golf Cart

Description

Breaking Capacity
/
Number of Pole
1
Phase
Single
Place of Origin
China
Model Number
EVQ50
Brand Name
ALQ
Rated load voltage Ue
24-1000Vdc
Rated load current Ie
50Amp
Rated voltage of coil Us
12Vdc or 24Vdc
Weight approximately
120g
Contact resistance initial
Typical value 1Milliohm
Electrical life
DC750V 100A,1000times
Maximum breaking current
1000A 320Vdc
Coil power
Starting current 2.8A Holding power 2W
certification
CCC CE
Use and storage environment
-40~+85℃;5~95% RH

Packaging and delivery

Selling Units
Single item
Single package size
7X7X10 cm
Single gross weight
1.300 kg

Product descriptions from the supplier

Products Description

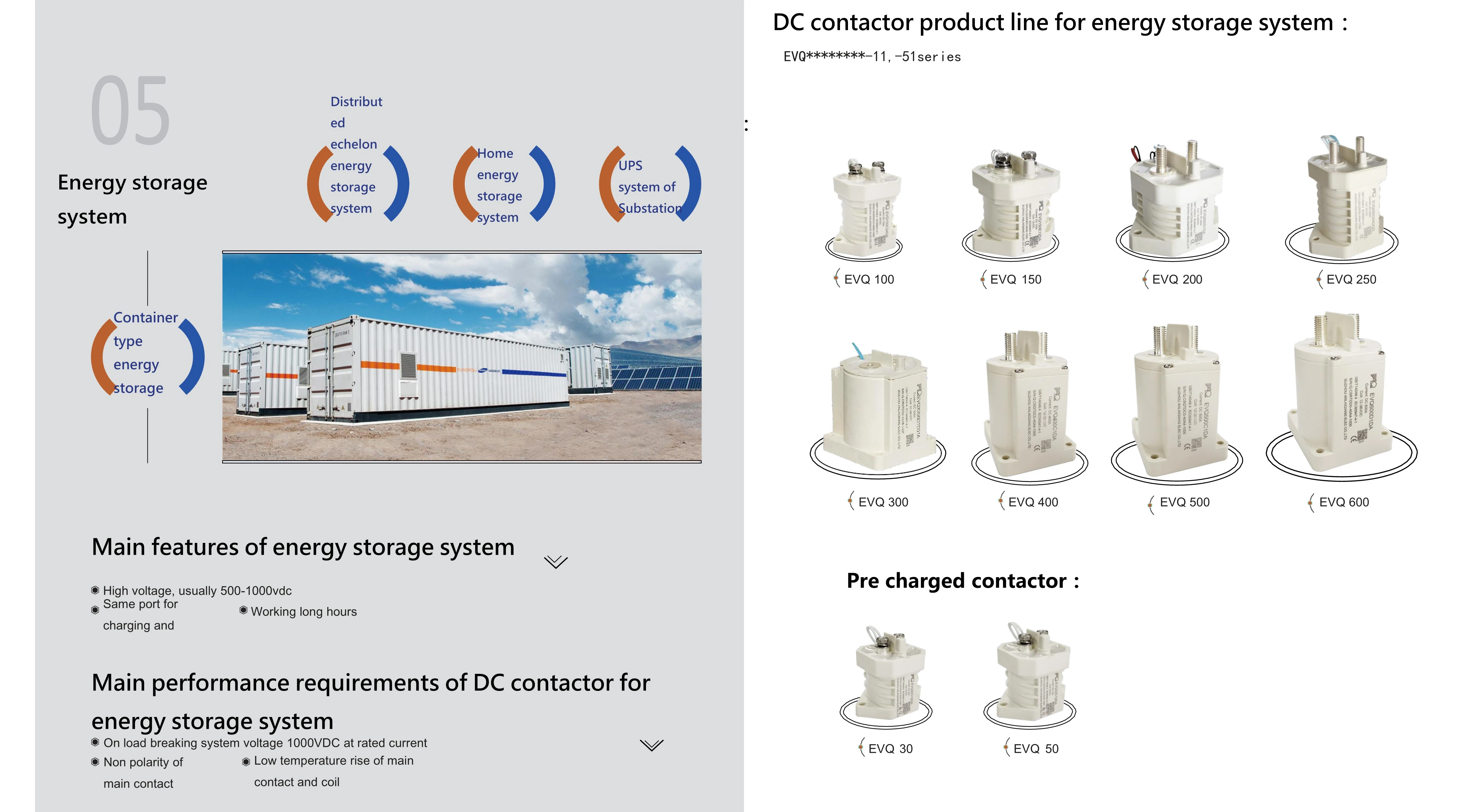

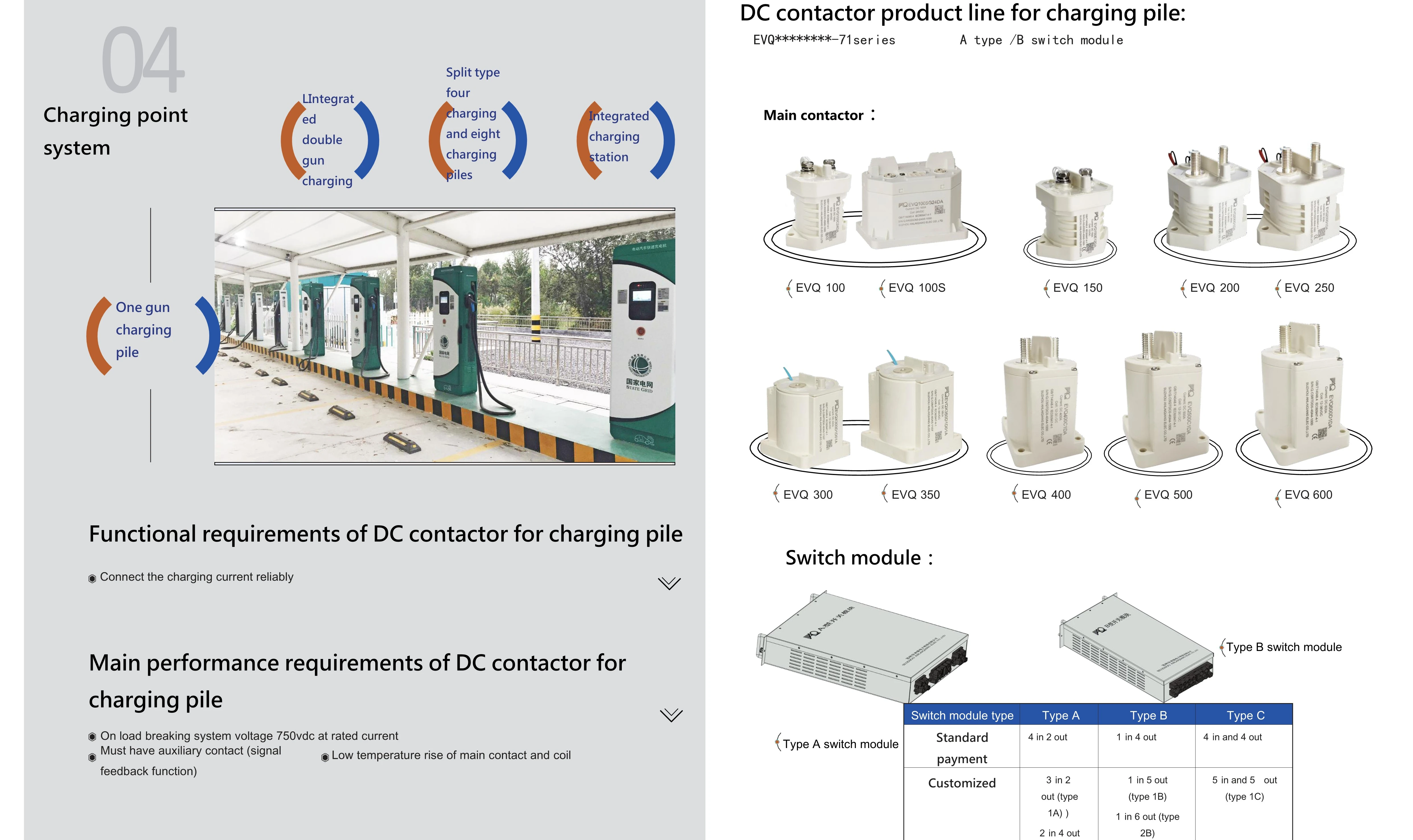

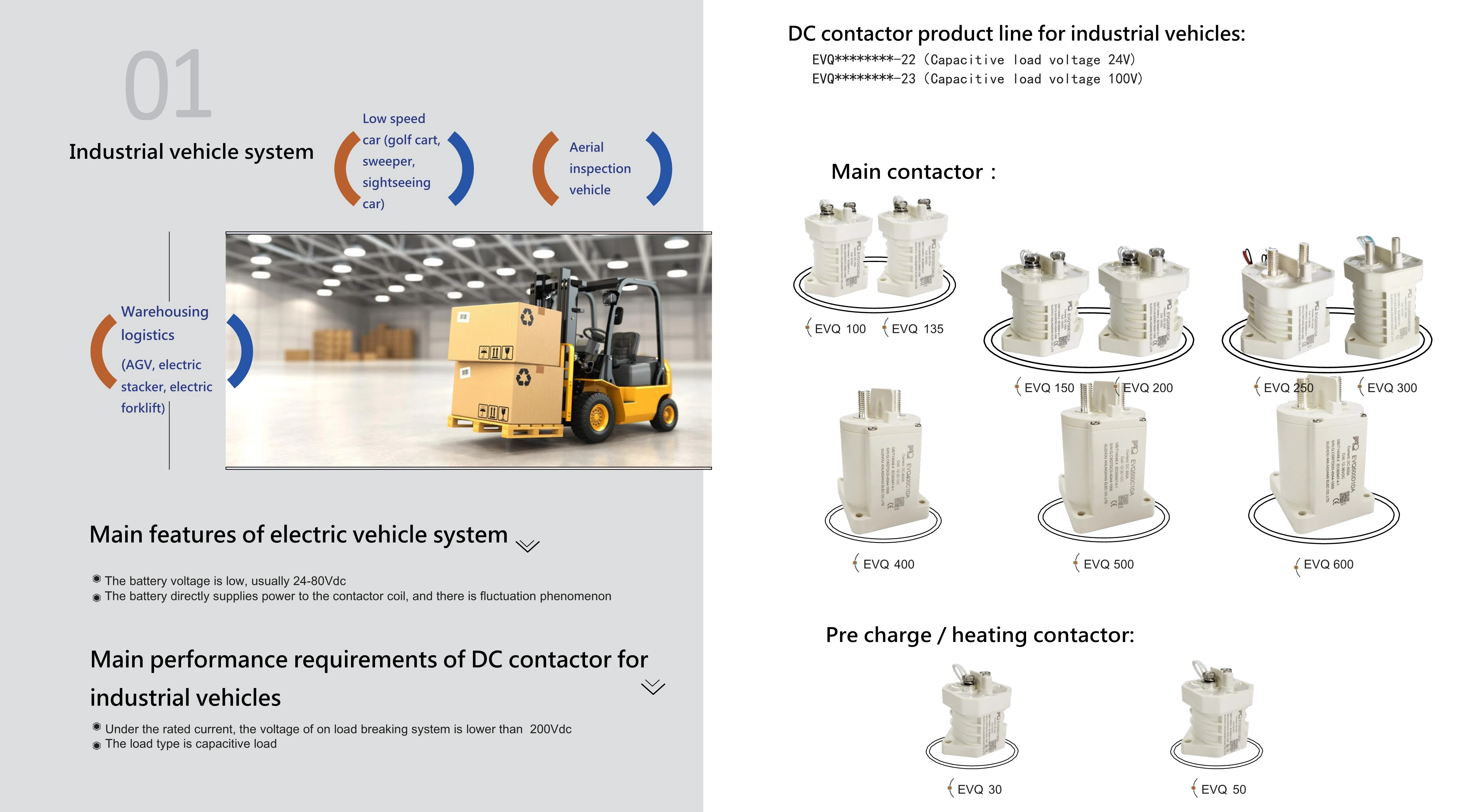

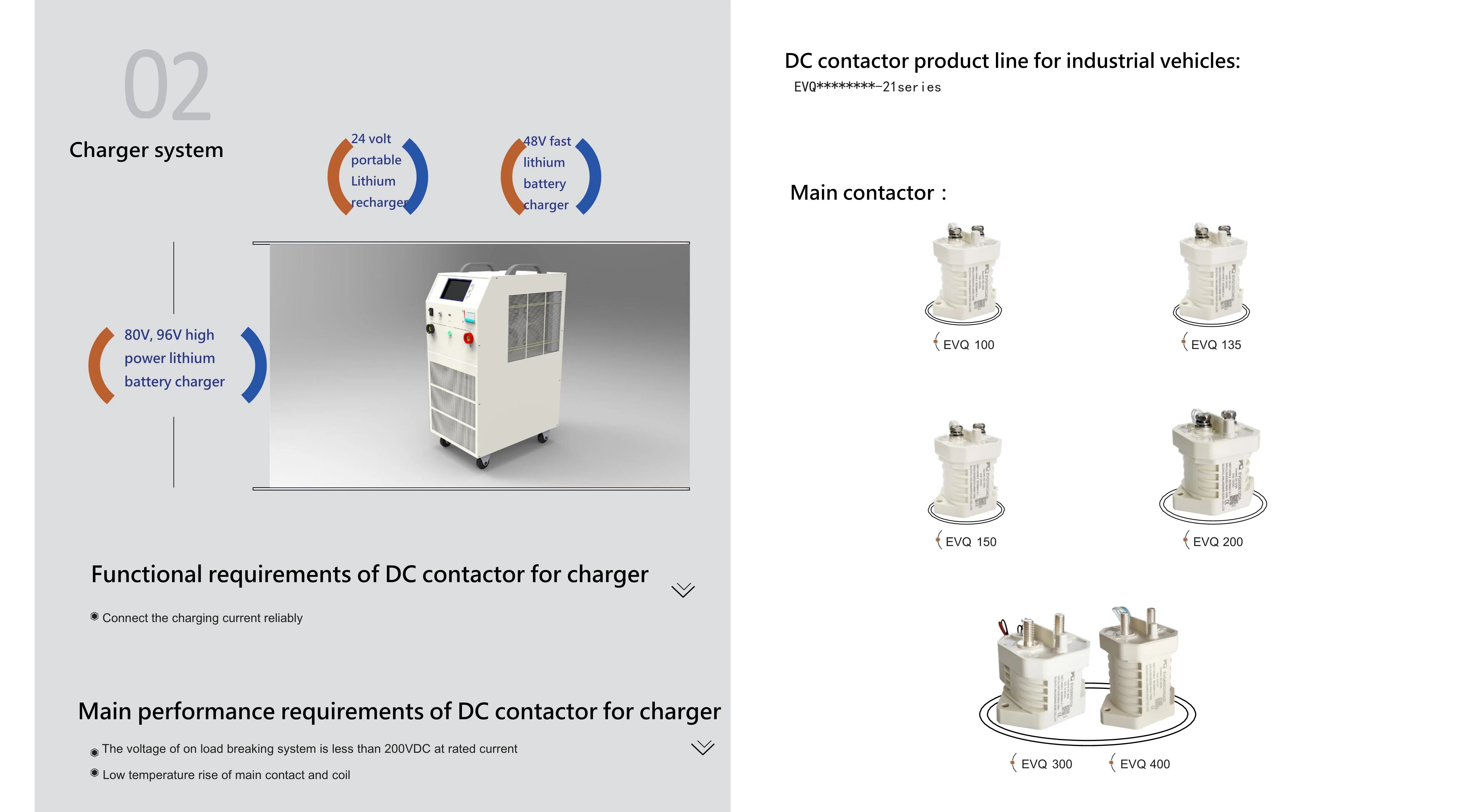

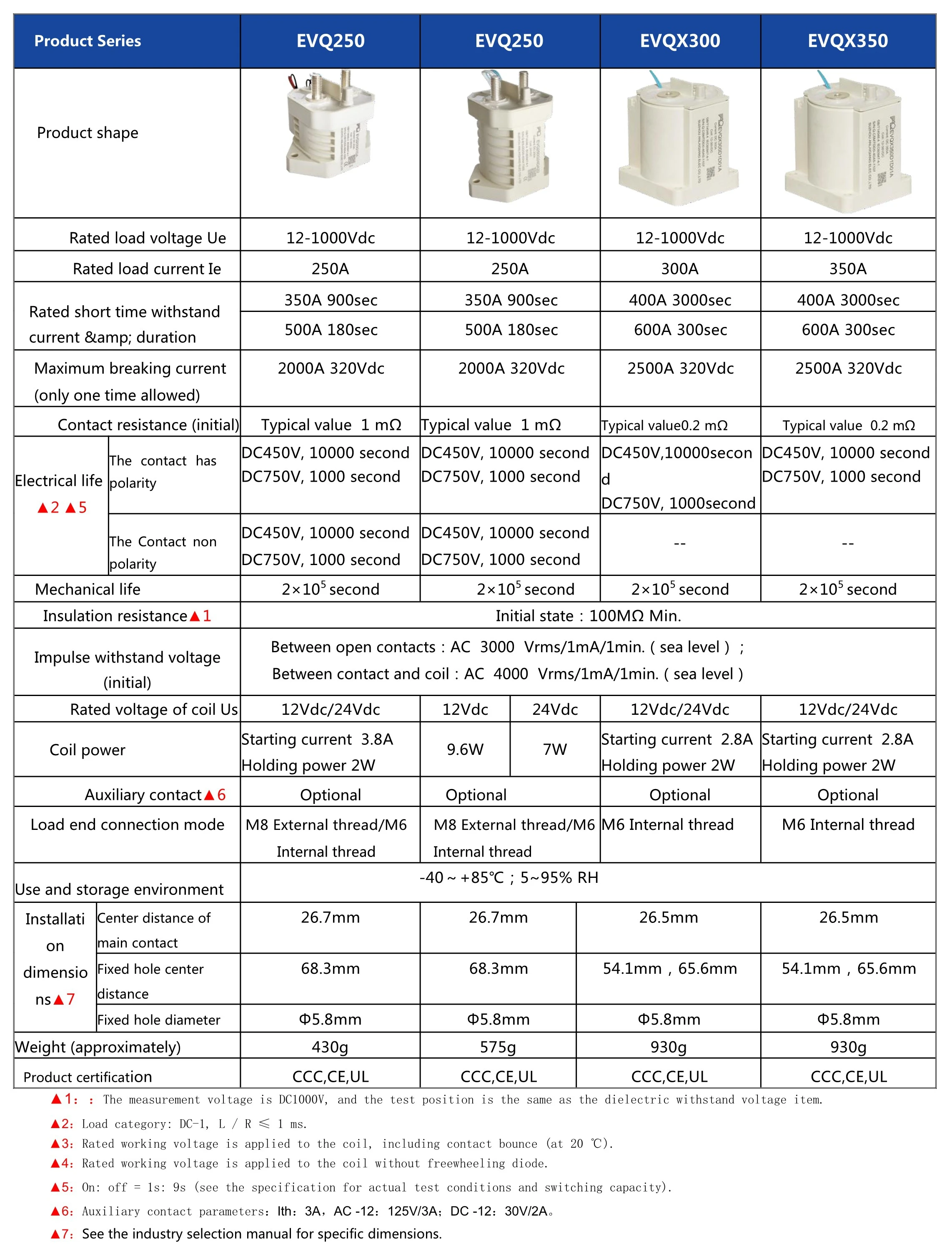

High voltage DC contactor selection table

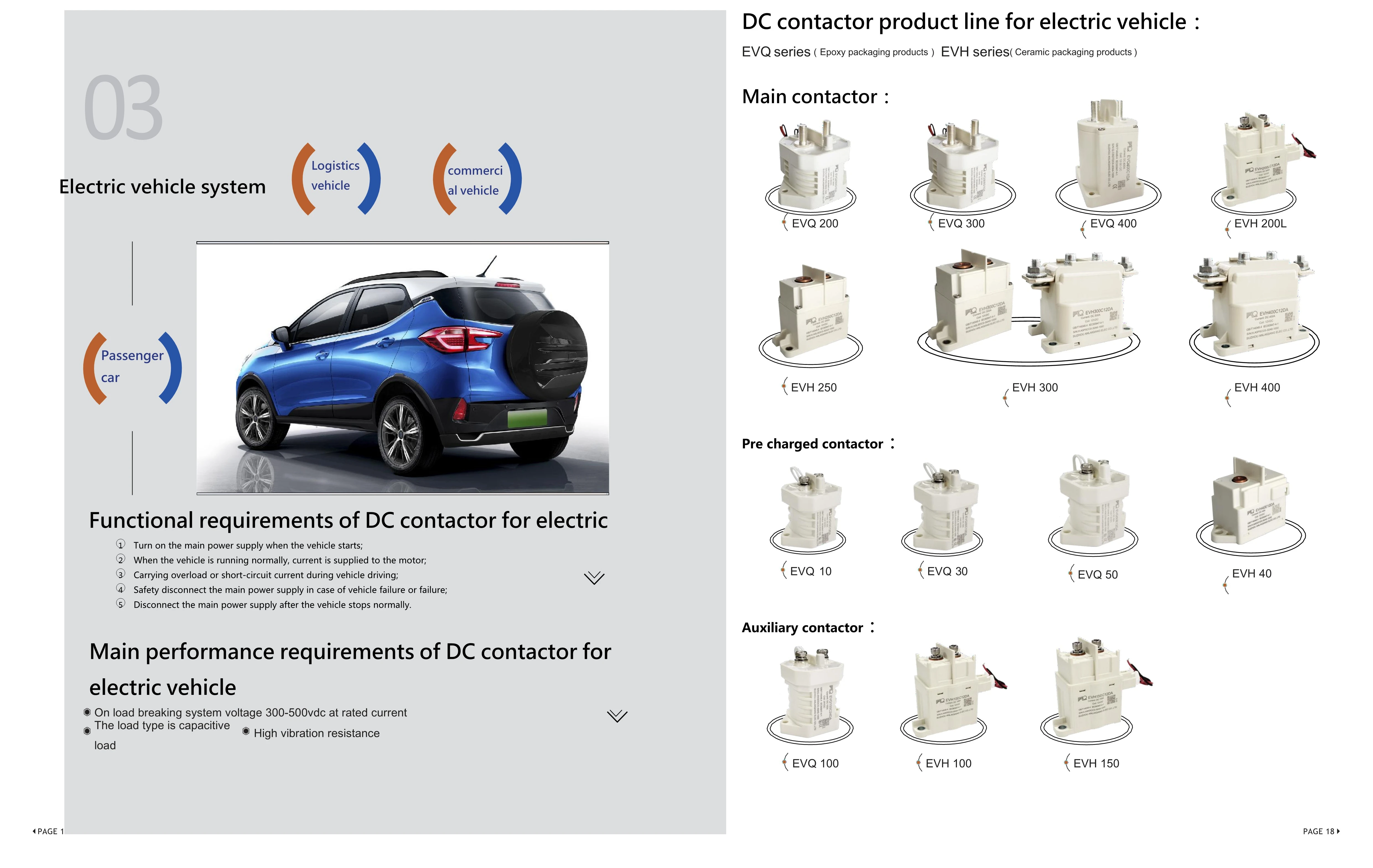

High-voltage DC relays are widely used in new energy electric vehicles, lithium-ion battery packs, industrial vehicles, forklifts,
fast charging stations, and solar photovoltaic energy storage systems. The products have passed CE UL CCC certification, reliable
quality, long service life, and help you increase the life of your products.
item
value
OE NO.
1
Voltage
24-1000Vdc
Rated Current
50A
Warranty
1Years
Brand Name
ALQ
Place of Origin
China
Car Make
Electric vehicles Lithium-ion battery pack
Model Number
EVQ50
Rated load voltage Ue
24-1000Vdc
Rated load current Ie
50Amp
Rated voltage of coil Us
12Vdc or 24Vdc
Weight approximately
120g
Contact resistance initial
Typical value 1Milliohm
Electrical life
DC750V 100A,1000times

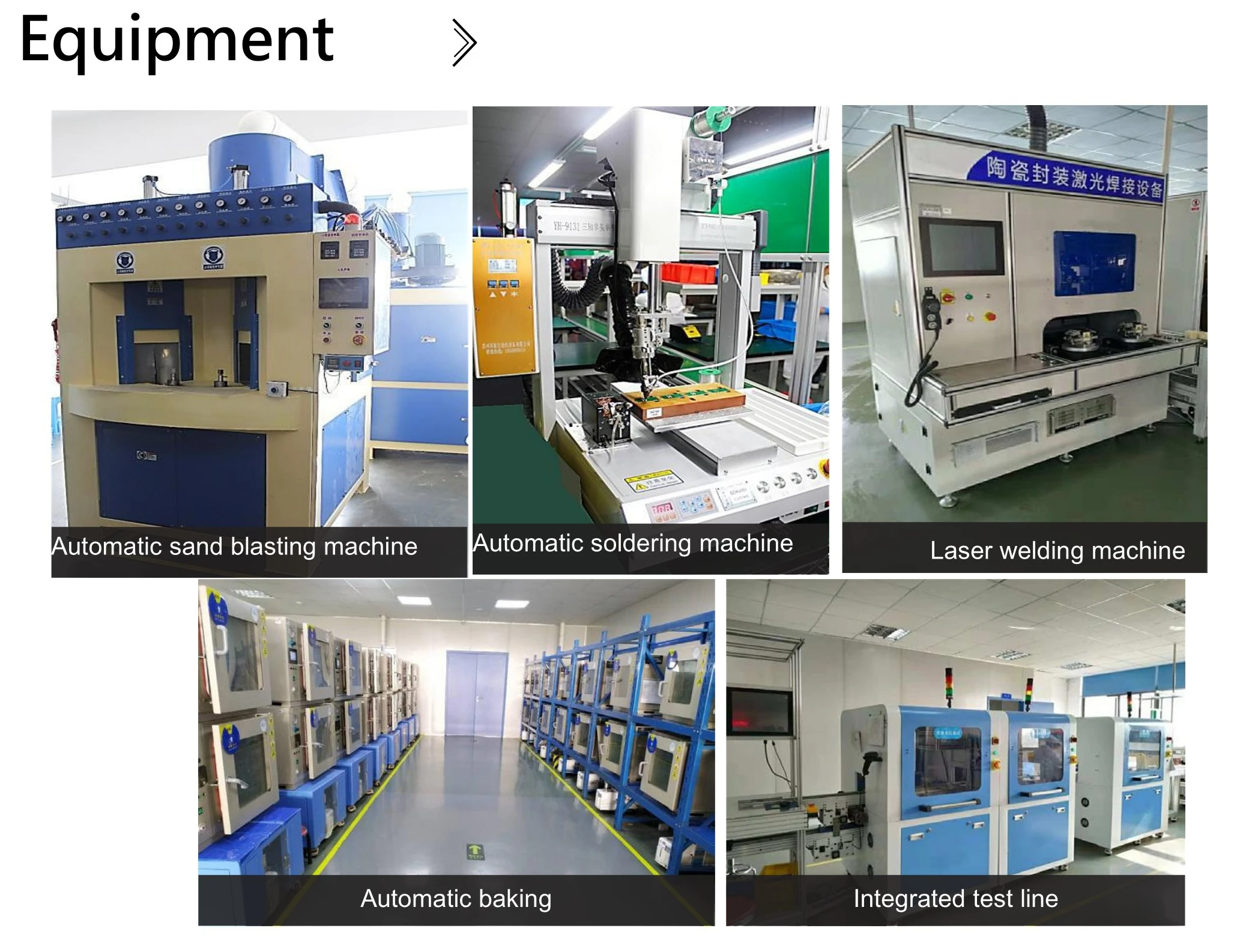

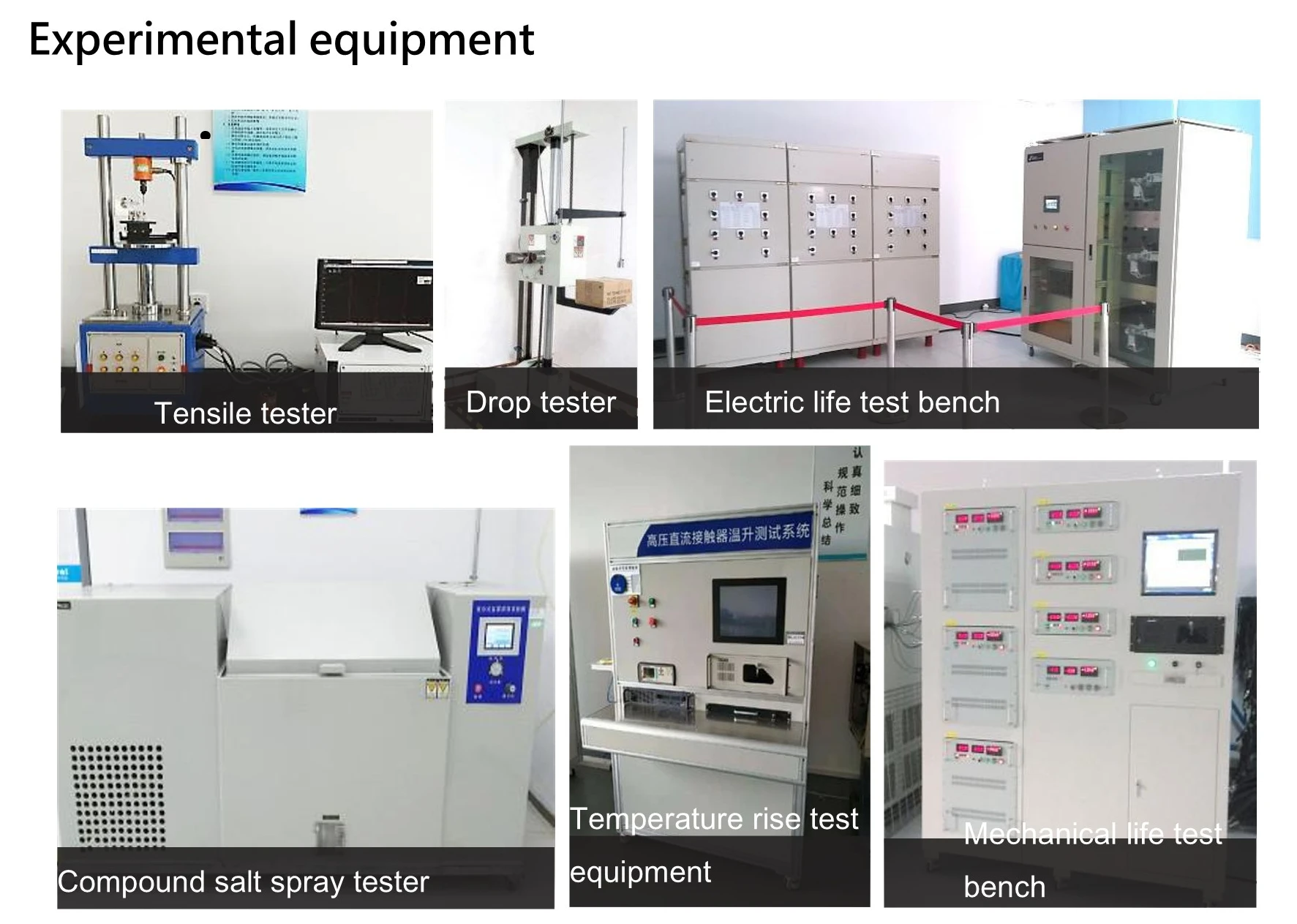

Product qualification and equipment display

FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to North America(35.00%),Western Europe(25.00%),Southern Europe(10.00%),Eastern Europe(10.00%),Africa(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Lithium ion Battery,Energy Storage Battery,Battery for EV,Battery for Forklift,Battery for Marine

4. why should you buy from us not from other suppliers?
Beian New Energy Co., Ltd. is a high-tech green energy enterprise that provides customized solutions and products for lithium batteries, energy storage lithium batteries and lithium battery power systems for global users, all about Lithium.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Italian
