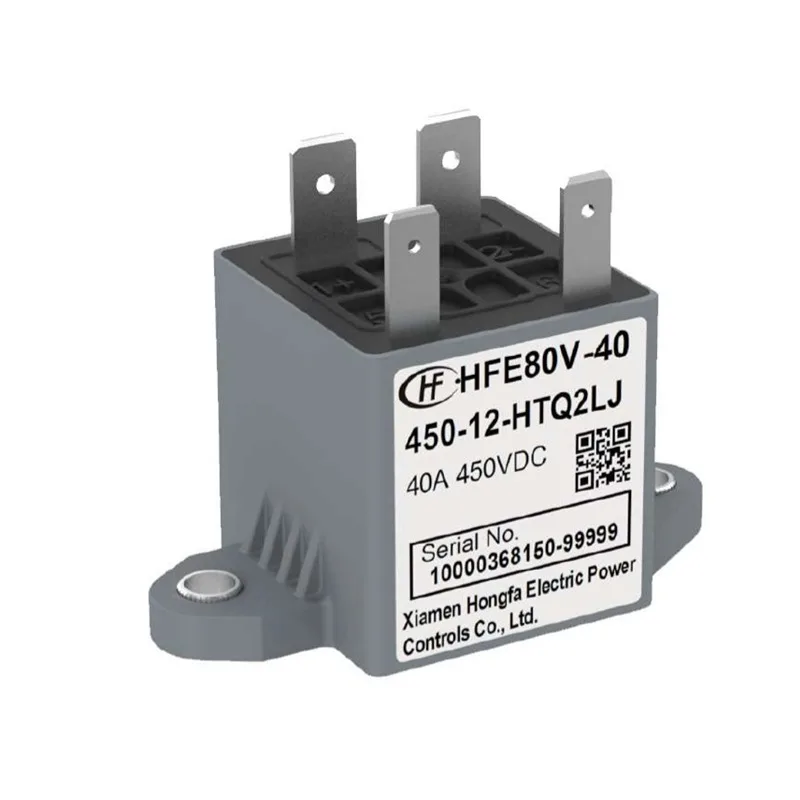

Name: HFE80V-40 HONGFA High Voltage DC Contactor 750V 40A 12/24/48V Coil 27kW Max Switching Power Ceramic Copper Silver
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601195769669
Price: 20.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Brand Name

HONGFA

Model Number

HFE80V-40

Place of Origin

Jiangsu, China

Material

ceramic copper silver

Dimensions

30.1x30.0x29.2

Resistance

5mohm

Contact rating

40A

Load voltage

750V

Max breaking current

50A

Max switching power

27kw

Coil Voltage

12 24 48V

Coil power

Warranty

3 Months

Certification

UL CUL VDE TUV CQC

Packaging and delivery

Selling Units

Single item

Single package size

4X4X5 cm

Single gross weight

0.150 kg

Product descriptions from the supplier

Product Description

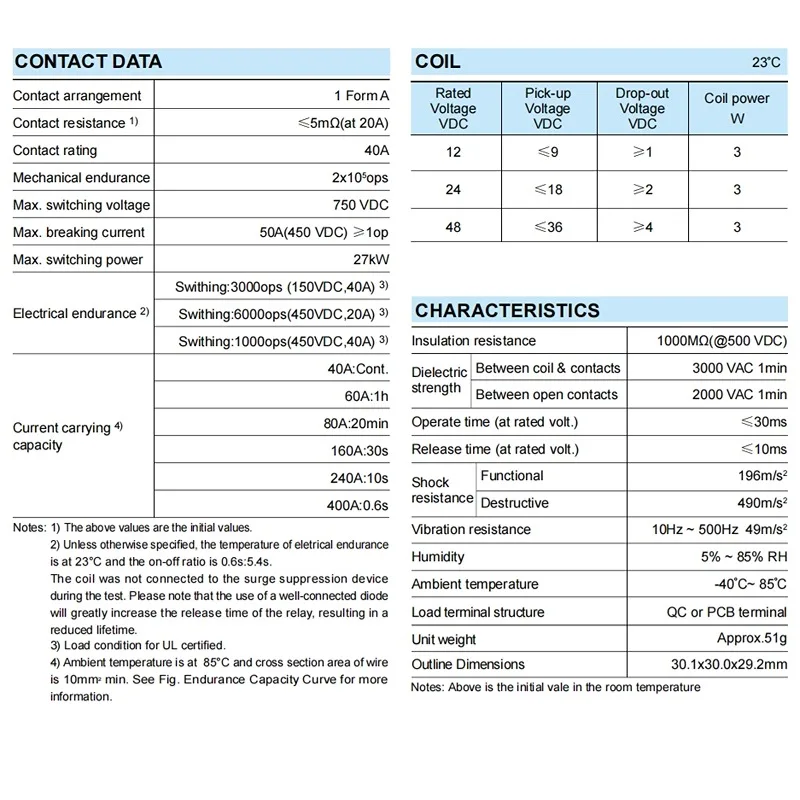

Specification

item	value
Warranty	3 months
Brand Name	HONGFA
Certification	UL CUL VDE TUV CQC
Material	ceramic copper silver
Model Number	HFE80V-40
Place of Origin	China

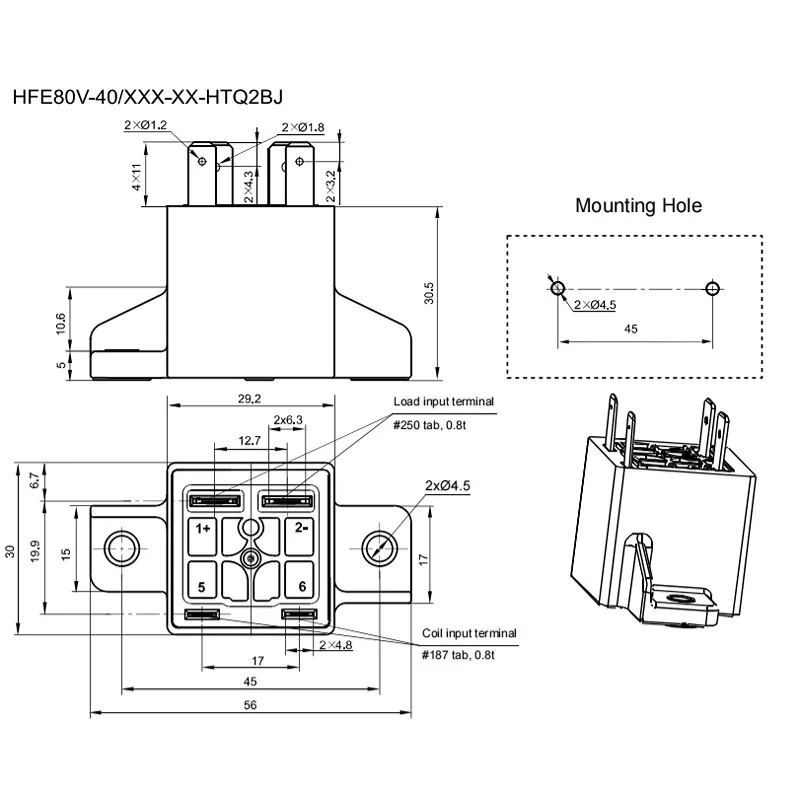

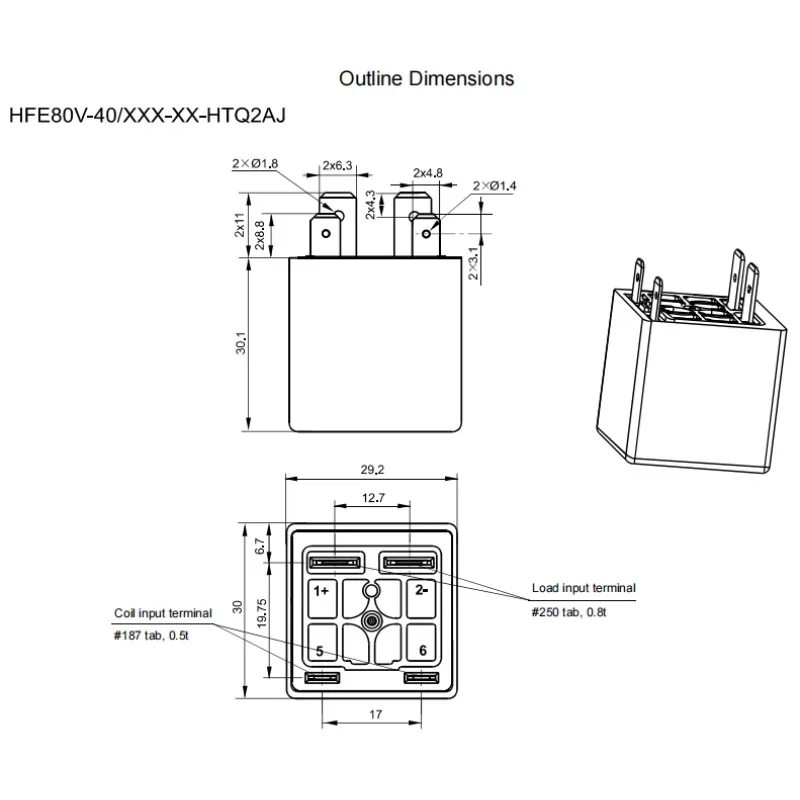

Dimensions	30.1x30.0x29.2
Resistance	5mohm
Contact rating	40A
Load voltage	750V
Max breaking current	50A
Max switching power	27kw
Coil Voltage	12 24 48V
Coil power	3w

New Energy Vehicle Application
	Main relay	Precharge relay	Fast charge relay	Normal change relay	Auxilliary relay
Passenger vehicle EV/PHEV	HFE82V-100D HFE82V-150D HFE82V-150F HFE82V-200B HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C HFE82V-400M HFE85V-300M	HFE82V-20 HFE80V-20B HFE80V-20C HFE80V-20D	HFE82V-150D HFE82V-200W HFE82V-250 HFE82V-250C HFE82V-300C HFE85V-300M HFE82V-400M	HFE82V-40 HFE80V-40	HFE82V-40 HFE80V-20B HFE80V-20C HFE80V-40
Passenger vehicle HEV	HFE82V-60 HFE82V-100D HFE82V-150D	HFE80V-20B HFE80V-20C HFE80V-20D			HFE80V-20B HFE80V-20C HFE80V-40
Bus	HFE82V-250 HFE82V-250C HFE82V-300C HFE82V-600	HFE80V-20B HFE80V-20C HFE80V-20D	HFE82V-300C HFE82V-400M HFE82V-600	HFE82V-40 HFE80V-40	HFE82V-20 HFE82V-40 HFE82V-100D
Mild electric vehicle (Low speed EV)	HFE82V-60 HFE82V-60B HFE82V-150D HFE82V-200B HFE80V-200	HFE80V-20B HFE80V-20C HFE80V-20D	HFE80V-200	HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60	HFE80V-20B HFE80V-20C HFE80V-40 HFE80V-60
Logistics vehicle	HFE82V-150D HFE82V-200B HFE82V-250C	HFE80V-20B HFE80V-20C HFE80V-20D		HFE80V-20B HFE80V-20C HFE80V-40	HFE80V-20B HFE80V-20C HFE80V-20D

PV and Energy Storage Application
Relay type	HFE82P-20 HFE82P-60B HFE85P-150 HFE88P-150 HFE82P-200B HFE85P-250 HFE88P-250 HFE82P-250 HFE85P-300 HFE88P-350 HFE82P-250C

FAQ

Q1. Can we put different lithium battery pack in parallel or series by ourselves?
> Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself, It may damage the battery or reduce the cycle life of battery.

Q2. Can we put different LiFePO4 battery pack in series by ourselves?
> You can buy big voltage packs directly from us.We don’t suggest to connect them in series by yourself, this may damage the battery or reduce the cycle life of the pack.

Q3. Is BMS included in the battery pack?
> Yes, our battery pack includes BMS.

Q4. What is your warranty?
> We offer 1~5 years warranty depend on different products.

Q5:What is your terms of payment?
> T/T recommended, Paypal and Western Union acceptable.
1> Sample order: Full payment made when PI received.
2> Mass production order:30% down payment when PI received, 70% before shipment.

Q6. How do you ship the lithium battery packs?
> For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can be shipped by air or by sea, by sea is cheaper.
