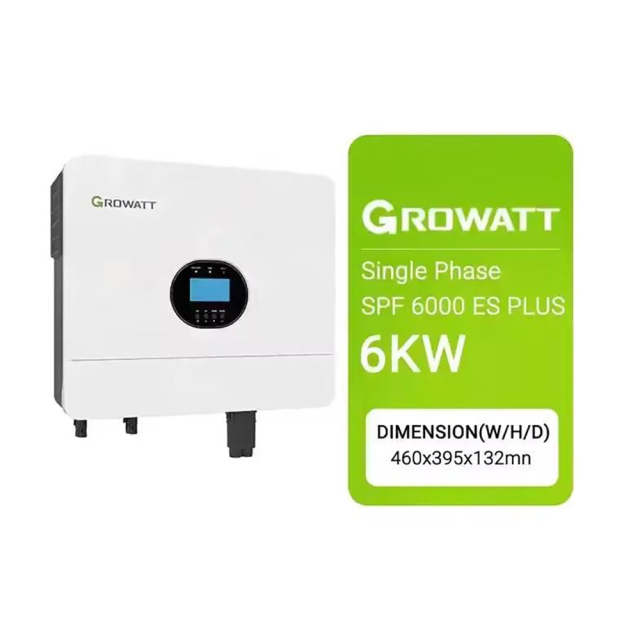

Model | SPF 6000 ES Plus | |
Battery voltage | 48VDC | |
Battery type | Lithium/Lead-acid | |
Inverter output | ||
Rated power | 6000VA/6000W | |
Parallel capability | Yes, 6 units maximum | |
AC voltage regulation (battery mode) | 230VAC ± 5% @ 50/60Hz | |
Surge power | 12000VA | |
Efficiency (peak) | 93% | |
Waveform | Pure sine wave | |
Transfer time | 10ms typical, 20ms Max | |
Solar charger | ||
Maximum PV array power | 8000W | |
MPPT range @ operating voltage | 120VDC ~ 450VDC | |
Number of independent MPP trackers/ strings per MPP tracker | 2/1 | |
Max. input current per MPP tracker | 16A | |
Maximum PV array open circuit voltage | 500VDC | |
Maximum solar charge current | 100A | |
AC charger | ||
Charge current | 80A | |
AC input voltage | 230VAC | |
Selectable voltage range | 170-280 VAC (For personal computers) ; 90-280 VAC (For home appliances) | |
Frequency range | 50Hz/60Hz (Auto sensing) | |
Physical | ||
Protection degree | IP20 | |
Dimension (W/H/D) | 460/395/132mm | |
Net weight | 13.5kg | |
Operating environment | ||
Humidity | 5% to 95% Relative humidity(Non-condensing） | |
Altitude | <2000m | |
Operating temperature | 0°C - 55°C | |
Storage temperature | -15°C - 60°C | |
