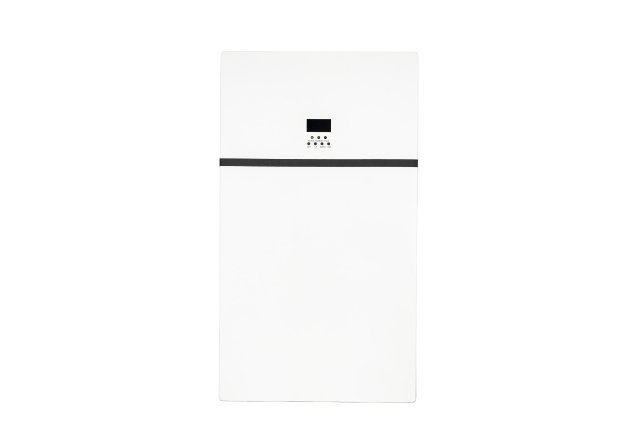

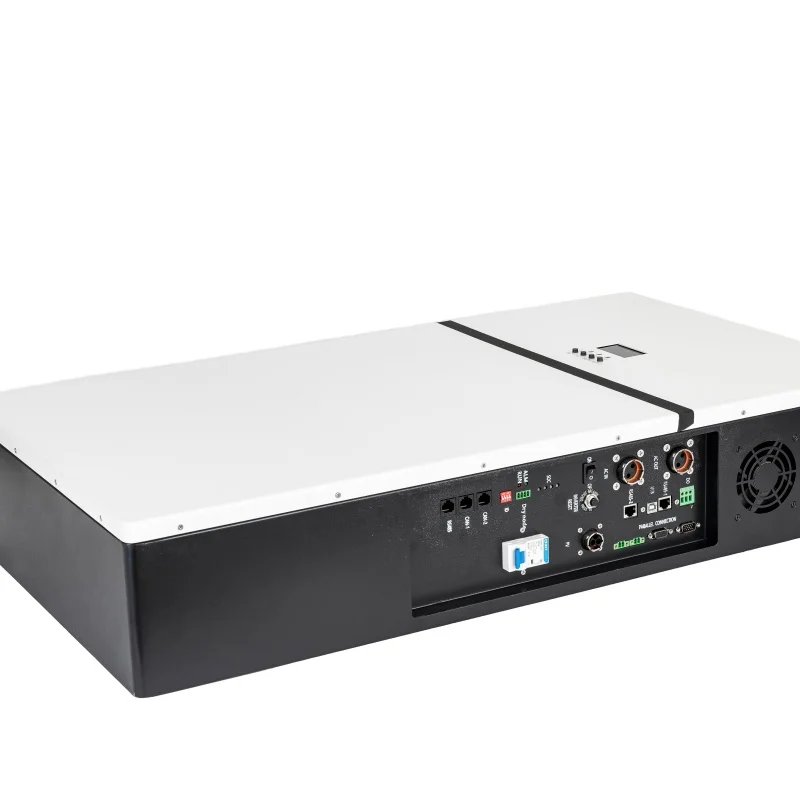

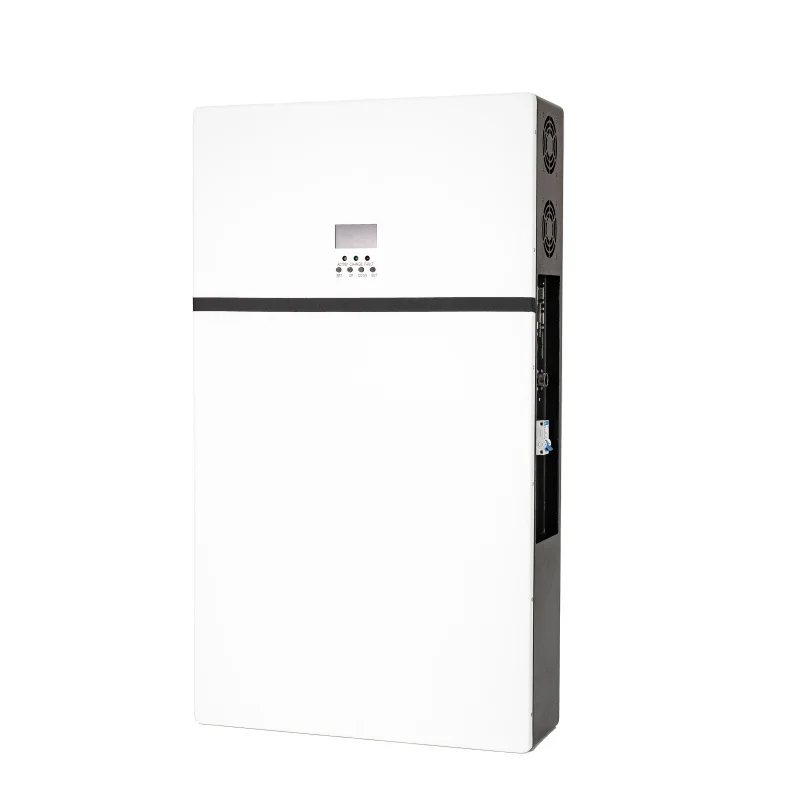

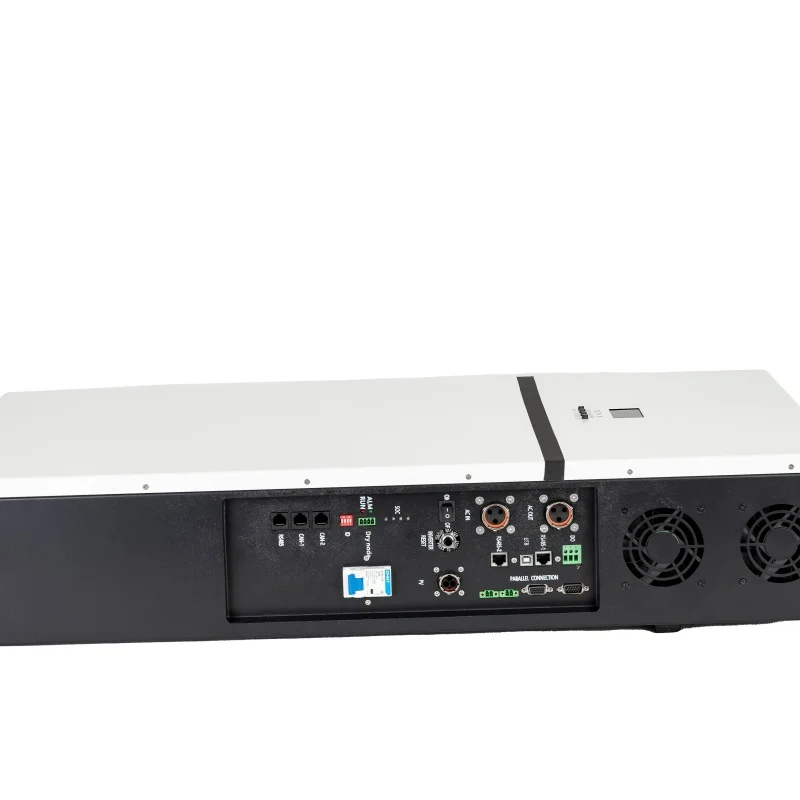

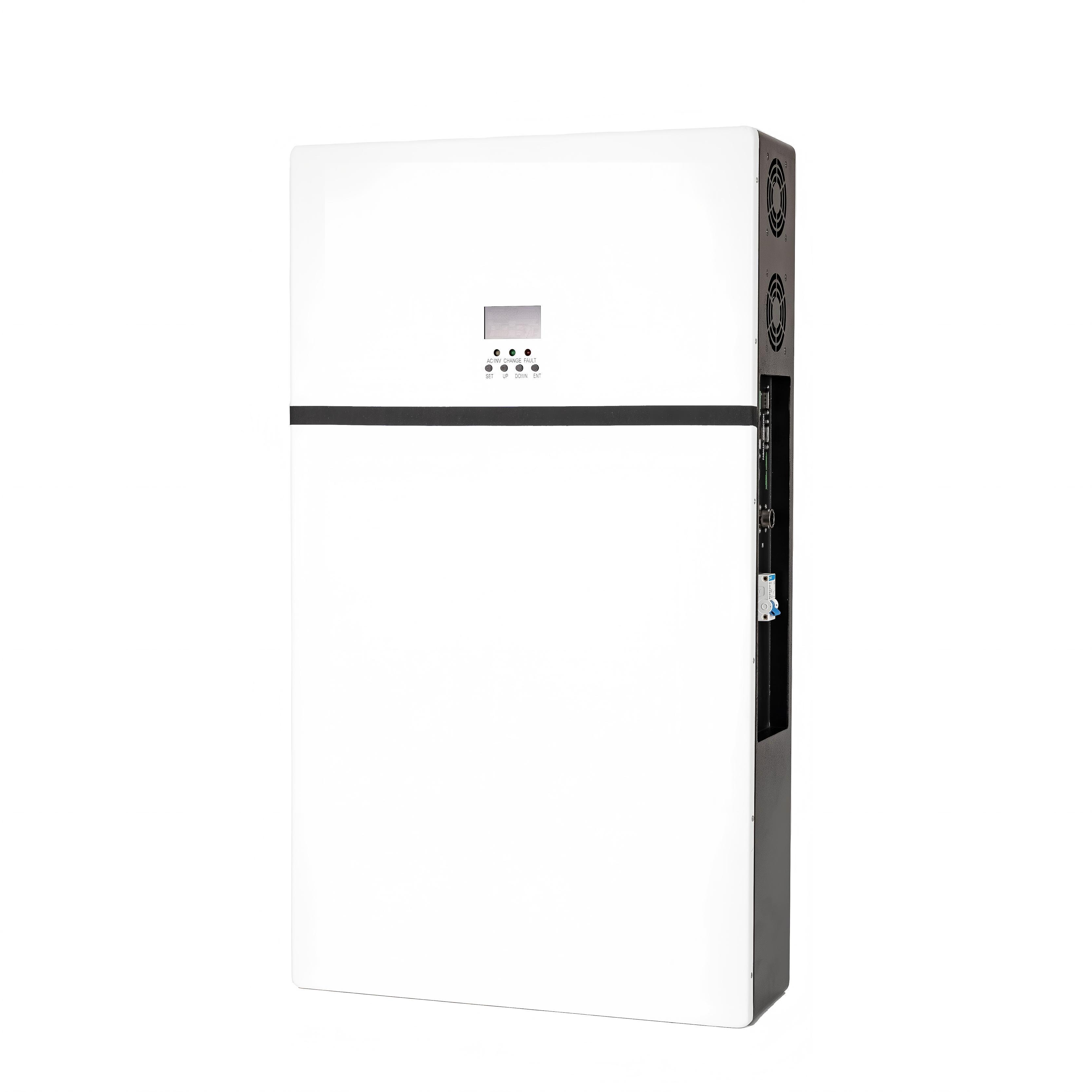

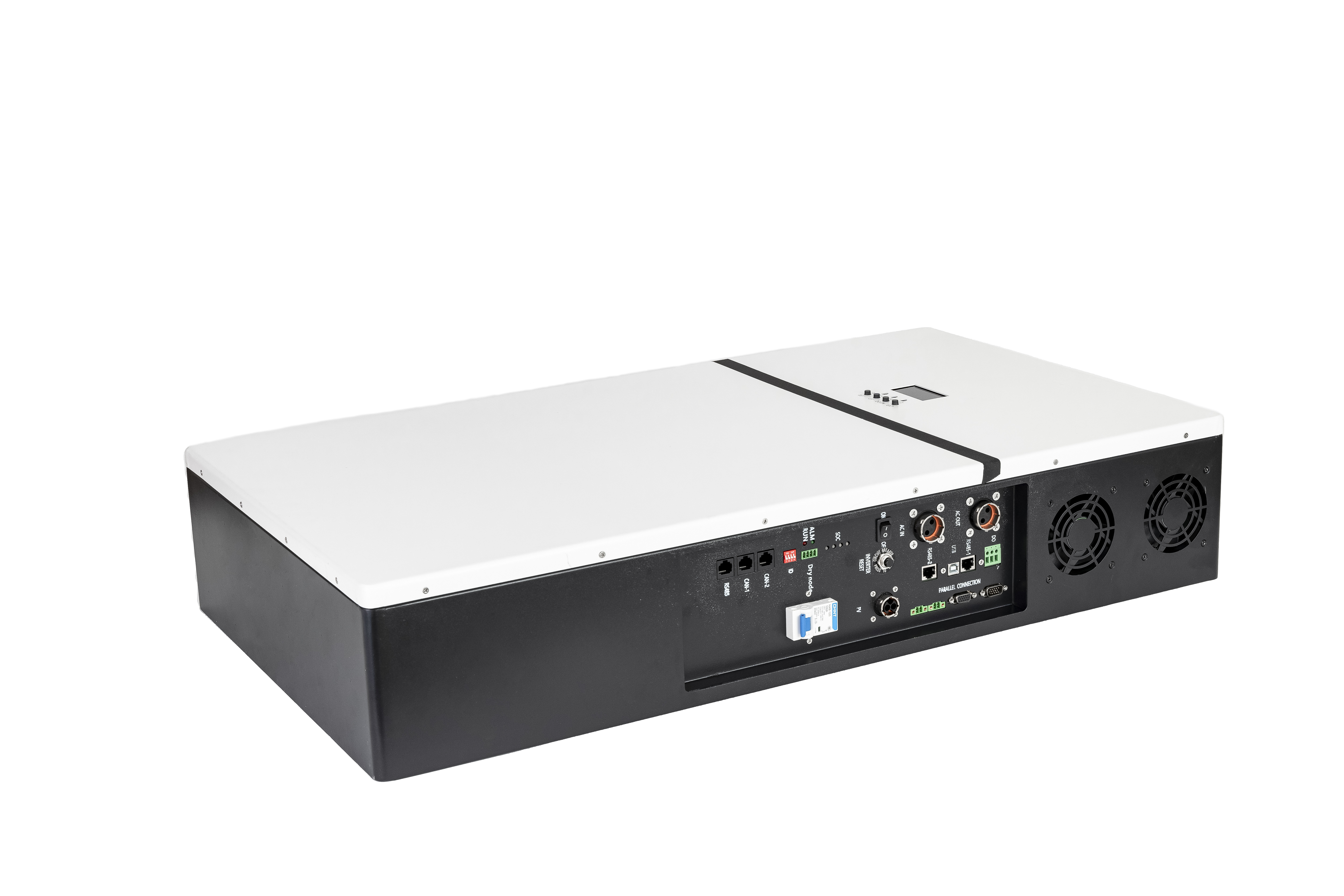

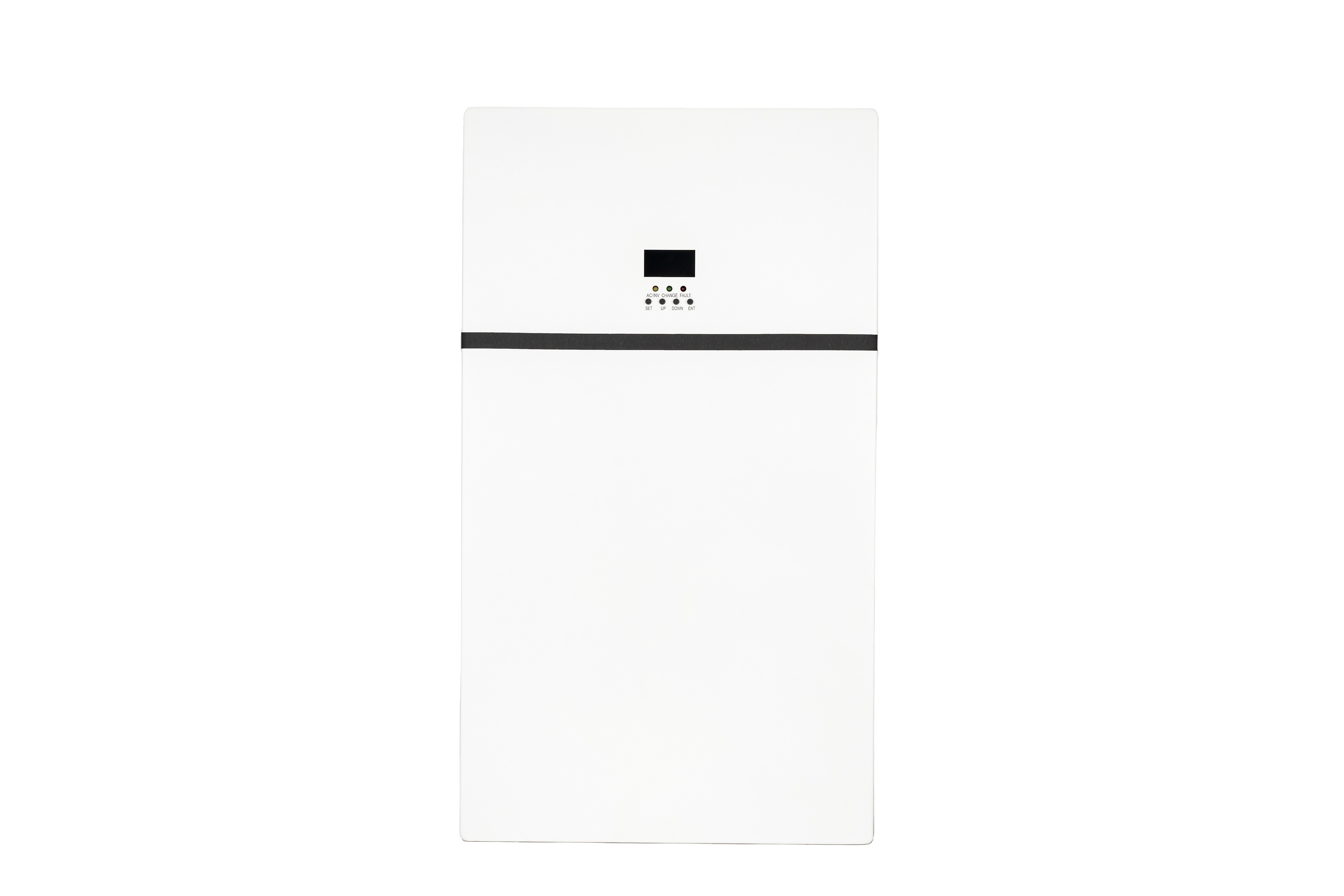

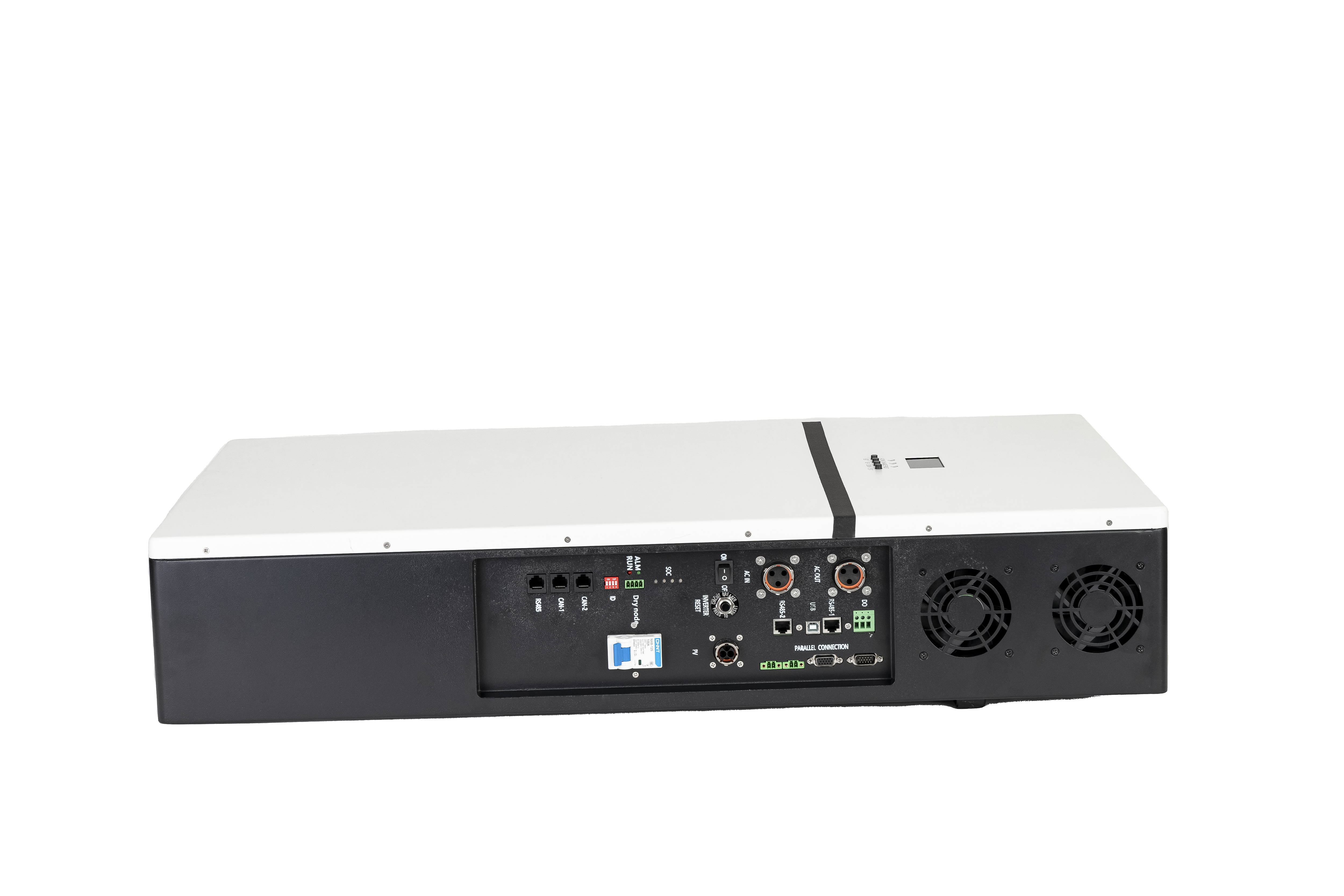

Product Name
|
BA-YH-ESS-BP200S16-F
|
|
Product specifications
|
51.2V200Ah
|
|
Rated energy
|
10.24kwh
|
|
Voltage operating range
|
40~58.4V
|
|
Cycle life
|
≥6000 cycles (70% )
|
|
Maximum Input Power
|
5500W
|
|
Input Voltage Range
|
120~500V dc
|
|
Rated Power
|
5000W
|
|
Rated Output Voltage
|
220/230/240Vac ± 5% （ L+N+PE ）
|
|
Rated Input Voltage
|
90-280Vac (Normal Mode)
170-280Vac ( UPS Mode) |
|
Rated Frequency
|
50/60H z
|
|
Waveform
|
Pure Sine Wave
|
|
Net weight
|
100kg
|
|
Net dimensions（ W*D*H ）
|
1100*540*160mm （excluding
accessories） |
|
Packaging weight
|
128Kg
|
|
Packaging dimensions
（ W*D*H ） |
1270*720*370mm
|
|
Operating temperature
|
Charging: 0~55℃ ; Discharging: -
20~60℃ ; Storage: -10~45℃ |
|
Communication method
|
RS485 、 CAN/WIFI 、 4G 、Dry Contact
|
|
Indicator light status
|
Operation / Alarm /SOC
|
|

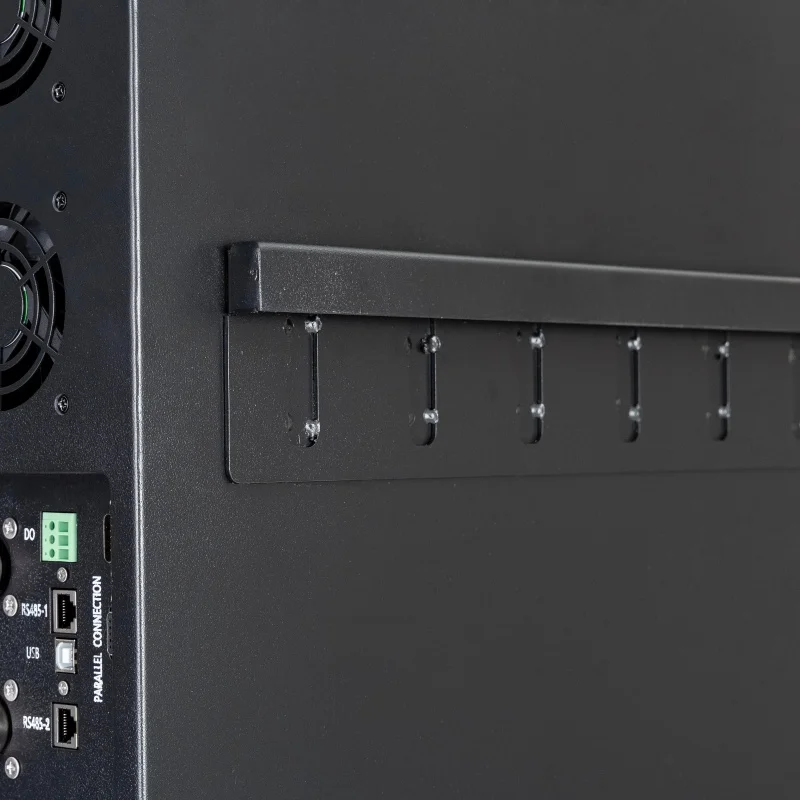

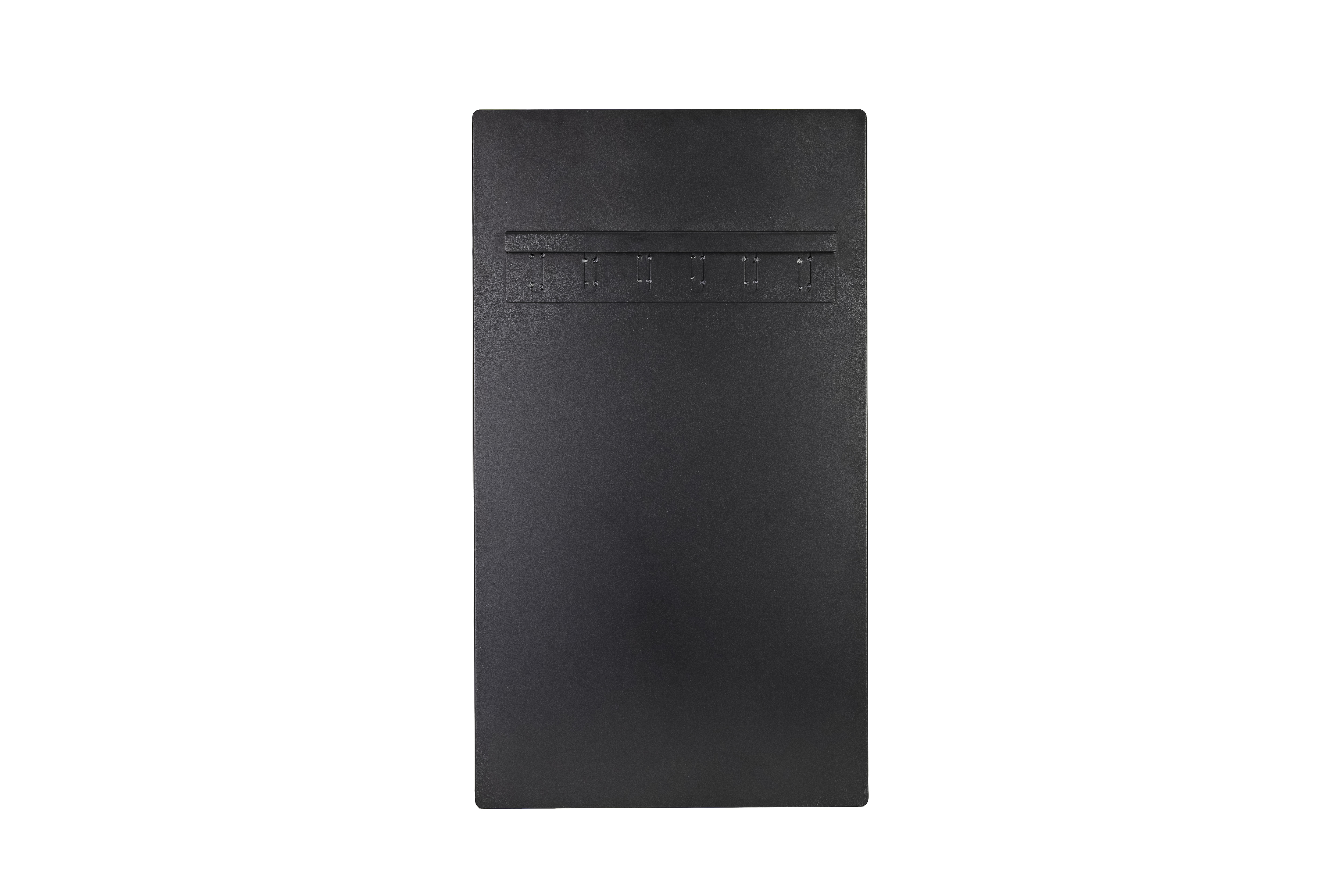

Installation method
|
Wall-mounted
|
|
Certification
|
MSDS/UN38.3/IEC/ Transport
Identification Report /CE
|
|

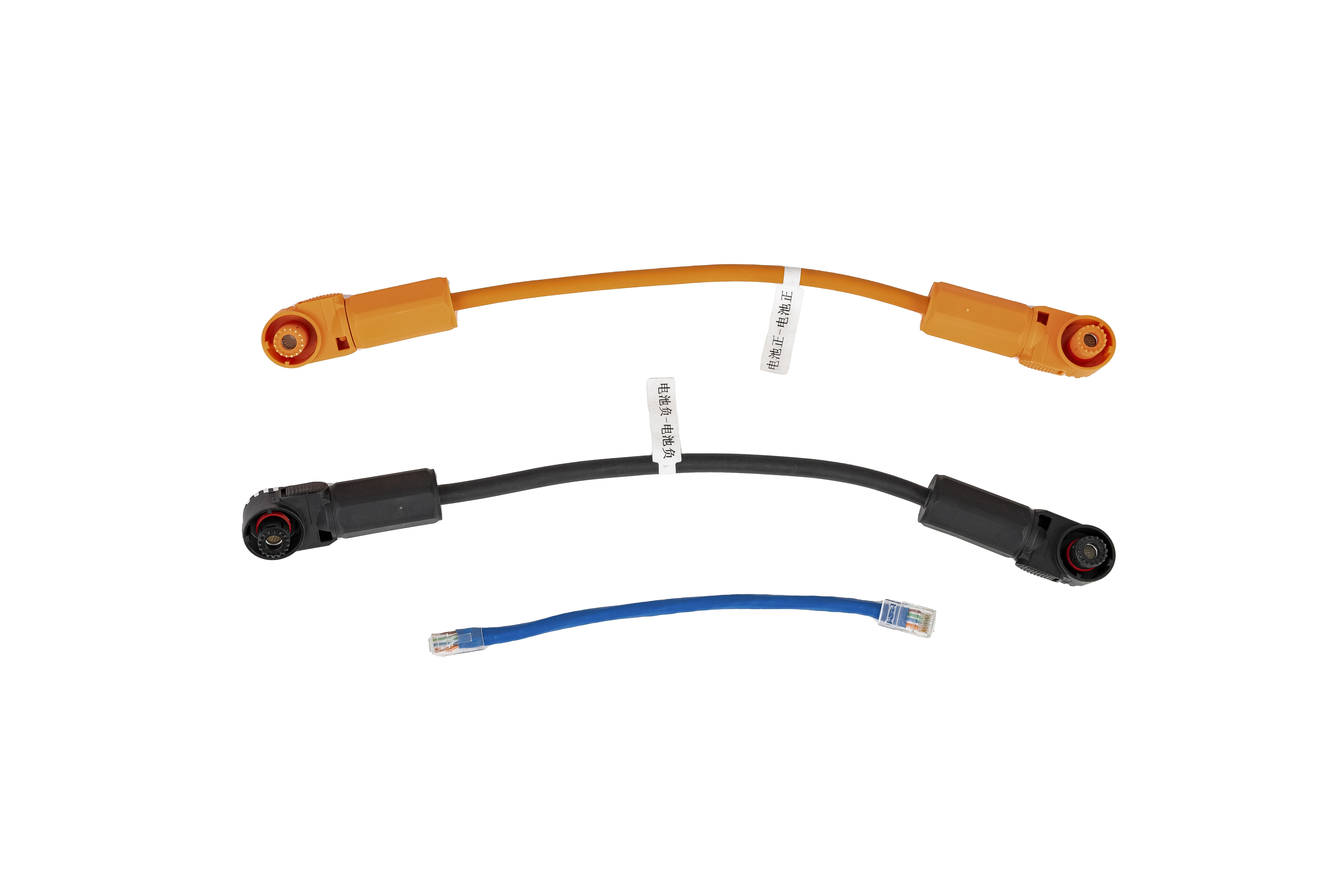

Number of parallel
connections
|
1~9 Units (3 Units or more can output
Three-phase)
|
