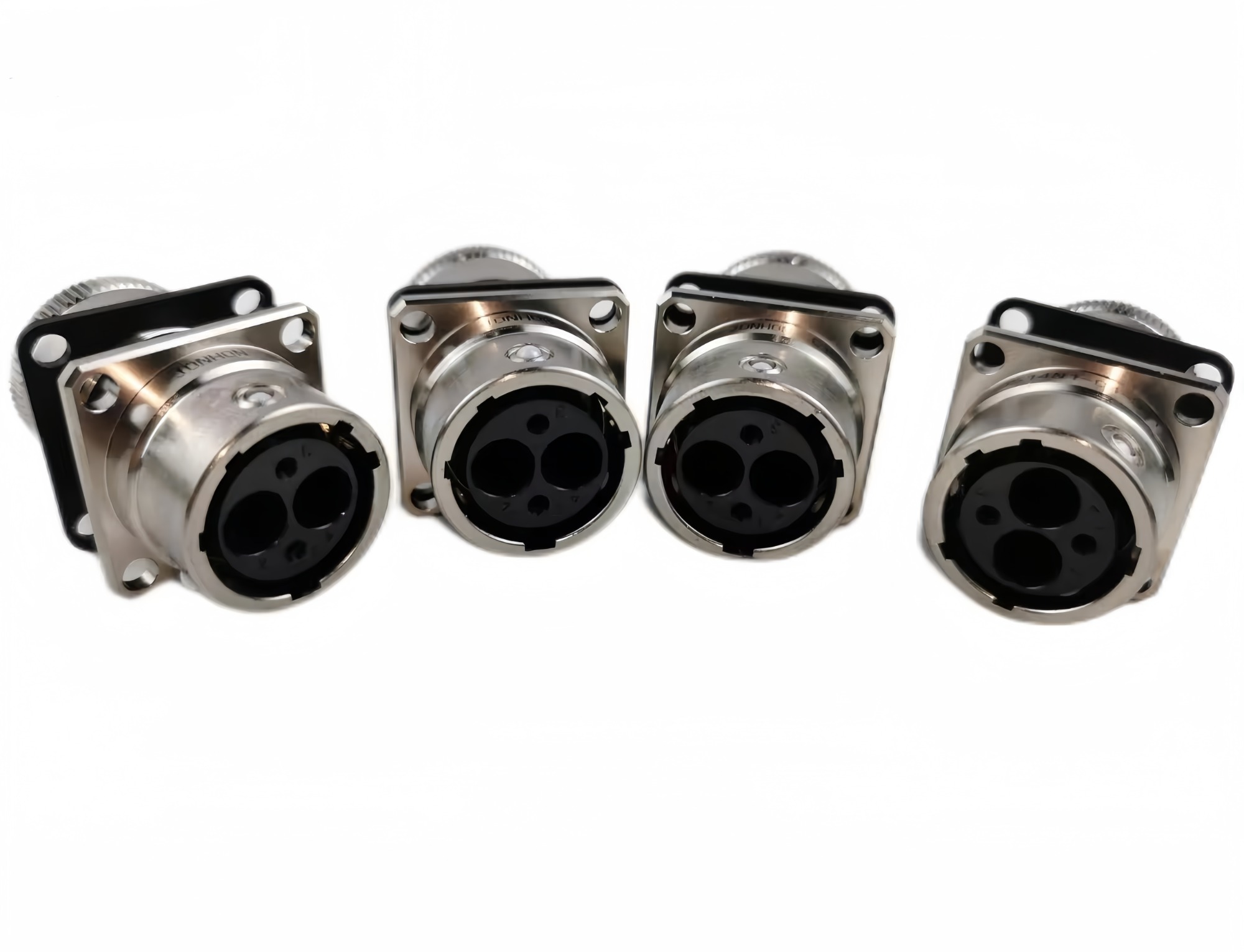

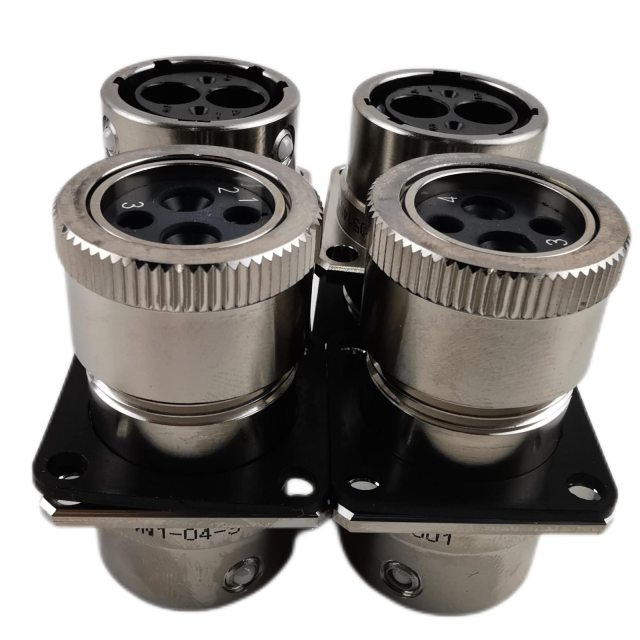

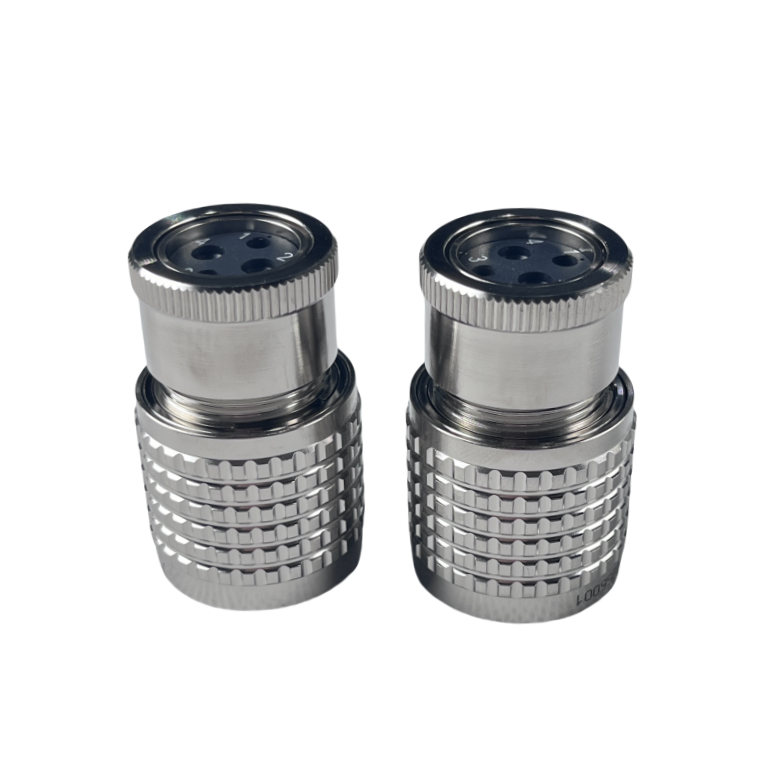

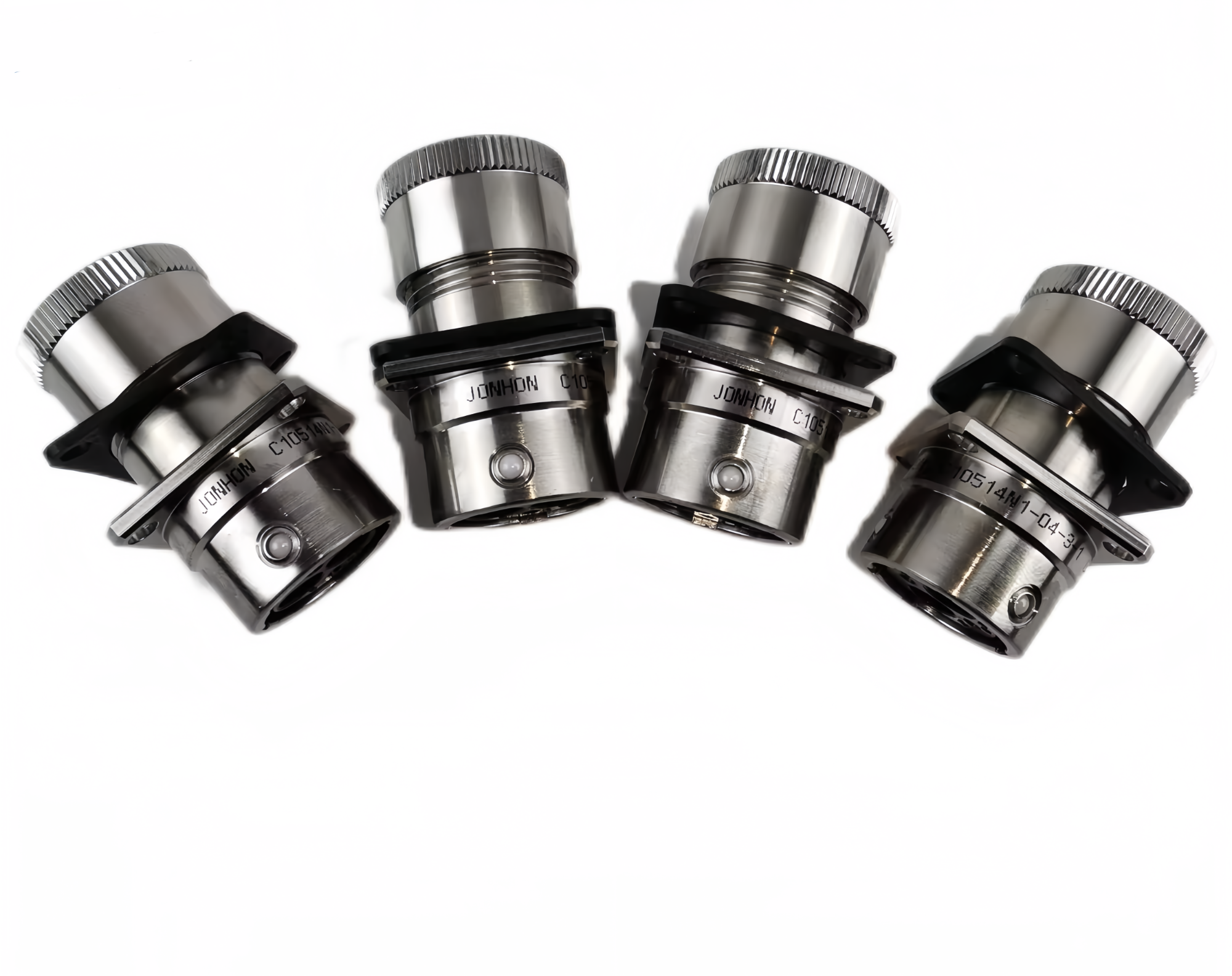

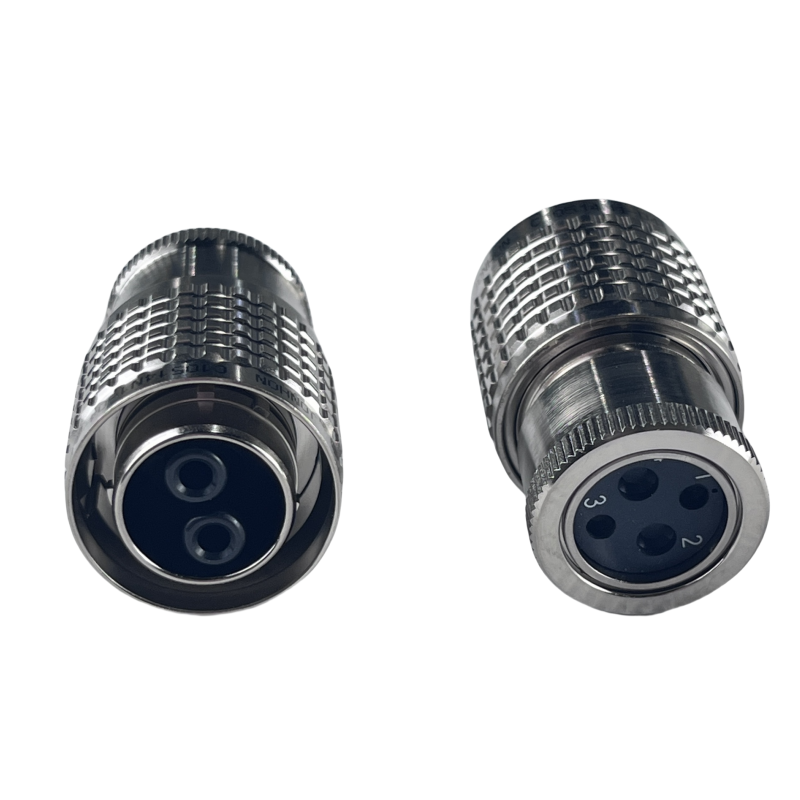

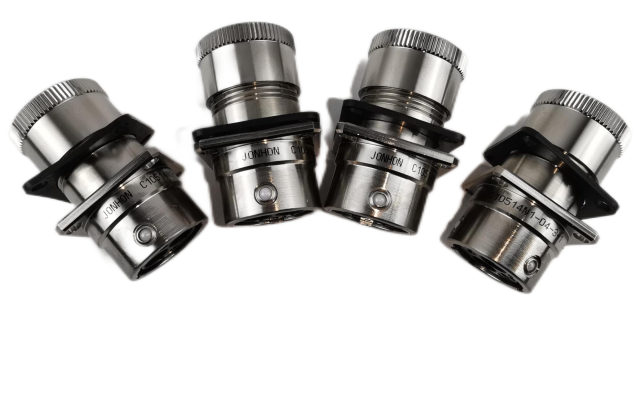

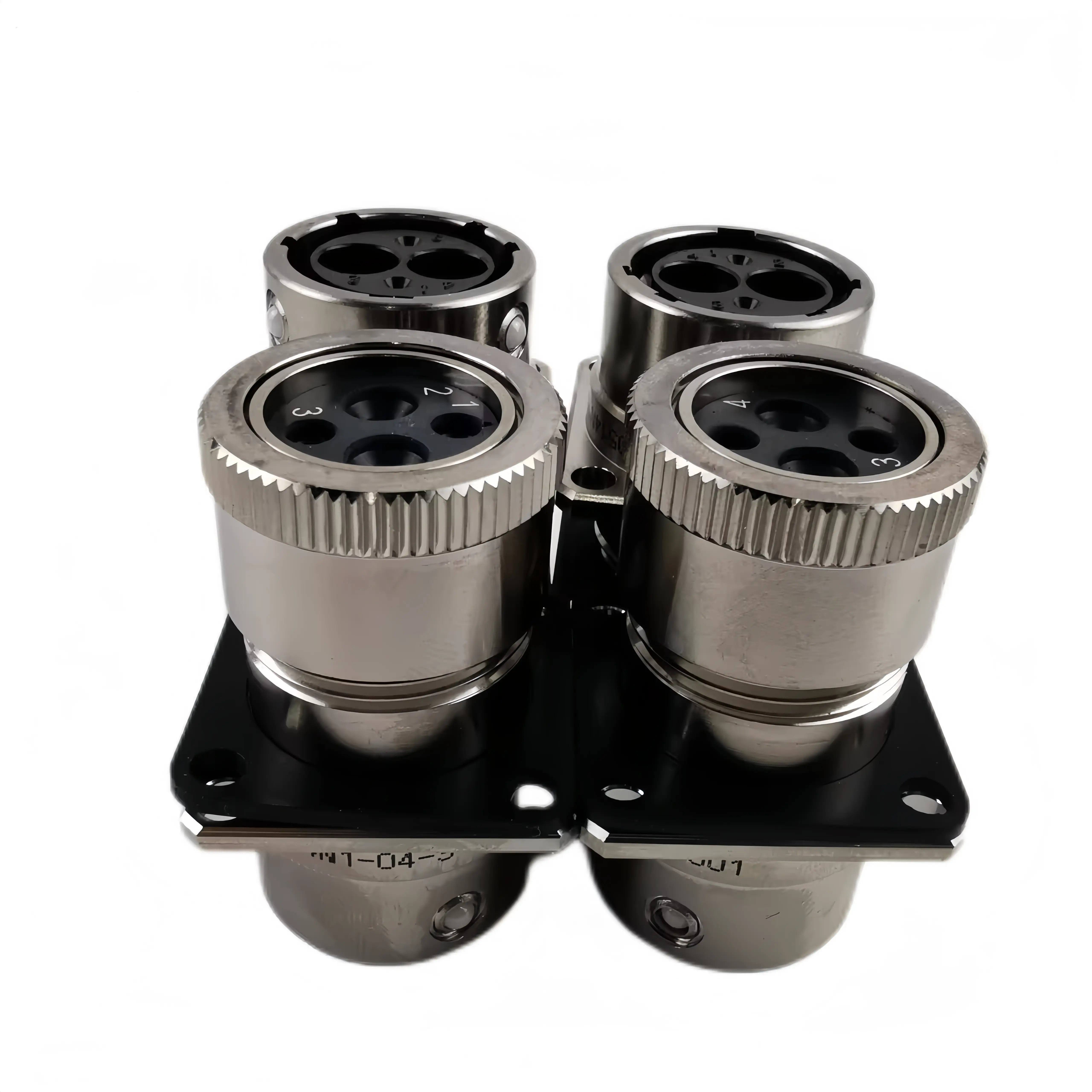

JONHON Metal Connector C10514N1-04-3-1 G001 Metal Connector
Product Parameters
| Item |
|
Specification |
Unit |
Remark |
|
Model |
JONHON-C10514N1-04-1-2 |
JONHON-C10514N1-04-3-1 |
JONHON-C10514N1-04-4-1 |
| Contact resistance |
≤0.75mΩ(Φ3)；≤5mΩ(20#)； |
| Rated current |
Jack unit 40A;Crimp pin 7A. |
| Insulation voltage |
≥5000 MΩ（Room temperature） ≥50 MΩ（Sticky） |
| Operating voltage |
600V AC |
| Withstand voltage |
2500VAC Room temperature, 400VAC |
| Mechanical life |
500 times |
| Workplace Temperature |
-40℃～+85℃ |
| Vibration |
10～2000Hz,ccelerated speed 196m/s2 |
| Impact |
Acceleration 980m/s2 (half sine wave) |
| Contact |
Nesting parts materials |
Aldary |
| Manufacturing technique |
Machine work
|
| Parts material |
Gold plating |
| Housing element |
Surface treatment |
Aluminum alloy |
| Manufacturing technique |
Machine work |
| Surface treatment |
Nickel plating |
| Insulator |
Parts material |
Thermoplast |
| Manufacturing technique |
Injection moulding |
| Elastic part |
Parts material |
Stainless steel |
| Manufacturing technique |
Winding |
