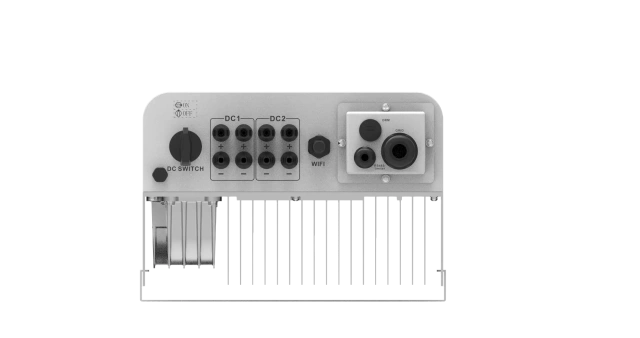

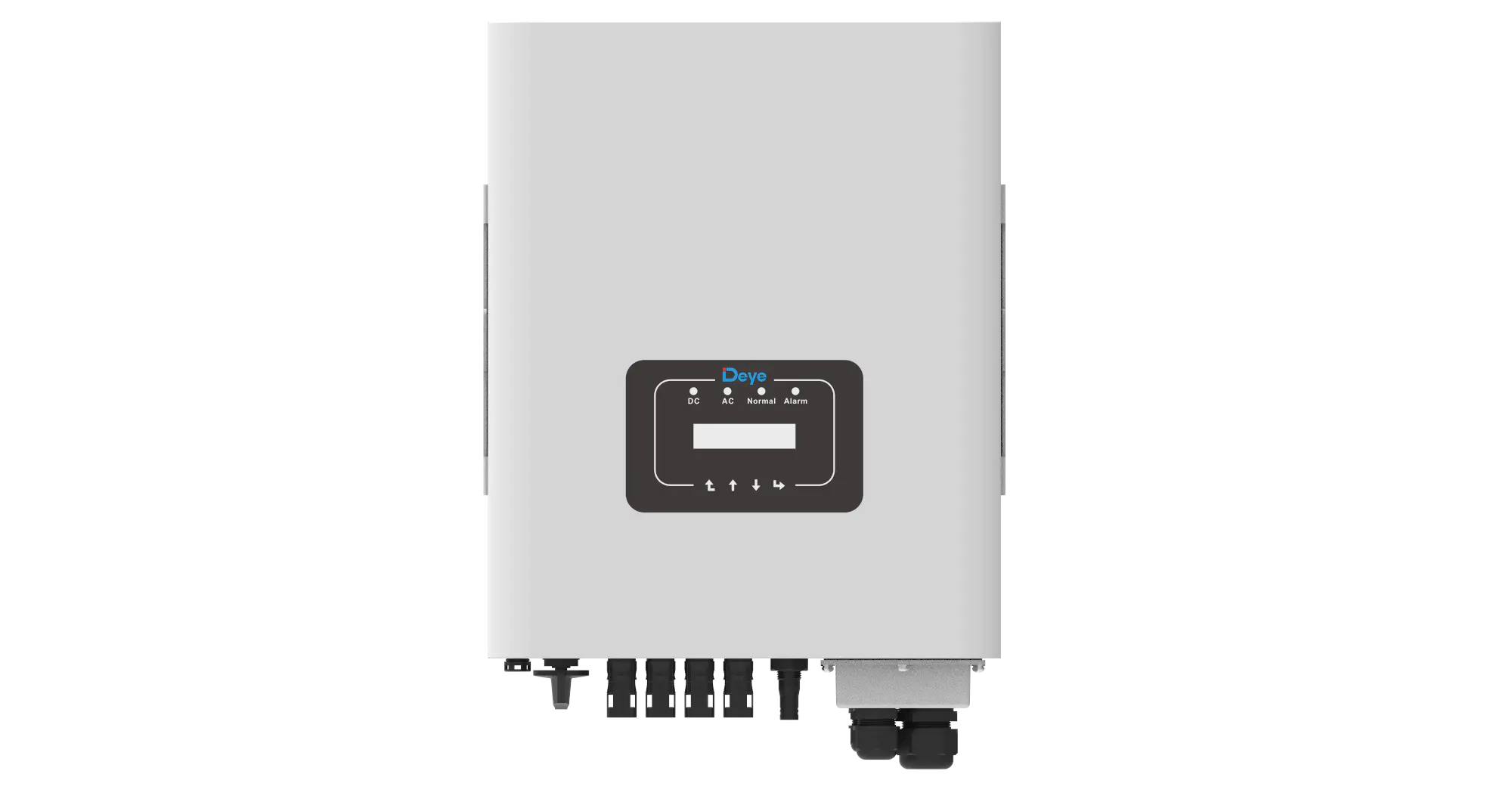

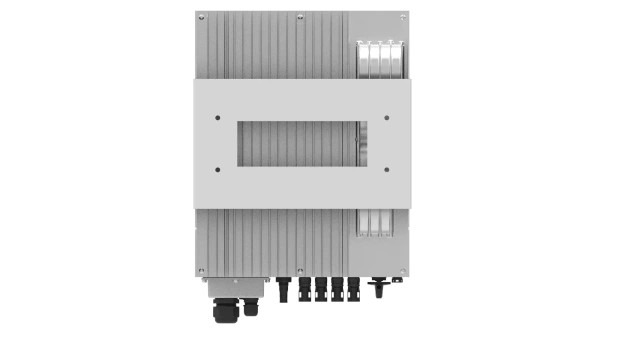

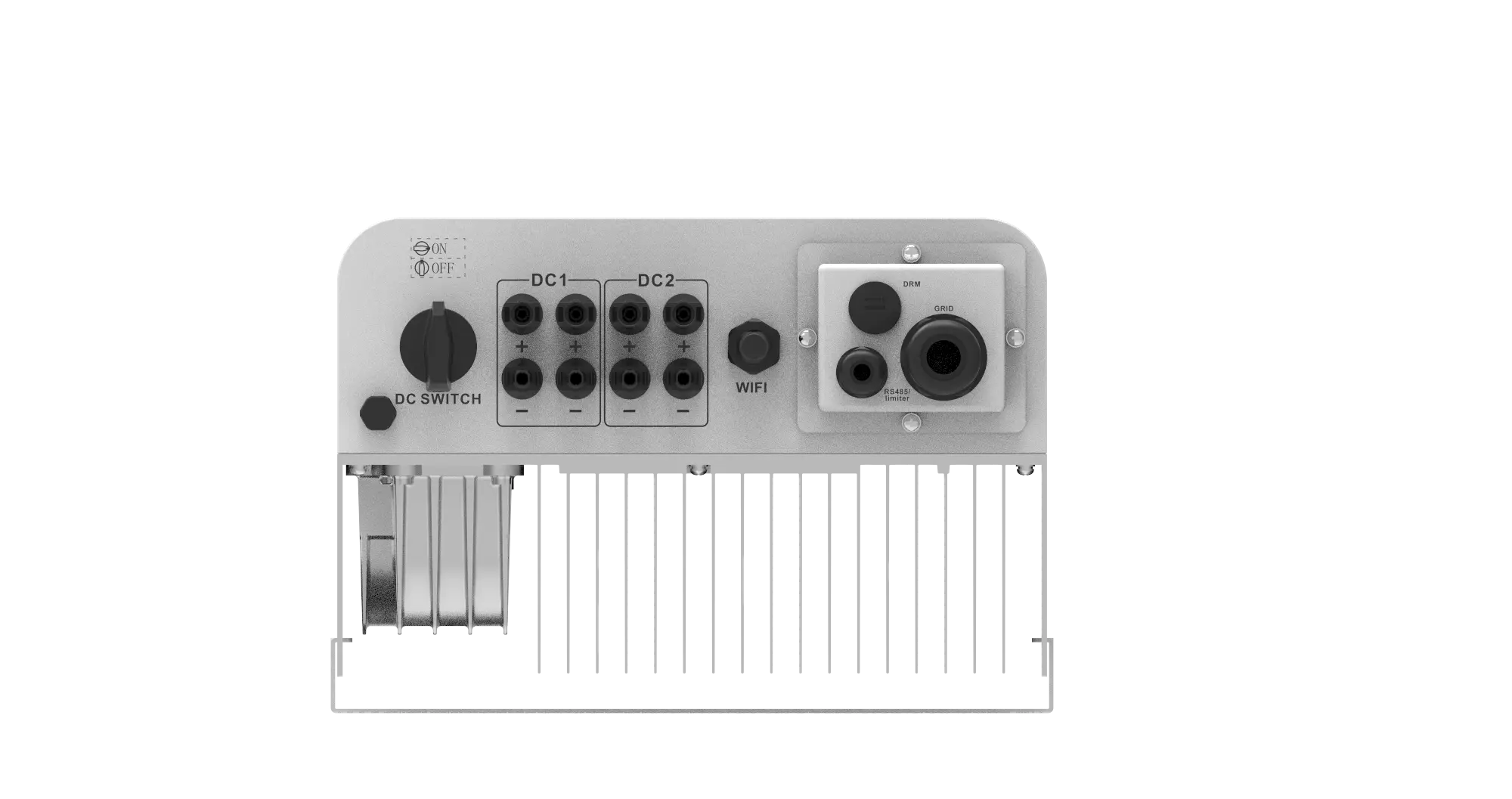

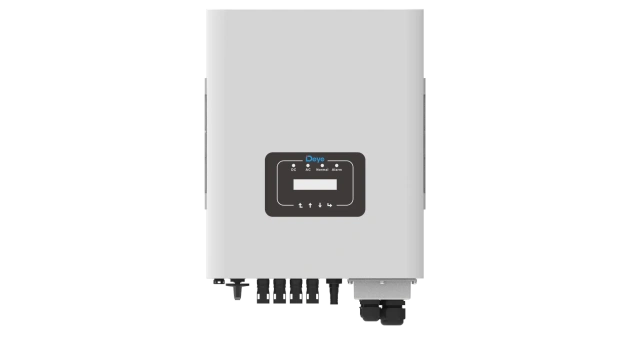

Deye solar Inverter

Modle

SUN-9K-G02P1-EU-AM2

SUN-10K-G02P1-EU-AM2

SUN-10.5K-G02P1-EU-AM2

Max. PV Input Power(kW)

13.5

15

15.8

Max. PV Input Voltage(V)

550

Start-up Voltage(V)

80

MPPT voltage range(V)

70-500

Rated PV Input voltage(V)

360

Max. Input Short Circuit Current (A)

39+39

Max. Operating PV Input Current(A)

26+26

No. of MPP Trackers/No. of Strings per MPP Tracker

2/2+2

AC Output Side

Rated AC Output Active Power(kW)

9

10

11

Max. AC Output Apparent Power(kVA)

9.9

11

11.55

Rated AC output current (A)

41/39.2

45.5/42.5

47.8/45.7

Max. AC Output Current(A)

45/43.1

50/47.9

52.5/50.3

Rated output voltage/range (V)

220/230 0.85Un-1.1Un

Grid Connection Form

L/N/PE

Rated Output Grid Frequency/range(Hz)

50/45-55, 60/55-65

Power Factor Adjustment Range

0.8 leading to 0.8lagging

Total Current Harmonic Distortion THDi

<3%

DC Injection Current

<0.5%ln

Efficiency

Max. Efficiency

97.70%

Euro Efficiency

97.20%

MPPT Efficiency

＞99%

Equipment Protection

DC Polarity Reverse Connection Protection

yes

AC Output Overcurrent Protection

yes

AC Output Overvoltage Protection

yes

AC Output Short Circuit Protection

yes

Thermal Protection

yes

DC Terminal Insulation Impedance Monitoring

yes

yes

DC Component Monitoring

yes

Ground Fault Current Monitoring

yes

Arc Fault Circuit Interrupter (AFCI)

Optional

Power Network Monitoring

yse

Island Protection Monitoring

yse

Earth Fault Detection

yse

Overvoltage Load Drop Protection

yse

Residual Current (RCD) Detection

yse

Surge Protection Level

TYPE II(DC),TYPE II(AC)

Interface

Communication Interface

RS485/RS232

Monitor Mode

GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Operating Temperature Range (°C)

（-25 to +60℃, >45℃ Derating）

Permissible Ambient Humidity

0~100%
