Name: DC Fuse EVU10-10A Ceramic & Copper Fast Blow Indicating High Voltage DC1000V for Electric Forklift
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601636186915
Price: 8.80 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

Application

High Voltage

Response Time

Fast Blow

Safety Standards

IEC

Breaking Capacity

High

Type

DC Fuse

Operating Temperature

-20°C ~ +70°C

Material

Brass With Nickel Plated, Copper, Ceramic, Metal, Plastic

Number of Pole

Lead Type

Radial , Axial, Surface Mount

Fuse Indicator

Indicating

Place of Origin

Jiangsu, China

Model Number

EVU10-10A

Brand Name

Hudson FUSE

Rated voltage

DC1000V

Rated current A

10A

Size code

Power consumption W

Breaking capacity

60kA

Performance reference

UL248-13

certification

lEC60269-7/GB/T13539.4

Packaging and delivery

Selling Units

Single item

Single package size

10X5X6 cm

Single gross weight

0.900 kg

Product descriptions from the supplier

Product Description

Product number	Rated Current Amps	Breaking Capacity	It(A's) Total clearPre-arcing	Total clear	Watts loss 100%In
EVU10-10	10	20KA@1000VDCL'R=10ms	16	69	0.8
EVU10-20	20			61	275	1.7
EVU10-30	30			138	619	4.0
EVU10-40	40			244	1100	4.6
EVU10-50	50			382	1719	5.2
EVU10-60	60			550	2475	6.0
EVU10-70	50			749	3369	7.3
EVU10-80	80			978	4400	9.8
EVU10-90	90			1238	5569	12.4
EVU10-100	100			1528	6875	13.2
EVU10-100-B	100	50KA@1000VDCL'R=10ms	1389	6250	11.5
EVU10-125-B	125			2170	9766	16.3
EVU10-150-B	150			3125	14063	18.8
EVU10-175-B	175			4253	19141	22.3
EVU10-225-C	225			7031	31641	29.0
EVU10-250-C	250			8681	39063	40.0
EVU10-300-C	300			12500	56250	46.3
EVU10-350-C	350			17014	76563	53.8
EVU10-400-C	400			22222	100000	62.5
EVU10-450-D	450			28125	126563	65.0

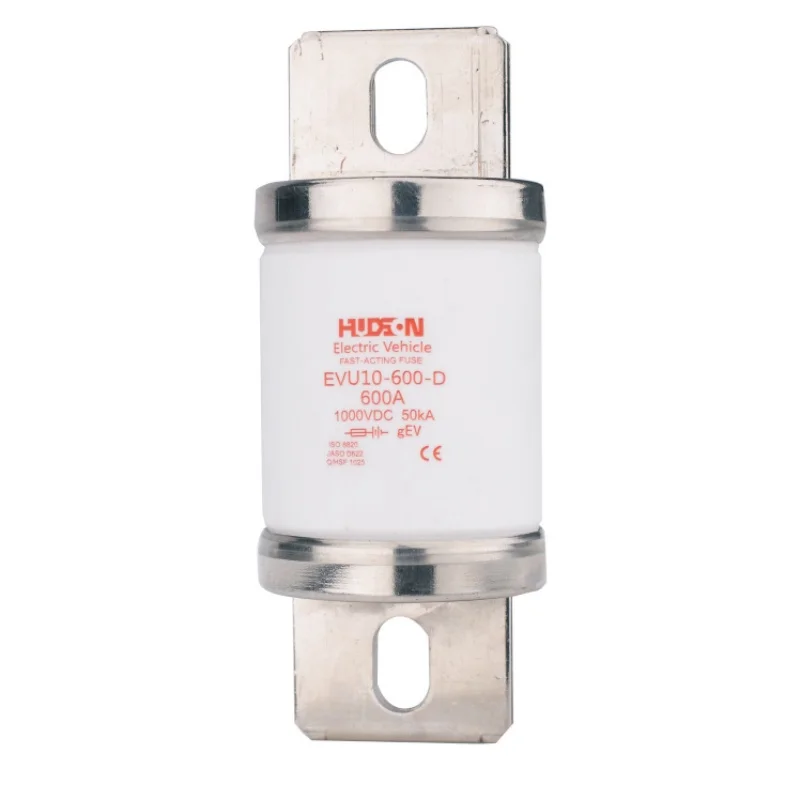

EVU10-500-D	500			34722	156250	72.5
EVU10-600-D	600			50000	225000	85.0
EVU10-100-A	100	50kA@1000VDCLR=10ms	1389	6250	11.5
EVU10-150-A	150			3125	14063	18.8
EVU10-200-A	200			5556	25000	27.5
EVU10-250-A	250			8681	39063	40.0
EVU10-300-A	300			12500	56250	46.3
EVU10-200-AX2	200			4889	22000	24.3
EVU10-250-AX2	250			7639	34375	36.8
EVE10-300-AX2	300			11000	49500	42.0
EVE10-350-AX2	350			19556	67375	49.0
EVE10-400-AX2	400			19556	88000	58.0
EVE10-500-AX2	500			30556	137500	66.0
EVE10-600-AX4	600			42500	191250	77.0
EVE10-700-AX4	700			57847	260313	85.0

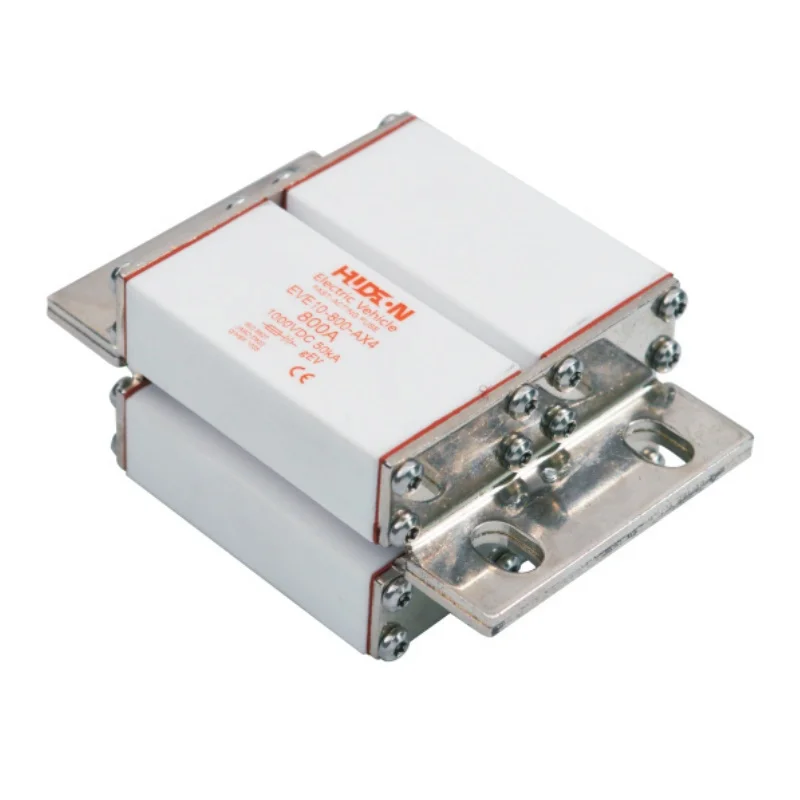

EVE10-800-AX4	800			75556	340000	93.0
EVE10-100-AP	100	50kA@1000VDCL'R=10ms	1389	6250	11.5
EVE10-125-AP	125			2170	9766	16.3
EVE10-150-AP	150			3125	14063	18.8
EVE10-175-AP	175			4253	19141	22.3

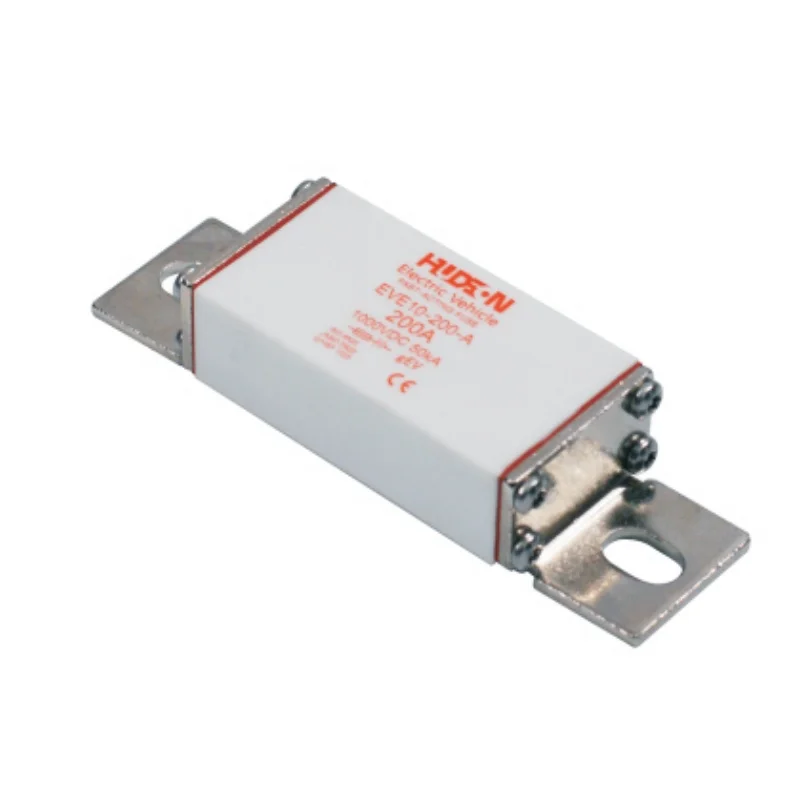

EVE10-200-AP	200			5556	25000	27.5
EVE10-250-AP	250			8681	39063	40.0
EVE10-300-AP	300			12500	56250	46.3

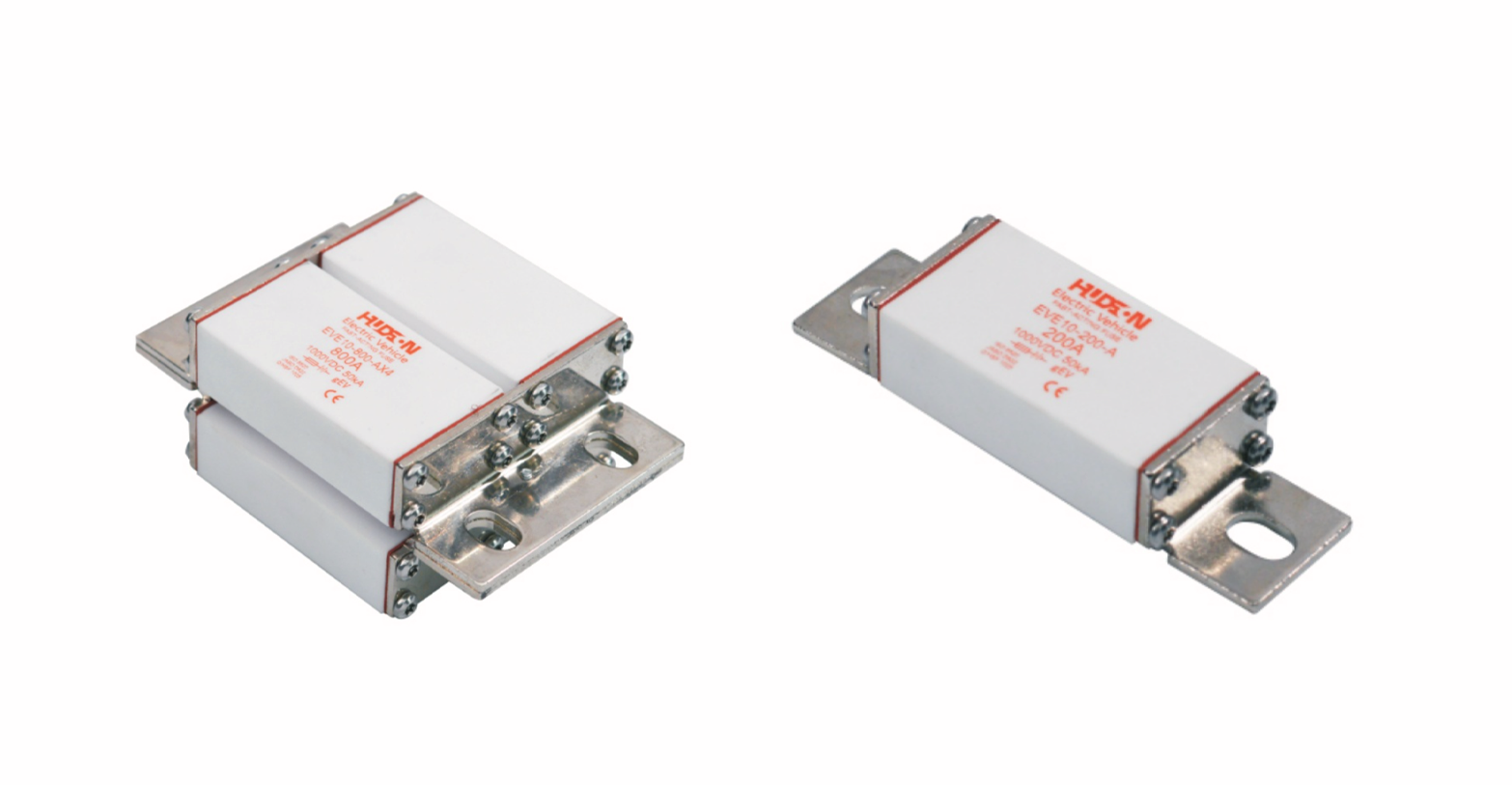

Product Images
