Product Name
|

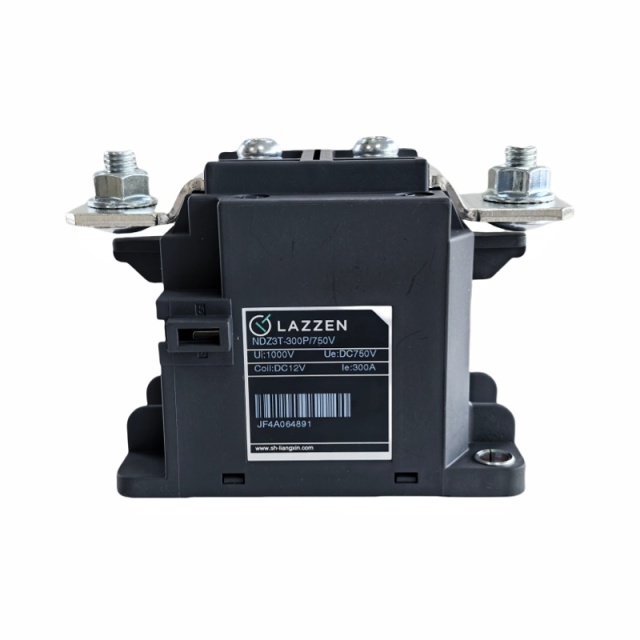

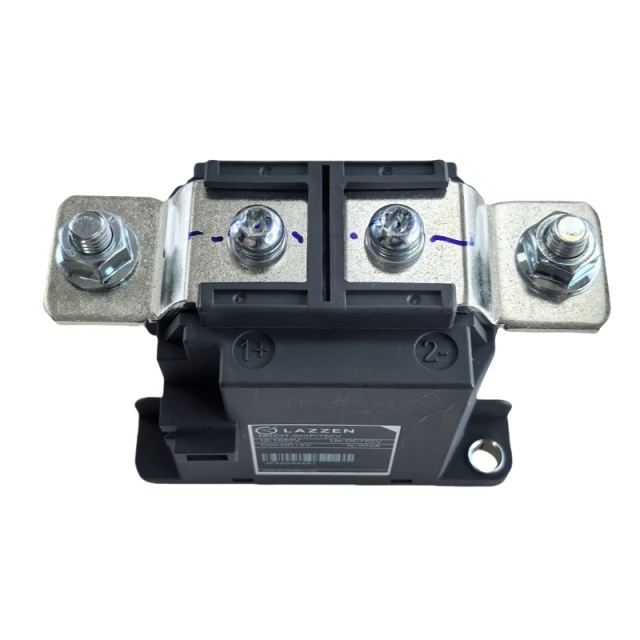

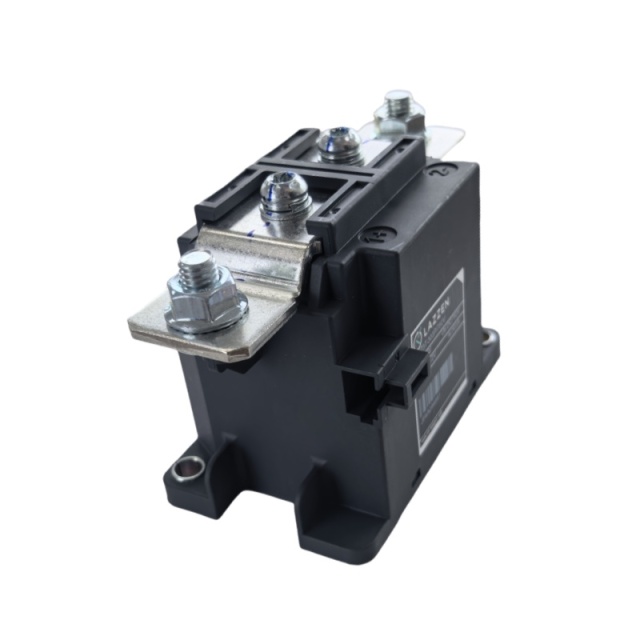

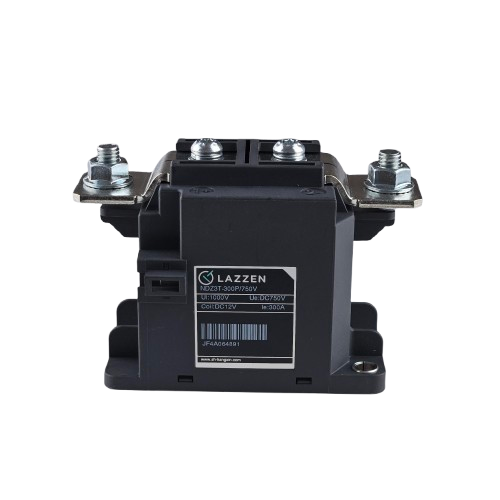

NDZ3T-300P
|
|
Main Contact Form
|
1NO
|
|
Operating Voltage Range
|
DC12 - 1000V
|
|
Rated Operating Current
|
300A
|
|
Contact Resistance
|
≤0.2mΩ (at 300A)
|
|
Short - time Withstand Current
|
3000A for 600ms, 300A continuous
|
|
Mechanical Life
|
200,000 cycles, 3600 cycles per hour
|
|
Control Coil (20°C)Rated Voltage Uc
|
DC12V, DC24V, DC48V
|
|
Auxiliary Contacts
|
Without
|
|
Type
|
/
|
|
Coil Polarity
|
Polariz
|
|
Maximum Interrupting Current
|
DC600V 2500A once
|
|
Insulation Resistance
|
1000MΩ DC1000V
|
|
Power - frequency Withstand Voltage
|
AC3000V for 60s, leakage current ≤1mA
|
|
Electrical Life
|
DC750V 300A 1000 cycles
DC500V 300A 3000 cycles DC500V - 300A 1000 cycles |
|
Impact Stability
|
Closing: 20g, Opening: 10g
|
|
Impact Strength
|
50g
|
|
Vibration
|
5g 10 - 500Hz
|
|
Operating Humidity
|
5% - 95%
|
|
Weight
|
Approximately 800g with terminal block, approximately 710g without
|
|

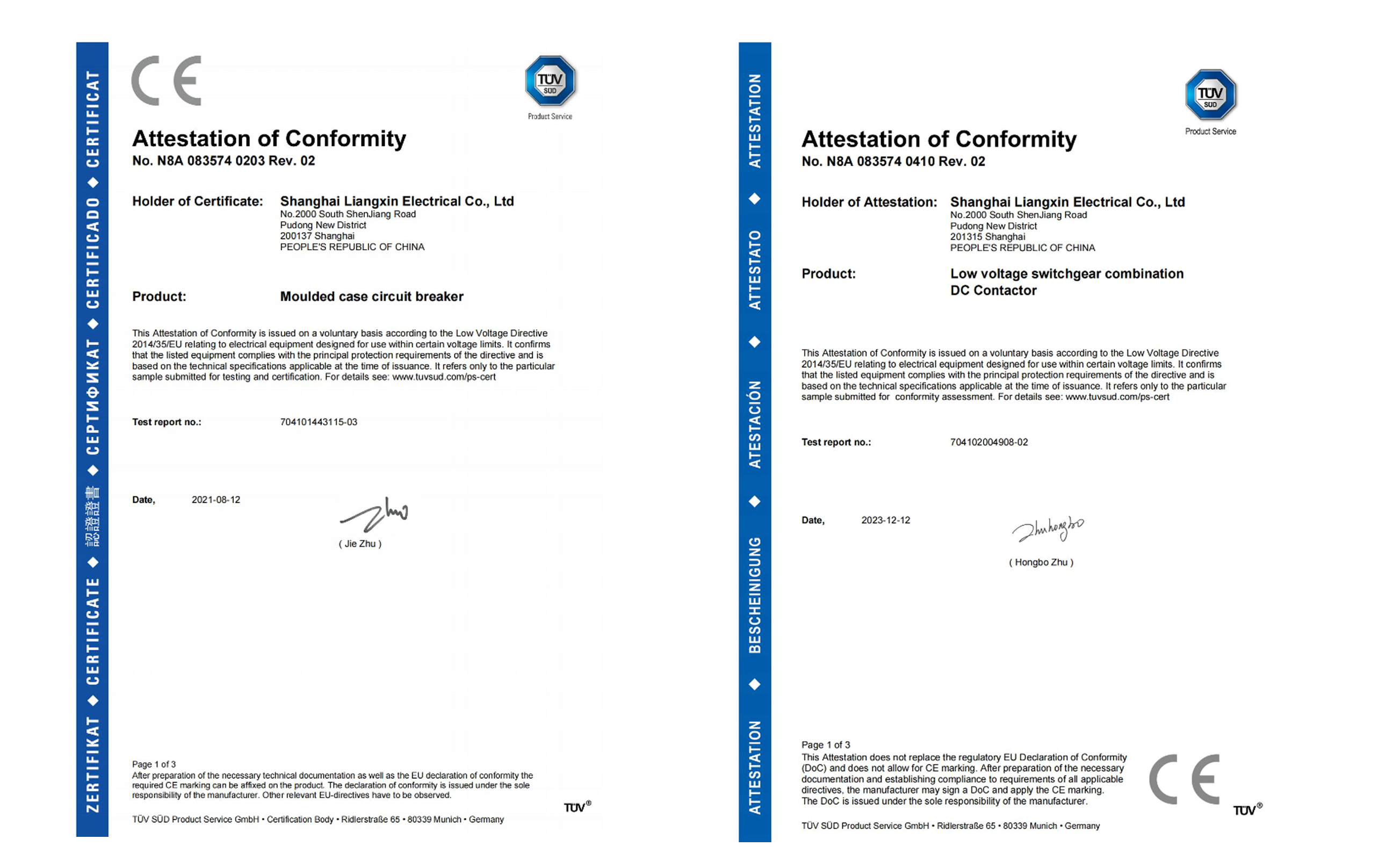

Certifications
|
CCC, CB, CE, TUV
|
