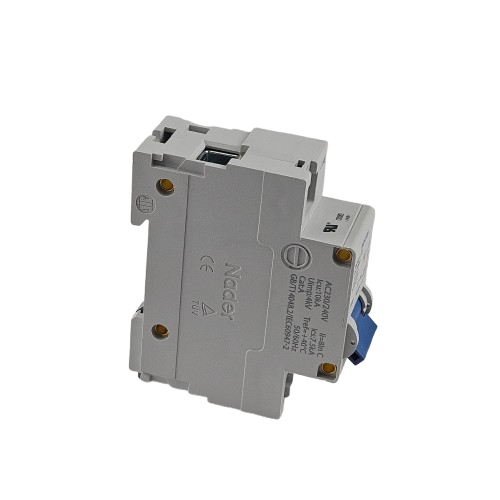

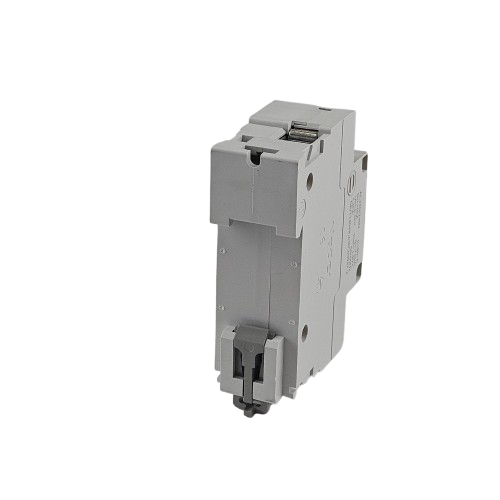

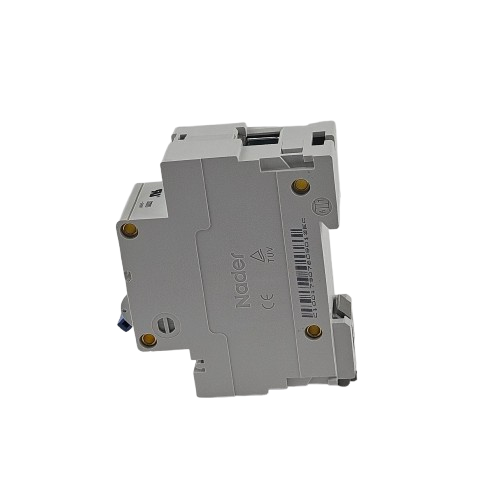

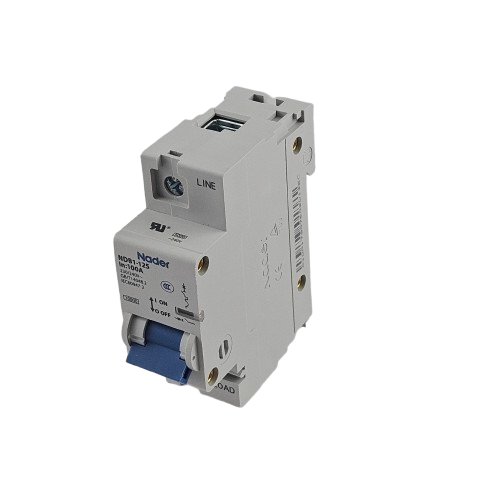

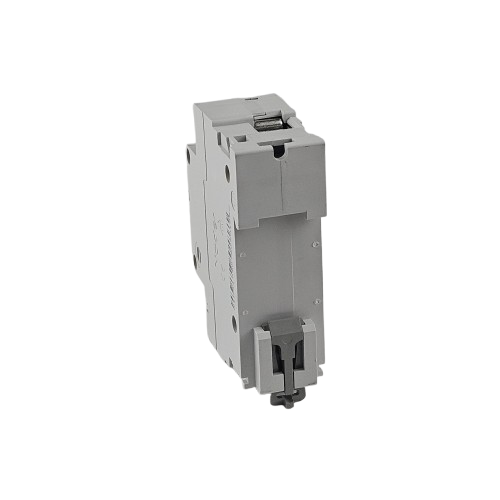

Name: Circuit Breaker Molded case NDB1-125C Automatic Dc Circuit Breaker 230/240V
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601672255347
Price: 14.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

BCD Curve

Other

Breaking Capacity

4.5 kA, 6 kA

Rated Voltage

440V

Place of Origin

Shanghai, China

Model Number

NDB1-125C

Brand Name

LAZZEN

Application

Circuit-Breaking, Households, Protection, Industrial, Electric Power

Material

Polycarbonate, PA66, Polyester, Copper

Mounting Type

Base Mounting, Panel Mounting, Snap-On Mounting, Rail Mounting, Modular Mounting

Protection

Other

Rated Frequency (Hz)

50/60 Hz

Type

RCBO, RCCB, MCB, DC MCB, AC MCB, Other

Rated current

6-32A

Rated voltage

230/240V

Mechanical life

10000 Times

Electrical life

6000 Times

Arcing distance

1-10

certificate

CCC TUV CE

Packaging and delivery

Selling Units

Single item

Single package size

2X10X10 cm

Single gross weight

5.500 kg

Product descriptions from the supplier

Specification

Model	NDB1-125C
Rated voltage (V)	AC230/240V
Rated current (A)	6,10,16,20,25,32
Type of residual current release	AC type, electronic type
Rated residual operating current Ain (mA)	1P 2P 3P 4P
Rated insulation voltage Ui (V)	AC440
Rated impulse withstand voltage Uimp (kV)	4
Rated short - circuit breaking capacity (GB/T16917.1) lcn (kA)	4.5/6
Rated ultimate short -circuit breaking capacity (GB/T14048.2) lcu (kA)	4.5/6
Rated residual making and breaking capacity Δlm (A)	500
Rated operating frequency (Hz)	50/60
Mechanical and electrical life (times)	Mechanical life 10000times/ Electrical life6000times
Wiring method	Tunnel - type
Wiring capacity (mm)	1-10
Terminal screw / torque N·m	1.2

Product Features

Scope of Application and Purpose

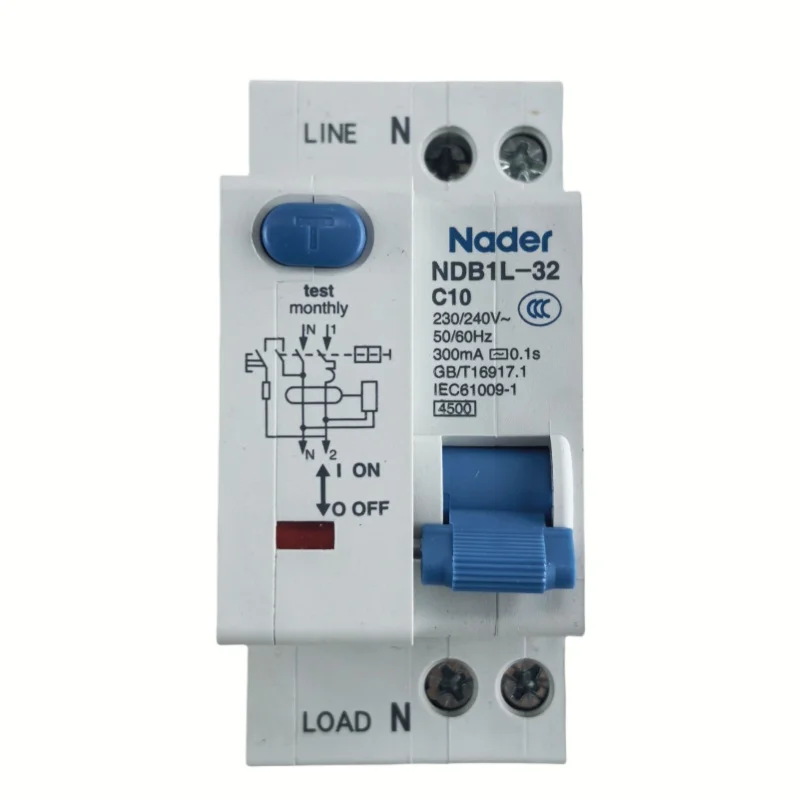

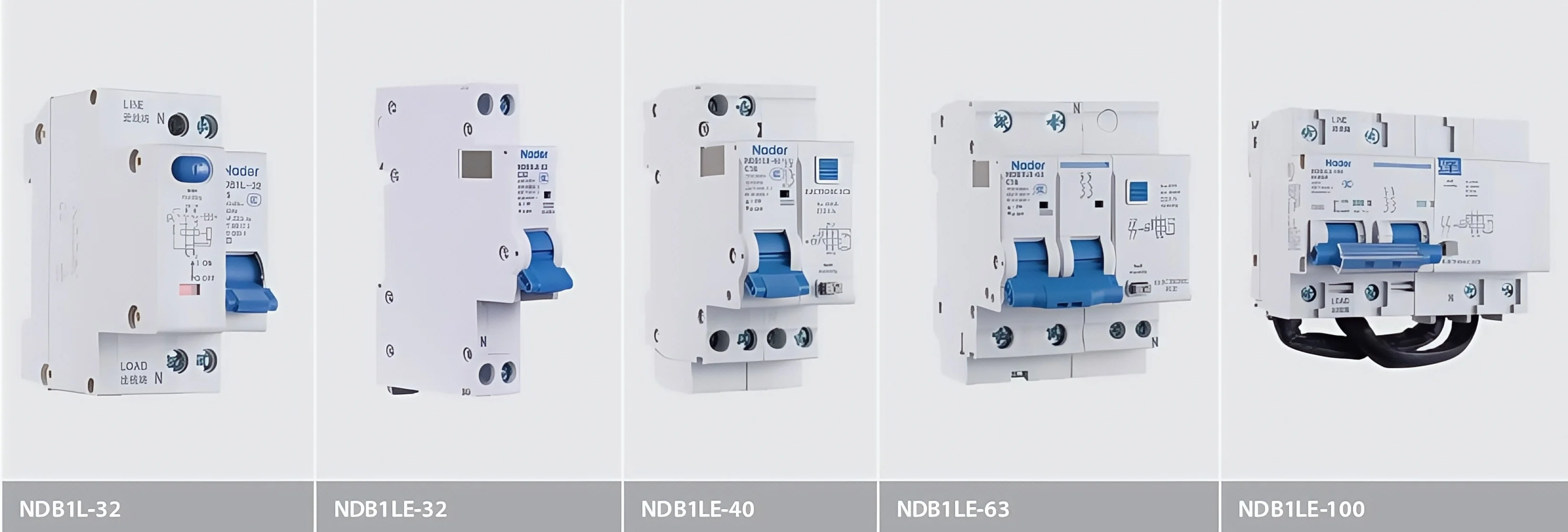

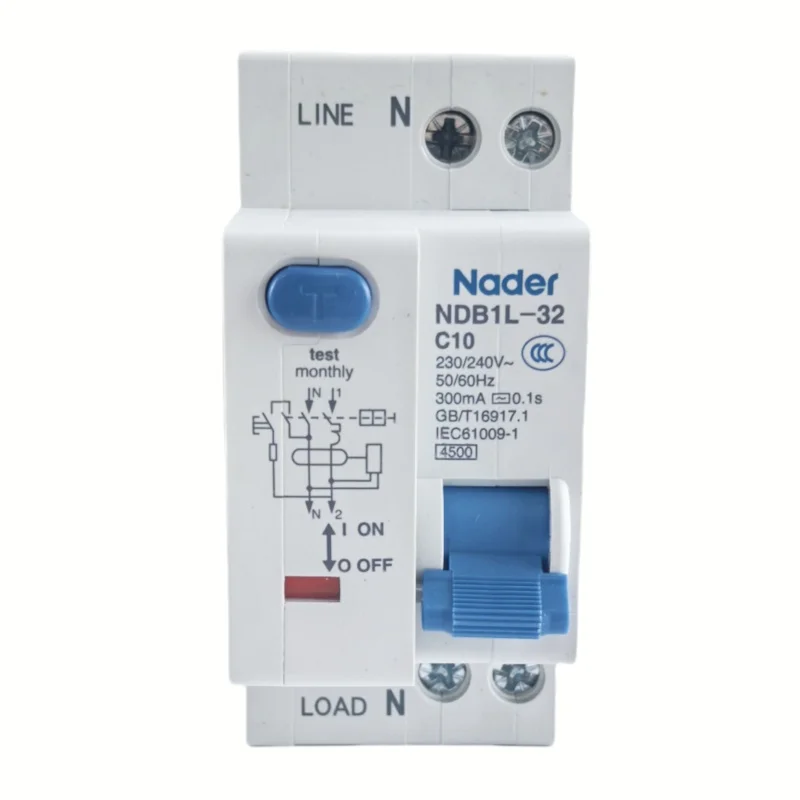

The NDB1L(E) series residual current operated circuit breakers are applicable to low - voltage terminal power distribution systems
in industries, civil buildings, energy, telecommunications, and infrastructure construction. They feature short - circuit,
overload, leakage protection, and isolation functions. They provide personal protection against indirect contact, supplementary
personal protection against direct contact, and protection against insulation faults of electrical equipment.

Design Features
* Visible Window Design: Makes the open - close status of the product clearly visible.
