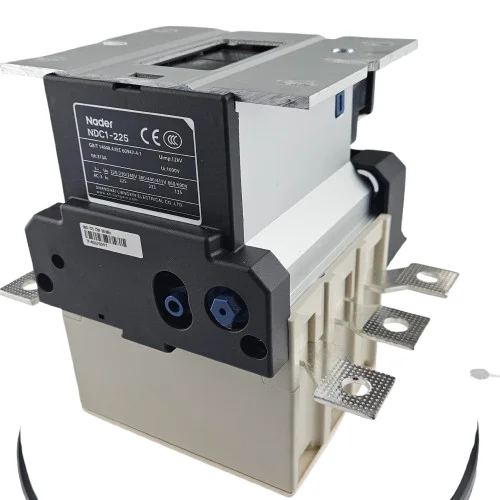

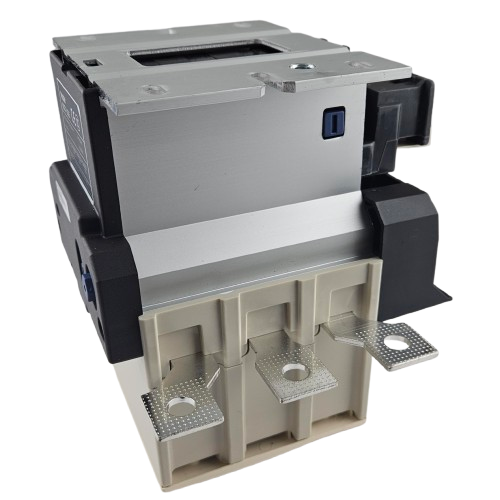

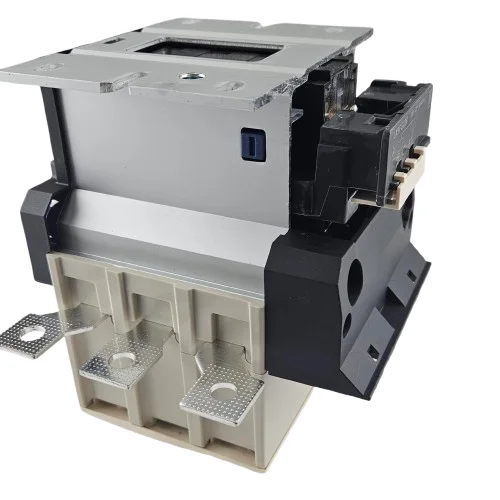

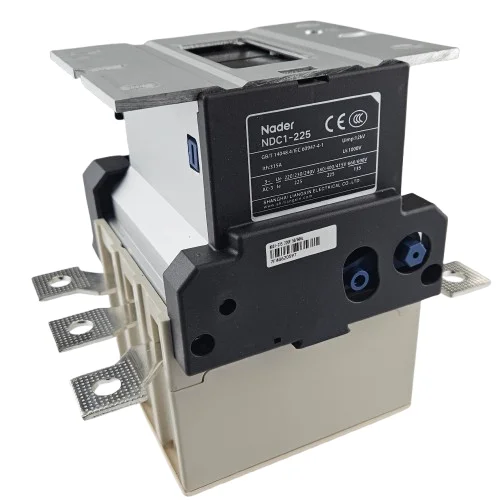

Name: Circuit Breaker for Electric NDC1-225 Series AC Contactors Circuit Breaker Three Phase
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601672775285
Price: 177.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Application

AC Motor, Industrial Automation, Switch

Main Circuit Rating Current

200 A

Phase

Place of Origin

Shanghai, China

Electricity Type

Model Number

NDC1-225

Brand Name

LAZZEN

Frequency

60 Hz, 50 Hz

Mounting Type

Din Rail, Surface Mount, Enclosure, Modular, Panel, Socket, PCB

Conventional free - air heating current

125A

Rated insulation voltage Ui/V

1000

Impulse withstand voltage /kV

Rated operating voltage Ue/V

340/415 660/690

Packaging and delivery

Selling Units

Single item

Single package size

10X5X8 cm

Single gross weight

4.000 kg

Product descriptions from the supplier

Product Description

Product Name	NDC1-225
Rated free - air heating current Ith/A （9 ≤ t ≤ 60℃）	1000
Rated insulation voltage Ui/V	8
Impulse withstand voltage /kV	380/415 660/690
Rated operating voltage Ue/V	40
Mechanical life (times)	6000000
Coil Rated control voltage Us/V	C(50/60Hz): 24。36。48。110。220。380。415 DC:24。48。110。220

Product Images

00:23

Product Applications

Certificate

Packing&Shipping

Related Products

Company Introduction

Beian New Energy Co., Ltd. is a high-tech new energy enterprise based in Suzhou, China.We focus on customized solutions and products of lithium-ion batteries.

Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.

Beian New Energy also provides high voltage DC contactors,connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS).

Beian New Energy a total lithium-ion battery solution provider, offering a quality guarantee ranging from 1 to 10 years, Welcome your consultation.

FAQ

Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.

Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.

Q6:How long does the warranty?
A: In general, the time is 1 year.

Q7: What is your terms of payment?
A: We accept T/T and L/C

Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.

Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.

Scope of Application and Purpose

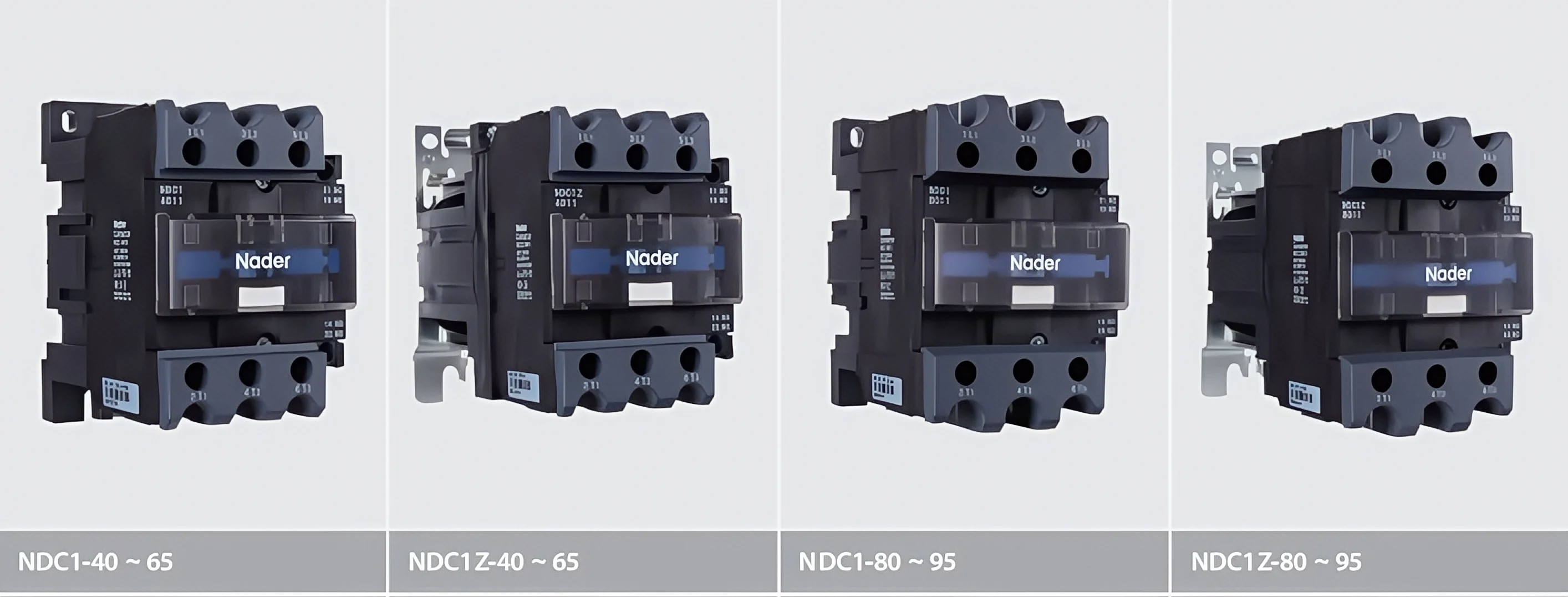

The NDC1(Z)-09 - 95 series Ac contactors (hereinafter referred to as contactors) are mainly used in circuitswith an Ac freguency of 50Hz (or 60Hz), a rated insulation voltage of 1000v, and a rated operating currentof 9A - 95A at a rated operating voltage of 415V under the Ac - 3 usage category. They are used for remoteconnection and disconnection of circuits, frequent starting, and control of AC motors. They can also becombined with appropriate thermal - overload relays to form electromagnetic starters to protect circuitsthat may be overloaded.

Design FeaturesThe operating mechanism is of the straight - action type, and the contacts are double - break.It has strong combinability. Accessories can be added to all sides except the mounting surface.Reversible mechanisms can be added to both sides to form reversible contactors.

Auxiliary contact groups (NF1) and auxiliary contacts (air - delay type Ns1) can be added on the top.a)Auxiliary contact groups (NF2) can be added to both sides.。A surge suppression module (NG1) can be added to the coil terminal.Under normal operating conditions, the extreme voltage fluctuation can reach 65%Uc -120%Uc.
