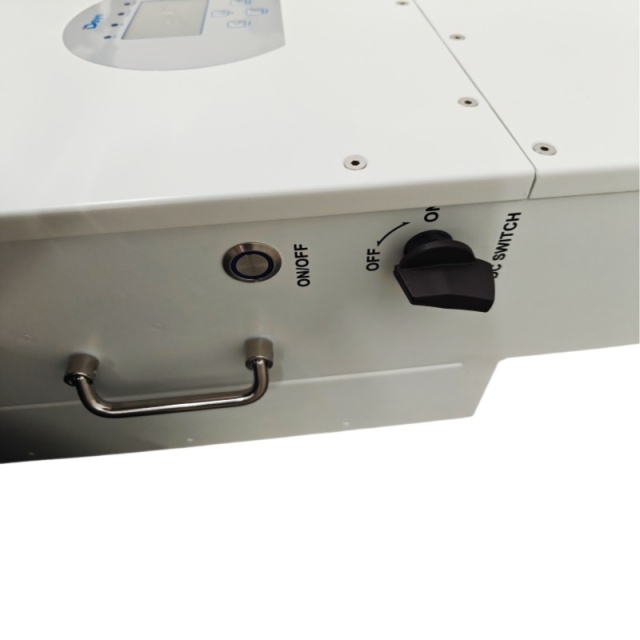

Name: Beiamp IP65 Hybrid Solar Inverter 10kW with LiFePO4 Battery Natural Cooling RW-F10.2
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601640521502
Price: 1706.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Battery Type

LiFePO4

Grid connection

Hybrid grid

Place of Origin

Jiangsu, China

Model Number

RW-F10.2

Brand Name

Beiamp

Dimension (L*W*H)

600*760*200 mm

Weight

104/107kg

Communication Port

Rs485, CAN2.0

Protection Class

IP65

Cooling

Natural cooling

Battery Chemistry

Built-in Circuit Breaker

125A 4P, 60Vdc

Capacity (Ah)

200

Scalability

Max. 32 pcs pack (Max.326kWh) in parallel

Nominal Voltage (V)

51.2

Operating Voltage (V)

43.2~57.6

Nominal Energy (kWh)

10.2

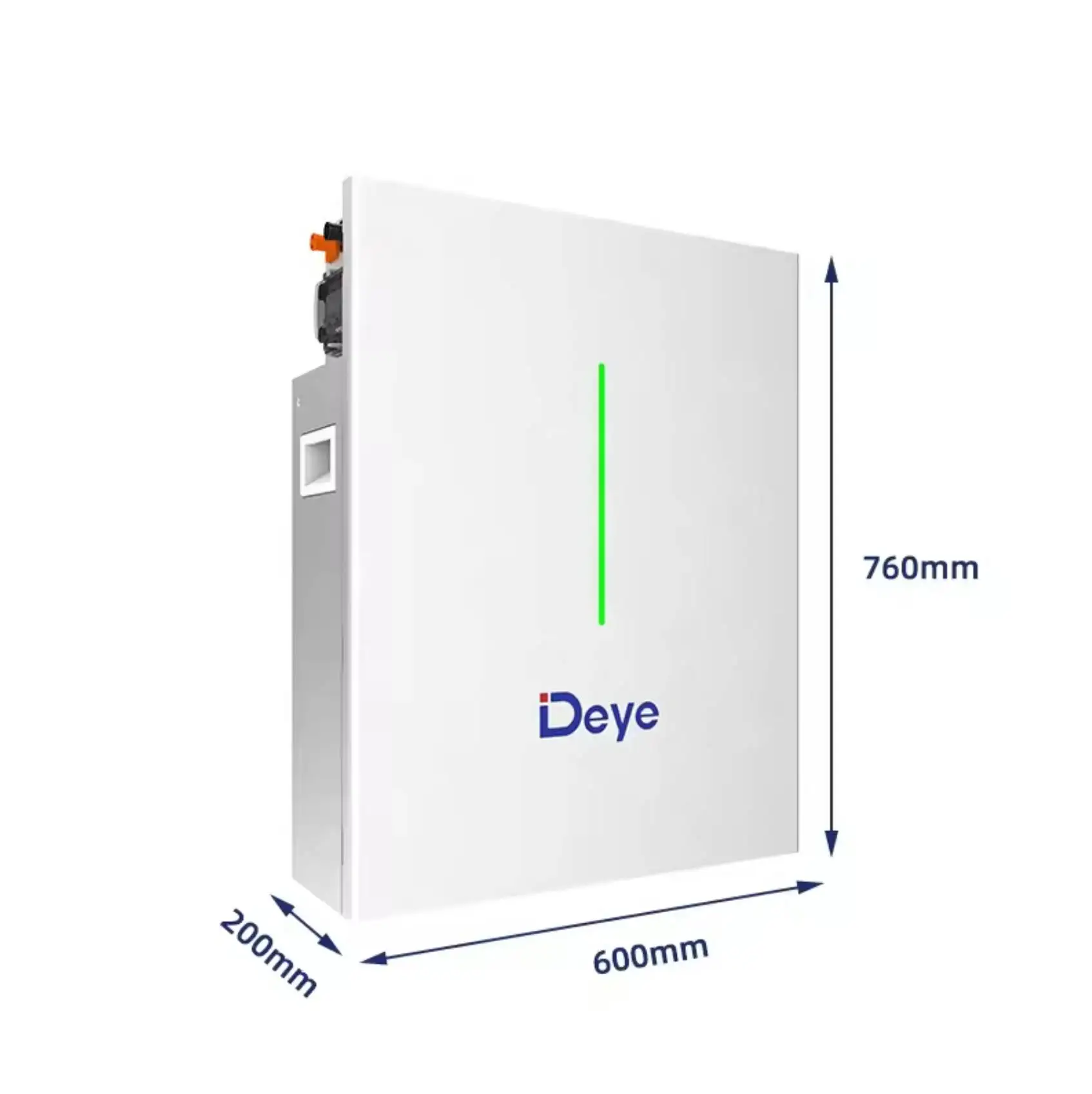

Dimension (W/H/D, mm)

600*760*200 (Without hanging board)

Weight Approximate (kg)

104

IP Rating of Enclosure

IP65

Packaging and delivery

Selling Units

Single item

Single package size

65X25X80 cm

Single gross weight

110.000 kg

Product descriptions from the supplier

Product Description

Model	RW-F10.2	RW-F10.2-B
Main Parameter
Main Parameter	LiFePO4
Built-in Circuit Breaker	125A 4P, 60Vdc
Capacity (Ah)	200
Scalability	Max. 32 pcs pack (Max.326kWh) in parallel	Max. 32 pcs pack (Max.327kWh) in parallel
Nominal Voltage (V)	51.2
Operating Voltage (V)	43.2~57.6
Nominal Energy (kWh)	10.2	10.24
Usable Energy (kWh)	9.2 (90%DOD)
Dimension (W/H/D, mm)	600760200 (Without hanging board)	600830200 (Without hanging board)
Weight Approximate (kg)	104	107
IP Rating of Enclosure	IP65
Operating Temperature	Charge: 1°C~55°C / Discharge: -20°C~55°C
Altitude	≤3000m
Cycle Life	≥6000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation	Wall-Mounted, Floor-Mounted
Communication Port	CAN2.0, RS485
Warranty Period	10 years
Energy Throughput	32MWh (25°C, 0.5C/0.5C, 70%EOL)

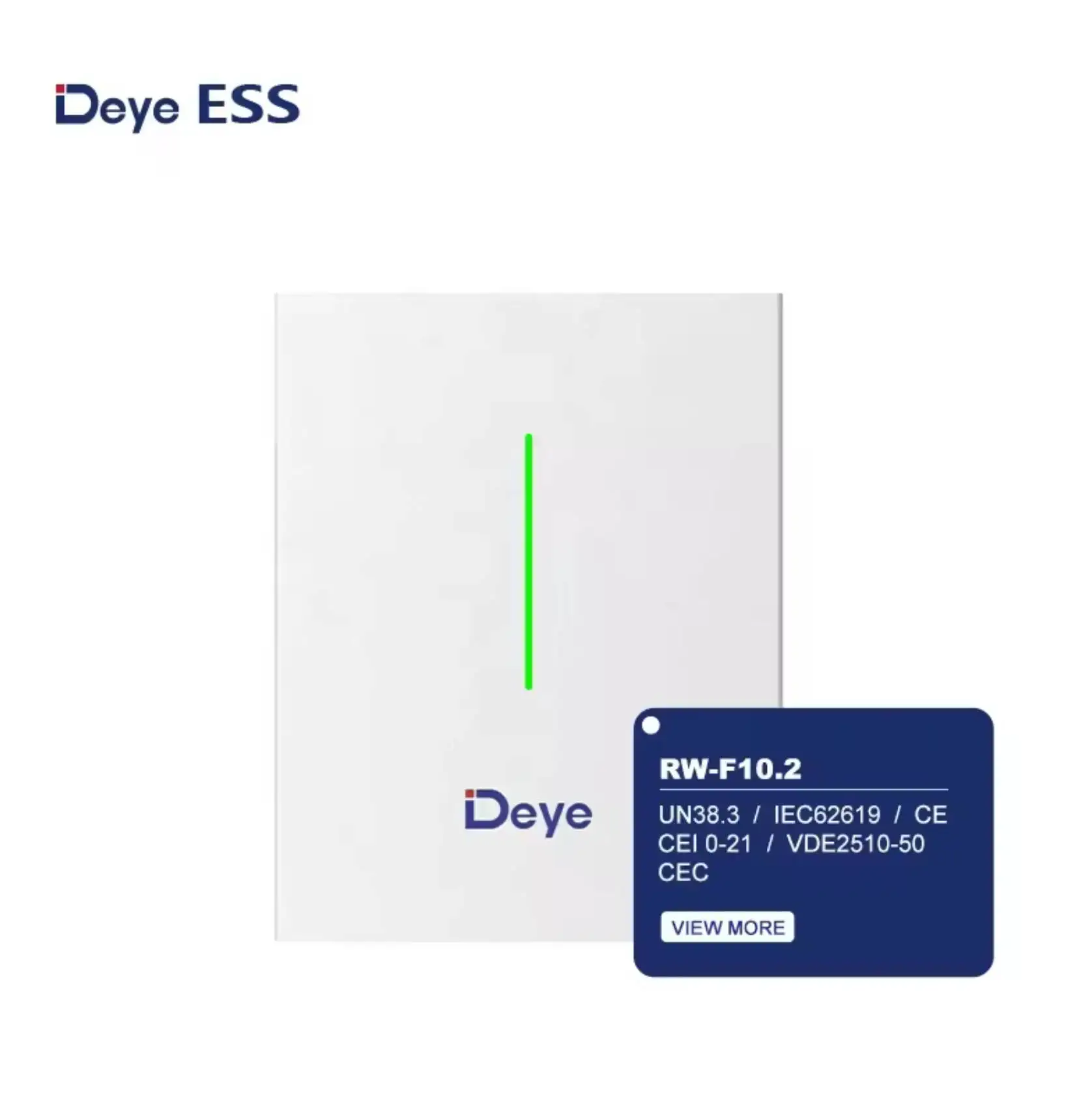

Certification	UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50, CEC	UN38.3, FCC, UL1973, UL9540A

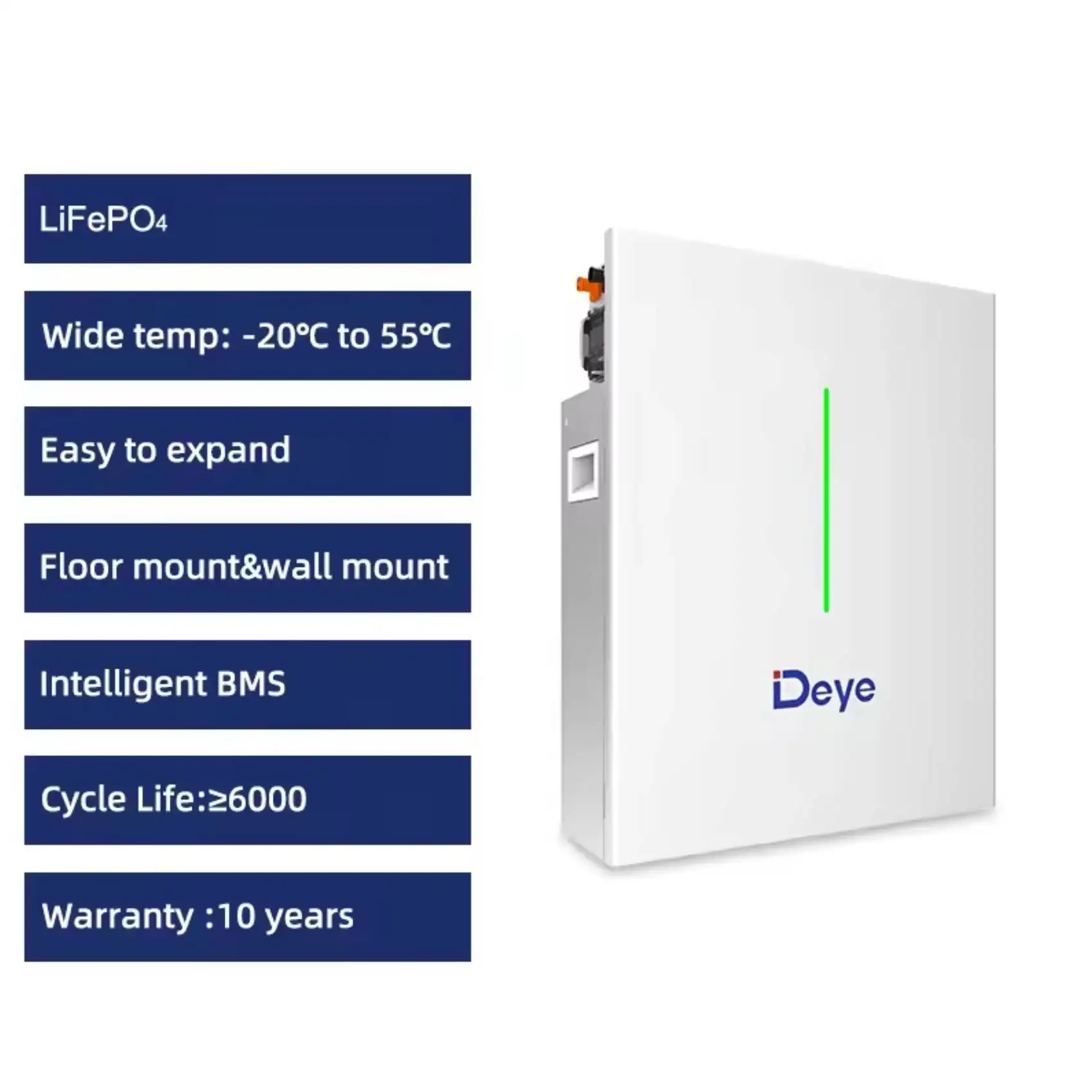

KEY STRENGTHS

Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long
lifespan and high-energy density. Low Voltage safety connection.

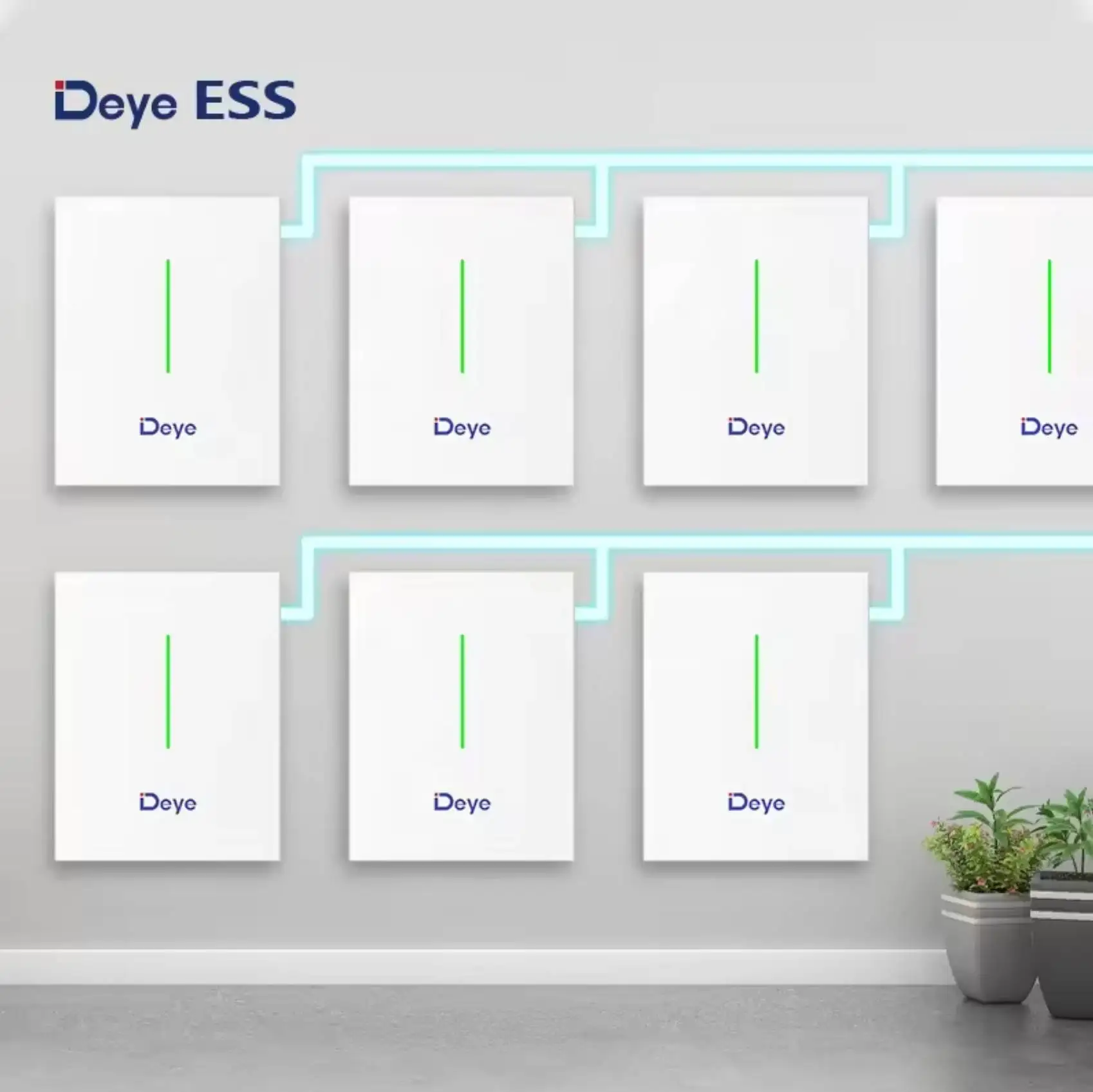

Modular design, easy to expand, Max. 32 units in parallel.
The RW-F10.2 has a maximum capacity of 326kWh.
The RW-F10.2-B has a maximum capacity of 327kWh and supports
hand-in-hand rapid parallel expansion.
Suited to residential and commercial applications for increasing the
self-consumption ratio

Built-in Intelligent BMS, providing complete protection. Natural
cooling, IP65, wide temperature range: -20°C to 55°C.

Product Images

Packing&Shipping

Related Products

Company Introduction

Beian New Energy Co., Ltd. is a high-tech new energy enterprise based in Suzhou, China.We focus on customized solutions and products of lithium-ion batteries.

Our products are applied in fields such as solar energy storage systems, electric vehicles, electric forklifts, marine, golf carts, and AGV etc.

Beian New Energy also provides high voltage DC contactors,connectors, and manual service disconnects (MSD) for electric vehicles and energy storage systems (ESS).

Beian New Energy a total lithium-ion battery solution provider, offering a quality guarantee ranging from 1 to 10 years, Welcome your consultation.

FAQ

Q1:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. For urgent case, please call us or tell us in your email so that
we'll regard your inquiry priority.

Q2.Do you have MOQ for Your Batteries?
A: We want to support our customer without MOQ request.
Q3. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q4. What about the lead time?
A. Sample needs 7 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q5.Is it OK to print my logo on the product?
A: Yes. We welcome OEM orders.

Q6:How long does the warranty?
A: In general, the time is 1 year.

Q7: What is your terms of payment?
A: We accept T/T and L/C

Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q9.How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT for samples. For mass order, you can choose Sea or Air shipment.

Q10:Can we visit your factory?
A: Warmly welcome. Our factory located in shenzhen, near Guangzhou.
