Name: 40kw DCDC Converter EV Charger Module DC Power Supply Maxwell Liquid Cooling Power Meter Module
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601657488745
Price: 975.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Output Current

0 - 133.3A

Output Frequency

50/60Hz

Phase

Type

DC/DC Converters

Place of Origin

Jiangsu, China

Model Number

UR100040SW-SiC(EU)

Brand Name

BEIAN

Application

Air Conditioner, Home, Automotive, Compressor, Industrial, Motor, Pump, Home Appliance, Electric Vehicle

Efficiency

98%

Network

CAN

Output Type

Multiple

Size

300*184*875mm

Weight

19kg

Output Voltage Range

150V ~ 1000V

Constant Power Output

40kW (300 - 1000V)

Output Current

0 ~ 133.3A

Voltage Stabilization Accuracy

≤±0.5%

Current Stabilization Accuracy

≤±1%

Maximum Efficiency

≥97%

Operating Voltage Range

260Vac ~ 485Vac

AC Input Power Frequency

50/60Hz

Power Factor

0.98

Harmonic Current Limitation

<5% (50% Rated Power ~ 100% Rated Power)

Packaging and delivery

Selling Units

Single item

Single package size

350X200X1000 cm

Single gross weight

25.000 kg

Product descriptions from the supplier

Product Description

Product Features

UR100040SW-SiC(EU)-G2 power module is the 2nd generation of high efficiency power module, which adopts the world's leading power electronic technology, is specially designed for power conversion of EV charging, can deliver constant power output in super wide voltage range.

Product Name	UR100040SW-SiC(EU)
Output Parameters
Constant power range	40kW(300VDC ~ 1000VDC)
Output voltage	150VDC ~ 1000VDC
Output current	Efficiency
Efficiency	Peak efficiency>97%, rated efficiency>96% Peak efficiency>97.5%, rated efficiency>97%
Input Parameters
Input voltage	260VAC~530VAC
Input frequency	55±10Hz, rated input frequency 50/60Hz
THDi	≤ 5%
Power factor	Rated output load PF ≥ 0.99
Standby power	10W
Communication
Communication	CAN
Number of working modules	Max. 60
HMI	LED operating display
Physical Characteristics
Noise	<65dB
Cooling	Air
Dimension	30084437.5 (WHD/mm)
Weight	16kg

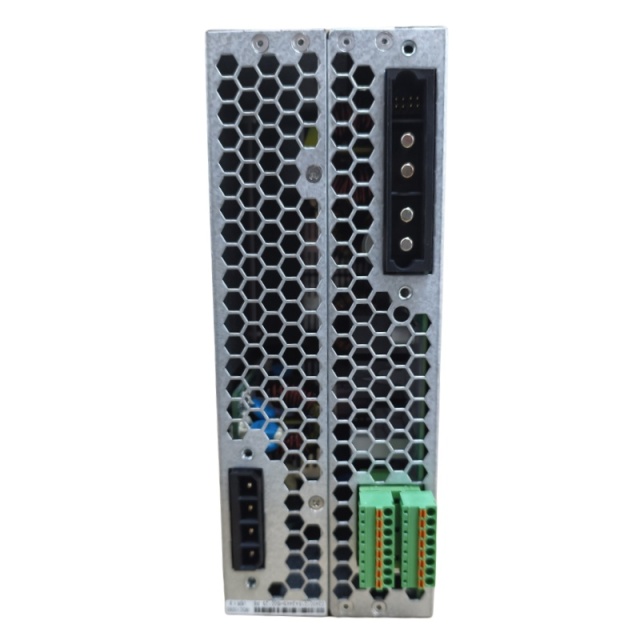

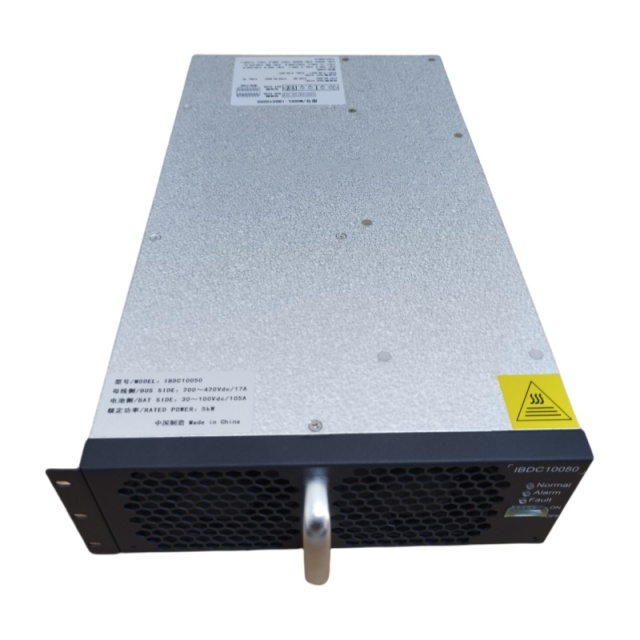

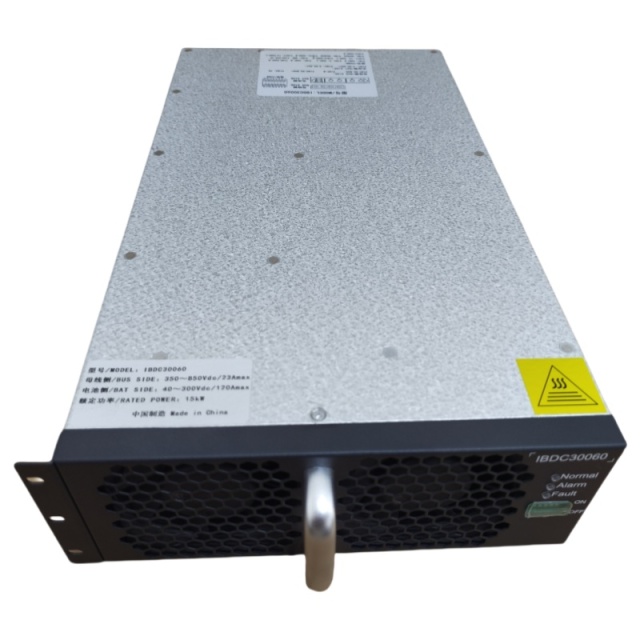

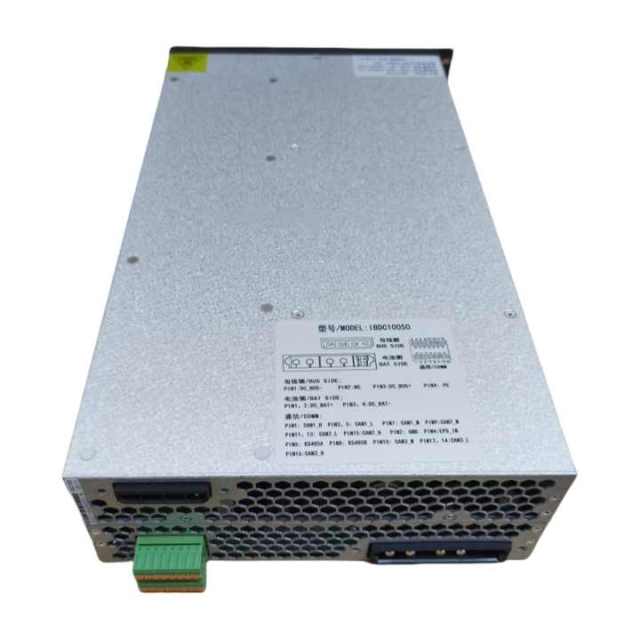

Product Images

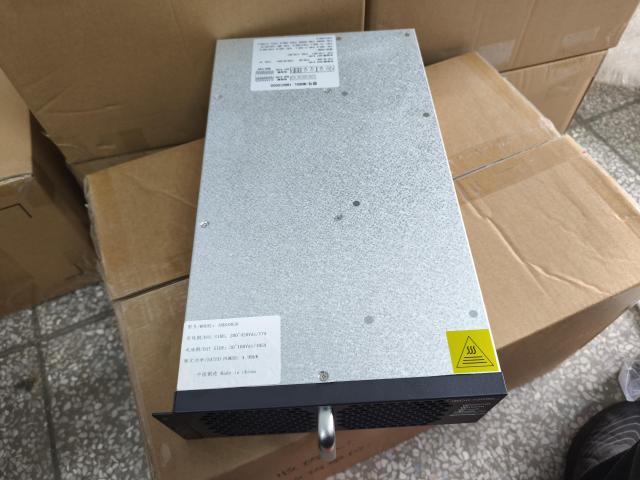

Packing&Shipping
