3.3Kw AC/DC EV On Board Charger Air Cooling

Name: 3.3Kw AC/DC EV On Board Charger Air Cooling
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 00170
Availability: InStock
Rating: 5 (1 reviews)

No.00170

3.3Kw AC/DC 2 IN 1 EV On Board Lithium Battery Charger Air Cooling with DC/DC

GET A QUOTE

Description

3.3Kw AC/DC 2 IN 1 EV On Board Charger Air Cooling with DC/DC

Product Parameters

ITEM	MODLES	OUT PUT POWER	COOLING METHOD
OBC	HK-M	3.3KW	WIND/LIQUID
OBC	HK-M	6.6KW	WIND/LIQUID
DC/DC	TDC-IY	1.0KW	NATURAL COOLING
DC/DC	TDC-JY	1.5KW	WIND
DC/DC	EV1800PB48D12D-000	1.5KW	WIND
DC/DC	TCD UN5000202	2.0KW	LIQUID
OBC+DC/DC	CD-M	3.3KW+1KW	WIND/LIQUID
OBC+DC/DC	CD-MWH	3.3KW+1.5KW	WIND/LIQUID
OBC+DC/DC	CD-LF/CD-LW	6.6KW+1.5KW	WIND/LIQUID
OBC+DC/DC	CD-LFK/CD=LWK	6.6KW+1.5KW	WIND/LIQUID

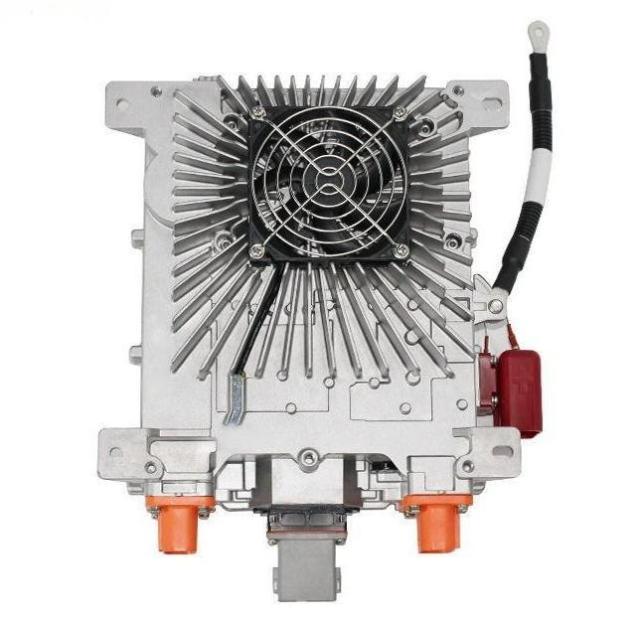

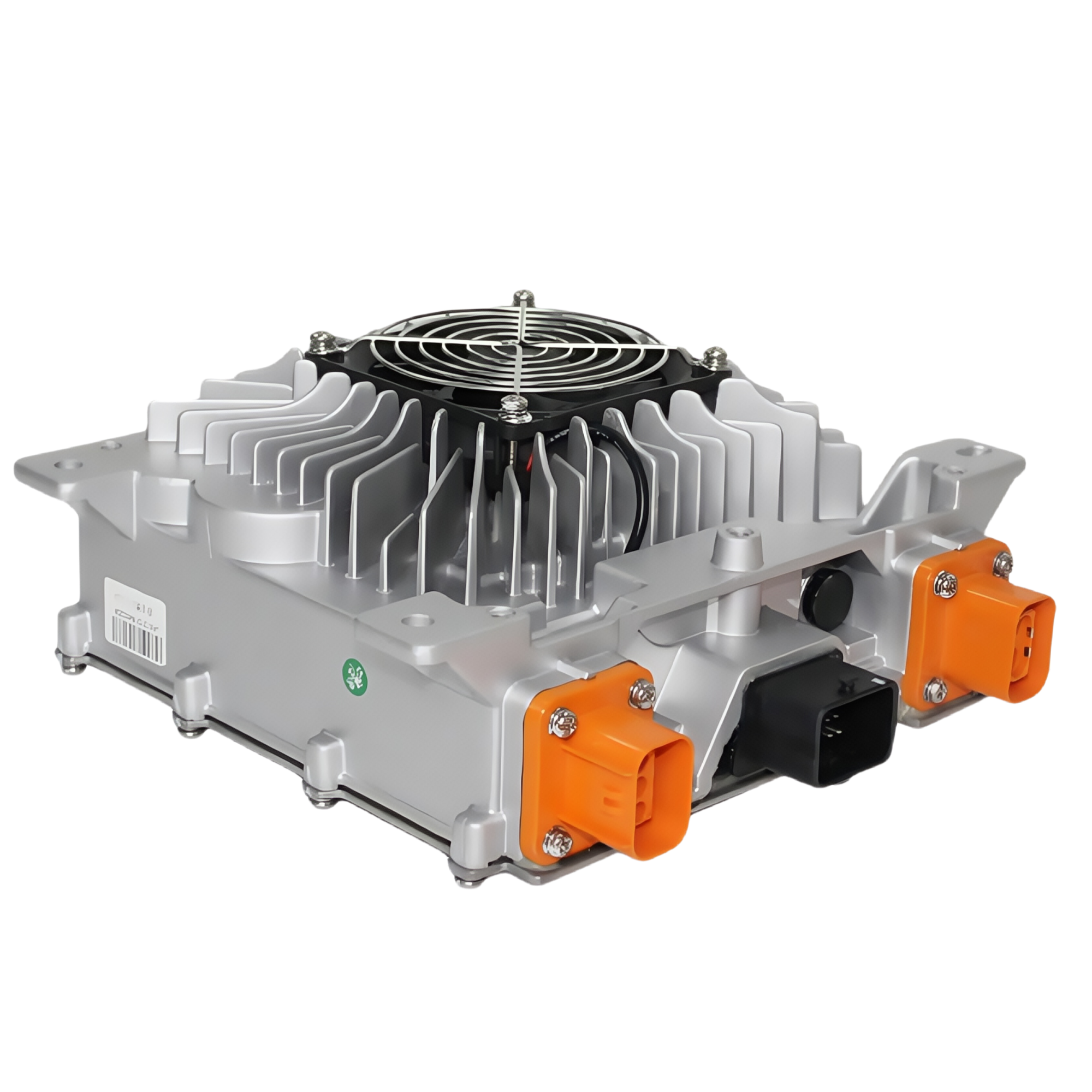

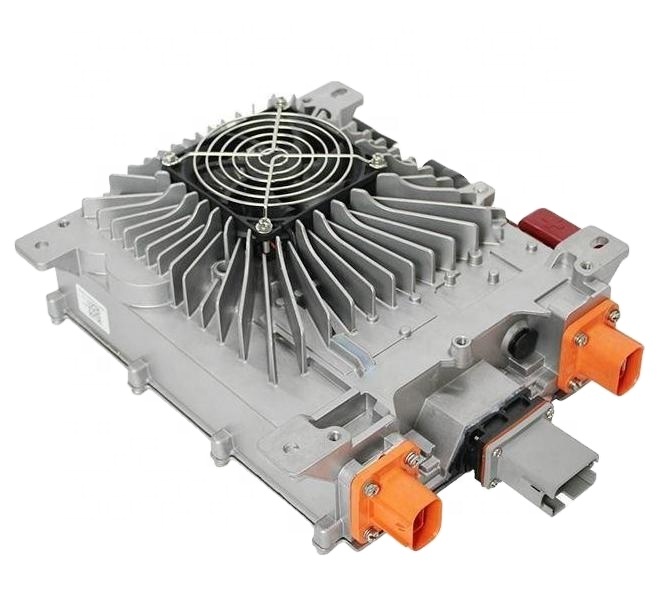

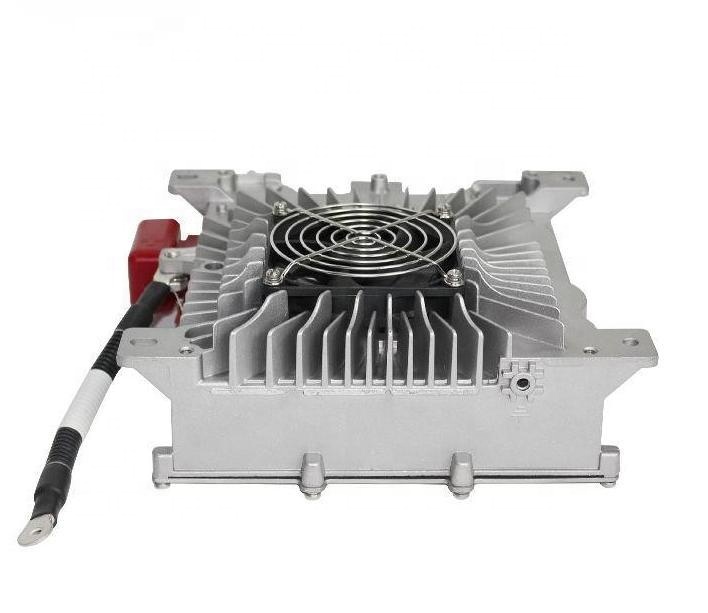

Product Picture

AC Input Voltage Range:	90-264VAC；45-65Hz
AC Input Max Current	23A @144VAC 10.0A @312VAC
Net Weight	5.8kg
Power Factor	≥0.99
Efficiency	≥94.0%

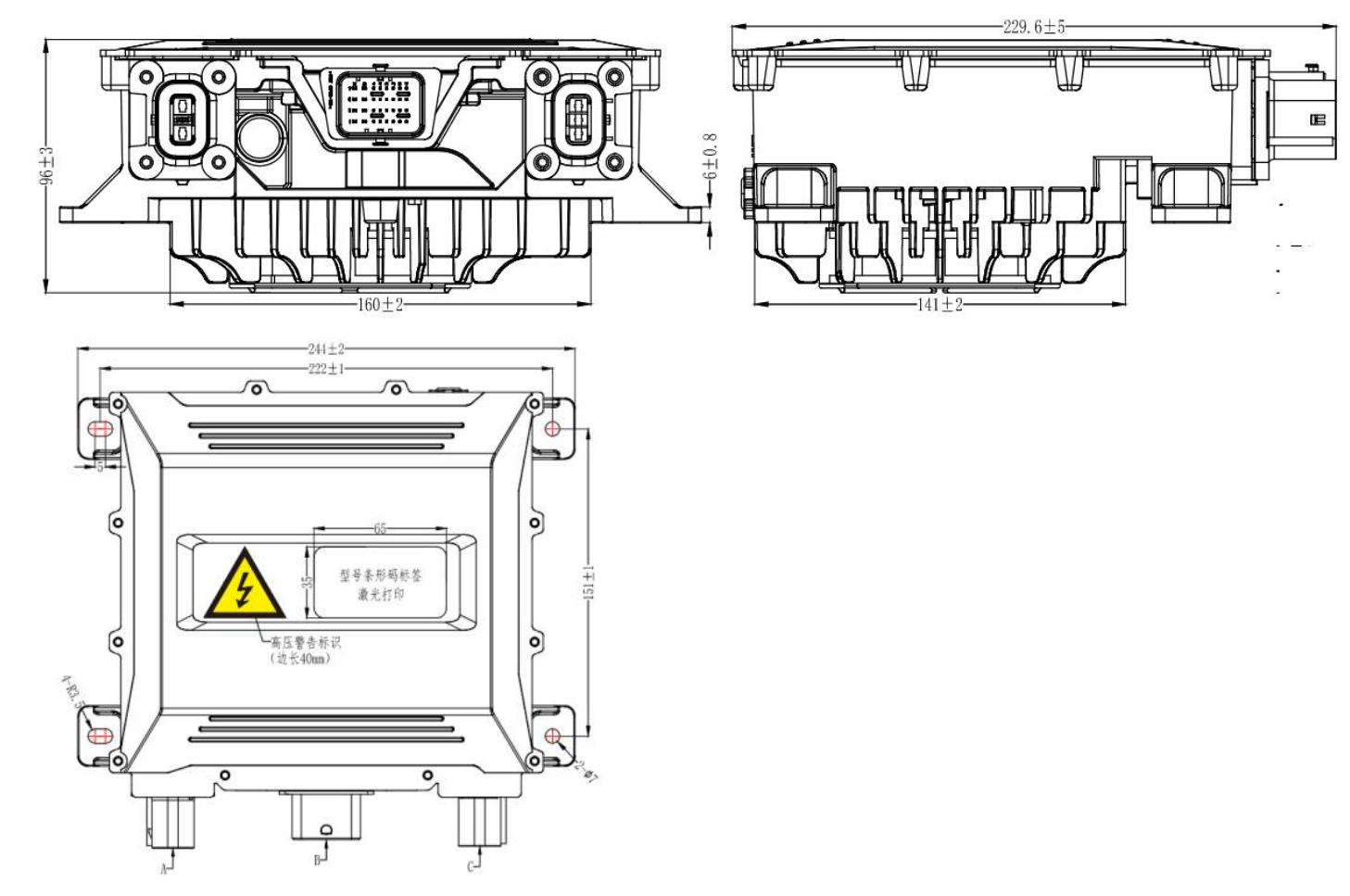

Details of the picture
