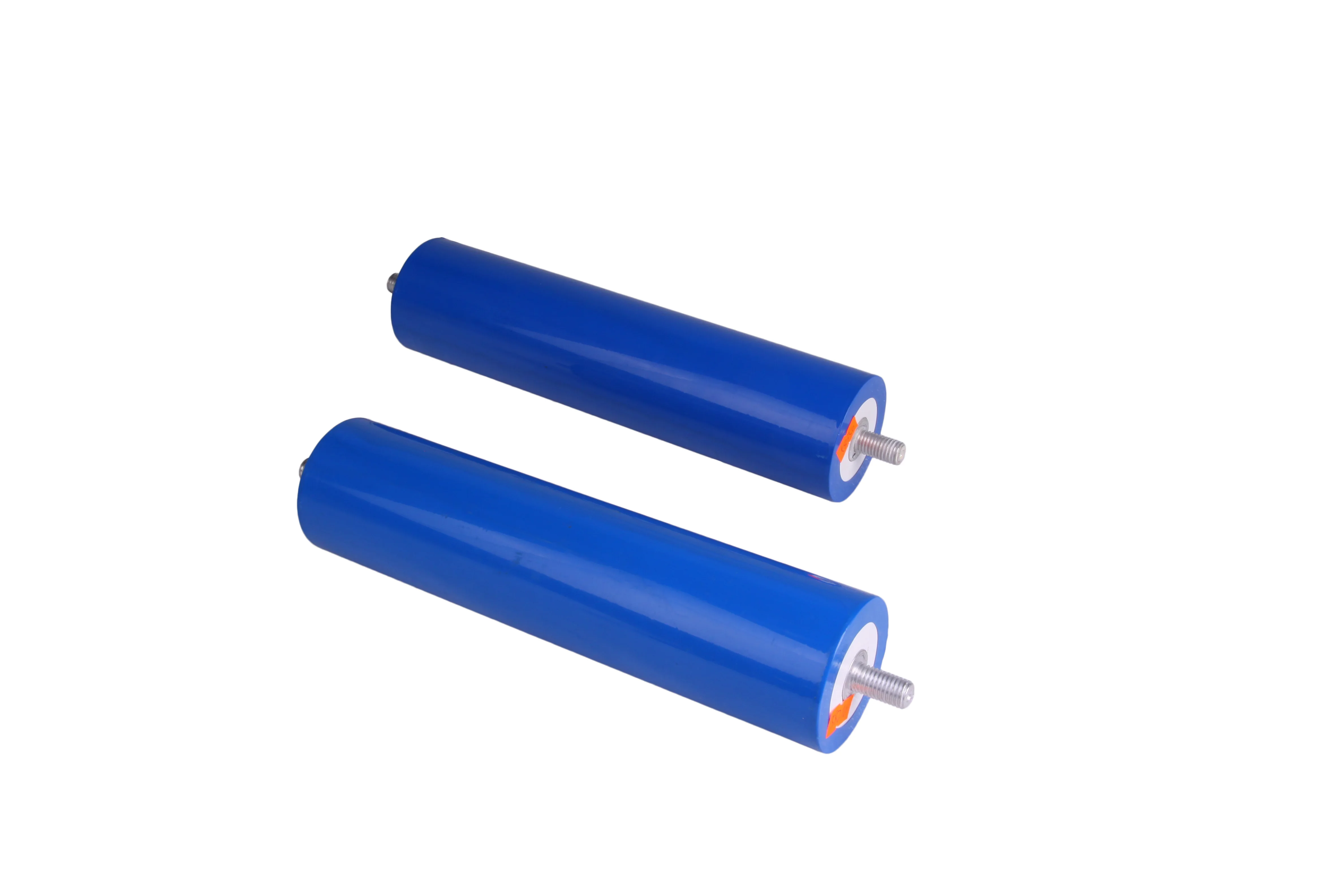

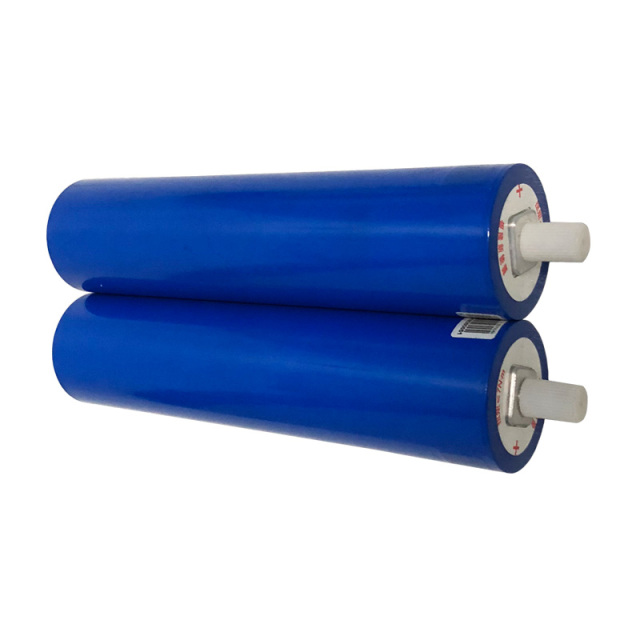

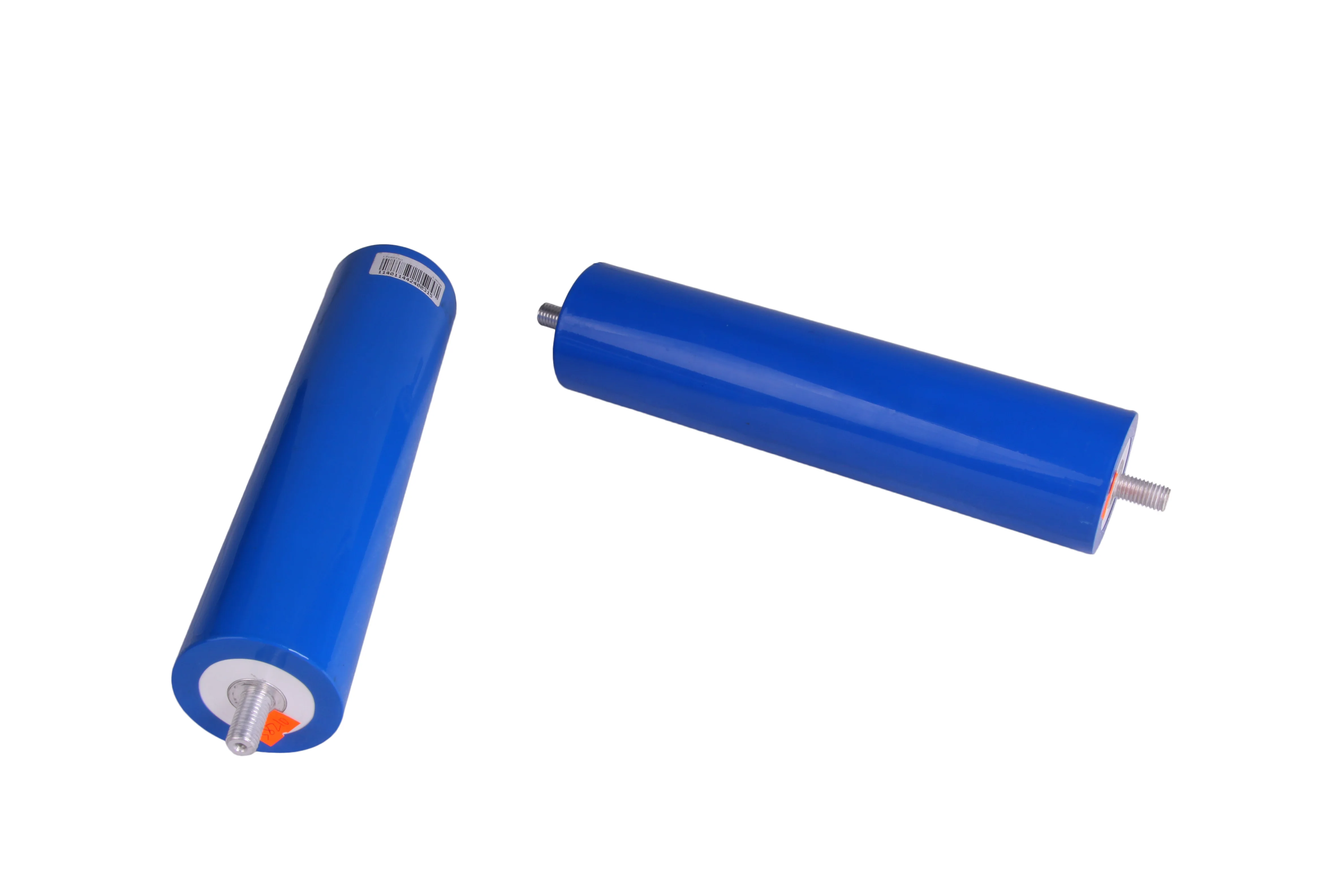

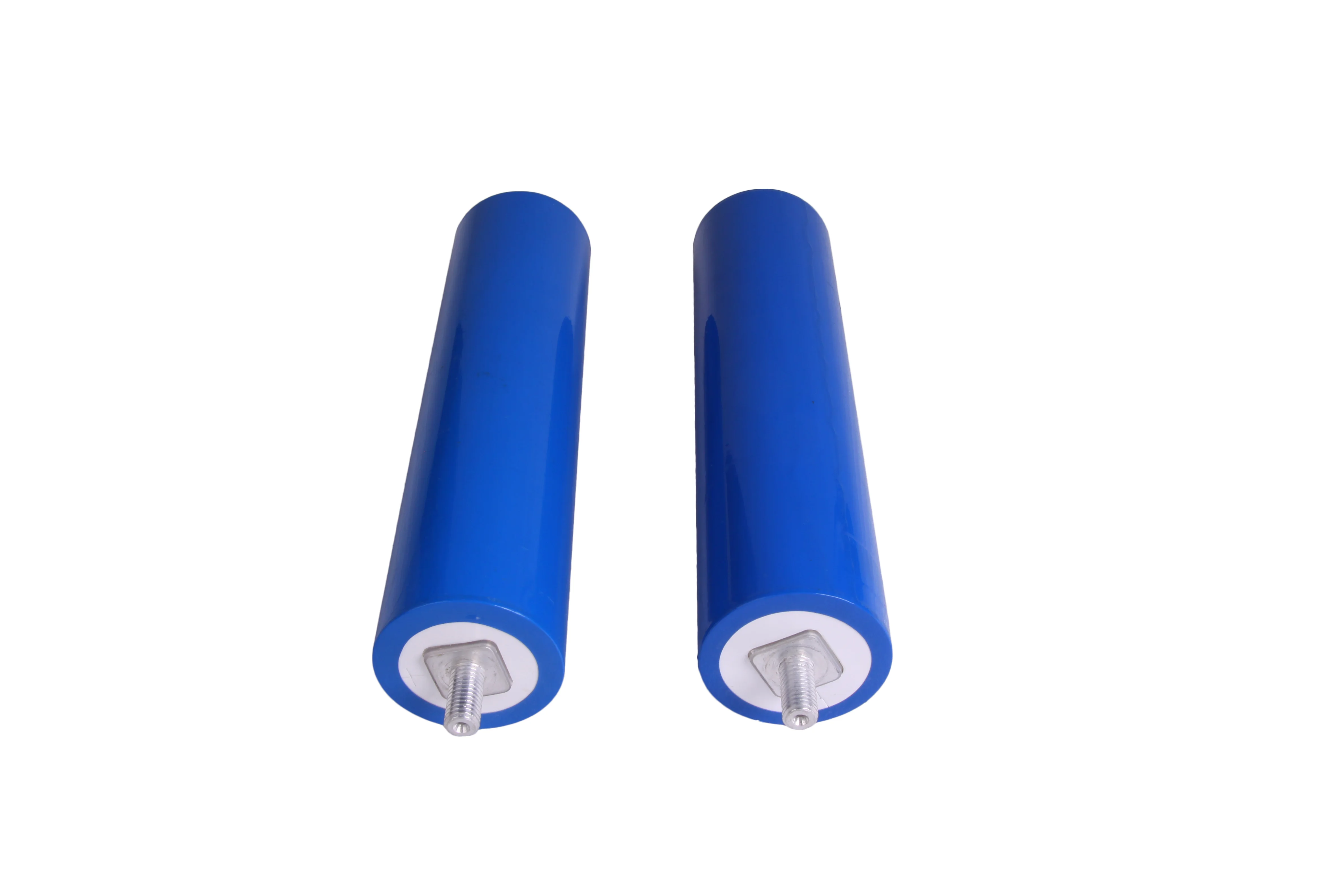

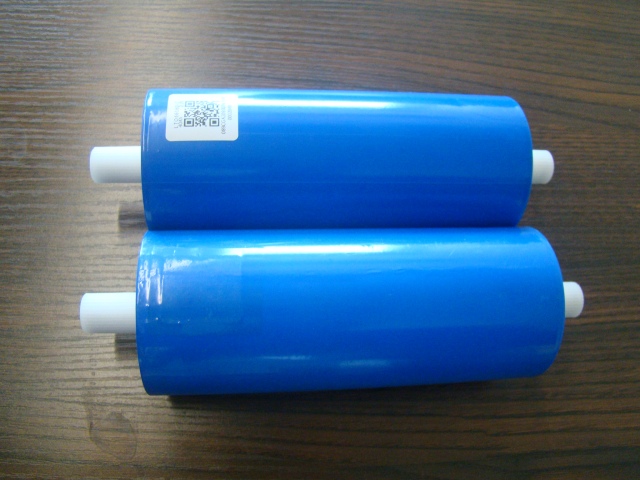

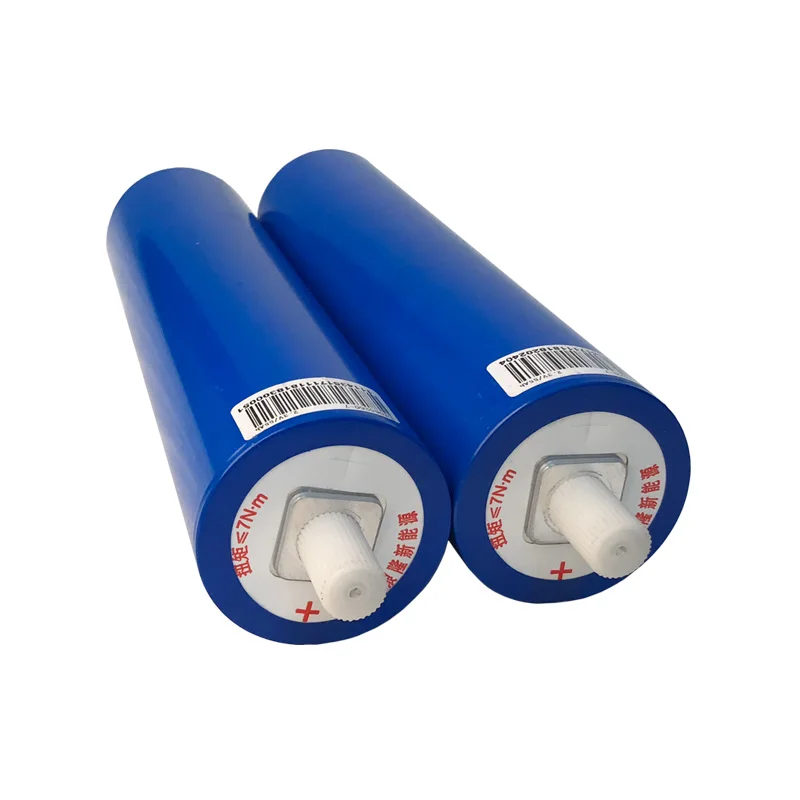

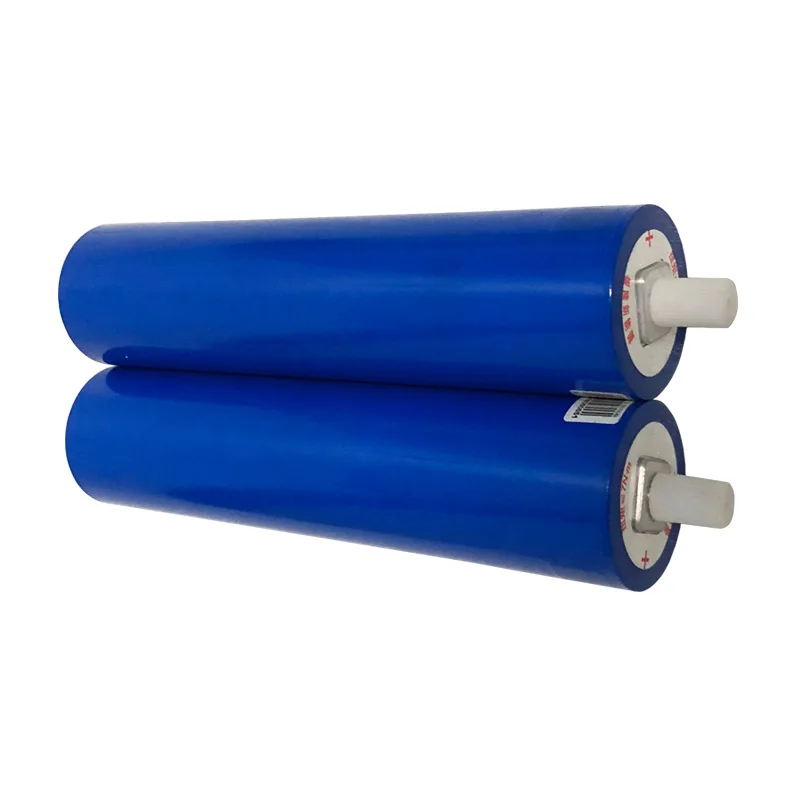

Name: 2.3V 45Ah LTO Cylindrical Battery Cell
Brand: Beian New Energy Co., Ltd.~Total Power Solution Provider
SKU: 1601718766741
Price: 52.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Description

Modle	LTO66160
Nominal Voltage	2.3V
Capacity	45Ah
Type	LTO
Size	*D66MML161mm**
Approx. Weight	1220g±20g
Weight Energy Density	75~80Wh/Kg
Cycle Life	＞25000 (@0.5C 25℃,100%DOD))
AC Internal Resistance	＜0.3mΩ
Standard Discharge Current	1C
Max continuous Discharge Current	10C
Max Pulse Discharge Current	20C(10s) @RT SOC>30%
Standard Charge Current	1C
Max Charge Current	10C
Application	Scooter, E Bike
Certification	CE, BIS/UN38.3/ISO9001/MSDS

Products Advantages

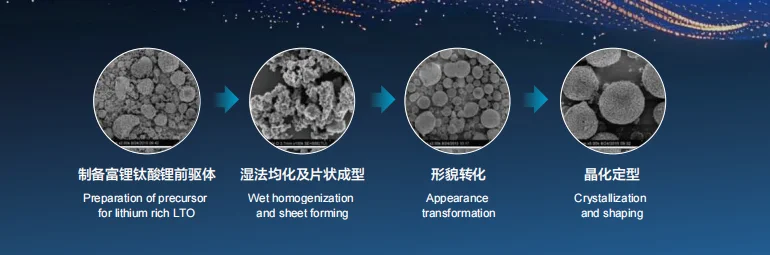

NANOSPHERE CRYSTALLIZATION TECHNOLOGY

Through nanosphere crystallization technology, lithium titanate materials are synthesized into solid, spherical particles with nanopores, which is good for the electrolyte penetration and retention, improving ion’s transmission at the crystal interface and the electrolyte, reducing the internal resistance of the battery meanwhile increasing the battery C rate performance, improving the power density and structural stability

HIGH SAFETY

Multidimensional protection No fire, no explosion

By precise selection and design of battery’s raw materials, we ensure multi-dimensional protection for battery. By more than ten extreme safety tests, we continuously optimize safety performance to create high safety battery

FAST CHARGING AND DISCHARGING

Ultra fast charging and discharging in 6 minutes

Innovating lithium battery material technology builds micro high-speed ion bridges, which accelerate ion mobility in active materials and conductive agents, thus optimizes material conductivity. The use of high-quality highly conductive current collectors further improves battery’s C rate performance.

WIDE WORKING TEMPERATURE

Operates in ultra wide temperature from -50℃ to 60℃

With spinel structure for negative electrode, which has a
three-dimensional lithium-ion diffusion channel, Gree Altairnano’s battery shows excellent performance in high and low temperatures, solving ordinary lithium battery’s problem of abnormal charging and discharging at low temperatures.

LONG WORKING LIFE

Charge & discharge cycle of more than 25000 times

The LTO battery has stable material structure performance. During the charging and discharging process, the connection/break away movements of lithium ions almost do not cause changes in the crystal
structure, thus LTO is known as "zero strain materials". With better cycle stability, in theory LTO battery has a service life of nearly 30 years.

Product Applications

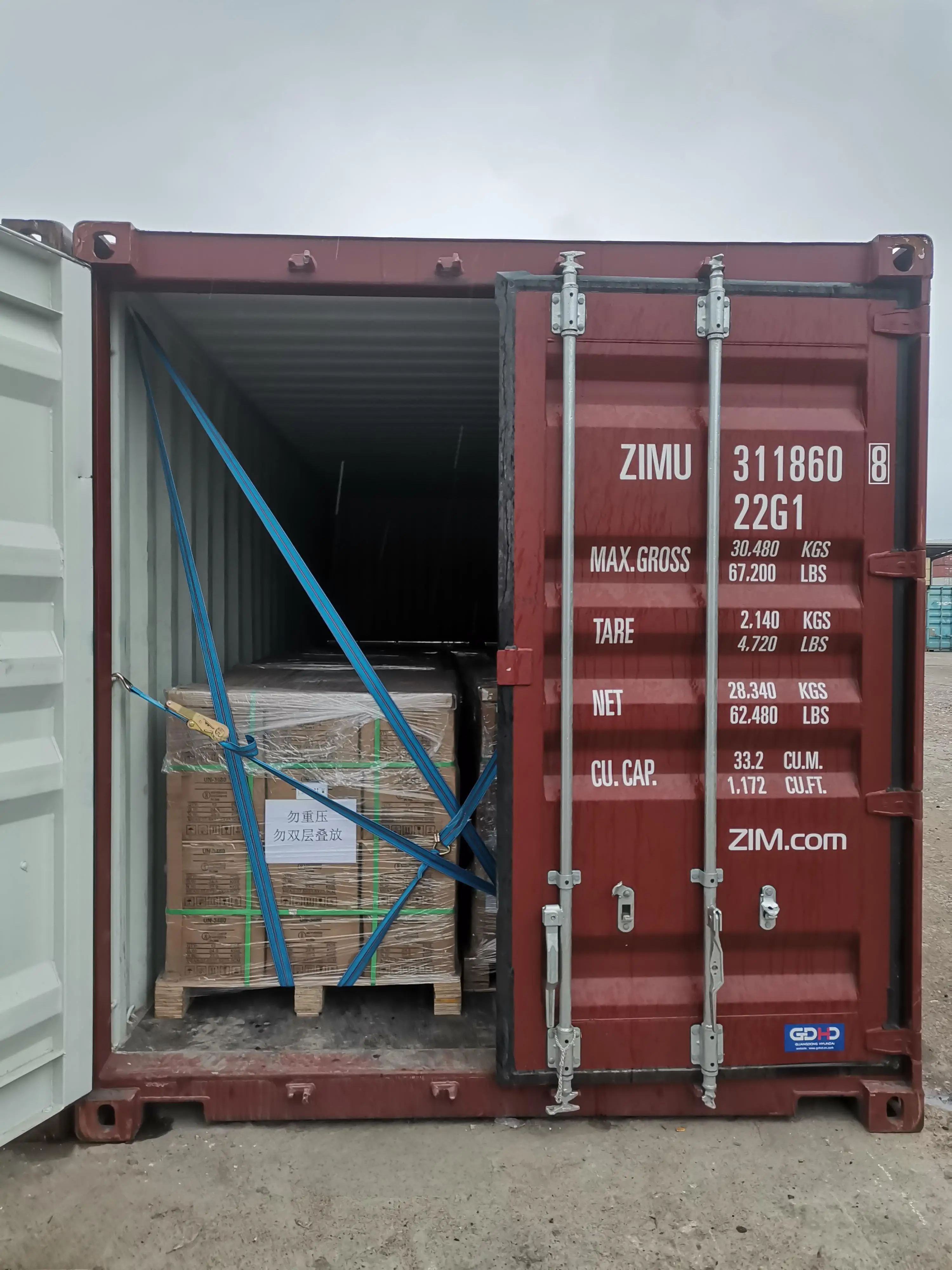

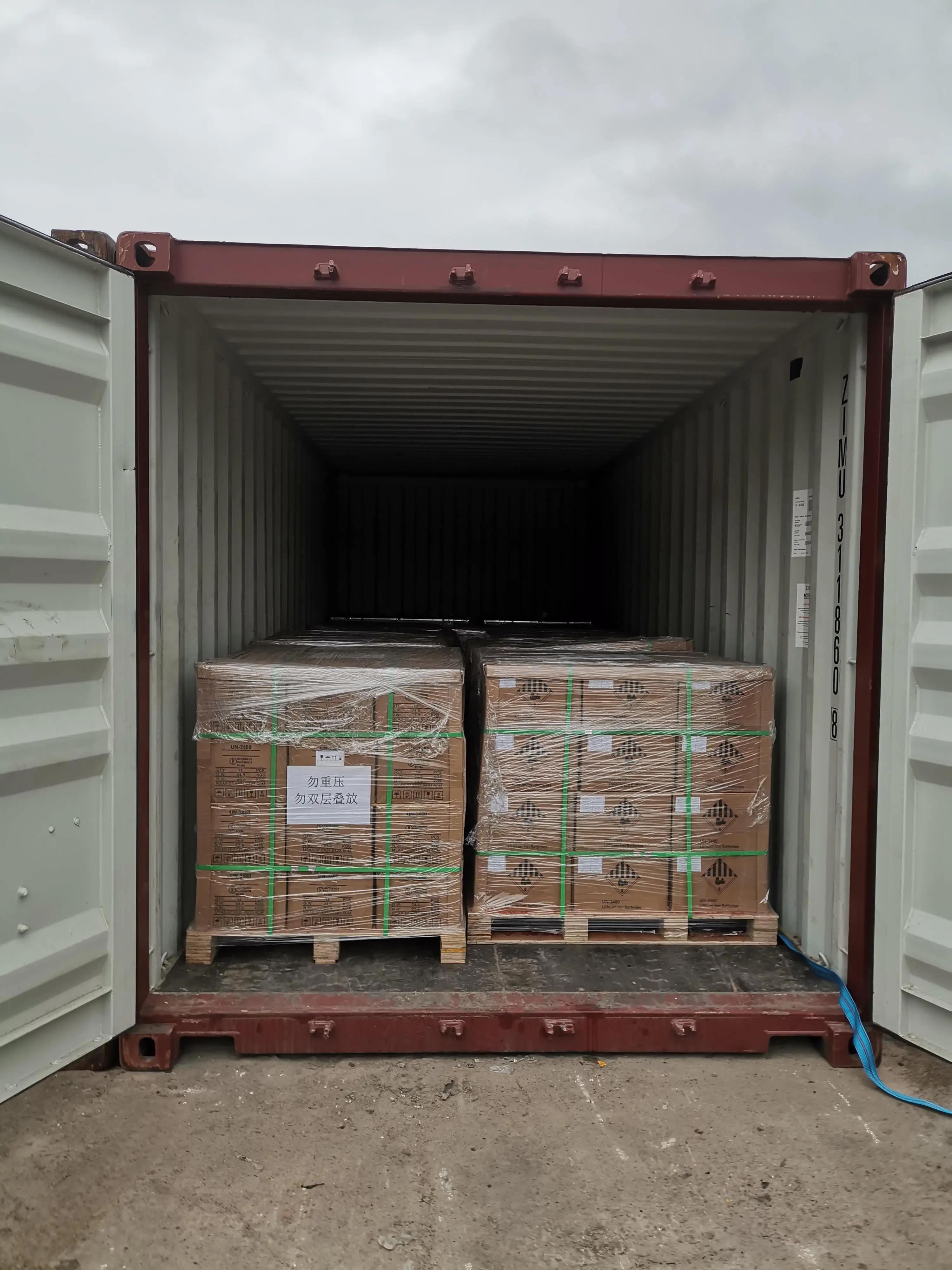

Safe Guarantee for Shipping

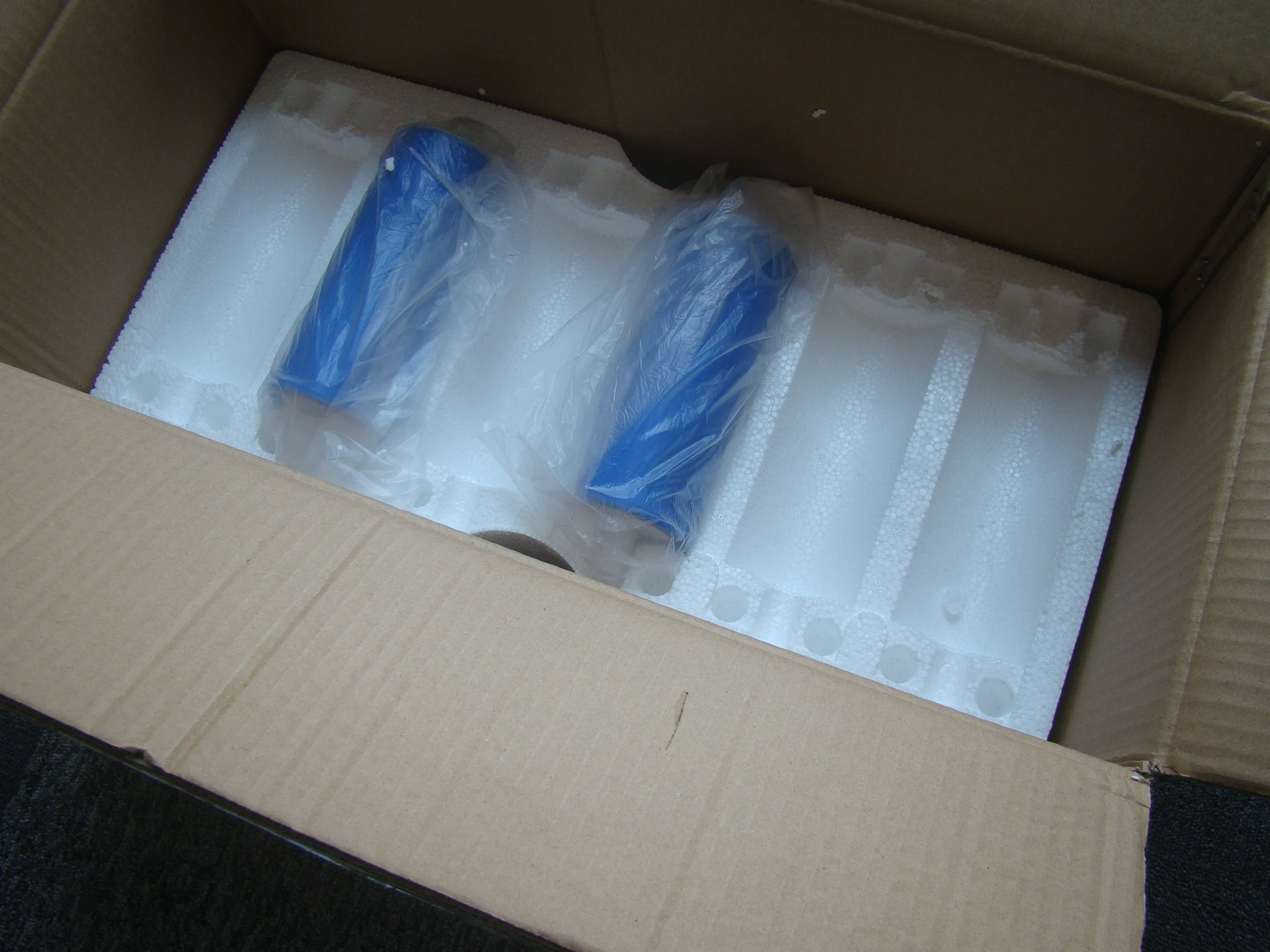

* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated UN Certified carton
* Positive and negative with insulation
* We will label test data on each package before delivery
* If customer have requirement, we can provide Wooden Packing

Our Company

Our Advantages

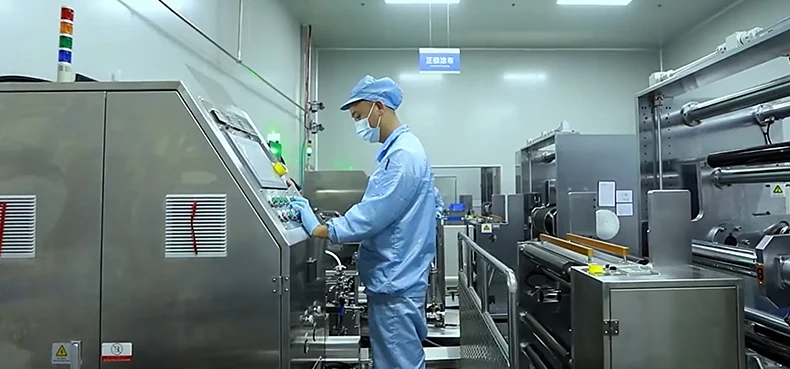

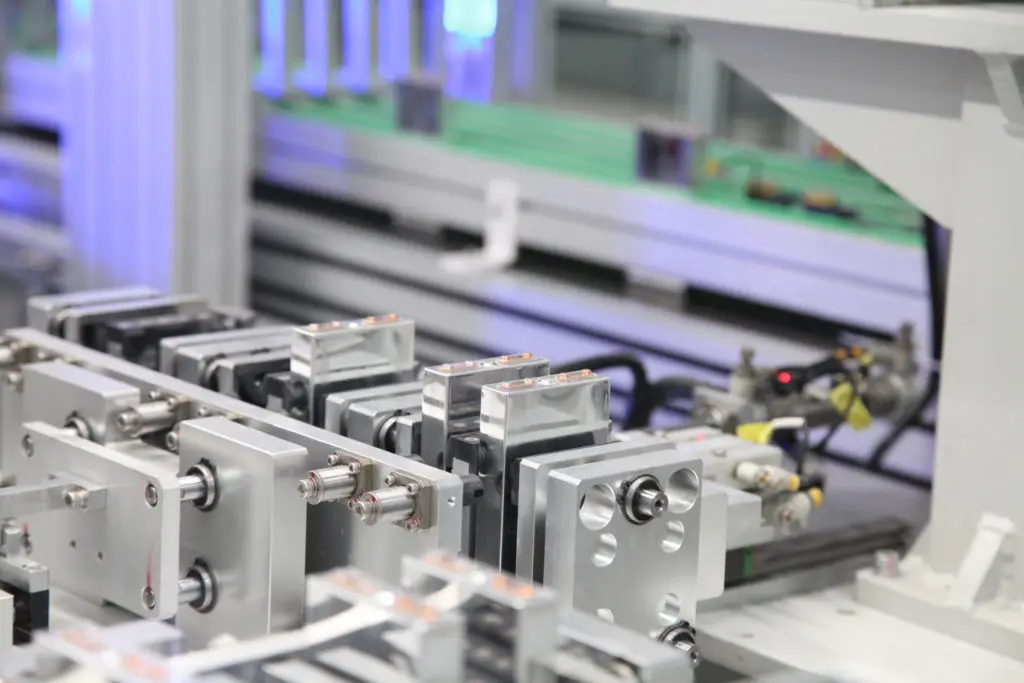

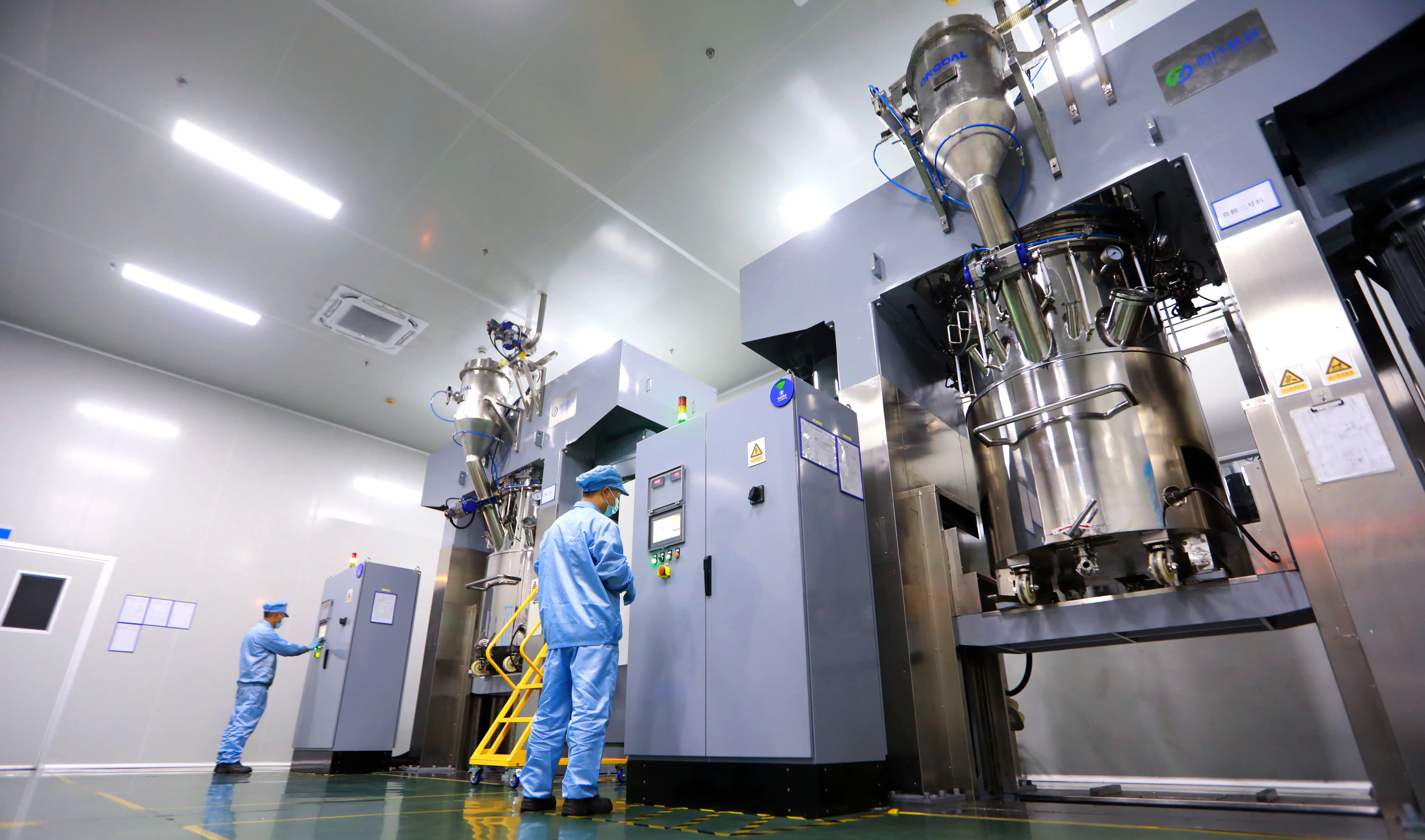

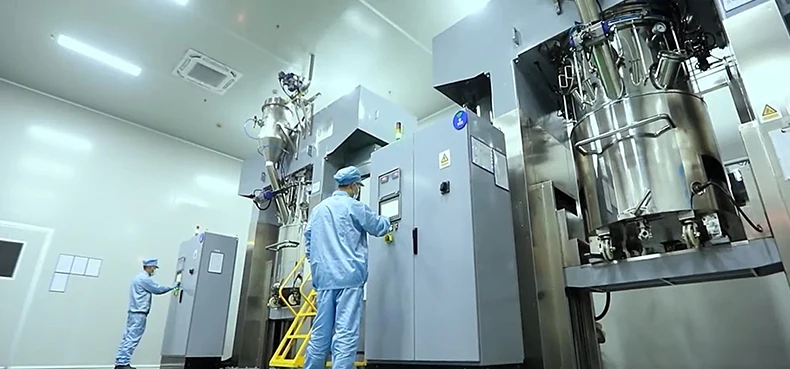

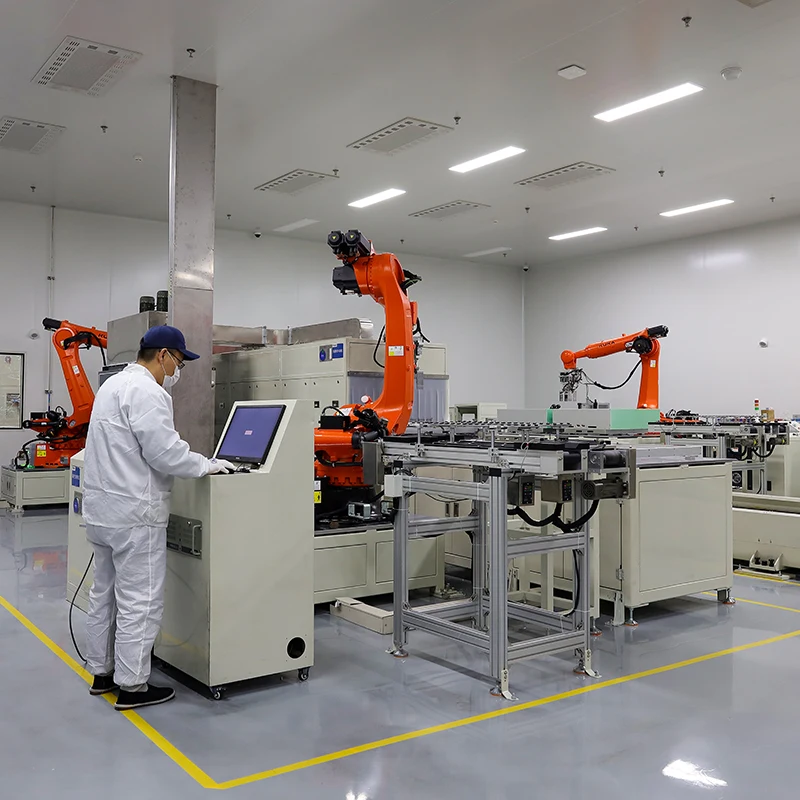

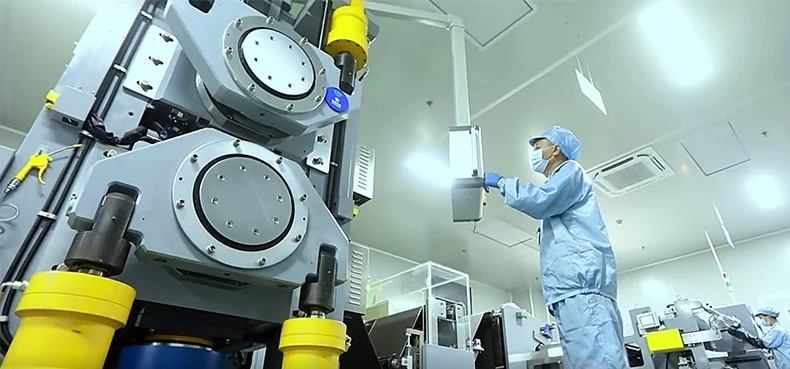

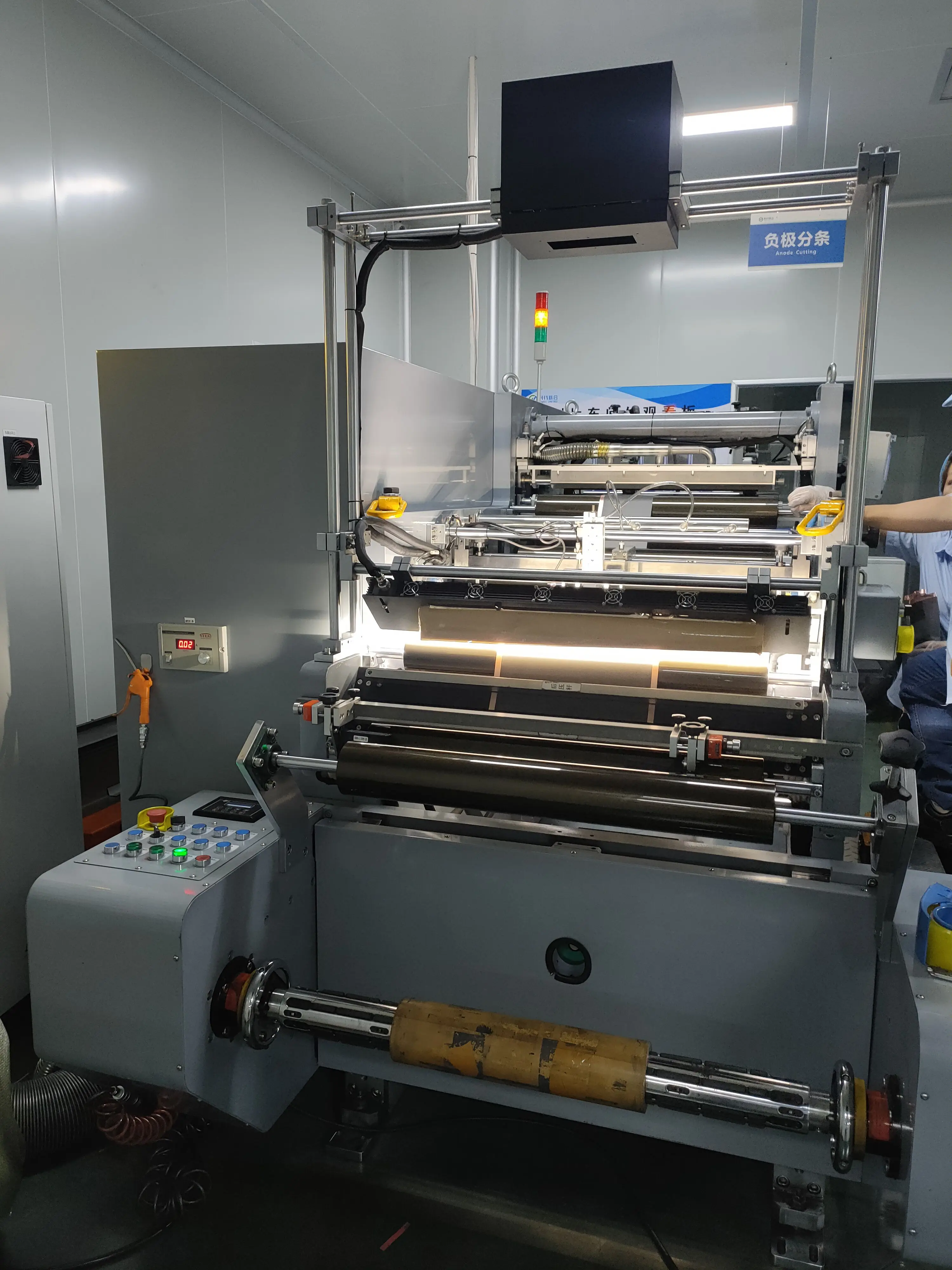

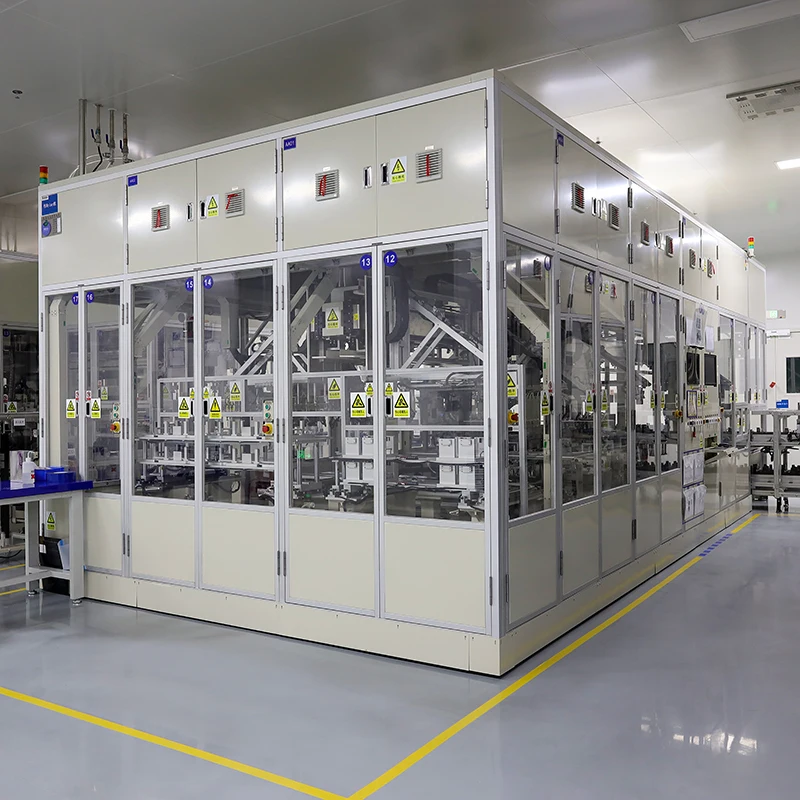

High standard dust-free clean room

Professional technical personnel

High standard quality testing

Operate As to SOP specifications

FAQ

Q1. are your batteries brand new?
Yes, our batteries are Grade A, brand new, can be used in EV, Forklift, Golf Cart and ESS.
Q2. Do you have cheaper battery?
We will give you the best price, for more safety, we must guarantee that our batteries are brand new.
Q3. Does the battery have certification?
Battery have different certifications for different countries, please contact us for a certificate.
Q4. Can we connect different lithium battery packs in parallel or in series by ourselves?
Yes. Batteries can be connected in parallel or in series by the customer. Contact us and we will provide you with a design plan
and accessories list.
Q5.How are battery soldered?
We recommend using laser welding. If you do not have laser welding equipment, please contact us, we will provide you with a
solution.
Q6. What is your warranty?
We offer 1~5 years warranty depend on different products.
Q7:What is your terms of payment?
T/T recommended, Paypal and Western Union acceptable.

1> Sample order: Full payment made when PI received. 2> Mass production
order:30% down payment when PI received, 70% before shipment.
Q8. How do you ship the lithium battery?
We can ship by express through Fedex, UPS, TNT,DHL etc, we can also ship by air or by sea, by sea is cheaper.
