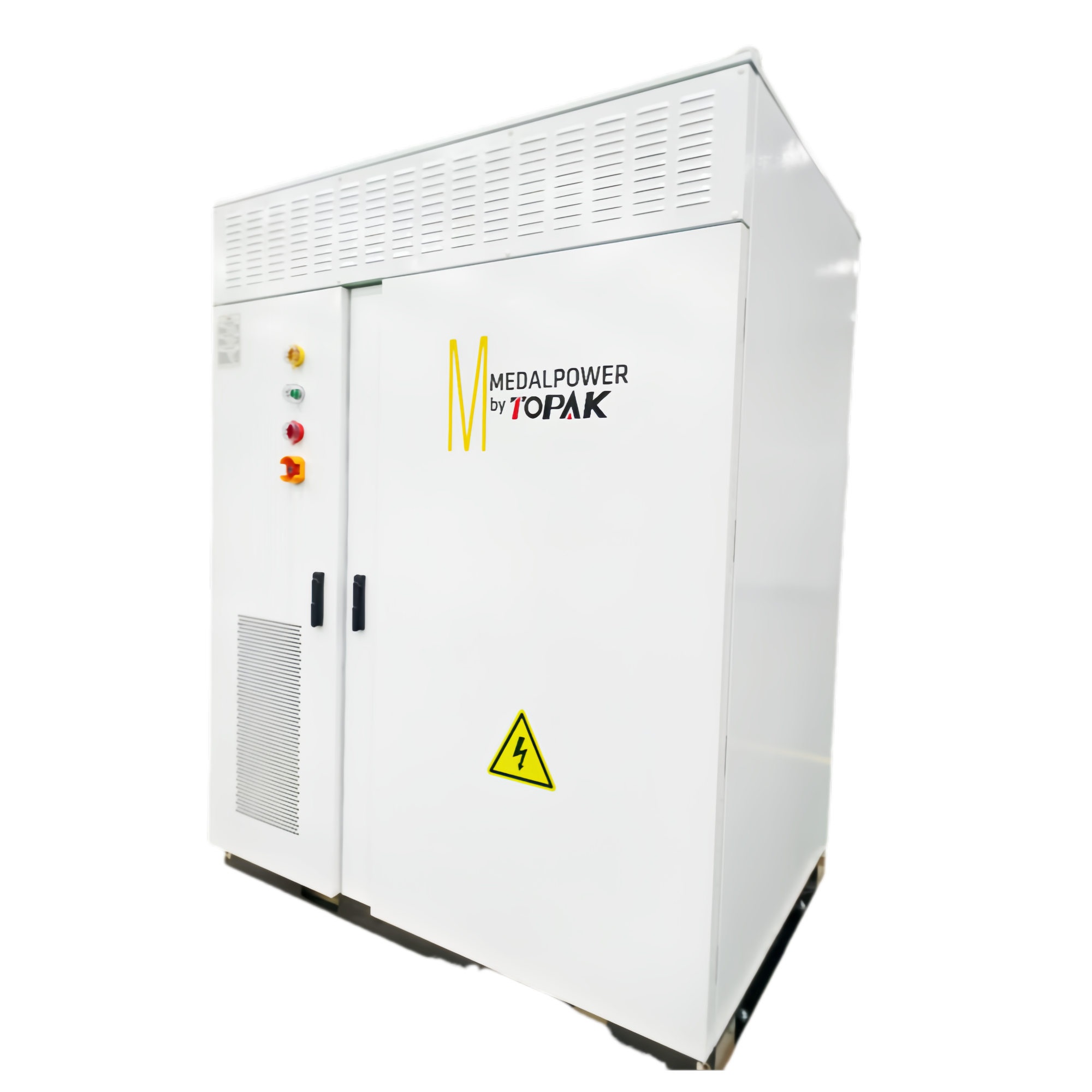

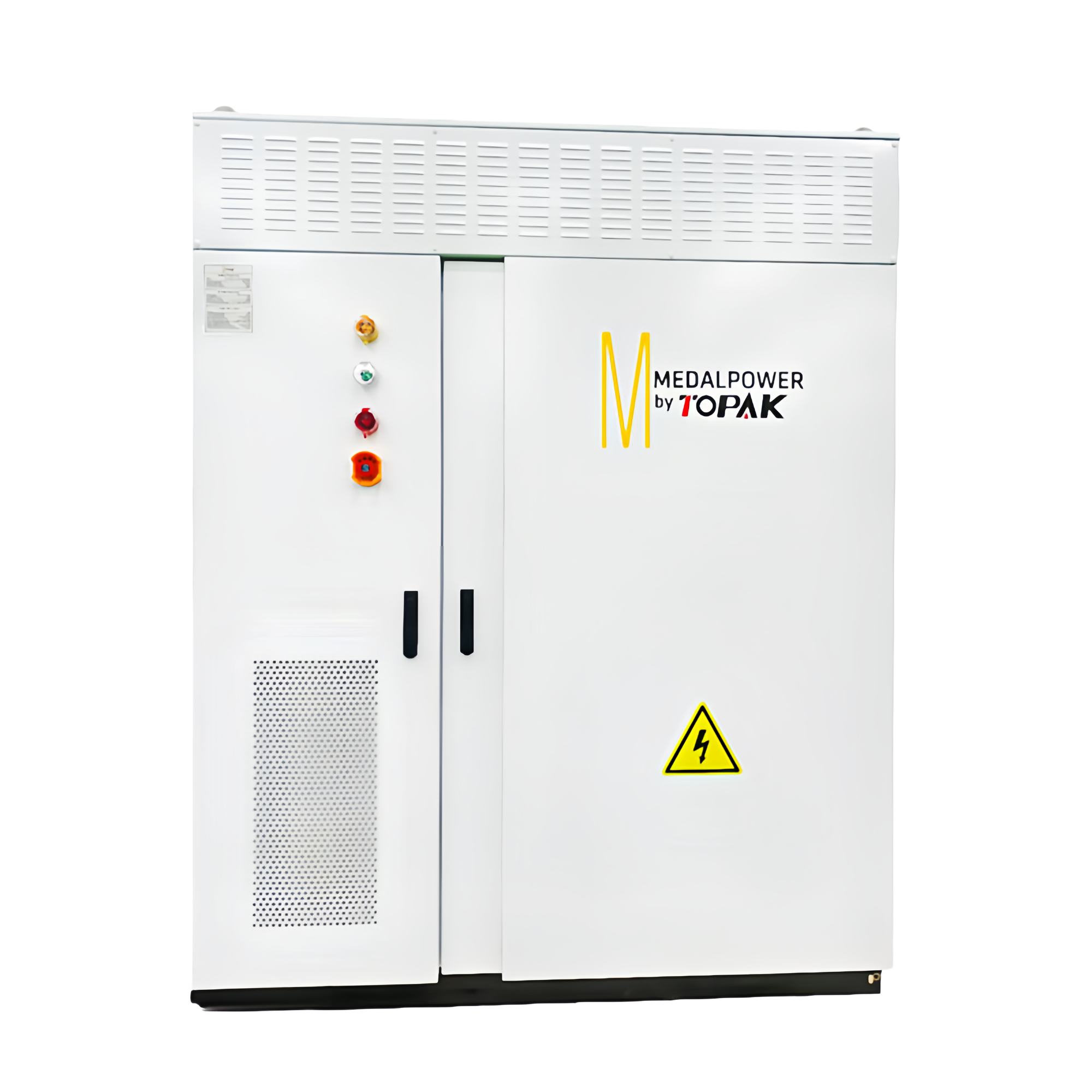

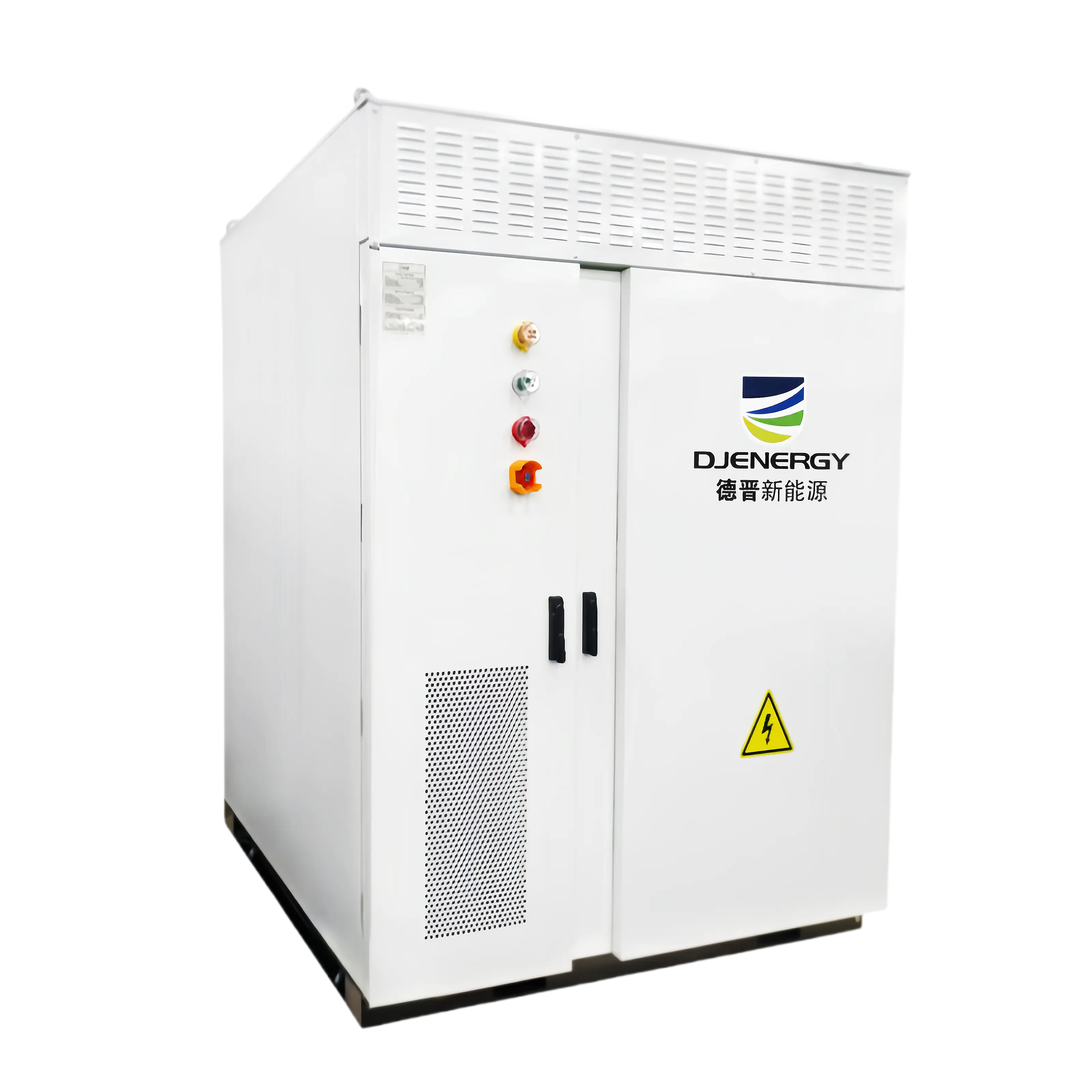

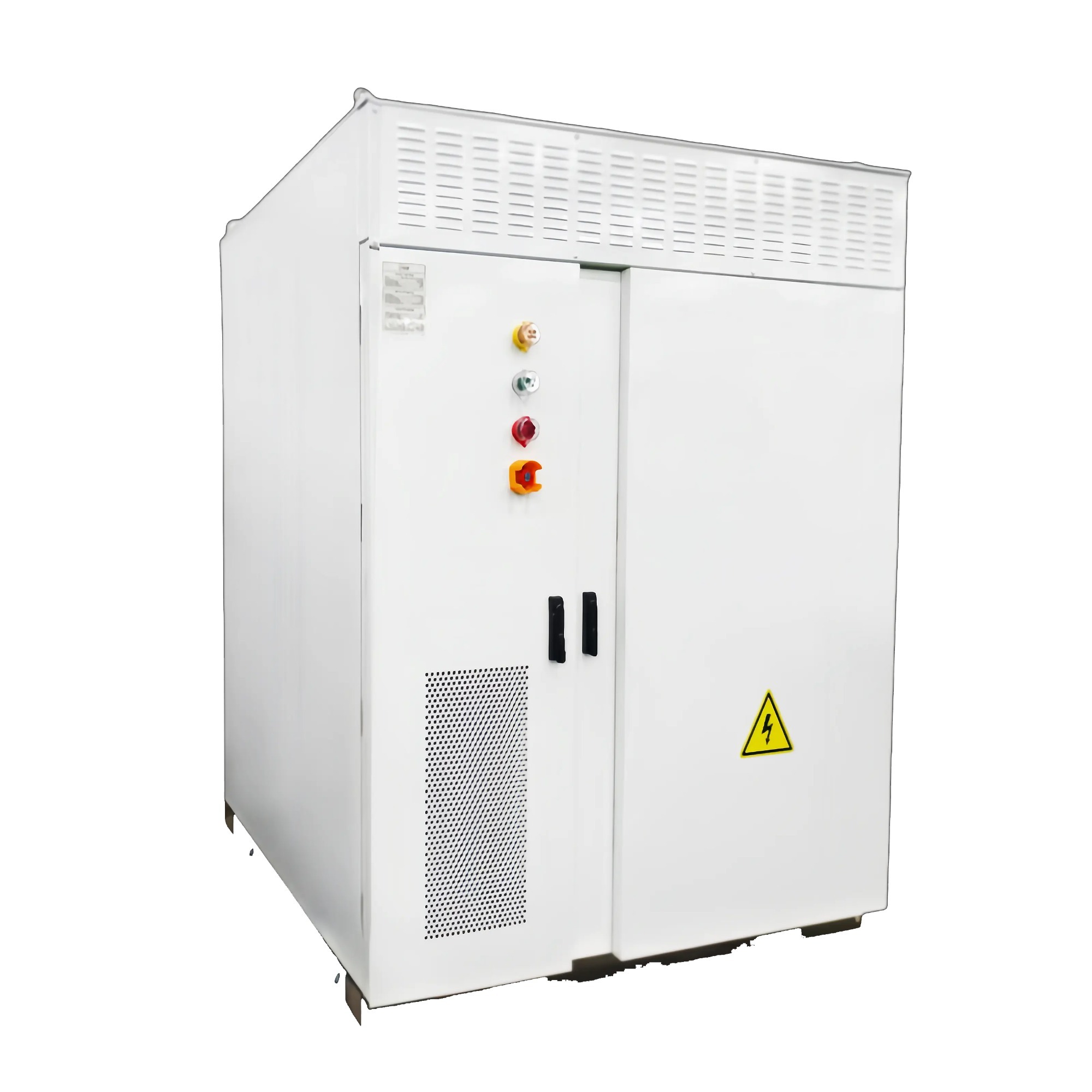

| Item | 100KW/174KWh Smart All-in-one ESS |
| Cell Type | 3.2V/206Ah |
| System Battery Configuration | 1P264S |
| Rated Capacity of Battery | 206Ah |
| Rated System Eenergy | 174KWh |
| Battery Voltage Range | 686.4-950V |
| Rated Power on AC Side | 100kW |
| AC Side Current Distortion Rate | <3%(At rated power) |
| DC Component | <0.5% |
| Rated Voltage on AC Side | 230/400V |
| Power Factor |
>0.99（At rated power） |
| Rated Grid Frequency | 50Hz/60Hz |
| Battery Cabinet Size (Width x Height x Depth) |
1715*2175.5*1228mm |
| Weight of Energy Storage Cabinet |
2.15t |
| IP Grade | IP54 |
| Operating Temperature Range |
（-30℃~50℃） |
| Operating Humidity Range | 0~95% |
| Maximum Working Altitude |
≤2000m |
| Battery Temperature Control Method |
Forced air cooling |
| Converter Cooling Method |
Forced air cooling |
| Fire Protection System (Energy Storage Cabinet) |
Aerosol |
| System Communication Interface |
Ethernet、RS485、CAN |
| Cell Type | 3.2V/206Ah |
| System Battery Configuration | 1P264S |
| Rated Capacity of Battery | 206Ah |
| Rated System Eenergy | 174KWh |
| Size | 1715*2175.5*1228mm |
| Weight of Energy Storage Cabinet |
2.15t |

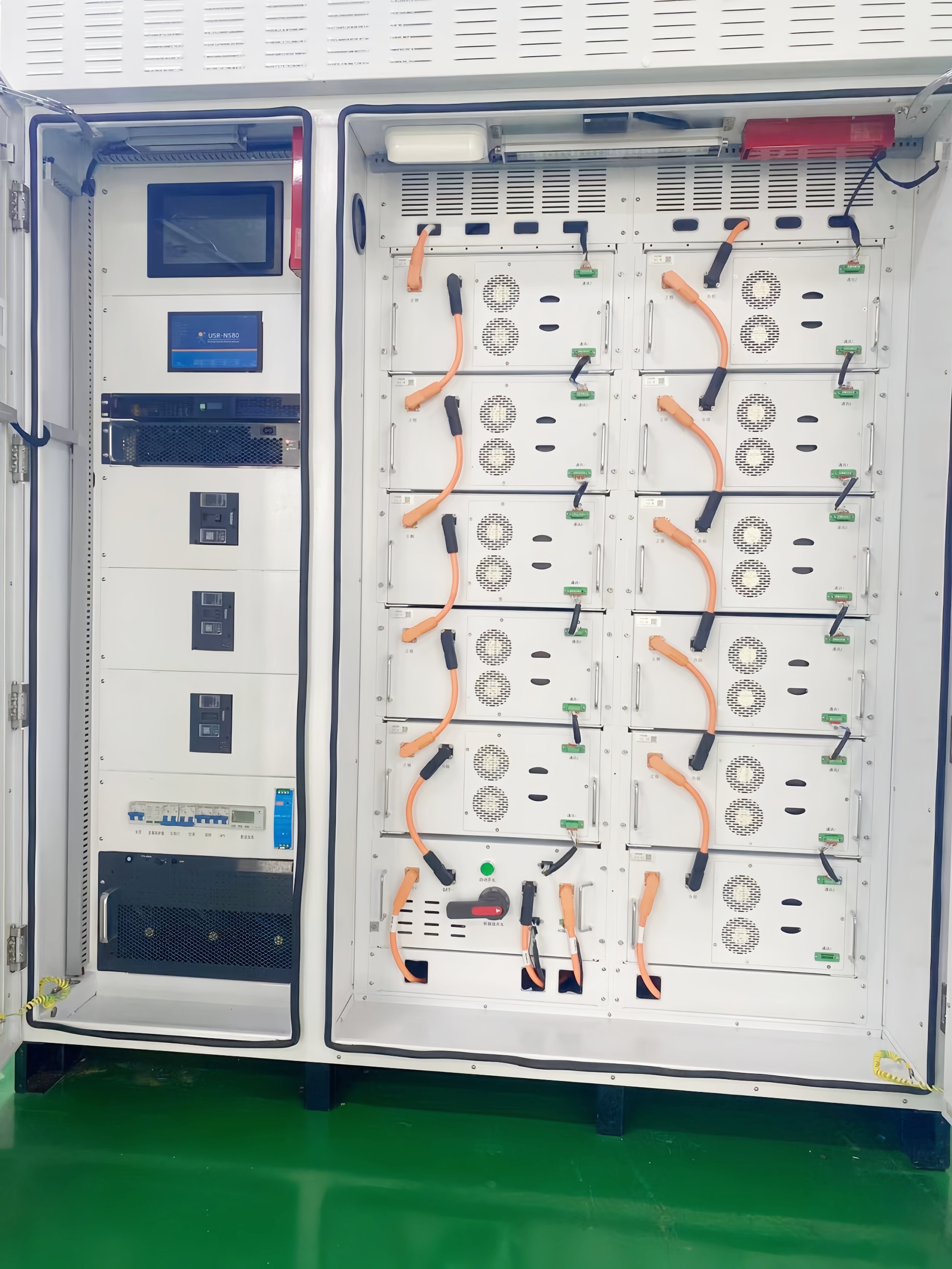

| Details of the picture |
